Product Overview

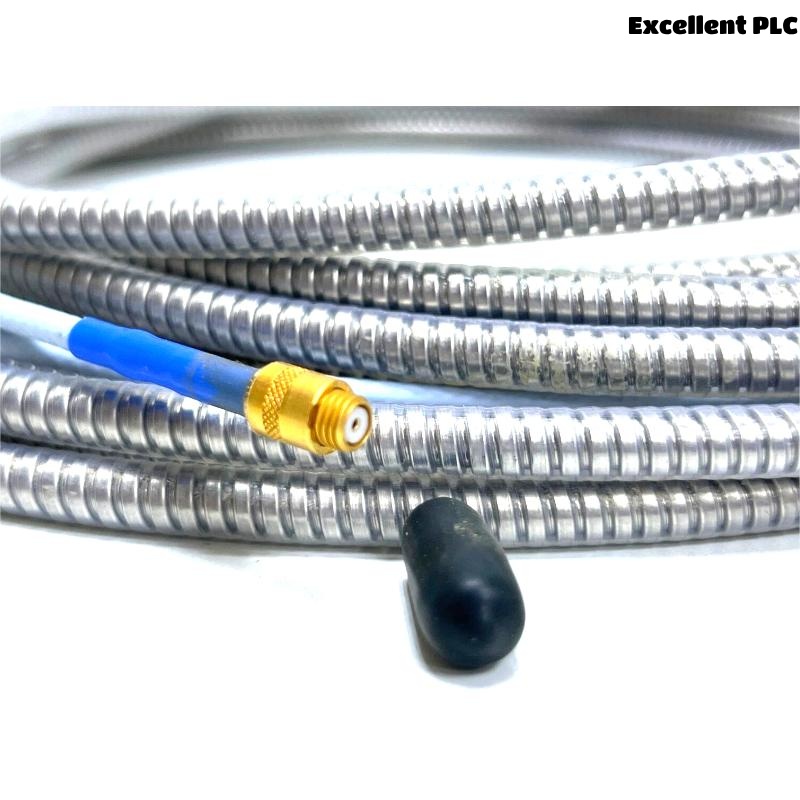

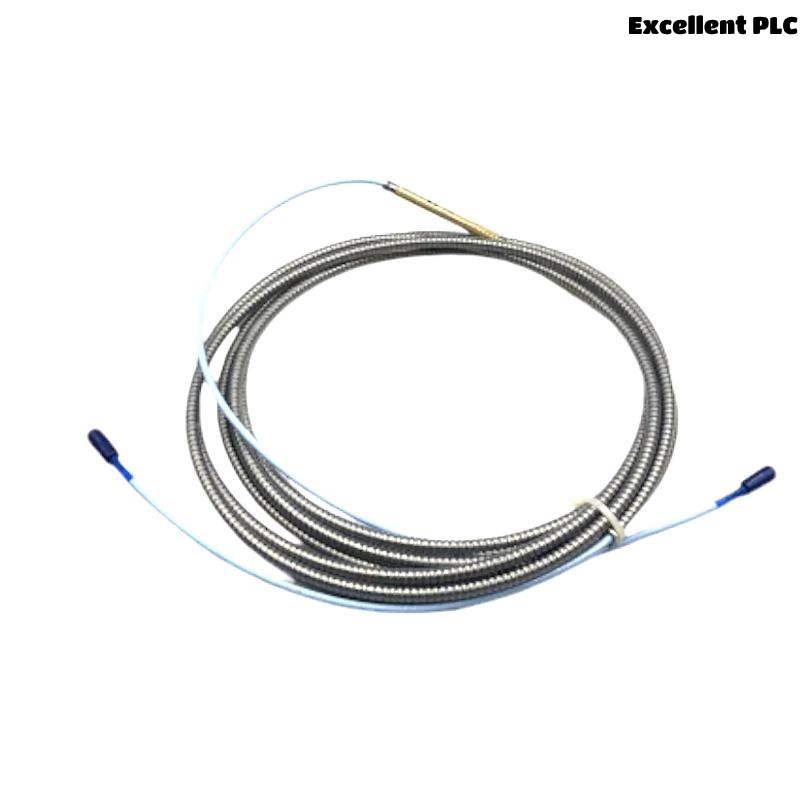

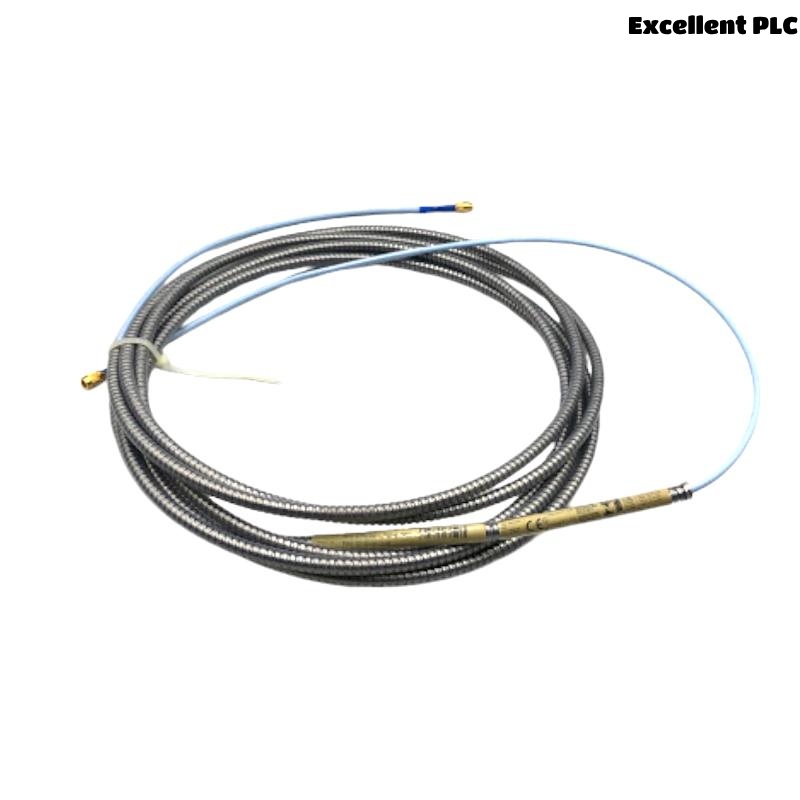

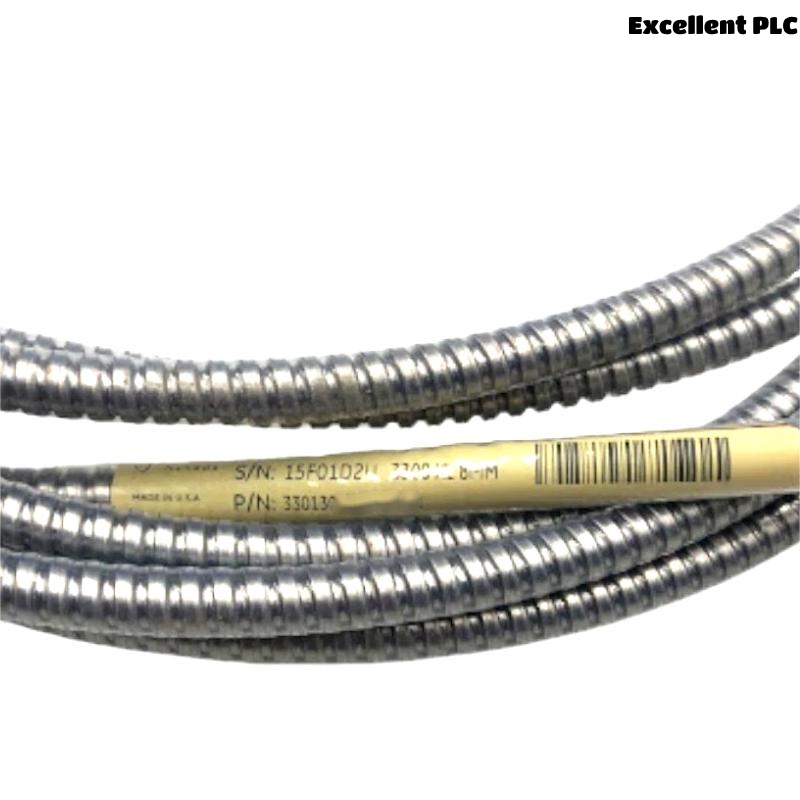

The Bently Nevada 330130-040-11-05 is a 4.0-meter extension cable designed for use with the 3300 XL 8 mm Proximity Transducer System. It ensures accurate signal transmission between the proximity probe and the Proximitor sensor, maintaining system performance in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 330130-040-11-05 |
| Cable Length | 4.0 meters (13.1 feet) |
| Weight | 0.412 kg (0.91 lbs) |
| Core Resistance (RCORE) | 0.88 ± 0.13 Ω |
| Jacket Resistance (RJACKET) | 0.26 ± 0.05 Ω |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Insulation Material | Fluoroethylene Propylene (FEP) |
| Cable Type | 75Ω triaxial coaxial |
| Connector Type | ClickLoc gold-plated coaxial connectors |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Operating Temperature Range | –52°C to +177°C (–62°F to +350°F) |
Product Applications
-
Used in turbomachinery monitoring systems
-
Vibration and position monitoring of rotating machinery
-
Keyphasor® and overspeed measurement systems
-
Industrial environments requiring high EMI/RFI immunity
-
Applications where precise signal integrity is critical
Product Advantages
-
Rugged and durable: FEP insulation and reinforced connectors enhance mechanical strength.
-
Interchangeable design: Fully compatible with 3300 XL Proximitor sensors and probes.
-
Reliable signal transmission: Maintains consistent performance even in high-noise environments.
-
Easy installation: ClickLoc connectors simplify assembly without tools.
-
Extended operating range: Suitable for high-temperature industrial settings.
-
Optional armor and FluidLoc: Available for environments requiring fluid ingress protection.
FAQ
Q1: What system is the 330130-040-11-05 cable compatible with?
A1: It is designed for use with the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
Q2: What is the length of this extension cable?
A2: The cable length is 4.0 meters (13.1 feet).
Q3: Is the cable resistant to oil or fluid ingress?
A3: Yes, the FluidLoc version provides fluid ingress protection. This model supports compatibility with it.
Q4: Can it be used in high-temperature applications?
A4: Yes, the standard cable is rated up to +177°C, with optional ETR versions rated up to +260°C.
Q5: What type of connector is used?
A5: It uses gold-plated ClickLoc connectors, which secure with a click and require no special tools.
Q6: Is the cable shielded for EMI/RFI protection?
A6: Yes, the 75Ω triaxial cable design provides excellent electromagnetic interference immunity.
Q7: Does this cable require calibration?
A7: No, the 3300 XL system components are fully interchangeable and factory calibrated.
Q8: What is the bend radius requirement?
A8: The minimum bend radius for installation is 25.4 mm (1.0 inch).
Q9: How is the cable attached to the probe and sensor?
A9: Via ClickLoc connectors, which are robust and designed for easy installation.
Q10: Is it certified for use in hazardous environments?
A10: Yes, versions with appropriate approval options meet ATEX, IECEx, and CSA certifications.
Related Models from the Same Series
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 330130-030-00-00 | Standard Extension Cable | 3.0 m | 0.309 kg |
| 330130-035-00-00 | Standard Extension Cable | 3.5 m | 0.360 kg |
| 330130-045-00-00 | Standard Extension Cable | 4.5 m | 0.464 kg |
| 330130-060-00-00 | Standard Extension Cable | 6.0 m | 0.618 kg |
| 330130-070-00-00 | Standard Extension Cable | 7.0 m | 0.721 kg |
| 330130-085-00-00 | Standard Extension Cable | 8.5 m | 0.876 kg |
