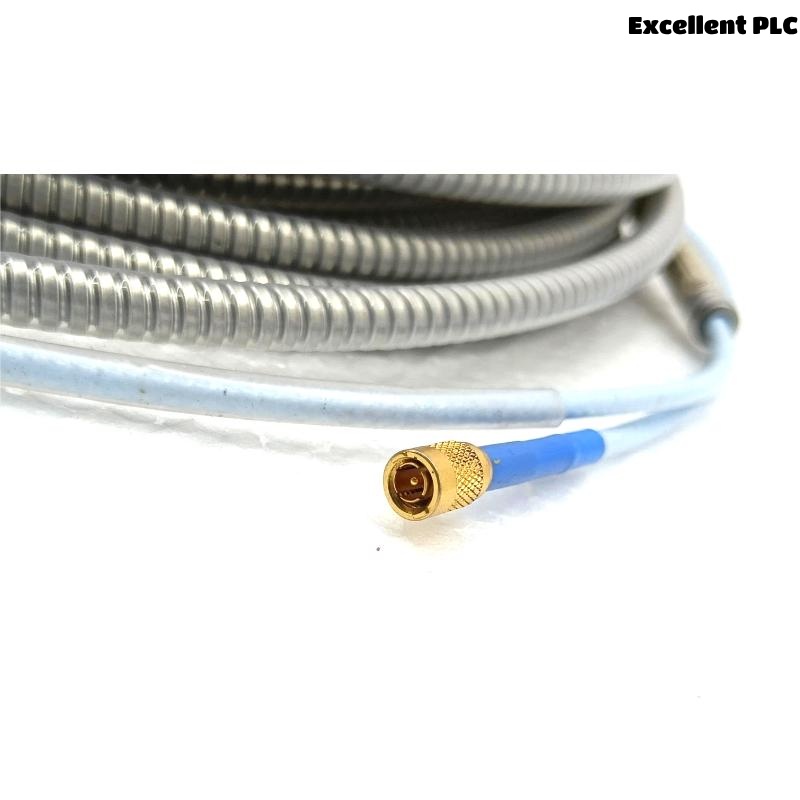

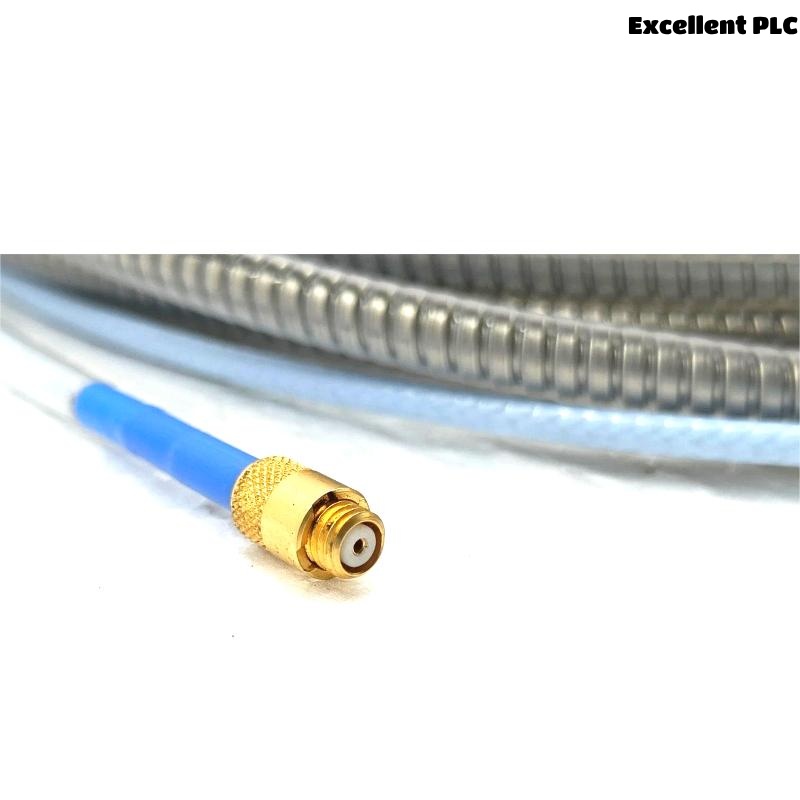

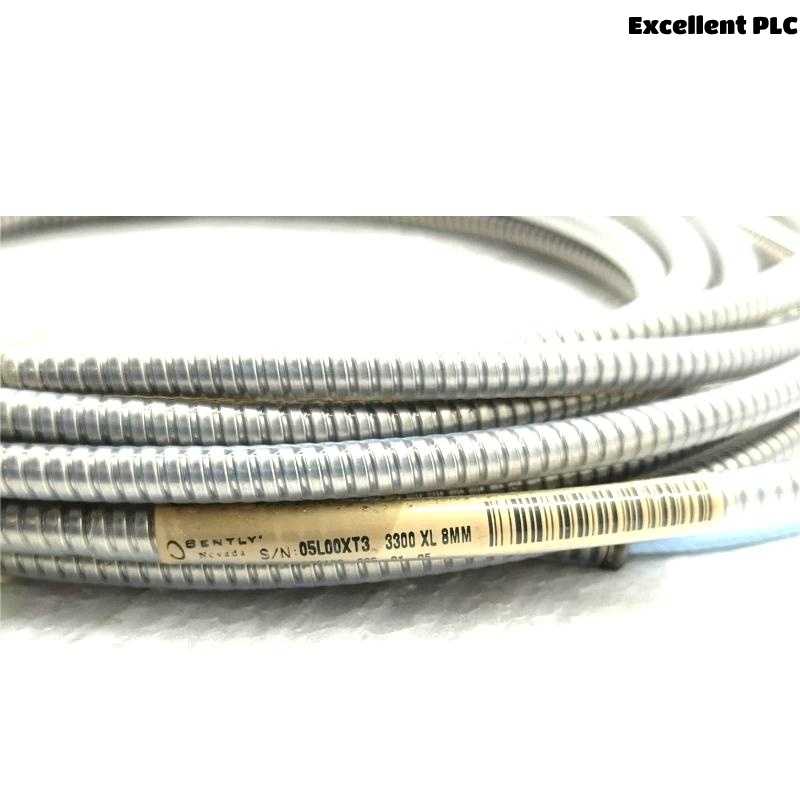

Bently Nevada 330130-065-01-05 3300 XL Standard Extension Cable
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Bently Nevada 330130-065-01-05 is part of the 3300 XL 8 mm Proximity Transducer System. This extension cable transmits signals between the proximity probe and the Proximitor Sensor. Designed for industrial-grade machinery condition monitoring, it ensures high fidelity signal transfer for both static and dynamic measurements such as vibration, position, and speed.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Standard Extension Cable |
| Part Number | 330130-065-01-05 |
| Cable Length | 6.5 meters |
| Weight | 0.67 kg |
| Cable Type | Triaxial, FEP insulated |
| Connector Type | Miniature ClickLoc (gold-plated) |
| Bend Radius (Min) | 25.4 mm (1.0 in) |
| Capacitance | ~69.9 pF/m |
| Operating Temperature Range | -52°C to +177°C |
| Jacket Resistance (Typical) | ~0.42 Ω at 6.5 m |
| Core Resistance (Typical) | ~1.43 Ω at 6.5 m |
| Environmental Rating | IP54 with connector protector |
Applications
-
Vibration and position monitoring of rotating machinery
-
Turbine shaft displacement measurement
-
Industrial predictive maintenance systems
-
Keyphasor® signal transmission
-
Compatibility with standard and extended temperature probe systems
Key Advantages
-
High Reliability: ClickLoc gold-plated connectors prevent loosening and ensure corrosion resistance.
-
Durability: Pull-resistant CableLoc design withstands 330 N of tensile strength.
-
Environmental Protection: Optional connector protectors enhance IP rating and field robustness.
-
Interchangeability: Fully compatible with other 3300 XL series components.
-
Ease of Installation: No special tools required, supports flexible routing.
-
Temperature Range: Operates reliably across wide thermal environments.
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330130-065-01-05 cable?
A1: It connects the proximity probe to the Proximitor Sensor for accurate signal transmission.
Q2: Can this cable be used with extended temperature range (ETR) probes?
A2: Yes, it is compatible, but system accuracy will match the ETR component.
Q3: Does it require calibration with the probe?
A3: No calibration is needed; the cable is interchangeable within the XL system.
Q4: How is the cable protected against mechanical stress?
A4: It features a CableLoc design with 330 N tensile strength for secure bonding.
Q5: What is the connector type used?
A5: Miniature gold-plated coaxial ClickLoc connectors with an optional protector.
Q6: What temperature can this cable withstand?
A6: The standard version operates between -52°C and +177°C.
Q7: Is shielding provided?
A7: Yes, it uses a triaxial cable to minimize electrical noise and interference.
Q8: Can this cable be armored?
A8: Yes, armored versions are available under different ordering codes.
Q9: Is it compatible with non-XL 3300 systems?
A9: Yes, it is electrically and physically interchangeable with legacy 3300 components.
Q10: What happens if the cable is bent below the minimum bend radius?
A10: It may damage internal conductors and degrade performance.
Recommended Related Models (Same Series or Type)
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330130-060-00-00 | Standard Extension Cable, 6.0 m | 6.0 m | ~0.62 kg |
| 330130-070-00-00 | Standard Extension Cable, 7.0 m | 7.0 m | ~0.71 kg |
| 330130-085-00-00 | Standard Extension Cable, 8.5 m | 8.5 m | ~0.87 kg |
| 330190-065-00-00 | ETR Extension Cable, 6.5 m | 6.5 m | ~0.67 kg |
| 330130-045-00-00 | Standard Extension Cable, 4.5 m | 4.5 m | ~0.49 kg |
| 330130-030-00-00 | Standard Extension Cable, 3.0 m | 3.0 m | ~0.34 kg |
