Product Description

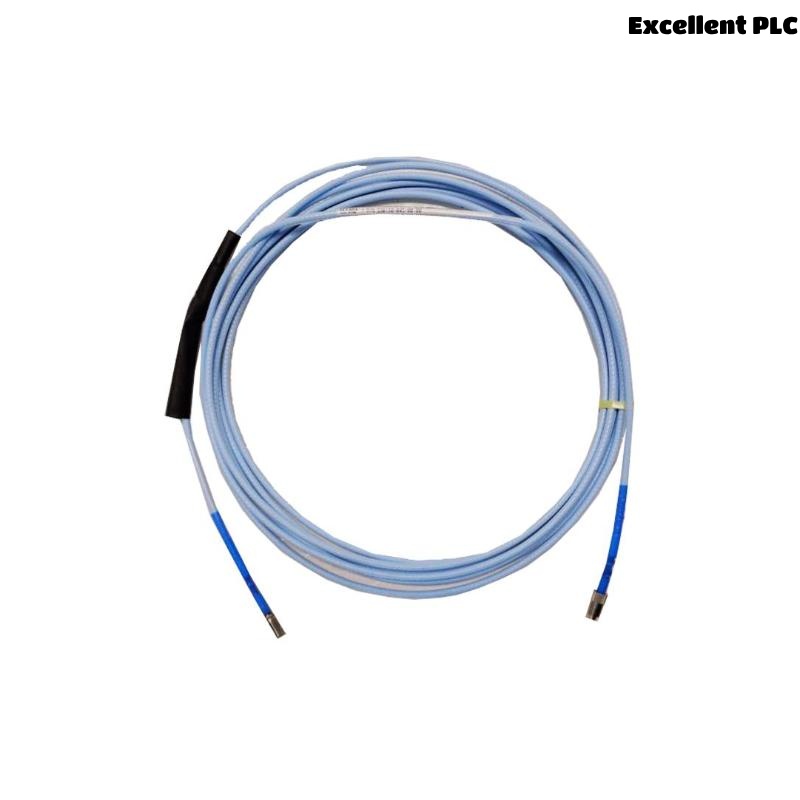

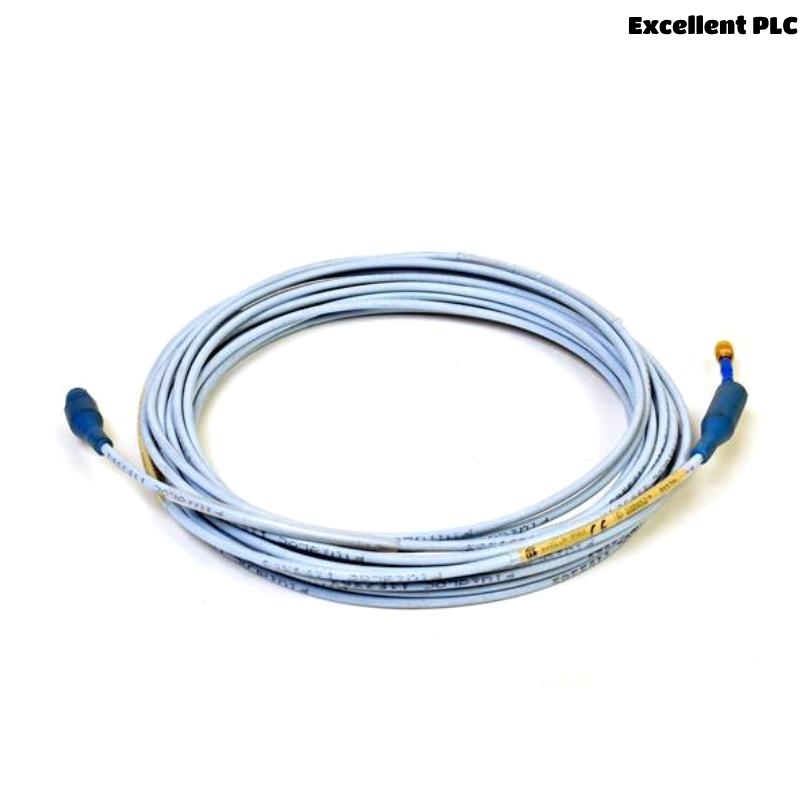

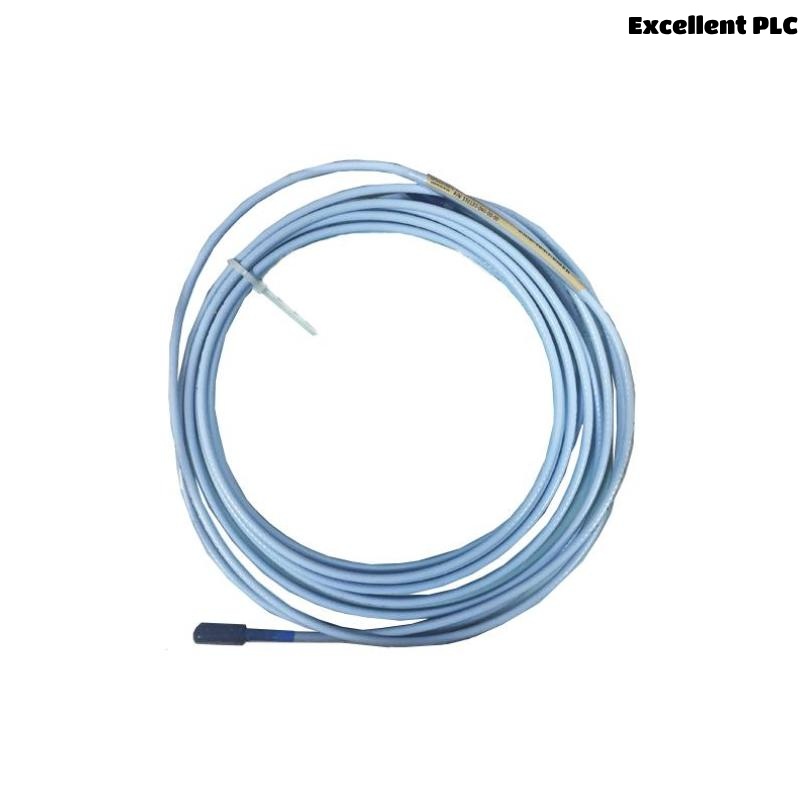

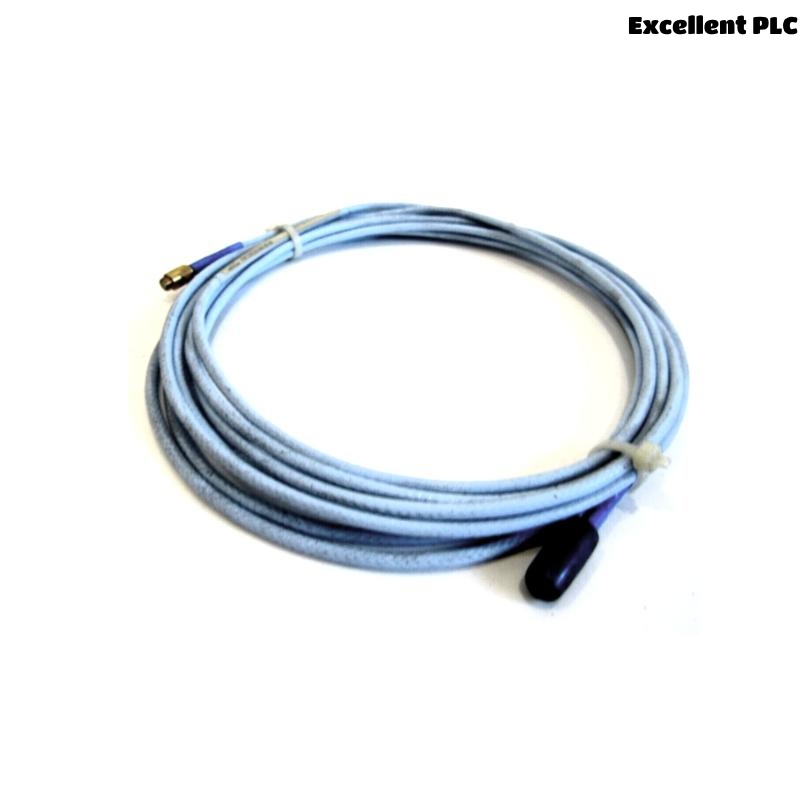

The Bently Nevada 330130-080-10-05 is a standard extension cable for use with the 3300 XL 8 mm Proximity Transducer System. Designed to maintain high integrity in demanding environments, this 8.0-meter cable ensures signal reliability between the probe and Proximitor Sensor. It supports both standard and extended temperature ranges and is built for robust field installation with options for environmental protection.
Product Features and Advantages
-
ClickLoc™ Connectors: Corrosion-resistant, gold-plated, finger-tight locking system.
-
High Pull Strength: Patented CableLoc® design with 330 N tensile strength.
-
Environmental Protection: Optional connector protectors and FluidLoc™ cable variant.
-
Interchangeable Components: Fully compatible with XL and non-XL 3300 systems.
-
Flexible Configuration: Supports armored, unarmored, and high-temp options.
Applications
-
Vibration monitoring of rotating machinery
-
Shaft position and speed measurement
-
Keyphasor® signal transmission
-
Industrial condition monitoring in turbines, compressors, and pumps
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 330130-080-10-05 |
| Cable Length | 8.0 meters |
| Cable Type | 75 Ω triaxial FEP insulated |
| Connector Type | Miniature coaxial ClickLoc™ |
| Capacitance | 69.9 pF/m typical |
| DC Resistance (RCORE) | 1.76 Ω ± 0.26 |
| DC Resistance (RJACKET) | 0.53 Ω ± 0.11 |
| Operating Temperature Range | –52°C to +177°C (Standard) |
| Extended Temp Range | Up to +260°C (with ETR option) |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Weight | 0.272 kg (for 8.0-meter standard cable) |
| Insulation Material | Fluoroethylene Propylene (FEP) |
FAQs
Q1: What is the function of the 330130-080-10-05 cable?
A1: It transmits signals from the 3300 XL 8 mm probe to the Proximitor Sensor with high integrity.
Q2: Can I use this cable in high-temperature environments?
A2: Yes, with the ETR version, it supports up to 260°C.
Q3: Is the cable compatible with non-XL 3300 components?
A3: Yes, it is backward compatible both electrically and physically.
Q4: Does it require special tools for connector installation?
A4: No, ClickLoc connectors are finger-tight with a built-in locking mechanism.
Q5: What’s the recommended bend radius for the cable?
A5: A minimum of 25.4 mm (1.0 inch) is required.
Q6: Is the cable shielded against EMI/RFI?
A6: Yes, the system design offers strong immunity to EMI/RFI.
Q7: Can the extension cable be armored?
A7: Yes, armored variants are available for added mechanical protection.
Q8: What environmental protection options are offered?
A8: Connector protectors and FluidLoc variants prevent oil ingress and environmental damage.
Q9: Is it suitable for hazardous areas?
A9: Yes, it meets CSA, ATEX, and IECEx standards when properly configured.
Q10: What is the cable’s total weight for 8 meters?
A10: Approximately 0.272 kg.
Related Models (Same Series)
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330130-060-00-00 | Standard Extension Cable, 6.0m | 6.0 m | 0.204 kg |
| 330130-070-00-00 | Standard Extension Cable, 7.0m | 7.0 m | 0.238 kg |
| 330130-075-00-00 | Standard Extension Cable, 7.5m | 7.5 m | 0.255 kg |
| 330130-085-00-00 | Standard Extension Cable, 8.5m | 8.5 m | 0.289 kg |
| 330190-080-00-00 | ETR Extension Cable, 8.0m | 8.0 m | ~0.272 kg |
| 330130-080-01-00 | Armored Extension Cable, 8.0m | 8.0 m | ~0.824 kg |
