Bently Nevada 330130-080-10-CN 3300 XL Standard Extension Cable
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description

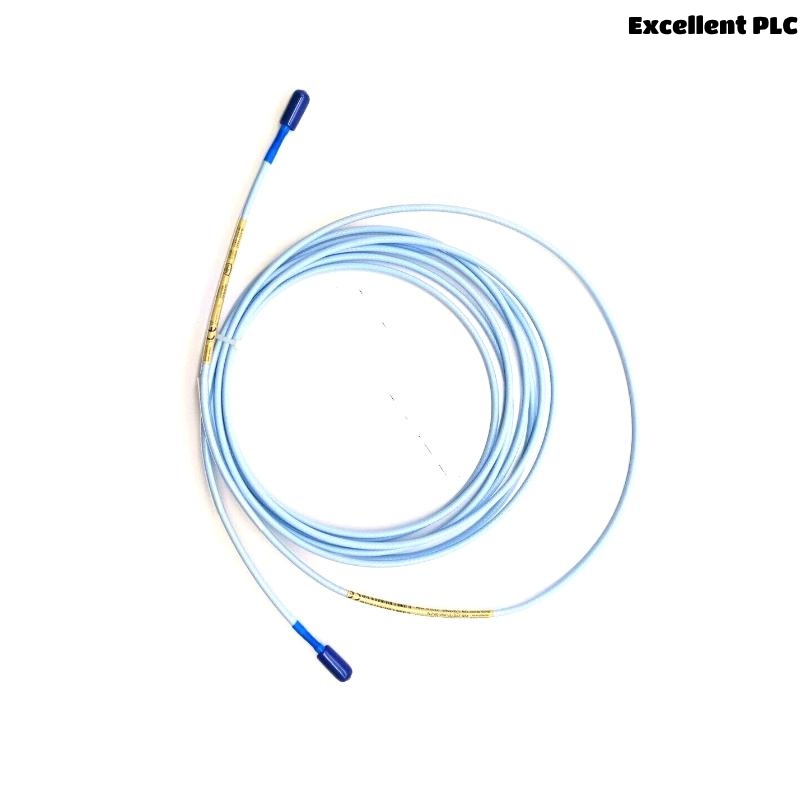

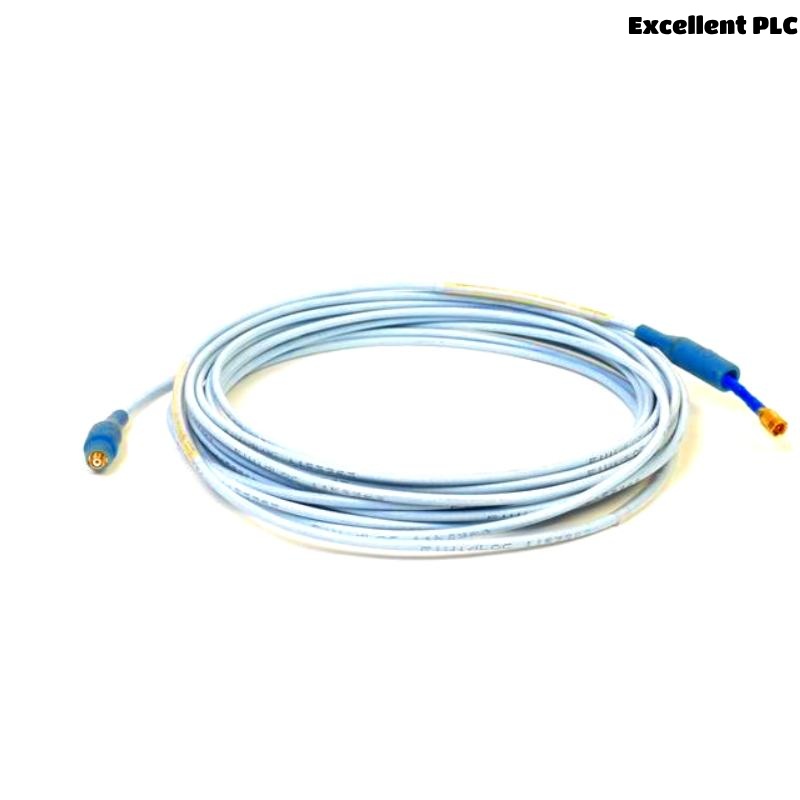

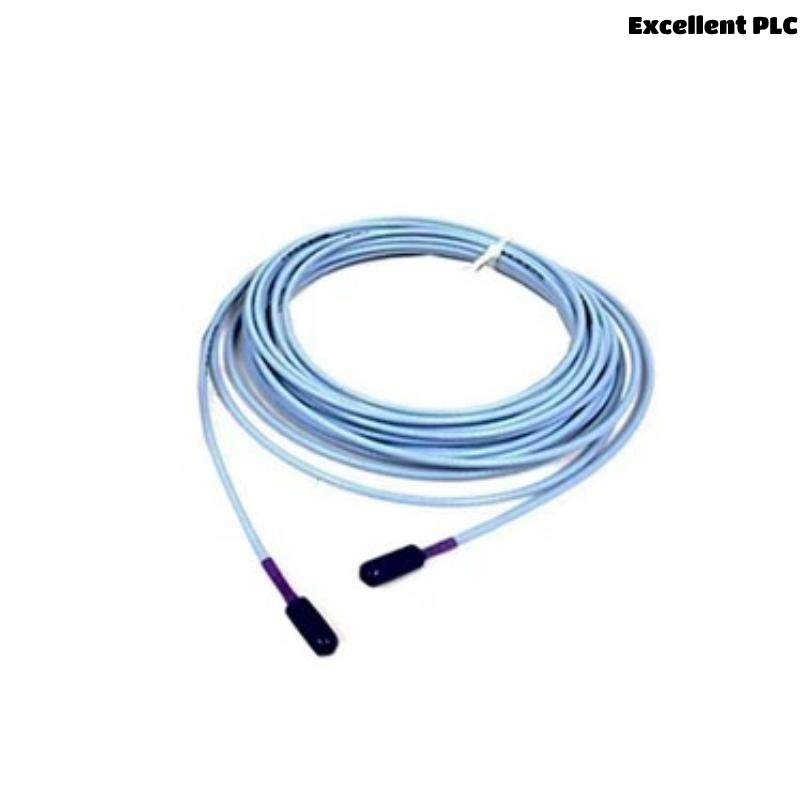

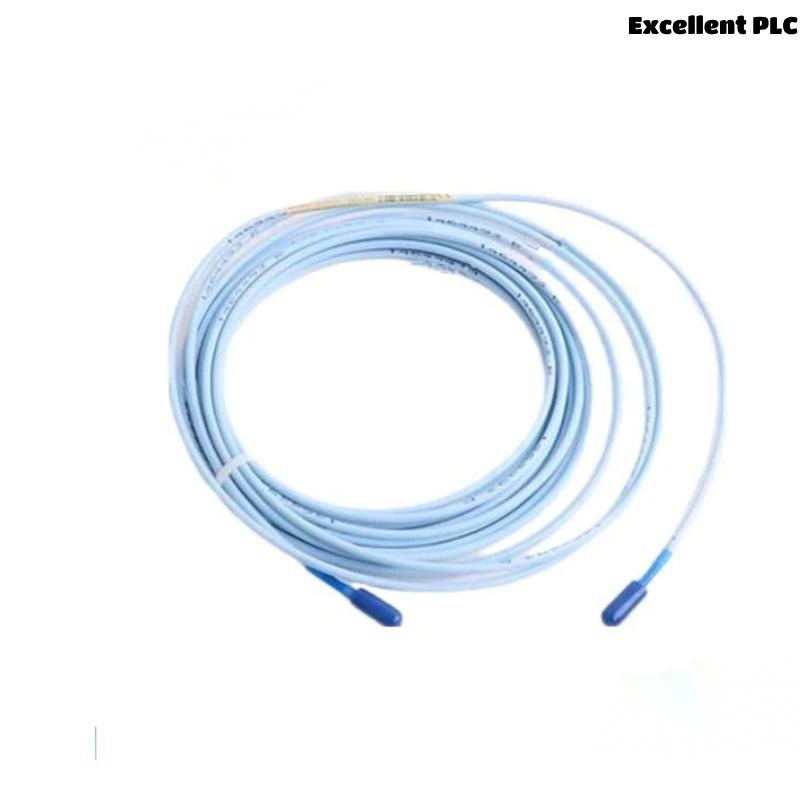

The Bently Nevada 330130-080-10-CN is an 8.0-meter standard extension cable for the 3300 XL 8 mm Proximity Transducer System. It connects the proximity probe to the Proximitor sensor, enabling reliable signal transmission in industrial monitoring systems. It features a triaxial FEP-insulated design with gold-plated ClickLoc connectors for secure, corrosion-resistant connections.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 330130-080-10-CN |
| Product Type | Standard Extension Cable |
| System Compatibility | 3300 XL 8 mm Proximity Transducer System |
| Cable Length | 8.0 meters |
| Weight | 0.272 kg |
| Insulation Material | FEP (Fluoroethylene Propylene) |
| Connector Type | Gold-plated ClickLoc coaxial connectors |
| Capacitance | 69.9 pF/m (typical) |
| DC Resistance (Core) | 1.76 ± 0.26 Ω |
| DC Resistance (Jacket) | 0.53 ± 0.11 Ω |
| Bend Radius (Min.) | 25.4 mm (1.0 in) |
| Temperature Range (Standard) | -52°C to +177°C (-62°F to +350°F) |
Applications
-
Vibration and position monitoring in rotating machinery
-
Keyphasor reference and overspeed protection
-
Fluid-film bearing systems
-
Harsh industrial environments with temperature and EMI concerns
Product Advantages
-
High Durability: FEP-insulated cable with strong mechanical pull strength (330 N)
-
Ease of Installation: ClickLoc connectors require no tools
-
Signal Reliability: Low capacitance and resistance ensure signal integrity
-
Environmental Resistance: Optional FluidLoc and armored variants available
-
API 670 Compliant: Meets mechanical and performance standards
Frequently Asked Questions (FAQ)
Q1: What systems is the 330130-080-10-CN compatible with?
A1: It is designed for use with the Bently Nevada 3300 XL 8 mm Proximity Transducer System.
Q2: What is the length of this cable?
A2: The cable is 8.0 meters long.
Q3: Does it require special tools to connect?
A3: No, the ClickLoc connectors are finger-tight and tool-free.
Q4: Can it withstand high temperatures?
A4: Yes, the standard version operates up to 177°C. ETR versions go up to 260°C.
Q5: Is it shielded against electromagnetic interference?
A5: Yes, the design includes shielding suitable for industrial EMI environments.
Q6: Can this cable be used with older 3300 series probes?
A6: Yes, it’s electrically and physically compatible with older 5 mm and 8 mm systems.
Q7: Does it support armored versions?
A7: Yes, armored and FluidLoc cable versions are available by part configuration.
Q8: What is the cable’s minimum bend radius?
A8: 25.4 mm (1.0 inch).
Q9: How is the environmental protection of connectors ensured?
A9: Through optional connector protectors and silicone tape (supplied).
Q10: What is the weight of this 8.0-meter cable?
A10: Approximately 0.272 kg.
Related Models (Same Series)
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 330130-060-00-CN | Standard Extension Cable | 6.0 m | 0.204 kg |
| 330130-070-00-CN | Standard Extension Cable | 7.0 m | 0.238 kg |
| 330130-085-00-CN | Standard Extension Cable | 8.5 m | 0.289 kg |
| 330130-080-11-CN | Armored FluidLoc Extension Cable | 8.0 m | 0.824 kg |
| 330190-080-00-CN | ETR Extension Cable (High Temp) | 8.0 m | 0.272 kg |
| 330130-075-00-CN | Standard Extension Cable | 7.5 m | 0.255 kg |
Popular Bently Nevada Models
| Model Number | Description | Application | Weight |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | Position/Vibration Sensing | ~0.30 kg |
| 3300/42M-01-00 | Proximitor Seismic Monitor Module | Seismic and Shaft Vibration Monitoring | ~0.45 kg |
| 3500/22M | Transient Data Interface (TDI) | Condition Monitoring | ~1.10 kg |
| 3500/25 | Keyphasor Module | Shaft Rotation/Speed Detection | ~0.90 kg |
| 3500/15 | Power Supply Module | Power Distribution | ~1.20 kg |
| 330180-91-05 | 3300 XL Proximitor Sensor DIN Mount | Sensor Interface | ~0.246 kg |
