Bently Nevada 330130-080-12-05 3300 XL Standard Extension Cable
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description

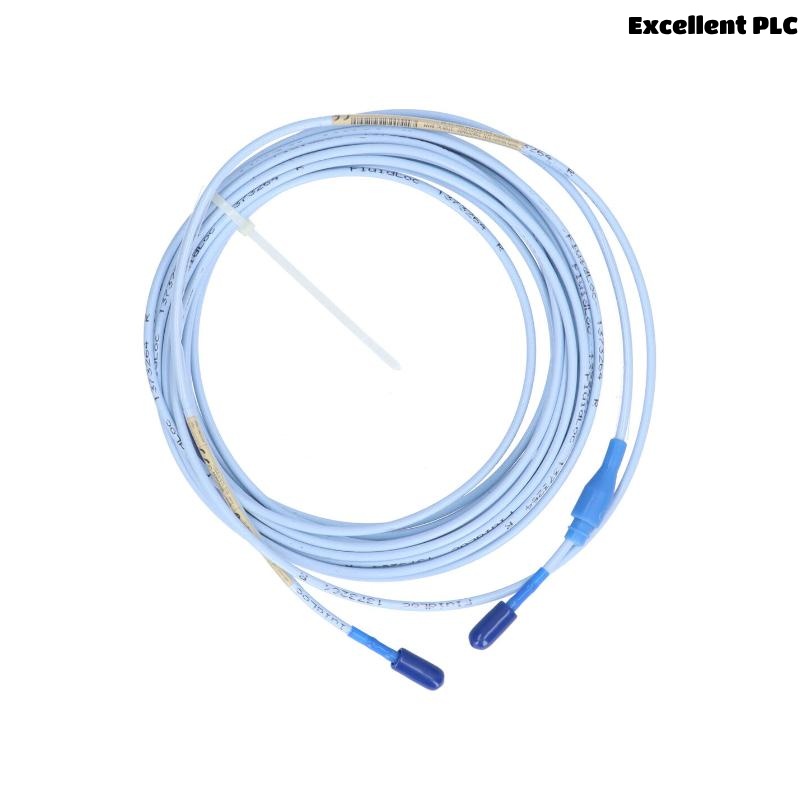

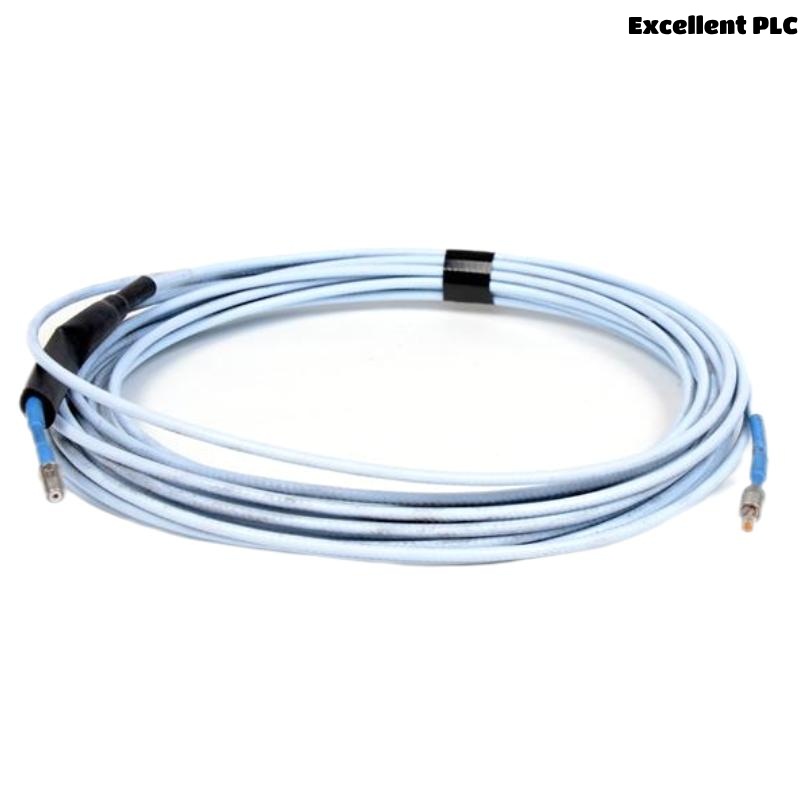

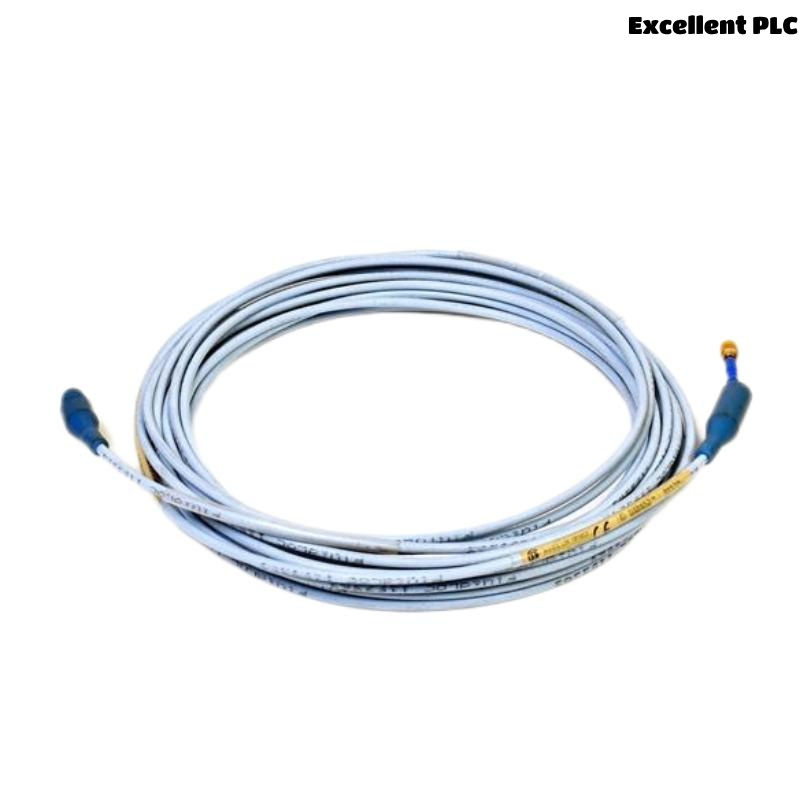

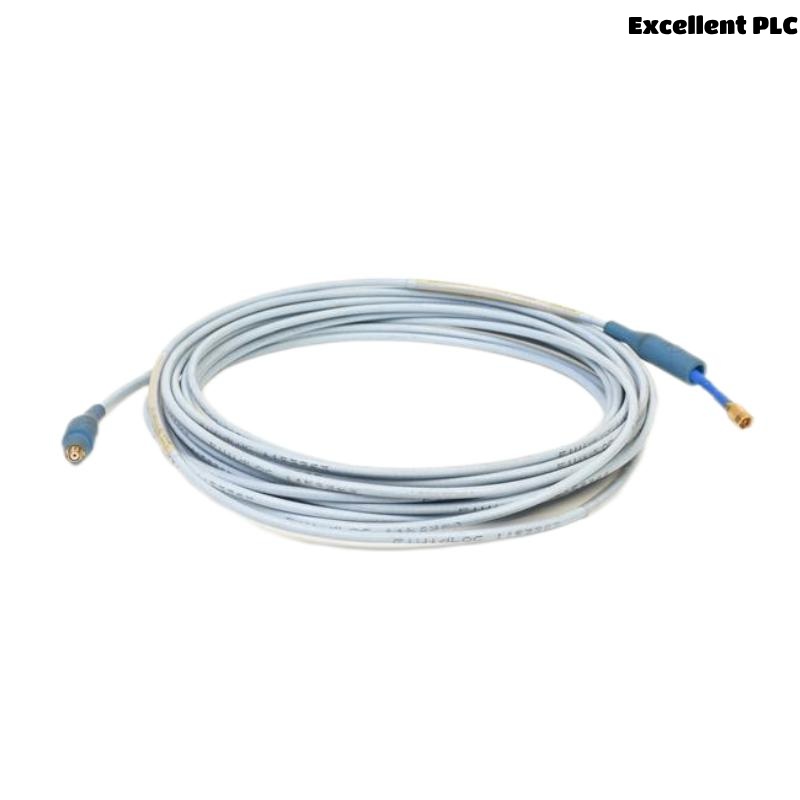

The 330130-080-12-05 is an 8.0-meter 3300 XL Standard Extension Cable from Bently Nevada. It connects proximity probes to Proximitor sensors in machinery monitoring systems. This model features FluidLoc sealing and connector protectors, ideal for oil-sealed and harsh environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 330130-080-12-05 |
| Cable Length | 8.0 meters (26.2 feet) |
| Cable Type | Standard 75Ω triaxial, FluidLoc option |

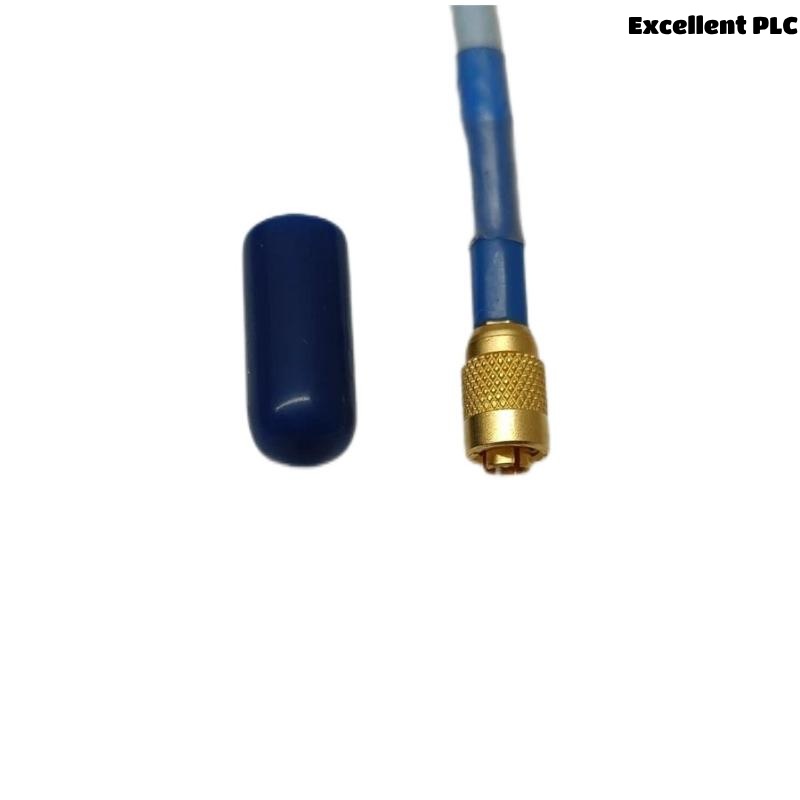

| Connector Type | ClickLoc, with connector protectors |
| Operating Temperature | -52°C to +177°C |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| RCORE Resistance | 1.76 ± 0.26 Ω |
| RJACKET Resistance | 0.53 ± 0.11 Ω |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Weight | 0.272 kg |
| Connector Material | Gold-plated brass or beryllium copper |
Applications
-
Turbine and compressor vibration monitoring
-
Shaft radial and axial position detection
-
Keyphasor signal transmission
-
Harsh and high-temperature environments
-
Oil-sealed machinery with FluidLoc protection
Product Advantages
-
FluidLoc design prevents oil leakage through the cable
-
ClickLoc connectors allow tool-free, secure installation
-
Connector protectors offer enhanced environmental sealing
-
CableLoc provides strong mechanical retention
-
Interchangeable with 3300 XL system components
-
Wide temperature support, suitable for extreme conditions
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330130-080-12-05 cable?
A1: It connects the proximity probe to the Proximitor sensor, extending signal transmission distance.
Q2: Is this cable suitable for oil-sealed machines?
A2: Yes, the FluidLoc feature is designed to block oil migration through the cable.
Q3: What type of connector does it use?
A3: It uses a ClickLoc coaxial connector with a locking “click” for secure, tool-free connection.
Q4: Is the cable interchangeable with other 3300 series components?
A4: Yes, it is compatible with all 3300 XL 8 mm system components.
Q5: What is the temperature range supported?
A5: The standard cable supports -52°C to +177°C. ETR versions support up to +260°C.
Q6: Does this cable require calibration?
A6: No calibration is required; the system is designed for full interchangeability.
Q7: Can this cable be armored?
A7: Yes, armored versions are available under different suffixes (e.g., -11, -13).
Q8: How do I ensure system length compatibility?
A8: The sum of the probe and extension cable lengths must equal the Proximitor sensor’s total length.
Q9: What is the cable’s weight?
A9: Approximately 0.272 kg for the 8.0-meter version.
Q10: What kind of shielding does the cable provide?
A10: It features a 75Ω triaxial construction with FEP insulation for EMI resistance.
Related Models – Same Series
| Model Number | Cable Length | Type | Connector | Weight |
|---|---|---|---|---|
| 330130-030-00-00 | 3.0 m | Standard | No protector | 0.102 kg |
| 330130-045-12-00 | 4.5 m | FluidLoc + Protector | ClickLoc | 0.153 kg |
| 330130-060-12-00 | 6.0 m | FluidLoc + Protector | ClickLoc | 0.204 kg |
| 330130-075-10-00 | 7.5 m | FluidLoc | ClickLoc | 0.255 kg |

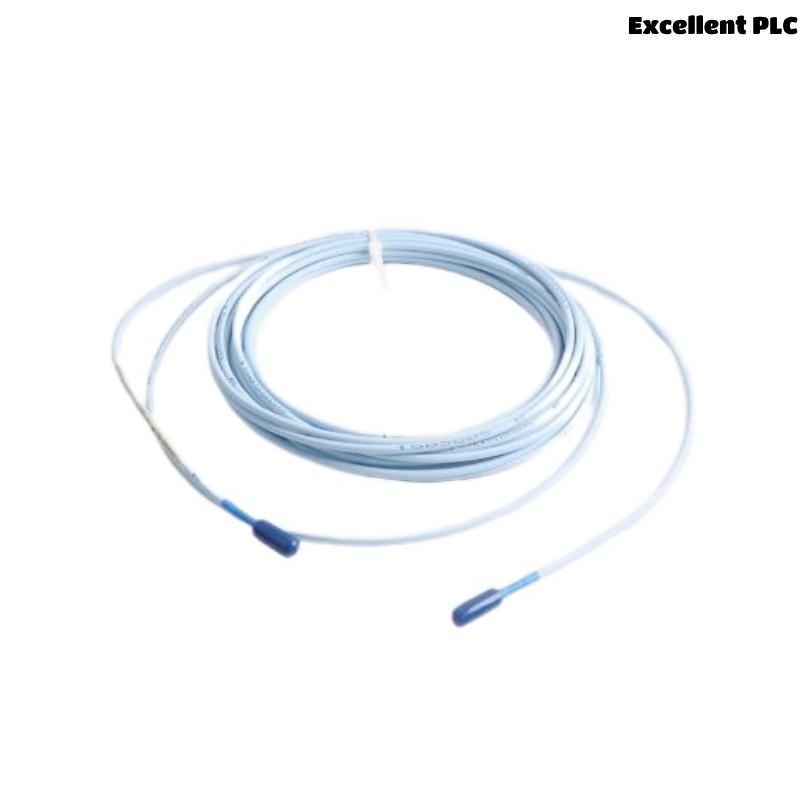

| 330130-085-02-00 | 8.5 m | Standard + Protector | ClickLoc | 0.289 kg |
| 330190-080-00-00 | 8.0 m | ETR Cable | No protector | 0.272 kg |
Popular Bently Nevada Models
| Model Number | Product Type | Application | Weight |
|---|---|---|---|
| 330101-00-08-10-02-00 | 8 mm Proximity Probe | Shaft position and vibration | ~0.30 kg |
| 330104-00-06-10-02-00 | M10 Probe with Armor | Compact installation | ~0.35 kg |

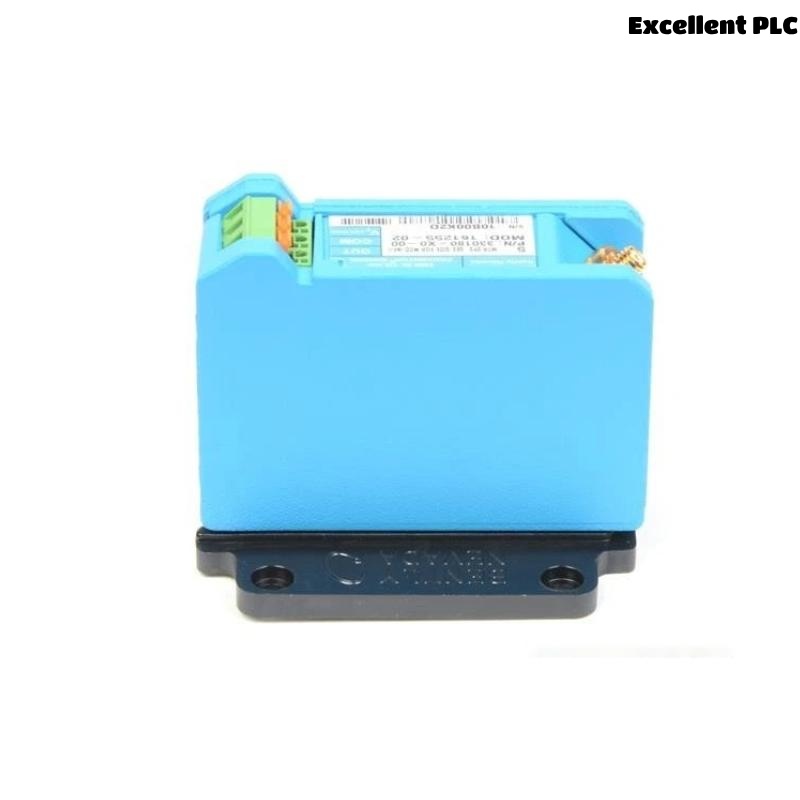

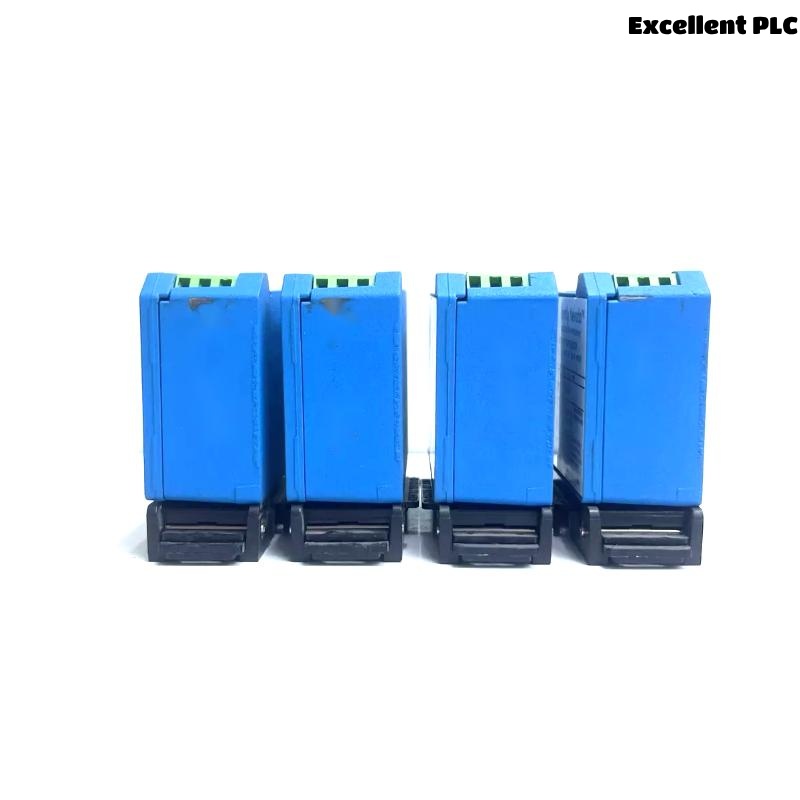

| 330180-90-05 | Proximitor Sensor (9 m System) | Panel or DIN mounting | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration/acceleration monitoring | ~0.75 kg |
| 3500/22M-01-01 | Transient Data Interface (TDI) | Machinery protection systems | ~0.60 kg |
| 330130-045-11-00 | Extension Cable (4.5m FluidLoc) | Industrial and hazardous areas | 0.153 kg |
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330130-080-12-05 cable?
A1: It connects the proximity probe to the Proximitor sensor, extending signal transmission distance.
Q2: Is this cable suitable for oil-sealed machines?
A2: Yes, the FluidLoc feature is designed to block oil migration through the cable.
Q3: What type of connector does it use?
A3: It uses a ClickLoc coaxial connector with a locking “click” for secure, tool-free connection.
Q4: Is the cable interchangeable with other 3300 series components?
A4: Yes, it is compatible with all 3300 XL 8 mm system components.
Q5: What is the temperature range supported?
A5: The standard cable supports -52°C to +177°C. ETR versions support up to +260°C.
Q6: Does this cable require calibration?
A6: No calibration is required; the system is designed for full interchangeability.
Q7: Can this cable be armored?
A7: Yes, armored versions are available under different suffixes (e.g., -11, -13).
Q8: How do I ensure system length compatibility?
A8: The sum of the probe and extension cable lengths must equal the Proximitor sensor’s total length.
Q9: What is the cable’s weight?
A9: Approximately 0.272 kg for the 8.0-meter version.
Q10: What kind of shielding does the cable provide?
A10: It features a 75Ω triaxial construction with FEP insulation for EMI resistance.
Related Models – Same Series
| Model Number | Cable Length | Type | Connector | Weight |
|---|---|---|---|---|
| 330130-030-00-00 | 3.0 m | Standard | No protector | 0.102 kg |
| 330130-045-12-00 | 4.5 m | FluidLoc + Protector | ClickLoc | 0.153 kg |
| 330130-060-12-00 | 6.0 m | FluidLoc + Protector | ClickLoc | 0.204 kg |
| 330130-075-10-00 | 7.5 m | FluidLoc | ClickLoc | 0.255 kg |
| 330130-085-02-00 | 8.5 m | Standard + Protector | ClickLoc | 0.289 kg |
| 330190-080-00-00 | 8.0 m | ETR Cable | No protector | 0.272 kg |
Popular Bently Nevada Models
| Model Number | Product Type | Application | Weight |
|---|---|---|---|
| 330101-00-08-10-02-00 | 8 mm Proximity Probe | Shaft position and vibration | ~0.30 kg |
| 330104-00-06-10-02-00 | M10 Probe with Armor | Compact installation | ~0.35 kg |
| 330180-90-05 | Proximitor Sensor (9 m System) | Panel or DIN mounting | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration/acceleration monitoring | ~0.75 kg |
| 3500/22M-01-01 | Transient Data Interface (TDI) | Machinery protection systems | ~0.60 kg |
| 330130-045-11-00 | Extension Cable (4.5m FluidLoc) | Industrial and hazardous areas | 0.153 kg |
