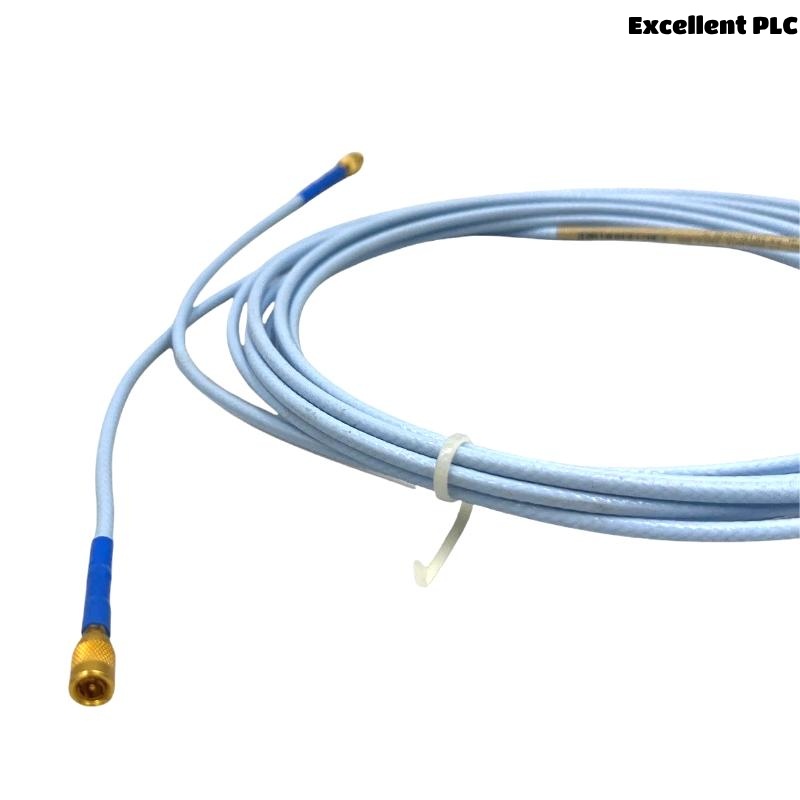

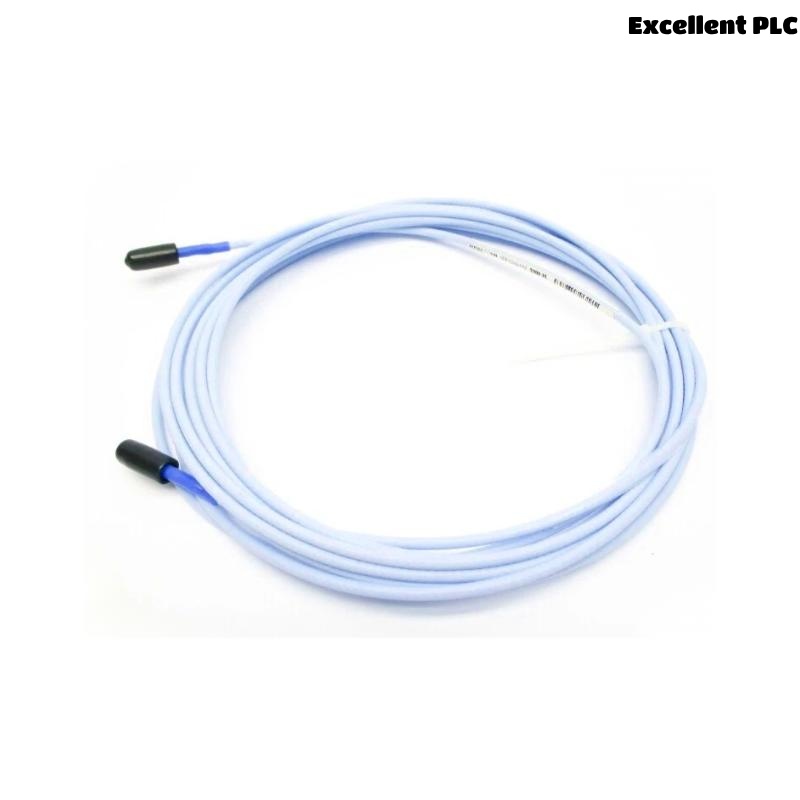

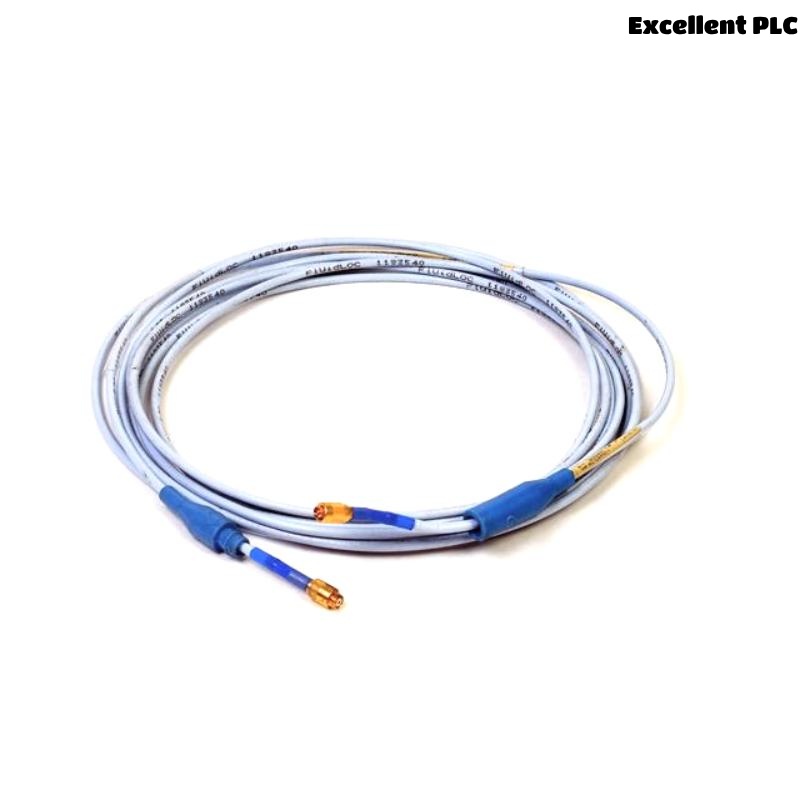

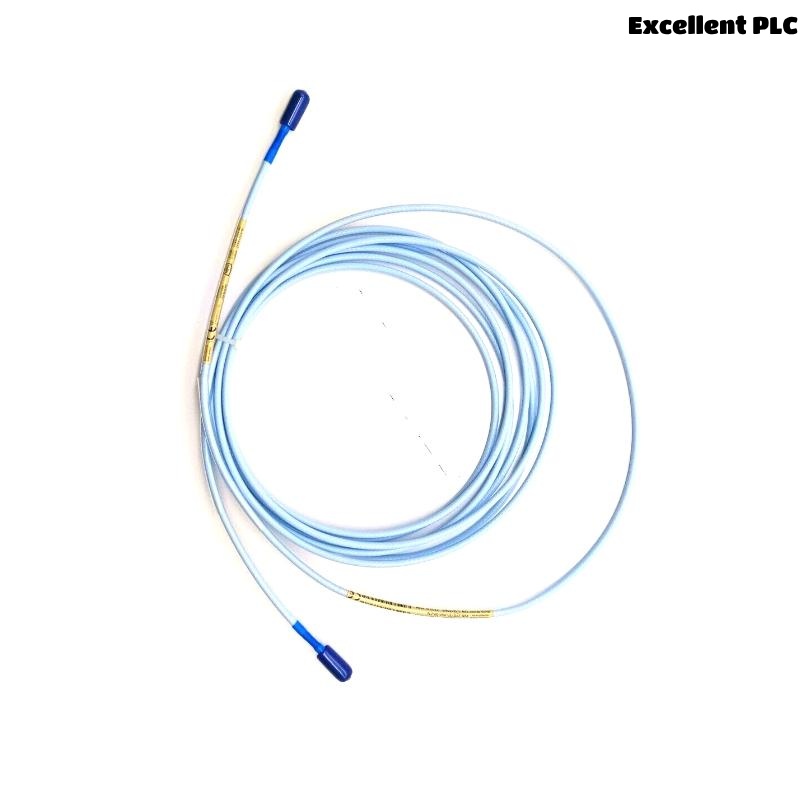

Bently Nevada 330130-085-00-02 3300 XL Standard Extension Cable
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Bently Nevada 330130-085-00-02 is a standard extension cable that forms a critical part of the 3300 XL 8 mm Proximity Transducer System. Designed for machinery condition monitoring, it connects the proximity probe to the Proximitor Sensor, transmitting precise vibration and position data.
Key Applications
-
Fluid-film bearing machine monitoring
-
Shaft vibration and axial position measurement
-
Keyphasor reference signal transmission
-
Overspeed protection systems
Product Advantages
-
High Mechanical Strength: CableLoc design withstands 330 N (75 lbf) pull force
-
Reliable Connection: Gold-plated ClickLoc connectors ensure secure, tool-free installation
-
Environmental Protection: Optional connector protectors enhance resistance to oil and contaminants
-
Flexible Use: Compatible with standard and ETR (Extended Temperature Range) probes
-
API 670 Compliance: Assures mechanical and electrical performance standards
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 330130-085-00-02 |
| Cable Type | Standard 75Ω triaxial FEP insulated |
| Cable Length | 8.5 meters (27.9 feet) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| DC Resistance (RCORE) | 1.87 ± 0.28 Ω |
| Outer Conductor Resistance | 0.56 ± 0.11 Ω |
| Connectors | ClickLoc, gold-plated brass or BeCu |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Weight | 0.289 kg (0.64 lbs) |
| Temperature Range (standard) | -52°C to +177°C (-62°F to +350°F) |
| Compliance | RoHS, CE, FCC, ATEX, CSA, IECEx certified |
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330130-085-00-02 extension cable?
A1: It links the proximity probe to the Proximitor Sensor for accurate vibration and position signal transmission.
Q2: What is the cable length of this model?
A2: It is 8.5 meters (27.9 feet).
Q3: Can this cable be used with ETR probes?
A3: Yes, it is compatible with Extended Temperature Range probes and sensors.
Q4: What makes the ClickLoc connector special?
A4: It provides secure, tool-free connections with an audible “click” for confirmation.
Q5: Is this cable armored?
A5: No, this specific version uses a standard non-armored cable.
Q6: What certifications does this cable carry?
A6: It complies with CE, FCC, ATEX, CSA, and IECEx standards.
Q7: Can the cable be used in high-vibration environments?
A7: Yes, it is designed for harsh industrial conditions, including high vibration.
Q8: What is the insulation material used?
A8: Fluoroethylene propylene (FEP).
Q9: Is it possible to get connector protectors with this cable?
A9: Yes, they can be ordered separately or pre-installed.
Q10: Does it support field installation in confined conduits?
A10: Yes, and the use of connector protectors is recommended in such setups.
Related and Compatible Models
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 330130-080-00-02 | Standard Extension Cable, 8.0 m | 8.0 m | 0.272 kg |
| 330130-075-00-02 | Standard Extension Cable, 7.5 m | 7.5 m | 0.255 kg |
| 330130-070-00-02 | Standard Extension Cable, 7.0 m | 7.0 m | 0.238 kg |
| 330130-060-00-02 | Standard Extension Cable, 6.0 m | 6.0 m | 0.204 kg |
| 330130-045-00-02 | Standard Extension Cable, 4.5 m | 4.5 m | 0.153 kg |
| 330130-030-00-02 | Standard Extension Cable, 3.0 m | 3.0 m | 0.102 kg |
Popular Bently Nevada Models
| Model Number | Description | Application | Weight |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Probe, armored | Proximity sensing | ~0.3 kg |
| 330180-91-00 | 3300 XL Proximitor Sensor, 9 m system | Vibration & position monitoring | 0.246 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration monitoring | ~0.6 kg |
| 3500/22M | Transient Data Interface (TDI) Module | Data acquisition | ~0.5 kg |
| 3500/15 | Power Supply Module | Power conditioning for rack systems | ~0.9 kg |
| 3500/94 | VGA Display Interface | Local visual system display | ~1.2 kg |
