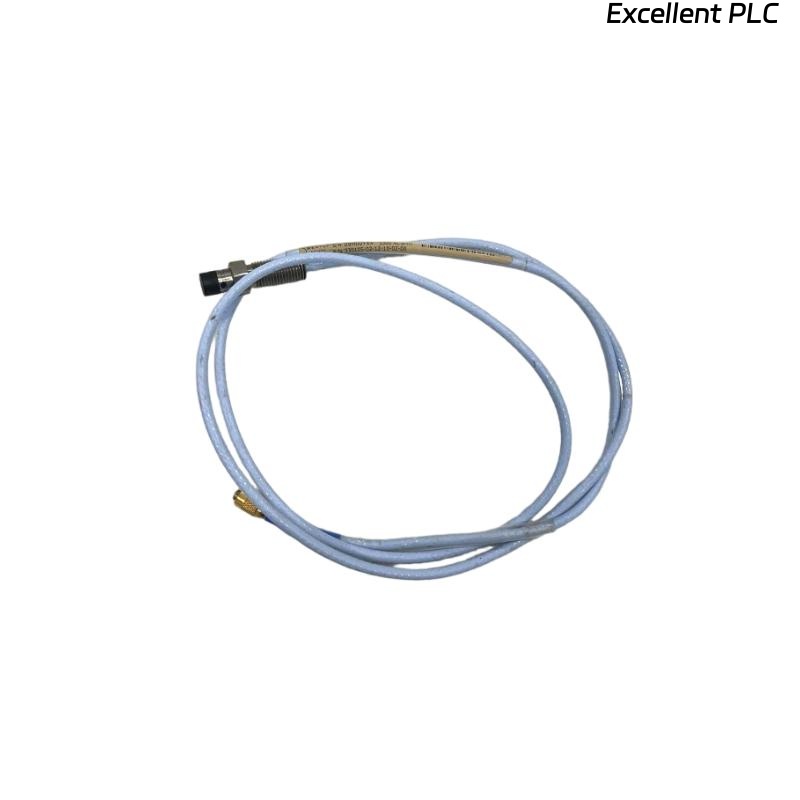

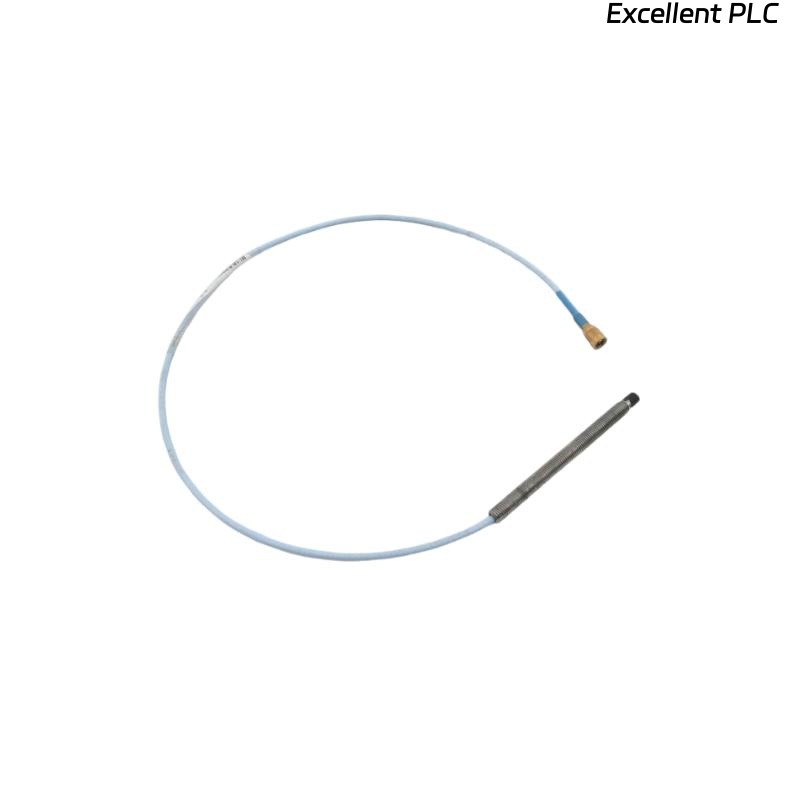

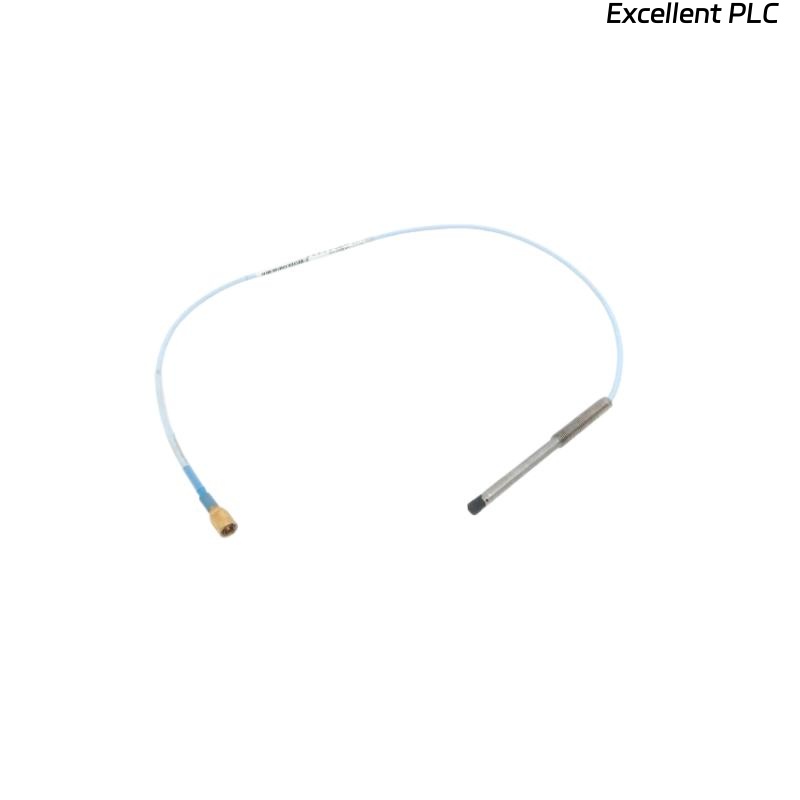

Bently Nevada 330171-XX-XX-10-01-05 142824-100 3300 5mm Proximity Probe

Product Overview

The Bently Nevada 330171-XX-XX-10-01-05 142824-100 3300 5mm proximity probe is an advanced and highly accurate displacement sensor specifically designed for monitoring rotating machinery. This proximity probe is part of the trusted 3300 series, offering precise measurement of shaft displacement to detect misalignment, imbalance, and other mechanical issues that could lead to failure. The 5mm diameter makes this probe suitable for small to medium-sized shafts, ensuring broad applicability across various industries such as power generation, manufacturing, oil and gas, and mining.

Designed for high reliability in challenging industrial environments, the 3300 5mm proximity probe is engineered for optimal integration into machinery monitoring systems, where real-time, accurate data is critical for predictive maintenance and fault detection. This sensor is essential for ensuring the smooth operation of critical machinery and preventing unexpected downtime.

Technical Specifications

Applications

The Bently Nevada 330171-XX-XX-10-01-05 142824-100 3300 5mm proximity probe is suitable for a wide range of applications where precise shaft displacement monitoring is necessary:

• Turbines and Compressors: Detects misalignment, imbalance, and wear in turbine shafts, preventing potential mechanical failures and downtime.

• Motors and Pumps: Ensures shaft displacement is monitored in motor-driven pumps, reducing the risk of unbalanced conditions that could lead to costly damage.

• Generators: Provides real-time monitoring of shaft position in generators, enabling early detection of alignment issues that could impact operational efficiency.

• Fans and Blowers: Offers continuous measurement of shaft displacement, which helps identify any issues with alignment or imbalance in industrial fan systems.

Advantages

1. High Precision: The probe provides a resolution of 0.1 µm, delivering highly accurate and reliable shaft displacement measurements.

2. Durable Construction: Made from stainless steel, the probe is highly resistant to wear and corrosion, ensuring long-lasting performance in challenging environments.

3. Broad Temperature Range: Capable of operating in temperatures between -40°C and +100°C, making it suitable for a wide range of industrial conditions.

4. Simple Integration: The 4-20 mA output is easily compatible with most machinery monitoring systems, enabling straightforward installation and use.

5. Minimal Maintenance: Built to be durable and long-lasting, the probe requires minimal maintenance, reducing downtime and operational costs.

6. IP67 Protection Rating: Fully sealed against dust and water ingress, making it ideal for use in harsh and wet industrial environments.

FAQ

1. How does the 3300 5mm proximity probe measure shaft displacement?
   The probe uses an eddy current sensor to detect the proximity of a metallic shaft. It measures displacement by detecting changes in the electromagnetic field as the shaft moves.

2. What is the operating temperature range of this proximity probe?
   The 3300 5mm probe operates effectively within a temperature range of -40°C to +100°C.

3. What kind of output signal does the 3300 5mm proximity probe provide?
   The probe provides a 4-20 mA output signal, which is compatible with most industrial monitoring systems.

4. Can the 3300 5mm proximity probe be used for non-rotating machinery?
   Yes, the probe can be used in any application where shaft displacement is measurable, including non-rotating machinery.

5. What materials is the probe constructed from?
   The probe is made of stainless steel, providing excellent durability and resistance to corrosion.

6. How is the 3300 5mm probe calibrated?
   Calibration is performed by comparing the probe’s readings to a known displacement or reference standard.

7. What makes the Bently Nevada 3300 5mm proximity probe reliable?
   The probe is known for its high precision, minimal drift, and rugged construction, ensuring it delivers reliable data in challenging environments.

8. What is the linear range of the 3300 5mm proximity probe?
   The probe offers a linear range of 4-20 mA, providing proportional displacement readings.

9. How does the probe integrate with vibration monitoring systems?
   The 4-20 mA output is used by vibration monitoring systems to detect shaft displacement and identify potential mechanical problems like imbalance or misalignment.

10. What is the protection rating of the 3300 5mm proximity probe?
    The probe has an IP67 protection rating, meaning it is dustproof and water-resistant, making it ideal for use in tough industrial environments.
