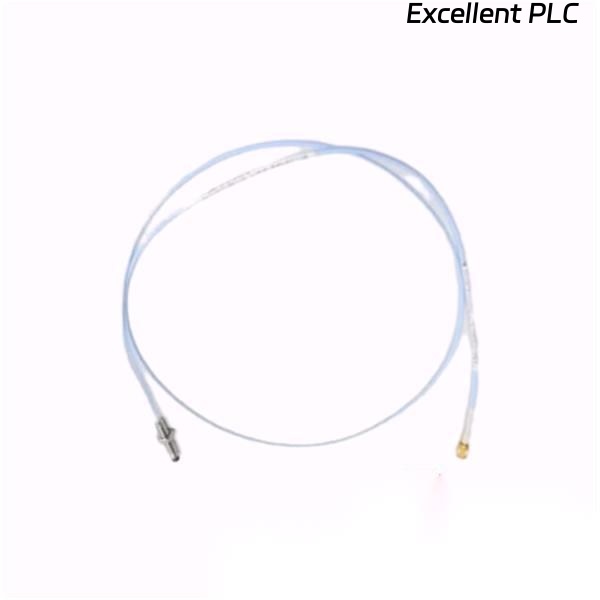

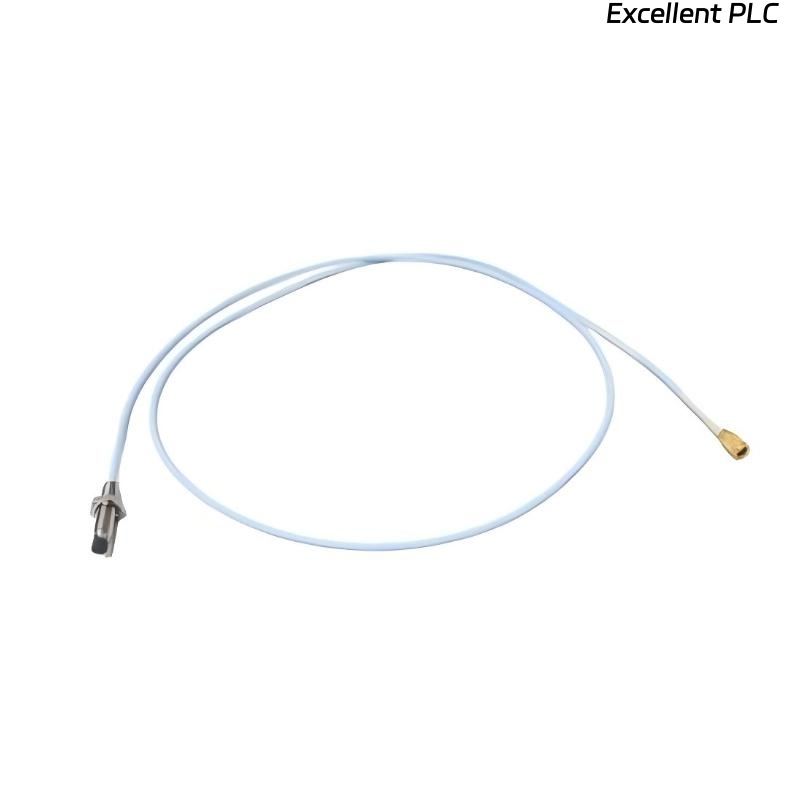

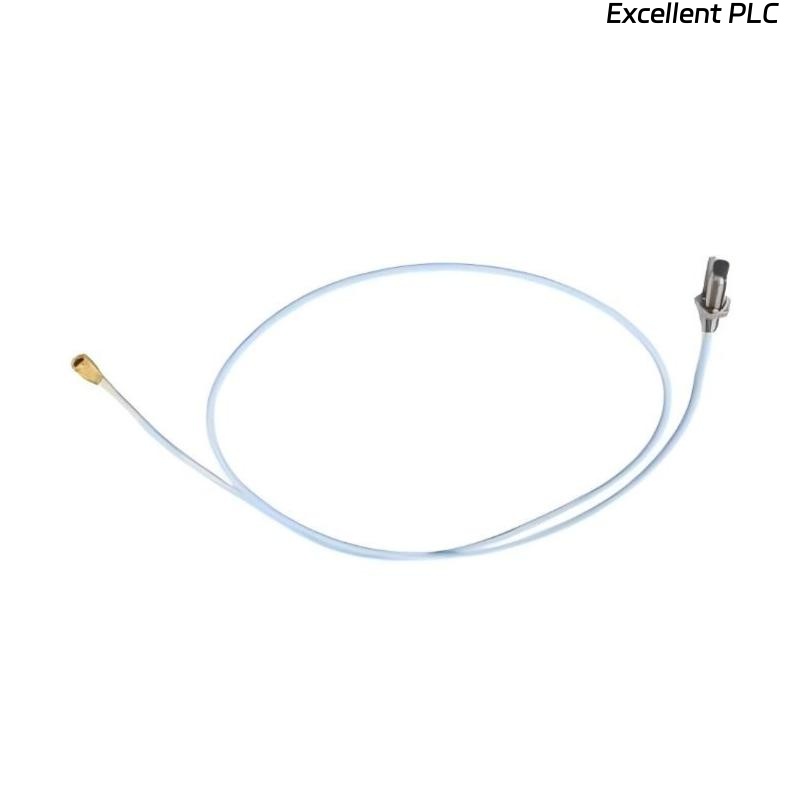

Bently Nevada 330902-04-40-10-02-CN 3300 NSv Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Bently Nevada 330902-04-40-10-02-CN 3300 NSv Proximity Probe is a precision eddy-current sensor designed for accurate measurement of shaft vibration and position in compact or high-density machinery. It is part of the 3300 NSv (Narrow Side-view) series, which offers superior performance in limited-space applications such as small turbines, compressors, pumps, and gearboxes.
Key Features
-
Compact 5 mm probe design ideal for confined installation spaces
-
Precise shaft vibration and axial position monitoring
-
Fully compatible with the 3300 NSv proximity transducer system
-
Rugged stainless-steel housing for industrial durability
-
High reliability in oil, gas, and power generation environments
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Part Number | 330902-04-40-10-02-CN |
| Product Series | 3300 NSv |
| Probe Type | Eddy-Current Proximity Probe |
| Tip Diameter | 5 mm |
| Probe Length | 40 mm |
| System Compatibility | 3300 NSv Proximity Transducer System |
| Linear Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Temperature Range (Operation) | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Material | Stainless steel |
| Connector Type | Miniature coaxial connector |
| Mounting Method | Threaded sleeve |
| Dimensions | Total Length: 1.0 meter |
| Weight | 0.15 kg |
Industry Applications
-
Compact turbines and compressors
-
Small electric motors and pumps
-
Gearboxes and rotating machinery
-
Oil and gas production systems
-
Power generation and industrial processing plants
-
Predictive and preventive maintenance programs
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 330902-04-40-10-02-CN probe?
It measures shaft vibration and position in compact rotating machinery.
Q2: What system is it compatible with?
It is designed for use with the Bently Nevada 3300 NSv proximity transducer system.
Q3: What is the probe tip diameter?
The probe has a 5 mm tip diameter.
Q4: What is the total probe length?
It has a 40 mm probe length and a 1.0 m total cable length.
Q5: What is the operating temperature range?
It operates between –35 °C and +177 °C.
Q6: What is the output sensitivity?
The probe provides a 7.87 V/mm (200 mV/mil) output sensitivity.
Q7: What type of mounting does it use?
It uses a threaded sleeve installation.
Q8: Can it operate in harsh environments?
Yes, it is designed for rugged industrial environments such as oil, gas, and power plants.
