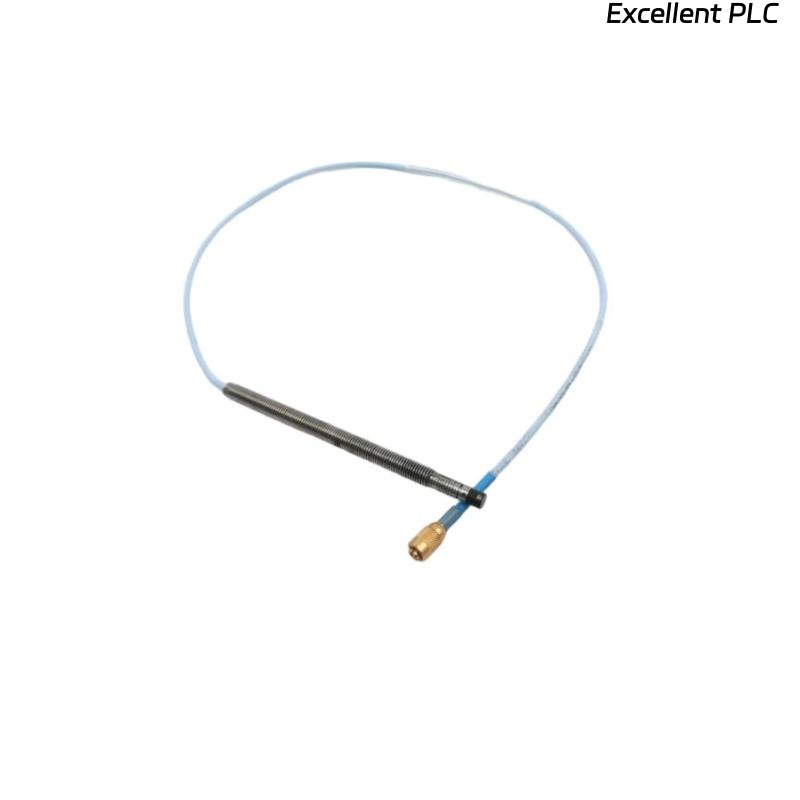

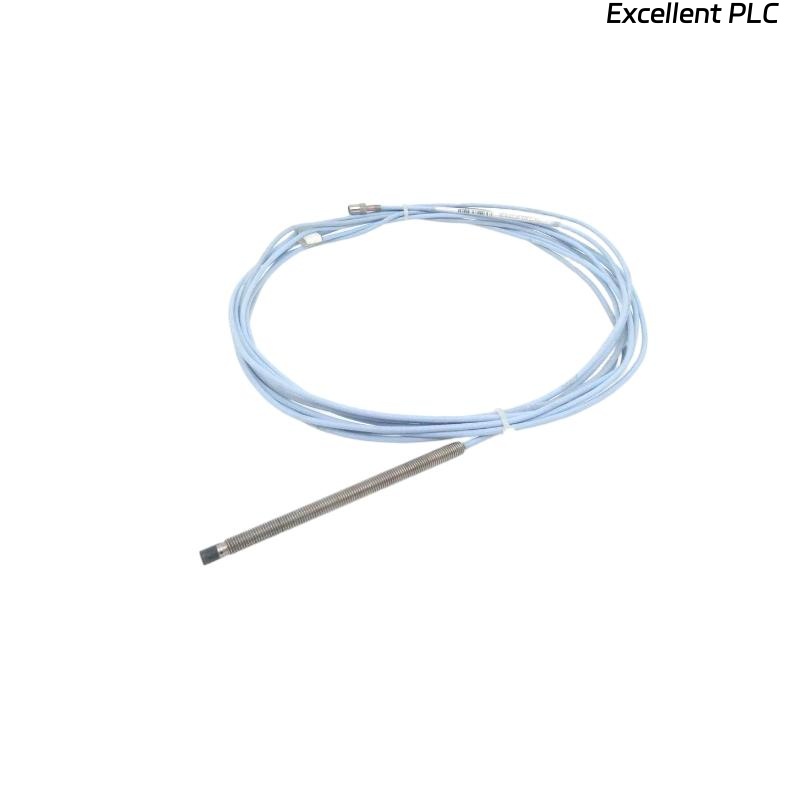

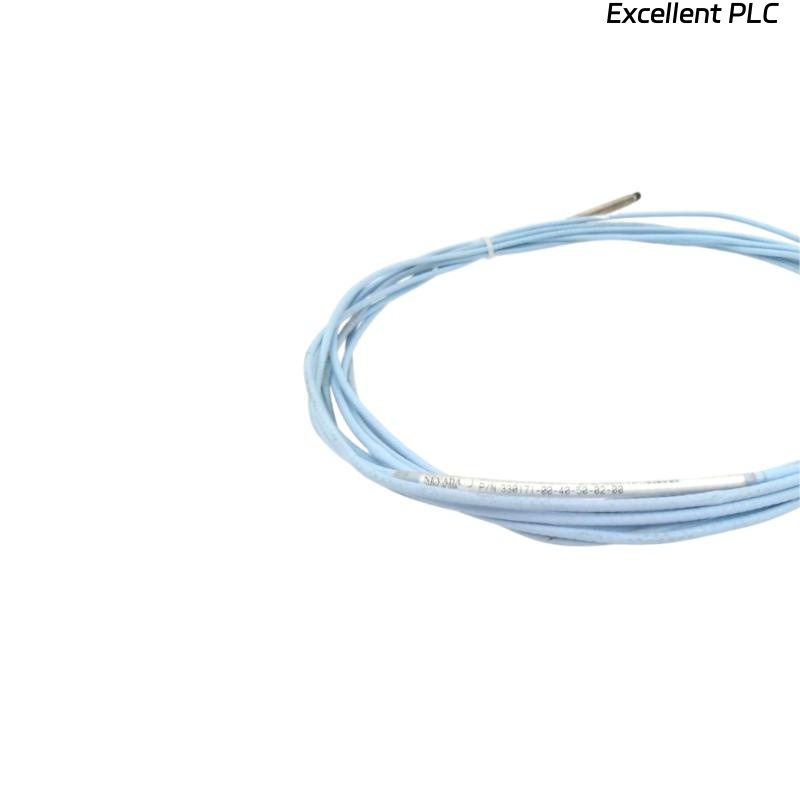

Bently Nevada 330171-XX-XX-10-01-05 142824-131 3300 5mm Proximity Probe

Product Overview

The Bently Nevada 330171-XX-XX-10-01-05 142824-131 3300 5mm proximity probe is a highly accurate and reliable sensor used to measure shaft displacement in rotating machinery. As part of the renowned 3300 series, it is designed to detect mechanical issues such as misalignment, imbalance, and wear in rotating shafts, providing early warning signals to help prevent costly failures. This 5mm diameter probe is ideal for a wide range of industrial applications, offering high-precision measurements in systems where detecting small shifts in shaft position is critical.

The 3300 series probes are known for their durability, long-term reliability, and ease of integration with vibration monitoring systems. Whether used in turbines, compressors, or motors, the 3300 5mm proximity probe ensures that machinery is running at its optimal condition, allowing for proactive maintenance and preventing unscheduled downtimes.

Technical Specifications

Applications

The Bently Nevada 330171-XX-XX-10-01-05 142824-131 3300 5mm proximity probe is ideal for monitoring various industrial systems, where precise displacement measurements are crucial for the protection of machinery:

• Turbines and Compressors: Continuously monitors shaft displacement to detect early signs of misalignment or imbalance, ensuring smooth operation and minimizing the risk of catastrophic failures.

• Motors and Pumps: Ensures that shaft displacement is measured, preventing unbalanced conditions and minimizing the risk of damage to critical pump systems.

• Generators: Monitors shaft movement in generators, helping to identify issues such as wear or misalignment that can lead to costly breakdowns.

• Fans and Blowers: Monitors the shaft’s position to ensure proper balance and alignment, preventing inefficiencies or system failure in industrial fan systems.

Advantages

1. High Accuracy: The probe provides exceptional precision with a resolution of 0.1 µm, making it suitable for detecting even the smallest displacements.

2. Durability: Constructed from stainless steel, the probe is resistant to corrosion and wear, ensuring reliable performance in harsh industrial environments.

3. Wide Temperature Range: Operating from -40°C to +100°C, it is suitable for use in a variety of industrial settings, from cold storage to high-temperature environments.

4. Simple Integration: The 4-20 mA output signal makes it easy to integrate with most vibration monitoring systems, enabling real-time monitoring and diagnostics.

5. Minimal Maintenance Requirements: Built to last, the 3300 5mm proximity probe requires minimal maintenance, lowering overall operational costs.

6. IP67 Protection Rating: Its IP67 rating ensures the probe is dustproof and water-resistant, making it ideal for use in wet or dusty environments.

FAQ

1. How does the 3300 5mm proximity probe measure shaft displacement?
   The probe uses an eddy current sensor to detect the proximity of a metallic shaft, calculating displacement based on the changes in the electromagnetic field as the shaft moves.

2. What is the operating temperature range of the 3300 5mm probe?
   The probe can operate within a temperature range of -40°C to +100°C, allowing it to function in various environmental conditions.

3. What type of output signal does the probe provide?
   The 3300 5mm probe outputs a 4-20 mA signal, which is widely compatible with industrial monitoring and control systems.

4. Can this probe be used in non-rotating machinery?
   Yes, the 3300 5mm probe can be used to measure displacement in any system where shaft displacement can be accurately detected.

5. What materials are used to construct the probe?
   The probe is made of stainless steel, providing corrosion resistance and enhanced durability for long-term operation in industrial environments.

6. How is the 3300 5mm probe calibrated?
   Calibration is performed by comparing the probe’s readings to a known reference displacement or standard.

7. What makes the Bently Nevada 3300 5mm proximity probe reliable?
   The probe’s precision, minimal drift, and rugged construction ensure consistent, reliable operation over time, even in harsh environments.

8. What is the linear range of the 3300 5mm proximity probe?
   The probe provides a linear range with 4-20 mA output, which is proportional to the displacement measured.

9. How does the probe integrate with vibration monitoring systems?
   The 4-20 mA output is fed into vibration monitoring systems, enabling real-time detection of shaft displacement, which can indicate imbalances or misalignments.

10. What is the protection rating of the probe?
    The probe has an IP67 protection rating, meaning it is dustproof and resistant to water ingress, ensuring reliable operation in demanding environments.
