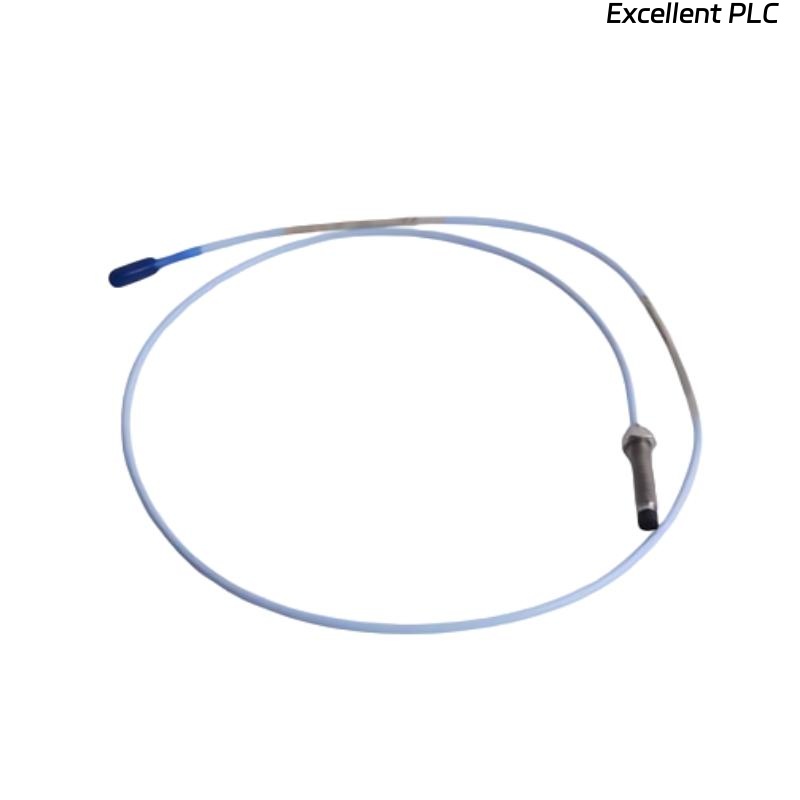

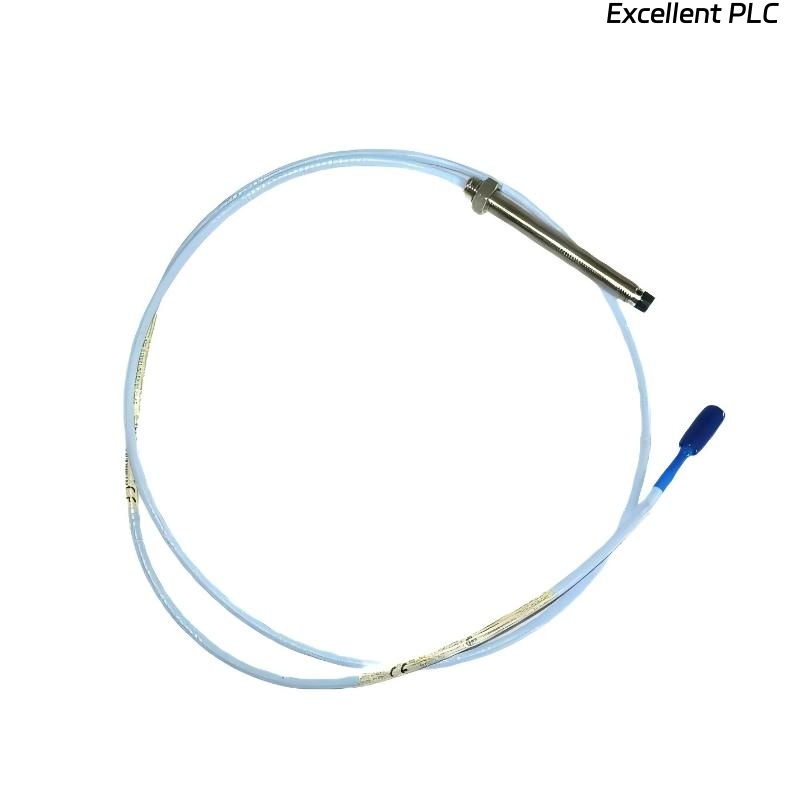

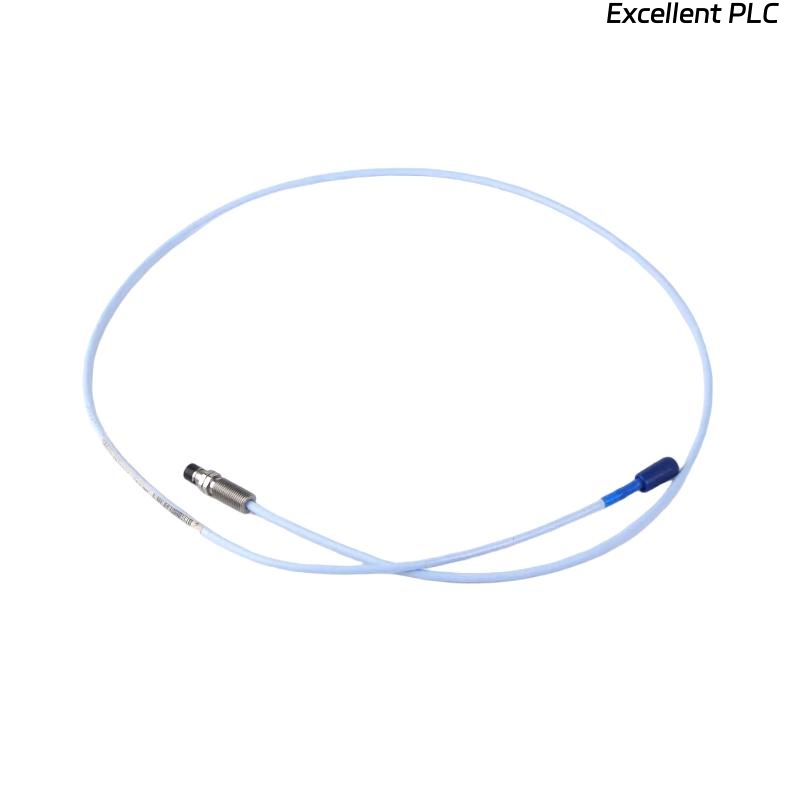

Bently Nevada 330174-00-08-50-02-CN 3300 5mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Bently Nevada 330174-00-08-50-02-CN 3300 5mm Proximity Probe is a high-precision eddy current sensor designed for non-contact measurement of shaft vibration and displacement in rotating machinery. As part of the trusted 3300 series transducer system, this probe provides reliable radial vibration monitoring and position measurement in industrial protection applications.
With a total system length of 5.0 meters, this configuration is suitable for installations requiring extended routing between the probe tip and signal conditioning electronics. The probe features a compact 5 mm tip diameter, making it ideal for applications with limited installation space or smaller shaft diameters.
Engineered for stable long-term performance, the 3300 5 mm probe maintains linear output over its specified measurement range. The CN version typically represents a region- or project-specific configuration designed to meet defined compliance or installation requirements.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | 3300 5mm Proximity Probe |
| Model | 330174-00-08-50-02-CN |
| Manufacturer | Bently Nevada |
| Series | 3300 Series |
| Probe Tip Diameter | 5 mm |
| Total Length | 5.0 meters |
| Measurement Principle | Eddy Current (Non-contact) |
| Output Type | Analog Voltage Signal |
| Mounting Thread | Standard 3300 Configuration |
| Application Type | Shaft Vibration and Position Monitoring |
| Weight | 1.615 kg |
| Dimensions | Standard 5 mm probe body configuration |
Applications
• Used for radial shaft vibration monitoring in turbines, compressors, and pumps
• Applied in shaft position measurement systems
• Suitable for small shaft diameter installations due to 5 mm probe tip
• Integrated into machinery protection systems for condition monitoring
• Common in power generation, petrochemical, and oil & gas industries
• Ideal for installations requiring extended cable routing
Advantages
• Provides high measurement accuracy using eddy current sensing technology
• Compact 5 mm tip supports tight installation spaces
• Designed for stable performance in industrial vibration environments
• Maintains consistent output within defined linear measurement range
• Compatible with standard 3300 series monitoring systems
• Robust construction suitable for continuous machinery monitoring
FAQ
-
What measurement principle does this probe use?
It uses eddy current technology to measure the distance between the probe tip and a conductive shaft surface. -
Is this probe suitable for continuous vibration monitoring?
Yes, it is designed for permanent installation in machinery protection and condition monitoring systems. -
Can the probe measure both vibration and position?
Yes, it can measure dynamic vibration as well as static shaft position within its specified range. -
Is it compatible with all 3300 series monitors?
It is designed for use with compatible 3300 series Proximitor sensors and monitoring modules. -
Does probe tip size affect measurement capability?
Yes, the 5 mm tip is ideal for smaller shafts and limited mounting spaces while maintaining accurate readings. -
How does the probe resist electrical interference?
It uses shielded cable construction to reduce electromagnetic interference in industrial environments. -
Can it be installed in high-temperature areas?
It is suitable for industrial environments within its specified temperature rating when installed correctly. -
Is recalibration required after installation?
Calibration is typically handled at the system level; correct installation ensures maintained performance. -
What type of output signal is generated?
It generates an analog voltage signal proportional to shaft displacement. -
Is the probe sensitive to shaft material?
Yes, eddy current probes require conductive shaft materials for accurate measurement.
Related Models
| Model | Probe Size | Total Length | Description |
|---|---|---|---|
| 330173-00-06-10-02-00 | 5 mm | 1.0 m | 3300 5mm Probe |
| 330174-00-05-50-02-00 | 5 mm | 5.0 m | 3300 5mm Probe Variant |
| 330172-00-10-10-02-00 | 8 mm | 1.0 m | 3300 8mm Probe |
| 330101-00-31-15-02-05 | 8 mm | 0.5 m | 3300 XL 8mm Probe |
| 330104-02-15-10-01-00 | 8 mm | 1.0 m | 3300 XL Probe |
| 330180-90-00 | — | — | Proximitor Sensor |
Popular Models
| Model | Product Type | Application | Series |
|---|---|---|---|
| 3500/42M | Proximitor Monitor | Shaft Vibration | 3500 |
| 3500/22M | Data Interface | Communication | 3500 |
| 3500/50M | Tachometer Module | Speed Monitoring | 3500 |
| 3500/60 | Temperature Monitor | Thermal Monitoring | 3500 |
| 3500/15 | Power Supply | Rack System | 3500 |
| 3500/05 | Rack Assembly | Machinery Protection | 3500 |
