Product Introduction

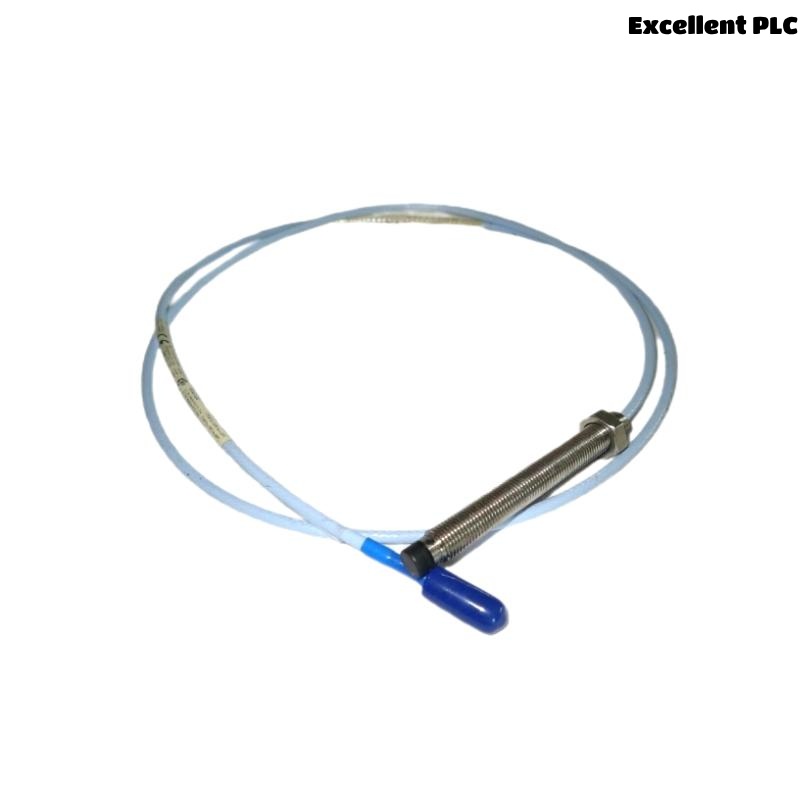

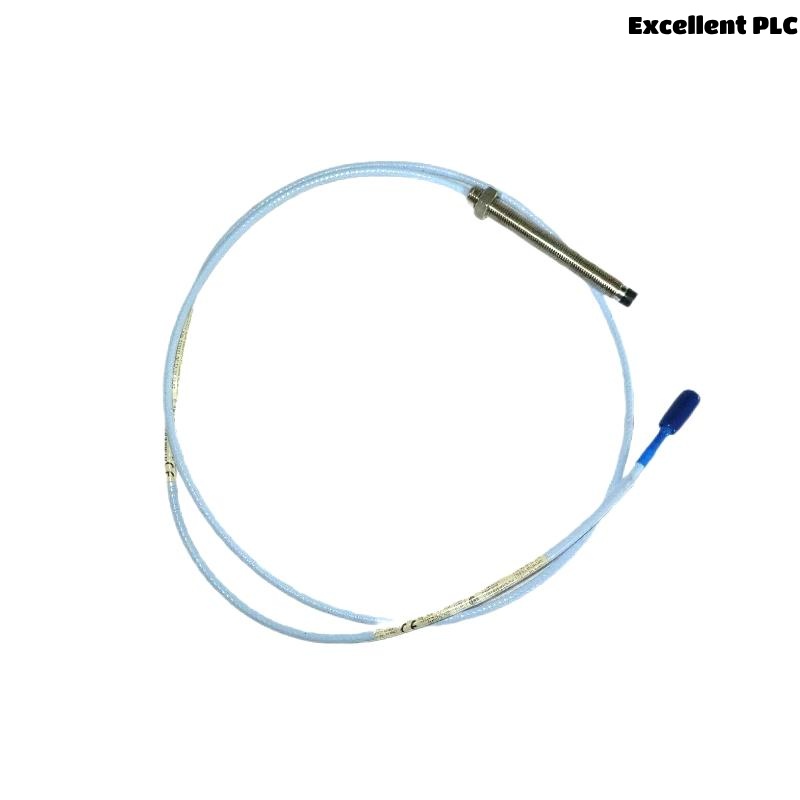

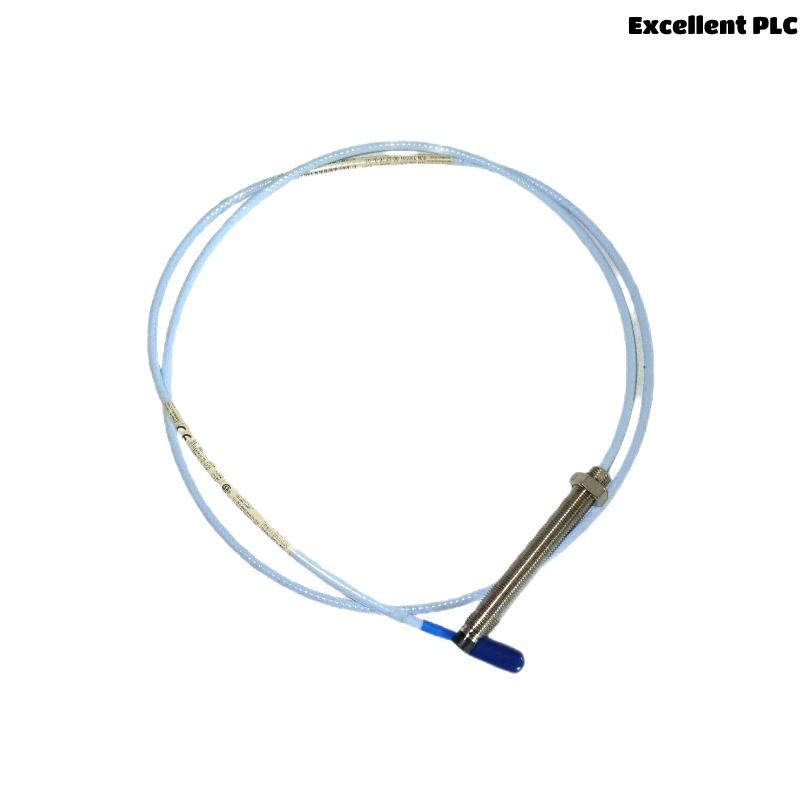

The Bently Nevada 330704-000-060-10-02-00 3300 XL 11 mm Proximity Probe is a high-performance, precision sensor designed to monitor the displacement and vibration of rotating machinery. It is part of the 3300 XL series, one of the most reliable and widely used proximity probe families in industrial applications. This proximity probe is used for non-contact measurement of shaft vibration, displacement, and position, and is ideal for ensuring the operational health of critical machinery in various industries.
The 3300 XL 11 mm Proximity Probe uses a sophisticated, non-contacting method to measure displacement with high accuracy. It is engineered to deliver continuous, real-time data to monitoring systems, helping operators detect early signs of wear, misalignment, and other mechanical issues that could potentially lead to costly downtime. With its rugged construction, precise measurements, and excellent environmental protection, the probe is an essential tool in vibration monitoring and machine health diagnostics.
This sensor is typically used in rotating machinery such as turbines, pumps, compressors, and motors, where its high precision and durability provide essential insights for proactive maintenance and performance optimization.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330704-000-060-10-02-00 |
| Type | Proximity Probe |
| Measurement Range | 0 to 11 mm |
| Output Signal | 4-20 mA (Linear) |
| Operating Temperature | -40°C to +85°C |
| Mounting Type | Threaded (M10x1) |
| Weight | 0.17 kg |
| Total Length | 1 meter |
| Material | Stainless Steel & Inconel |
| Power Supply | 24 V DC |
| Environmental Protection | IP67 |
Product Applications
The Bently Nevada 330704-000-060-10-02-00 3300 XL 11 mm Proximity Probe has a wide range of applications across various industries, where it is crucial to monitor rotating machinery to ensure smooth and reliable operation. Some of the key applications include:
-
Rotating Machinery Monitoring
The probe is widely used in industries to monitor the health of rotating equipment such as motors, pumps, turbines, and compressors, measuring shaft displacement, vibration, and alignment in real-time. -
Power Generation
In power plants, the probe is used to monitor turbines, generators, and steam engines. By detecting vibration and displacement early, it prevents failures and reduces unplanned downtime, contributing to efficient plant operation. -
Oil & Gas Industry
In the oil and gas sector, the 3300 XL proximity probe is used in offshore platforms, refineries, and drilling operations to monitor the health of pumps, motors, and compressors operating in extreme conditions. -
Manufacturing
The probe helps monitor large machinery in manufacturing plants, including mills, conveyors, presses, and grinders, ensuring that the equipment runs smoothly and minimizing the risk of unexpected breakdowns. -
HVAC Systems
HVAC systems rely on the 3300 XL proximity probe to ensure that motors, fans, and compressors function without issues, preventing costly repairs and downtime. -
Aerospace & Defense
In aerospace applications, where the precision of machinery is critical, the 3300 XL probe provides detailed displacement and vibration data, ensuring the continued safety and reliability of aircraft engines and systems.
Product Advantages
-
High Precision: The 3300 XL 11 mm Proximity Probe delivers precise measurements of displacement and vibration, ensuring that even small mechanical issues are detected early.
-
Non-Contact Measurement: The probe uses a non-contacting technology, eliminating wear and tear that could affect the accuracy of measurements over time.
-
Wide Operating Temperature Range: This probe is capable of operating in environments ranging from -40°C to +85°C, making it suitable for a wide variety of industrial settings, including extreme conditions.
-
Rugged Design: Built with a stainless steel and Inconel housing, the probe is durable and capable of withstanding harsh industrial environments, including high-temperature areas.
-
IP67 Protection: With an IP67 rating, the sensor is completely protected from dust and water, ensuring reliable performance even in challenging environments.
-
Real-Time Data: The 4-20 mA linear output signal ensures continuous, real-time transmission of data to connected monitoring systems, enabling prompt action when mechanical anomalies are detected.
Frequently Asked Questions (FAQs)
-
What is the measurement range of the 3300 XL 11 mm Proximity Probe?
The probe can measure displacements from 0 to 11 mm, making it versatile for both small and larger displacements. -
What type of output signal does the 3300 XL probe provide?
The probe provides a 4-20 mA linear output signal, a standard signal widely used for industrial machinery monitoring. -
How is the 3300 XL proximity probe mounted?
The probe uses a threaded M10x1 mounting type, ensuring a secure attachment to the equipment. -
What is the power supply required for this proximity probe?
The probe operates on a 24 V DC power supply, compatible with most industrial monitoring systems. -
What temperature range can the 3300 XL probe operate in?
It is designed to work in temperatures between -40°C and +85°C, suitable for various industrial environments. -
What materials are used in the construction of the probe?
The probe is built from stainless steel and Inconel, which offer exceptional durability and resistance to harsh conditions. -
What industries can benefit from using this proximity probe?
The probe is used in power generation, oil & gas, manufacturing, HVAC systems, and aerospace, where reliable machinery monitoring is critical. -
What environmental protection does the probe offer?
The probe is rated IP67, meaning it is fully protected from dust and can withstand immersion in water for short periods. -
What is the weight of the probe?
The probe weighs 0.17 kg. -
How does the non-contacting measurement work?
The probe uses an eddy current technology that allows it to measure shaft displacement and vibration without physical contact, which helps prevent wear and tear.
Related Models from the Bently Nevada 3300 XL Series
| Model | Measurement Range | Output Signal | Weight | Application |
|---|---|---|---|---|
| 330704-000-050-10-01 | 0 to 11 mm | 4-20 mA (Linear) | 0.30 kg | Shaft displacement monitoring |
| 330704-000-050-10-03 | 0 to 11 mm | 4-20 mA (Linear) | 0.32 kg | Pumps, motors, compressors |
| 330704-000-060-10-03 | 0 to 11 mm | 4-20 mA (Linear) | 0.33 kg | Power generation, turbines |
| 330704-000-050-10-04 | 0 to 11 mm | 4-20 mA (Linear) | 0.31 kg | Refinery equipment, rotating machinery |
| 330704-000-060-10-05 | 0 to 11 mm | 4-20 mA (Linear) | 0.34 kg | HVAC systems, critical monitoring |
| 330704-000-060-10-06 | 0 to 11 mm | 4-20 mA (Linear) | 0.35 kg | Aerospace, defense, motors |
Popular Models from Bently Nevada
| Model | Measurement Range | Output Signal | Weight | Application |
|---|---|---|---|---|
| 3300 XL 5 mm Probe | 0 to 5 mm | 4-20 mA (Linear) | 0.2 kg | Vibration monitoring in bearings |
| 3500/42M Vibration Probe | 0 to 5 mm | 4-20 mA (Linear) | 0.45 kg | Industrial vibration monitoring |
| 330500-04-00 Velomitor | 0.2 to 2000 mm/s | 4-20 mA (Linear) | 0.35 kg | Vibration monitoring, machinery |
| 3500/53 Velocity Probe | 0.2 to 1500 mm/s | 4-20 mA (Linear) | 0.55 kg | Machinery health monitoring |
| 330500-06-00 Velocity Probe | 0.2 to 1000 mm/s | 4-20 mA (Linear) | 0.45 kg | Compressors, machinery monitoring |
| 3300/25 Proximity Probe | 0 to 25 mm | 4-20 mA (Linear) | 0.6 kg | Gas turbines, pumps, compressors |
