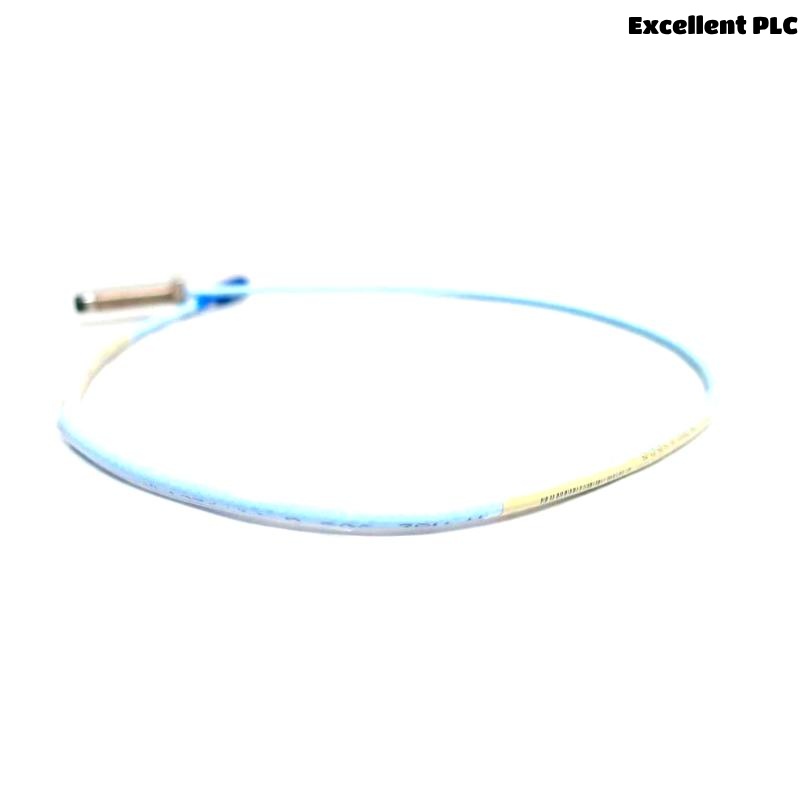

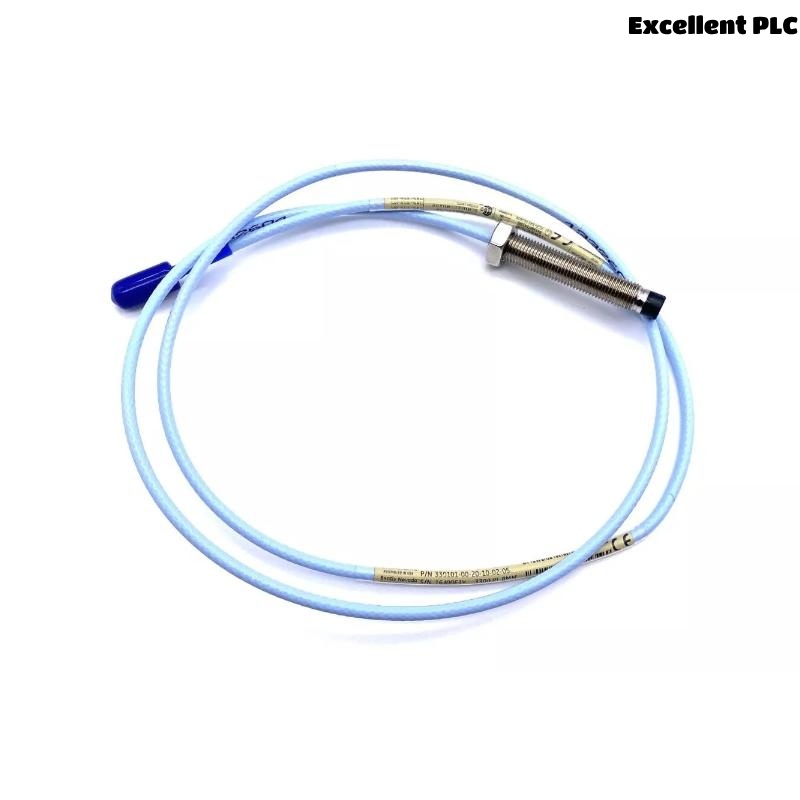

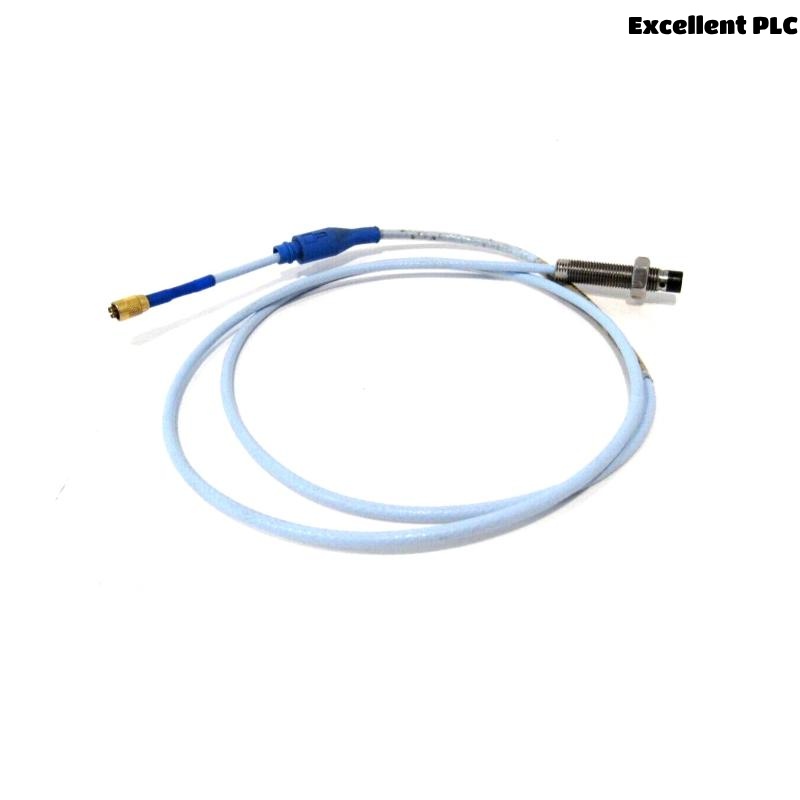

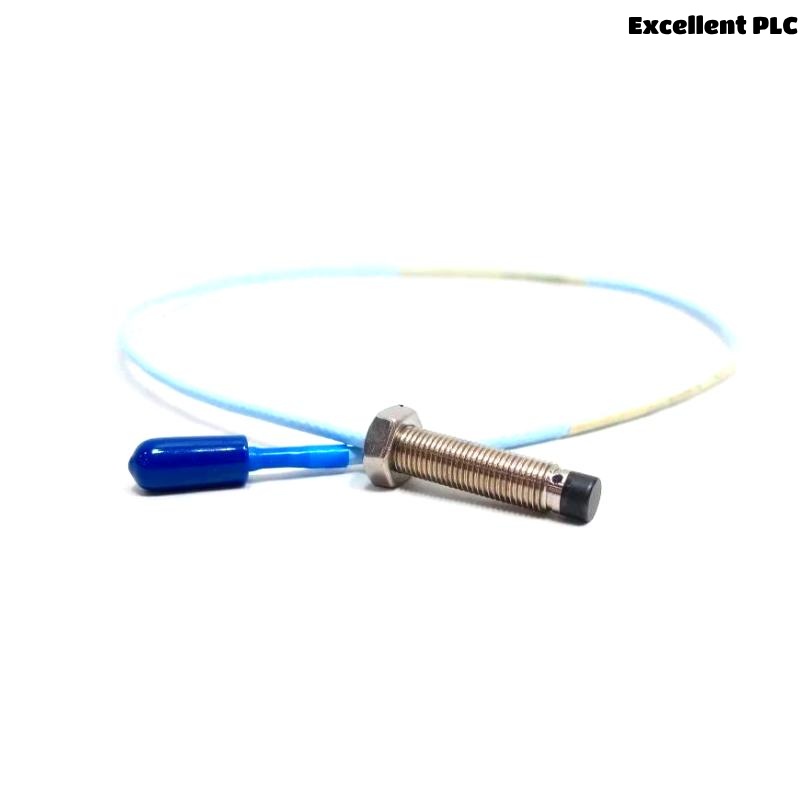

Bently Nevada 330101-00-67-10-12-CN 3300 XL 8 mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Bently Nevada 330101-00-67-10-12-CN is part of the 3300 XL 8 mm Proximity Transducer System. It offers high-performance, non-contact vibration and position measurement for rotating machinery. This model includes a proximity probe, extension cable, and a Proximitor sensor to deliver an output voltage proportional to the distance between the probe tip and the shaft surface.
Applications
-
Vibration and shaft position monitoring on fluid-film bearing machines
-
Keyphasor reference signal acquisition
-
Overspeed protection
-
General condition monitoring of rotating equipment in harsh environments
Product Advantages
-
API 670 Compliance – Meets API 670 standards for accuracy, configuration, and linearity
-
Interchangeability – Probes, cables, and sensors are fully interchangeable
-
ClickLoc™ Connectors – Easy and secure connections without tools
-
Robust Construction – Enhanced durability with TipLoc™ and CableLoc™ features
-
Wide Temperature Range – Operates up to 177°C standard, up to 218°C with ETR version
-
High EMI/RFI immunity – Safe in high-interference industrial environments
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303 or 304) |
| Probe Cable Type | 75Ω triaxial, FEP insulated |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) ±5% (standard) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc (≈1.27 mm / 50 mils) |
| Frequency Response | 0 to 10 kHz, ±3 dB |
| Operating Temperature (Probe) | -52°C to +177°C (Standard) / +218°C (ETR version) |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Humidity | ≤3% change in scale factor at 93% RH |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
Frequently Asked Questions (FAQ)
Q1: What is the function of the 330101-00-67-10-12-CN proximity probe?
A1: It measures the distance between the probe tip and a rotating shaft to monitor vibration or position.
Q2: Is this probe compatible with older Bently Nevada systems?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm systems.
Q3: What kind of environments is this probe suitable for?
A3: It is suitable for high-temperature, high-vibration, and high-EMI industrial environments.
Q4: Does this probe require special installation tools?
A4: No, ClickLoc connectors allow installation without tools.
Q5: Can it be used in hazardous locations?
A5: Yes, it meets multiple hazardous area certifications including ATEX, IECEx, CSA, and FM.
Q6: What is the recommended shaft size for installation?
A6: Recommended shaft diameter is ≥76.2 mm (3 inches).
Q7: How long is the linear measurement range?
A7: The linear range is from 0.25 mm to 2.3 mm (10–90 mils).
Q8: Is calibration required after replacing system components?
A8: No, components are fully interchangeable without recalibration.
Q9: What type of cable is used with this probe?
A9: It uses a 75Ω FEP-insulated triaxial cable, optionally with FluidLoc or armor.
Q10: Does this product comply with API 670?
A10: Yes, it is fully compliant with API 670 mechanical configuration and accuracy standards.
Related or Similar Models
| Model Number | Description | Total Length | Weight |
|---|---|---|---|
| 330101-00-08-10-02 | 8 mm probe, 3/8-24 UNF, 1.0m, unarmored | 1.0 m | 0.323 kg |
| 330102-00-08-10-02 | 8 mm probe with armor | 1.0 m | 0.350 kg |
| 330103-00-05-10-02 | Metric M10 thread, unarmored | 1.0 m | 0.323 kg |
| 330104-00-05-10-02 | Metric M10 thread, armored | 1.0 m | 0.350 kg |
| 330105-02-12-10-02 | Reverse mount probe, UNF, unarmored | 1.0 m | 0.323 kg |
| 330191-00-08-10-02 | Extended Temp Range (ETR) probe, 3/8-24, unarmored | 1.0 m | 0.323 kg |
Popular Bently Nevada Models
| Model Number | Description | Application Area | Weight |
|---|---|---|---|
| 3300/20 | Dual Vibration Monitor | General machinery protection | 0.8 kg |
| 3500/42M | Proximitor Seismic Monitor | Rotating equipment | 0.75 kg |
| 3500/22M | Transient Data Interface Module | Data acquisition | 0.9 kg |
| 330180-50-05 | 5 m Proximitor Sensor, panel mount | Vibration monitoring | 0.246 kg |
| 330130-030-00-00 | 3 m Extension Cable | Probe extension | 0.102 kg |
| 3500/15 | Power Supply Module | 3500 Series rack | 0.6 kg |
