Product Introduction

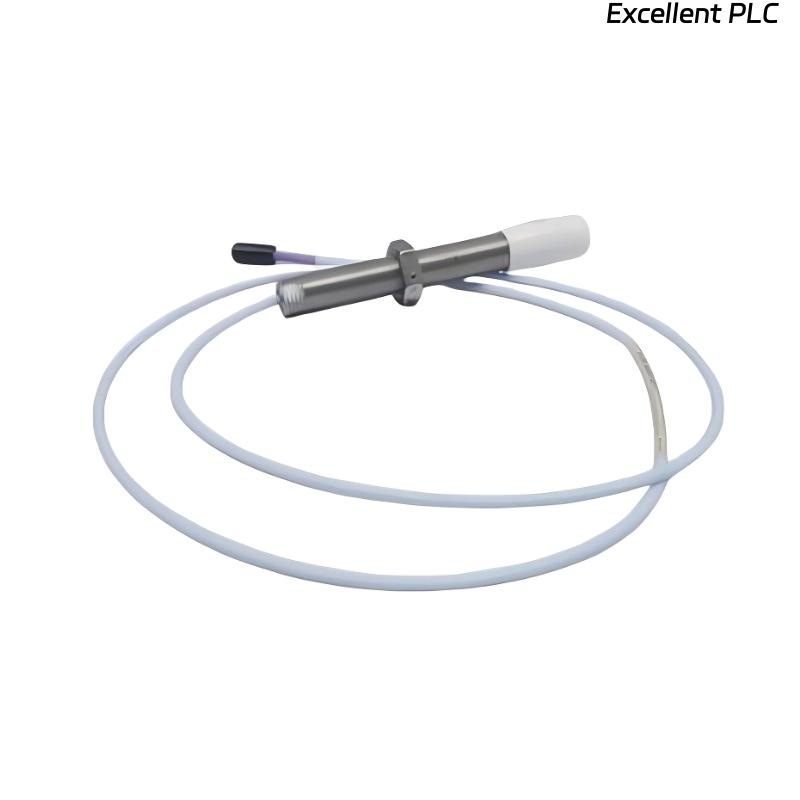

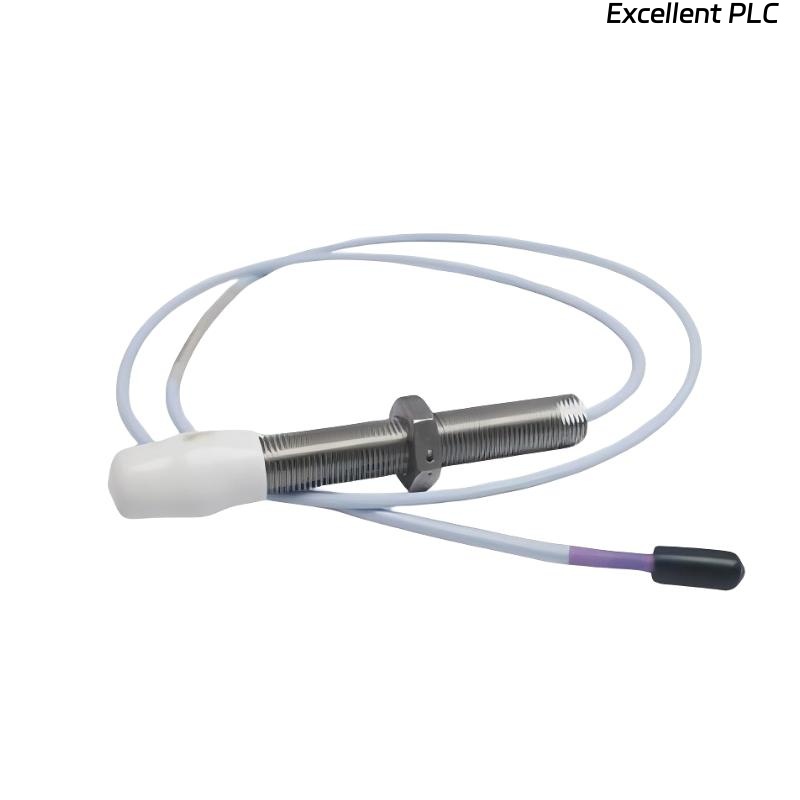

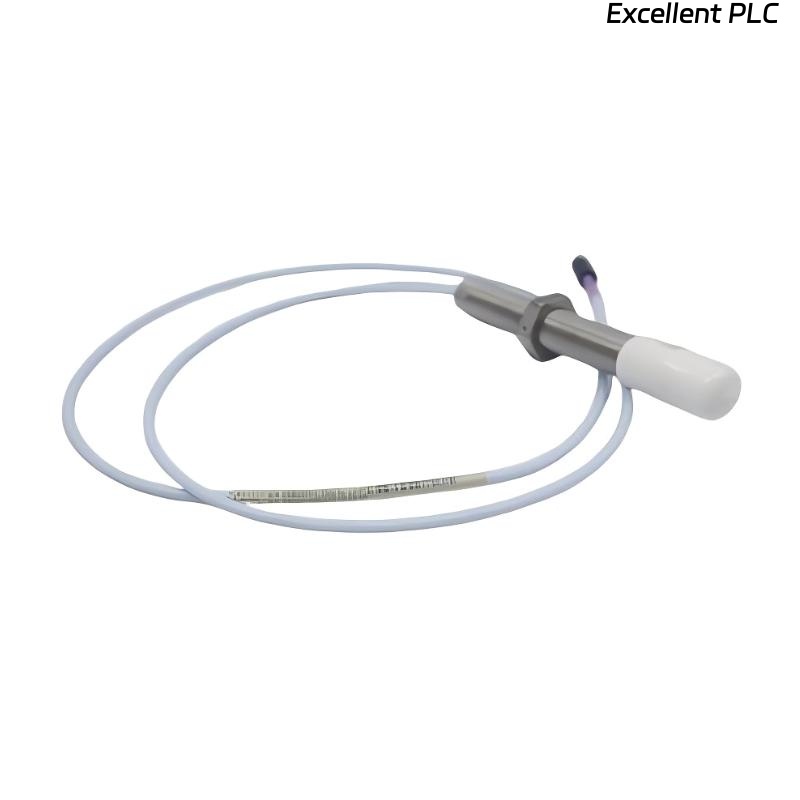

The Bently Nevada 330709-00-050-10-02-00 3300 XL 11 mm Proximity Probe is a precision-engineered, non-contact vibration and displacement measurement sensor developed for the most demanding rotating machinery applications. As part of the Bently Nevada 3300 XL Series, it is designed to provide reliable and highly accurate measurements in harsh industrial environments such as turbines, compressors, pumps, and motors.
Operating on the eddy current principle, the probe detects changes in the electromagnetic field when placed near a conductive target, typically the surface of a rotating shaft. This signal is then converted into a voltage output proportional to shaft vibration or displacement. When used together with a 3300 XL Proximitor Sensor and compatible extension cable, the system ensures precise, real-time monitoring of machinery health conditions.
The 330709-00-050-10-02-00 model combines robust mechanical construction, excellent temperature stability, and superior EMI/RFI immunity, allowing it to deliver consistent performance over extended operational periods. Designed to meet API 670 standards, it provides industry-standard performance for predictive maintenance and machinery protection systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | Bently Nevada 330709-00-050-10-02-00 |
| Series | 3300 XL 11 mm Proximity Probe |
| Measurement Principle | Eddy current, non-contact displacement |
| Nominal Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Linear Range | 2.0 mm (80 mils) |
| Usable Measurement Range | 0.25 mm to 2.25 mm |
| Frequency Response | DC to 10 kHz (±3 dB) |
| Standard Target Material | AISI 4140 steel |
| Probe Tip Diameter | 11 mm |
| Mounting Thread | M14 × 1.5 |
| Mounting Type | Front mount |
| Probe Body Material | Stainless steel, corrosion-resistant |
| Cable Type | Double-shielded coaxial cable |
| Total Length | 1.0 meter |
| Operating Temperature (Probe) | -35°C to +177°C |
| Storage Temperature | -55°C to +200°C |
| Temperature Coefficient | < 0.1% per °C |
| Electrical Isolation | Tip isolated from probe body |
| Compliance Standards | API 670, CE, CSA, ATEX (system dependent) |
| Weight | 0.07 kg |
Product Applications
The Bently Nevada 330709-00-050-10-02-00 is widely applied in critical rotating machinery where accurate monitoring of shaft vibration and displacement is required to prevent unexpected failures and optimize maintenance schedules. Its non-contact design enables high-precision measurements without affecting the target surface, even under extreme operating conditions.
Key applications include:
-
Steam and Gas Turbines: Provides real-time shaft vibration and axial position feedback to ensure rotor balance and stability.
-
Compressors: Detects shaft movement and misalignment for early fault identification.
-
Pumps: Monitors vibration amplitude to detect mechanical looseness, cavitation, and imbalance.
-
Generators and Motors: Ensures operational stability by tracking rotor position and dynamic motion.
-
Industrial Fans and Blowers: Identifies vibration-related issues to improve energy efficiency and reliability.
-
Gearboxes and Drive Trains: Assists in detecting wear and misalignment for predictive maintenance.
This probe is especially valued in industries such as power generation, oil & gas, petrochemical, and process manufacturing, where precision measurement and durability are essential to maintain safe and efficient plant operations.
Product Advantages
-
High Accuracy: Provides 200 mV/mil sensitivity with excellent linearity across its range.
-
Temperature Stability: Designed to operate reliably between -35°C and +177°C with minimal output drift.
-
Superior Signal Integrity: Double-shielded coaxial cable ensures protection against EMI and RFI interference.
-
Durable Construction: Stainless steel body provides long-lasting corrosion and wear resistance.
-
Industry Compliance: Fully meets API 670 and CE standards for industrial vibration monitoring systems.
-
Wide Application Range: Suitable for a variety of rotating and reciprocating machinery.
-
Non-Contact Operation: Reduces mechanical wear and eliminates physical contact errors.
-
Ease of Installation: Compact and front-mounted design simplifies integration into existing setups.
-
Enhanced Reliability: Proven design ensures stable output under high mechanical and thermal stress.
-
System Compatibility: Works seamlessly with all 3300 XL Proximitor Sensors and associated hardware.
FAQ
-
What sensing technology is used in the 330709-00-050-10-02-00 probe?
The probe operates using eddy current technology, which measures changes in an induced electromagnetic field to detect shaft vibration and displacement. -
What is the probe’s standard sensitivity and output signal?
It delivers a 200 mV/mil (7.87 mV/μm) voltage output, providing consistent linear response when paired with a 3300 XL Proximitor Sensor. -
Can the probe be used with all 3300 XL Proximitor Sensors?
Yes, it is designed for full compatibility with the entire 3300 XL Proximitor Sensor series, ensuring optimal performance. -
What materials are recommended for target surfaces?
The probe is factory-calibrated for AISI 4140 steel, which ensures accurate and repeatable measurement results. -
Does the probe provide accurate readings in high-temperature environments?
Yes, it maintains precision performance up to +177°C, with minimal signal drift due to temperature compensation. -
How does the probe maintain immunity to electrical interference?
The double-shielded cable minimizes electromagnetic and radio frequency interference, ensuring signal purity in noisy environments. -
Is the 330709-00-050-10-02-00 suitable for high-speed rotating machinery?
Yes, its wide frequency response (DC to 10 kHz) makes it ideal for monitoring both low-speed and high-speed machinery. -
How is the probe installed for accurate measurement?
It should be mounted perpendicular to the target surface, maintaining the recommended initial gap for correct calibration. -
Can the probe measure both dynamic and static parameters?
Yes, it measures dynamic vibration (motion) and static displacement (shaft position) simultaneously. -
Does the probe meet international monitoring standards?
Yes, it complies with API 670, CE, CSA, and ATEX standards, ensuring compatibility with globally accepted systems.
Related Models (Same Series or Equivalent)
| Model | Description |
|---|---|
| 330709-000-040-50-02-00 | Standard 11 mm probe for general vibration monitoring |
| 330708-00-10-90-02-00 | Long-range 11 mm probe for large rotating equipment |
| 330706-05-46-10-02-00 | Reverse-mount probe for space-constrained applications |
| 330704-005-040-10-02-00 | Front-mount probe for medium-sized machinery |
| 330704-000-040-10-02-05 | Compact probe suitable for confined equipment setups |
| 330703-000-100-10-02-00 | Short-range proximity probe for compact mechanical systems |
