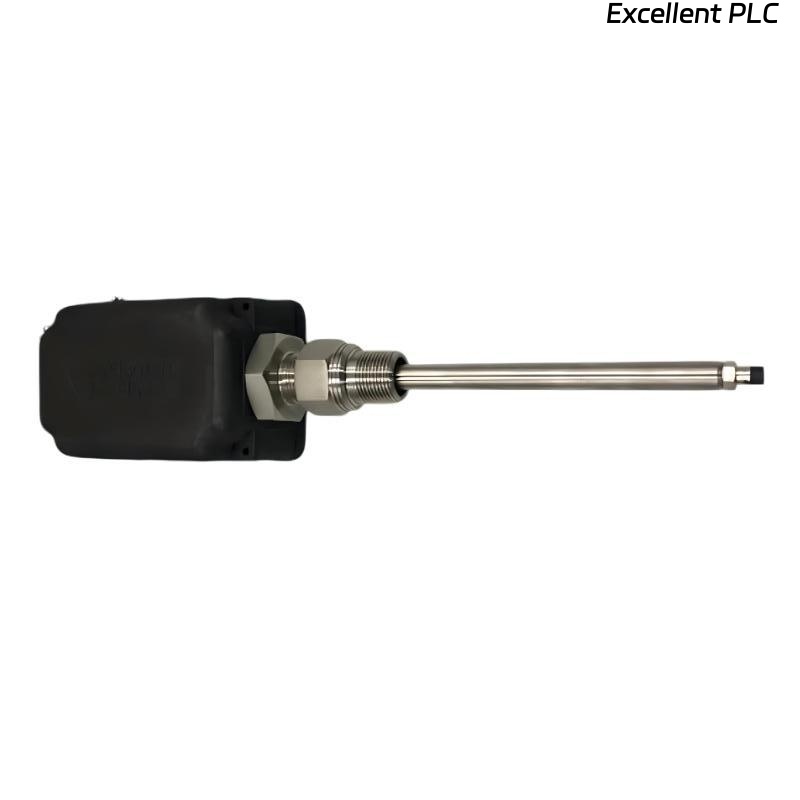

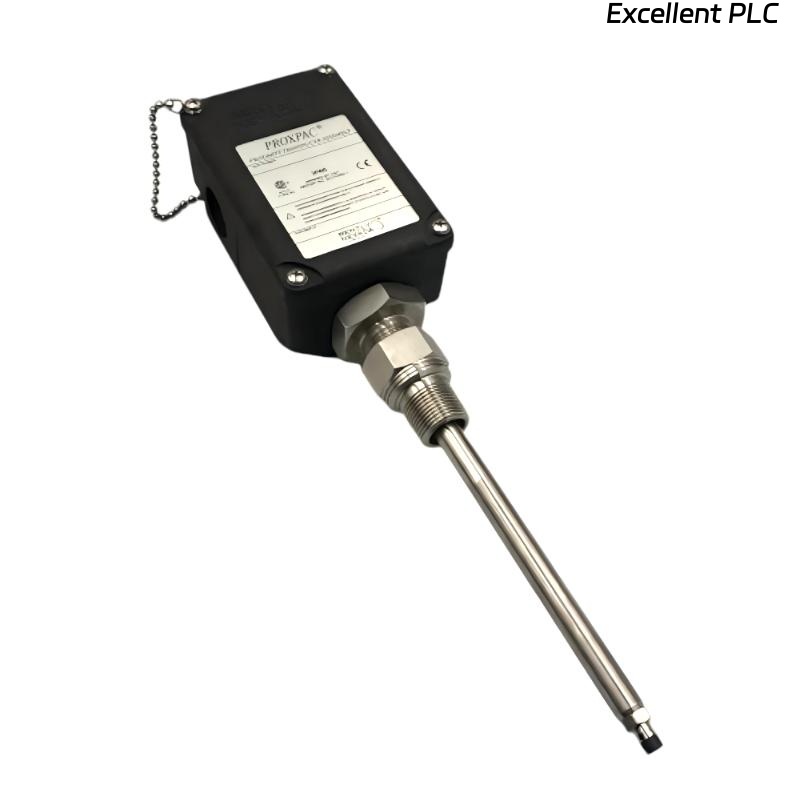

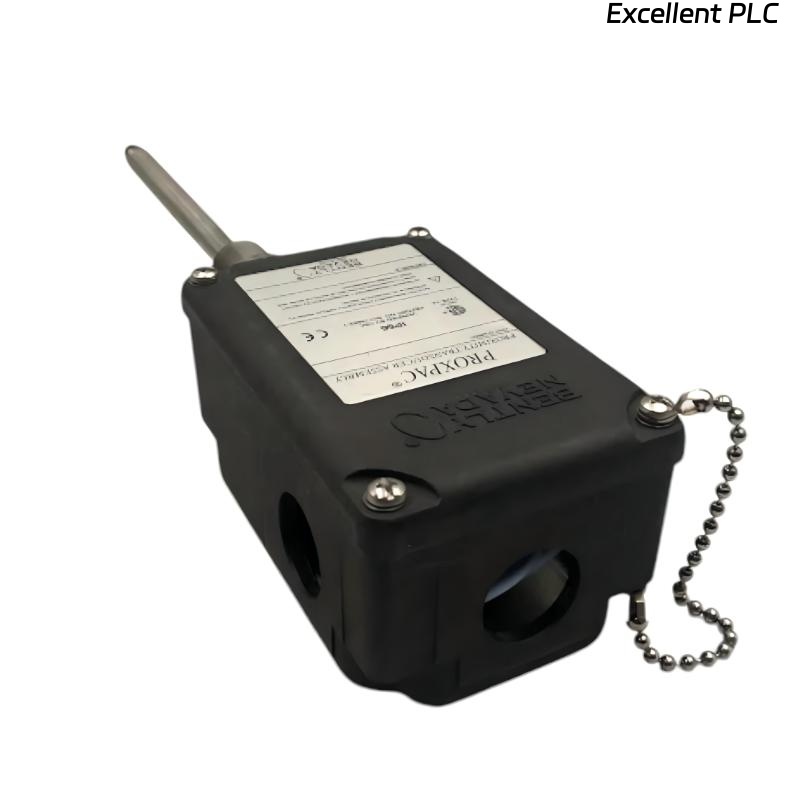

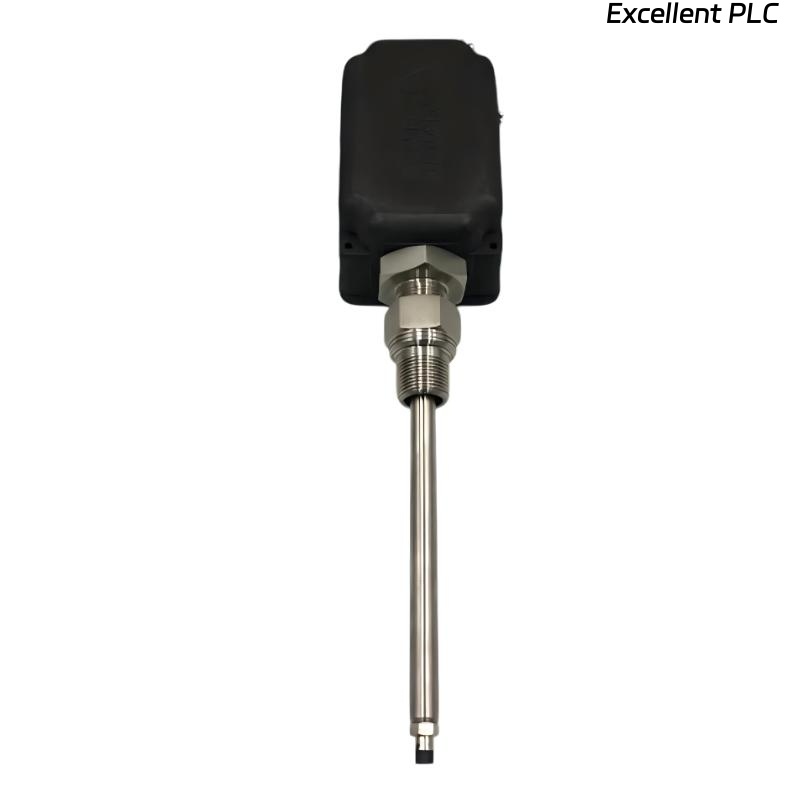

Bently Nevada 330800-28-00-035-01-02 PROXPAC XL Proximity Transducer
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Bently Nevada PROXPAC XL Proximity Transducer (Model: 330800-28-00-035-01-02) is an integrated eddy current proximity measurement solution designed for direct mounting on rotating machinery. It combines a proximity probe and mounting assembly into a single pre-engineered unit, reducing installation complexity and improving measurement consistency.
This PROXPAC XL device is used for continuous monitoring of shaft vibration and position in industrial equipment such as turbines, compressors, pumps, and gearboxes. By integrating the probe into a fixed mechanical assembly, it eliminates many alignment and installation variables associated with traditional separate probe configurations.
The design is optimized for stable long-term operation in harsh industrial environments, ensuring reliable signal output even under high vibration, temperature variation, and mechanical stress conditions. It is widely used in both new installations and retrofit applications where simplified mounting and improved reliability are required.
Product Specifications
| Parameter | Value |
|---|---|
| Product Type | Proximity Transducer Assembly |
| Series | PROXPAC XL |
| Model Number | 330800-28-00-035-01-02 |
| Measurement Type | Eddy current displacement / vibration |
| System Compatibility | Bently Nevada 3300 XL system |
| Configuration | Integrated probe + mounting assembly |
| Signal Output | Analog voltage proportional to displacement |
| Operating Principle | Eddy current sensing |
| Housing Material | Industrial-grade metal alloy |
| Environmental Protection | Industrial sealed construction |
| Mounting Type | Direct machine mounting assembly |
| Application Area | Rotating machinery monitoring |
| Dimensions | 91.4 x 144.8 mm |
| Weight | 1.44 kg |
Applications
• Steam and gas turbines
Provides stable and integrated monitoring of shaft vibration and axial displacement in high-speed rotating equipment.
• Industrial compressors
Supports accurate detection of rotor instability, imbalance, and misalignment conditions.
• Pump monitoring systems
Enables continuous condition monitoring for bearing wear and hydraulic instability detection.
• Gearbox applications
Ensures reliable vibration measurement in environments with high mechanical stress and load variation.
• System retrofit and upgrades
Simplifies installation by replacing traditional probe + housing configurations with a pre-integrated solution.
Advantages
• Integrated design
Combines probe and mounting assembly into one unit, reducing installation complexity and alignment errors.
• Improved measurement consistency
Factory-aligned configuration ensures stable and repeatable signal output.
• Reduced installation time
Eliminates separate probe mounting and alignment steps, improving field efficiency.
• Strong environmental resistance
Designed for vibration, oil exposure, and industrial temperature variations.
• Enhanced reliability
Minimizes mechanical variables that can affect traditional probe systems.
• System compatibility
Fully compatible with Bently Nevada 3300 XL monitoring systems.
FAQ
- What is the main advantage of the PROXPAC XL system?
It integrates the probe and mounting structure into a single assembly, reducing installation complexity and improving measurement consistency. - How does integration improve measurement performance?
By eliminating separate mounting and alignment steps, it reduces installation errors and ensures more stable probe positioning. - Can this device replace traditional probe systems?
Yes, in many applications it can replace separate probe, cable, and housing assemblies with a single integrated unit. - What type of machinery is it used for?
It is commonly used in turbines, compressors, pumps, and other rotating machinery requiring continuous monitoring. - Does it require calibration after installation?
It is factory-configured, but system-level calibration may still be required depending on the monitoring setup. - How does it handle harsh environments?
It is designed for industrial conditions including vibration, oil exposure, and temperature fluctuations. - What happens if the mounting surface is not ideal?
Improper mounting can affect measurement accuracy, so correct installation surfaces and procedures are important. - Is it compatible with all Bently Nevada systems?
It is designed for use within the 3300 XL ecosystem and should be used with compatible components. - Can it be used in retrofit applications?
Yes, it is often used to simplify upgrades from traditional multi-component probe systems. - What are common installation issues?
Incorrect mounting orientation, poor surface preparation, and improper electrical grounding are typical issues.
Related Models
| Model | Description |
|---|---|
| 330800-28-00-025-01-02 | Shorter configuration PROXPAC XL |
| 330800-28-00-045-01-02 | Extended configuration version |
| 330800-16-00-035-01-02 | Compact mounting variant |
| 330800-34-00-035-01-02 | Heavy-duty assembly version |
| 330800-28-10-035-01-02 | Modified alignment model |
| 330800-28-00-035-01-03 | Updated generation version |
