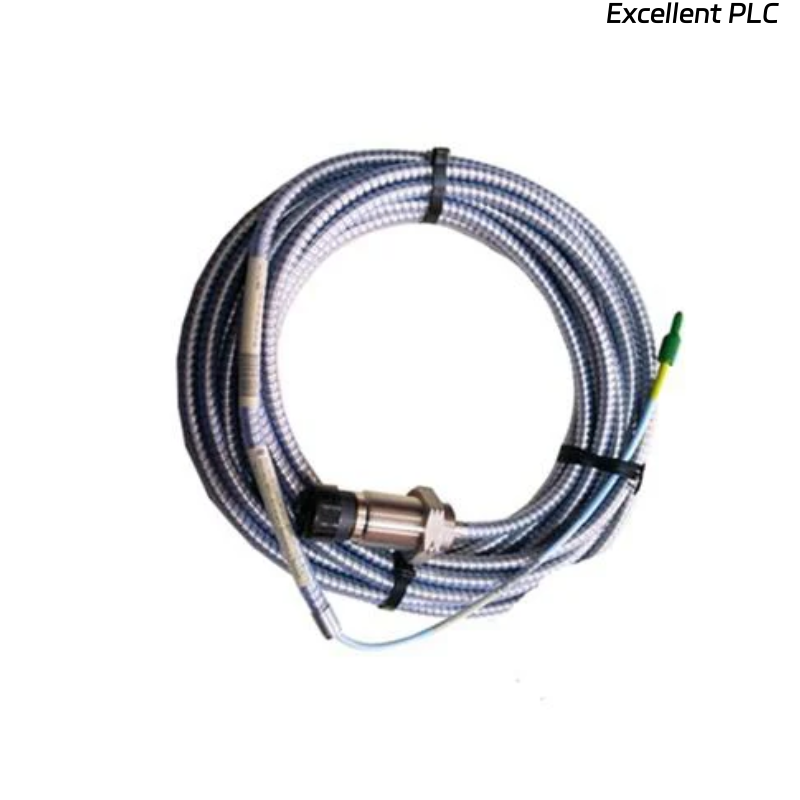

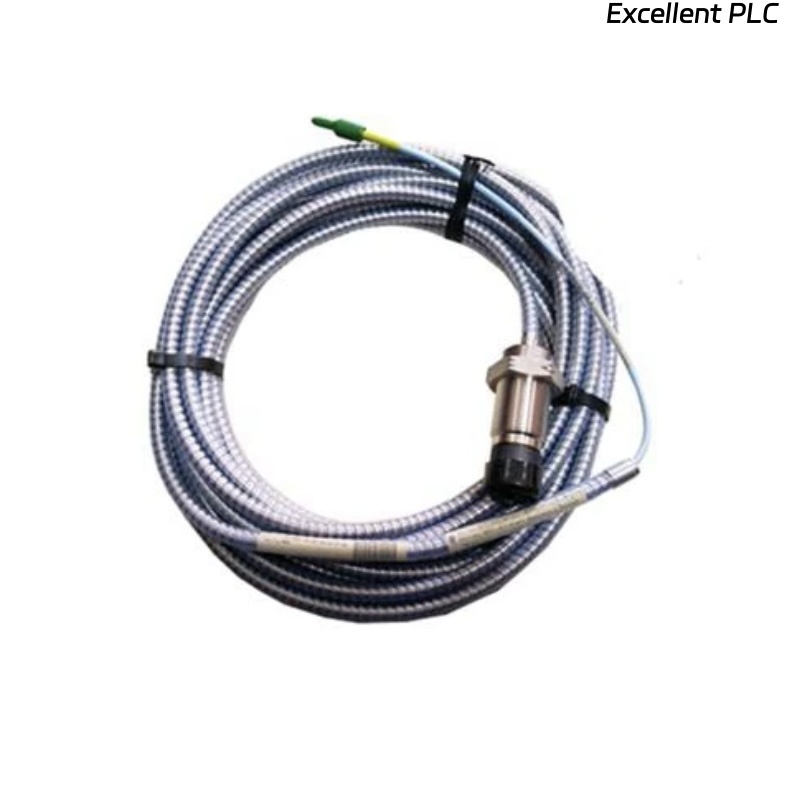

Bently Nevada 330851-02-000-060-10-01-05 3300 XL 25 mm Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Bently Nevada 330851-02-000-060-10-01-05 3300 XL 25 mm Proximity Probe is a high-performance displacement sensor designed for precise shaft vibration and position measurement in heavy industrial machinery. As part of the renowned Bently Nevada 3300 XL Series, this 25 mm probe offers superior reliability, stability, and accuracy under harsh environmental conditions. It is widely used in turbomachinery, compressors, pumps, and generators to monitor shaft movement and ensure machinery protection.
Key Features
-
Advanced eddy current sensing technology for accurate non-contact measurement
-
Optimized for 25 mm linear range applications
-
Excellent temperature stability and linearity
-
Rugged construction for industrial and hazardous environments
-
Fully compatible with 3300 XL extension cables and Proximitor sensors
-
Meets API 670 machinery protection standards
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Part Number | 330851-02-000-060-10-01-05 |
| Product Series | 3300 XL |
| Probe Type | Eddy Current Proximity Probe |
| Tip Diameter | 25 mm |
| Linear Range | 6.35 mm (±0.25 mm) |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
| Frequency Response | DC to 10 kHz |
| Temperature Range (Operation) | –35 °C to +177 °C |
| Mounting Thread | M10 × 1.0 |
| Connector Type | Miniature coaxial connector |
| Material | Stainless steel housing |
| Dimensions | Total Length :1.0 meter |
| Weight | 0.33 kg |
| Compliance | API 670, CE, RoHS compliant |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Industrial pumps and motors
-
Gearboxes and rotating machinery
-
Generators and alternators
-
Condition monitoring and predictive maintenance systems
Frequently Asked Questions (FAQ)
Q1: What is the function of the Bently Nevada 330851-02-000-060-10-01-05 probe?
It measures shaft vibration and position in rotating machinery using eddy current technology.
Q2: What is the probe’s linear range?
It offers a 6.35 mm (±0.25 mm) linear measurement range.
Q3: What type of sensor technology does it use?
It uses eddy current proximity sensing technology.
Q4: Is it compatible with the 3300 XL Proximitor Sensor?
Yes, it is fully compatible with 3300 XL Proximitor sensors and extension cables.
Q5: What is the sensitivity of this probe?
The sensitivity is 200 mV/mil (7.87 mV/μm).
Q6: What is the operating temperature range?
The probe can operate from –35 °C to +177 °C.
Q7: What thread type is used for mounting?
It uses an M10 × 1.0 mounting thread.
Q8: What materials are used for construction?
It features a stainless-steel housing for corrosion and wear resistance.
Related Bently Nevada Probes
| Model | Description |
|---|---|
| 330851-02-000-060-10-01-00 | 3300 XL 25 mm Proximity Probe |
| 330851-02-000-060-10-02-05 | 3300 XL 25 mm Proximity Probe |
| 330851-02-000-080-10-01-05 | 3300 XL 25 mm Proximity Probe |
| 330851-02-000-040-10-01-05 | 3300 XL 25 mm Proximity Probe |
| 330851-02-000-070-10-01-05 | 3300 XL 25 mm Proximity Probe |
| 330851-02-000-090-10-02-00 | 3300 XL 25 mm Proximity Probe |
Popular Bently Nevada Modules
| Model | Description |
|---|---|
| 3300 XL 5 mm Probe | Standard proximity probe for small shaft measurements |
| 3300 XL 8 mm Probe | High-precision proximity probe for medium applications |
| 3300 XL 11 mm Probe | Heavy-duty proximity probe for larger shafts |
| 330130-045-01-05 | Standard Extension Cable for 3300 XL Probes |
| 3300 XL Proximitor Sensor | Conditioning unit for proximity probes |
| 3500/22M | Transient Data Interface Module for 3500 Series systems |
