Product Introduction

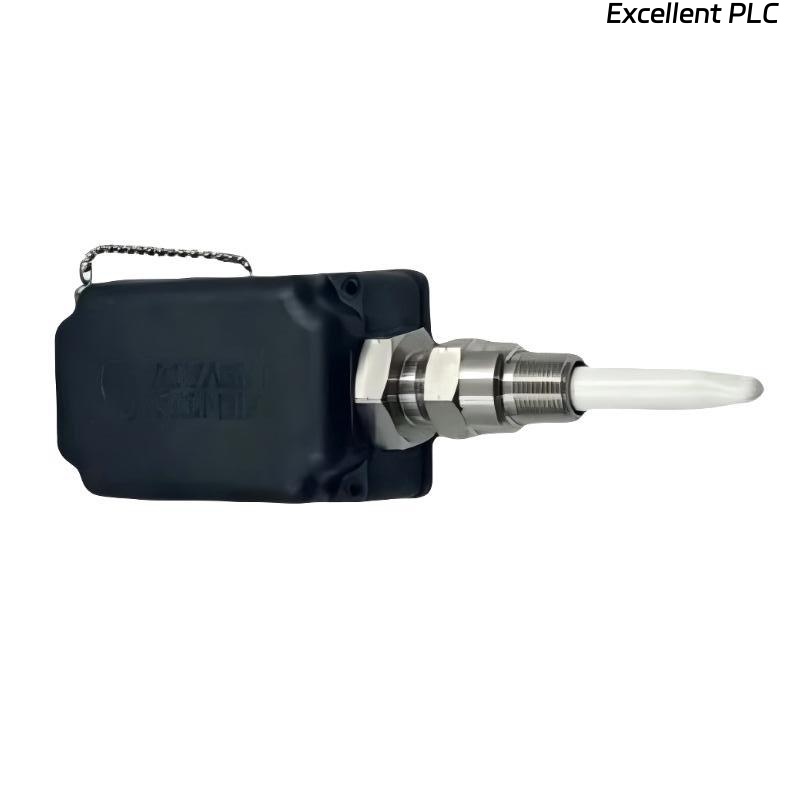

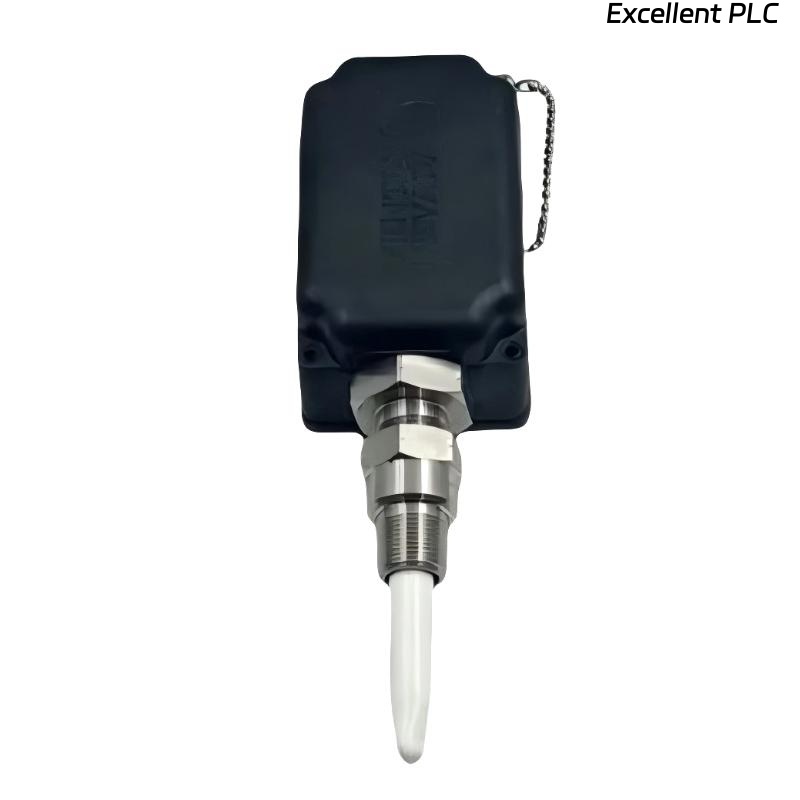

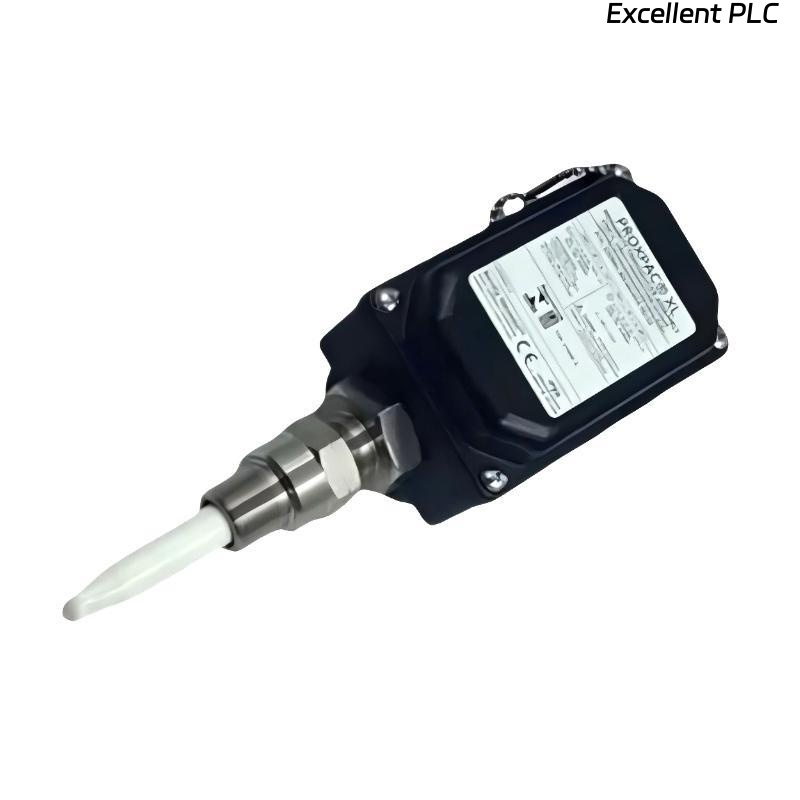

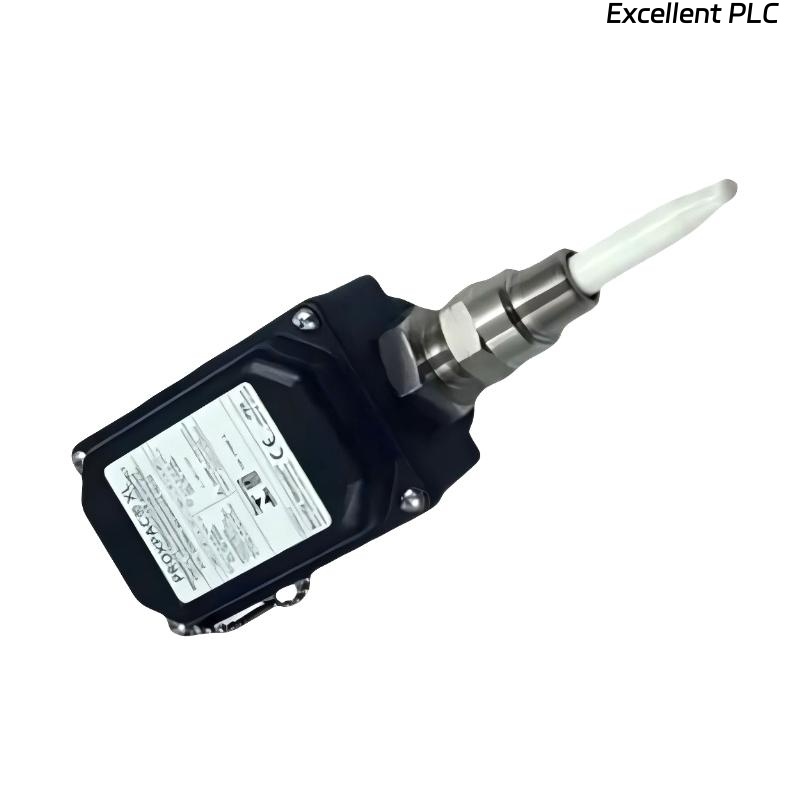

The Bently Nevada PROXPAC XL Proximity Transducer (Model: 330880-28-15-063-00-02) is an integrated eddy current sensing assembly designed for direct installation on rotating machinery. It combines the proximity probe and mounting structure into a single, factory-configured unit, simplifying installation while ensuring consistent measurement accuracy.
This design eliminates many of the alignment and mounting challenges associated with traditional multi-component probe systems. By providing a pre-aligned configuration, it improves reliability and reduces installation time, making it especially suitable for both new equipment and retrofit applications.
The PROXPAC XL transducer is widely used in turbines, compressors, pumps, and gearboxes where precise shaft vibration and displacement monitoring are essential. Its robust construction ensures stable operation in environments exposed to vibration, temperature changes, oil, and industrial contaminants.
Product Specifications
| Parameter | Value |
|---|---|
| Product Type | Proximity Transducer Assembly |
| Series | PROXPAC XL |
| Model Number | 330880-28-15-063-00-02 |
| Measurement Type | Eddy current displacement and vibration |
| System Compatibility | Bently Nevada 3300 XL system |
| Configuration | Integrated probe and mounting assembly |
| Signal Output | Analog voltage proportional to displacement |
| Operating Principle | Eddy current sensing |
| Housing Material | Industrial-grade metal alloy |
| Environmental Protection | Sealed industrial design |
| Mounting Type | Direct machine mounting |
| Application Area | Rotating machinery monitoring |
| Dimensions | 91.4 x 144.8 mm |
| Weight | 1.44 kg |
Applications
• Steam and gas turbine systems
Provides accurate and stable monitoring of shaft vibration and axial displacement in high-speed rotating equipment.
• Industrial compressor monitoring
Supports detection of rotor imbalance, misalignment, and dynamic instability.
• Pump condition monitoring
Enables continuous tracking of bearing condition and hydraulic performance.
• Gearbox vibration monitoring
Ensures reliable measurements in environments with high mechanical stress and load variation.
• System retrofit projects
Replaces traditional multi-component probe installations with a simplified integrated solution.
Advantages
• Integrated structure design
Combines probe and mounting assembly into one unit, minimizing installation errors and alignment issues.
• High measurement consistency
Factory-configured alignment ensures stable and repeatable signal performance.
• Reduced installation effort
Eliminates the need for separate probe mounting and adjustment, saving time during installation.
• Strong environmental adaptability
Designed to operate reliably under vibration, oil exposure, and temperature fluctuations.
• Improved system reliability
Fewer components reduce potential failure points in the monitoring system.
• Seamless system compatibility
Fully compatible with Bently Nevada 3300 XL monitoring systems.
