Product Introduction

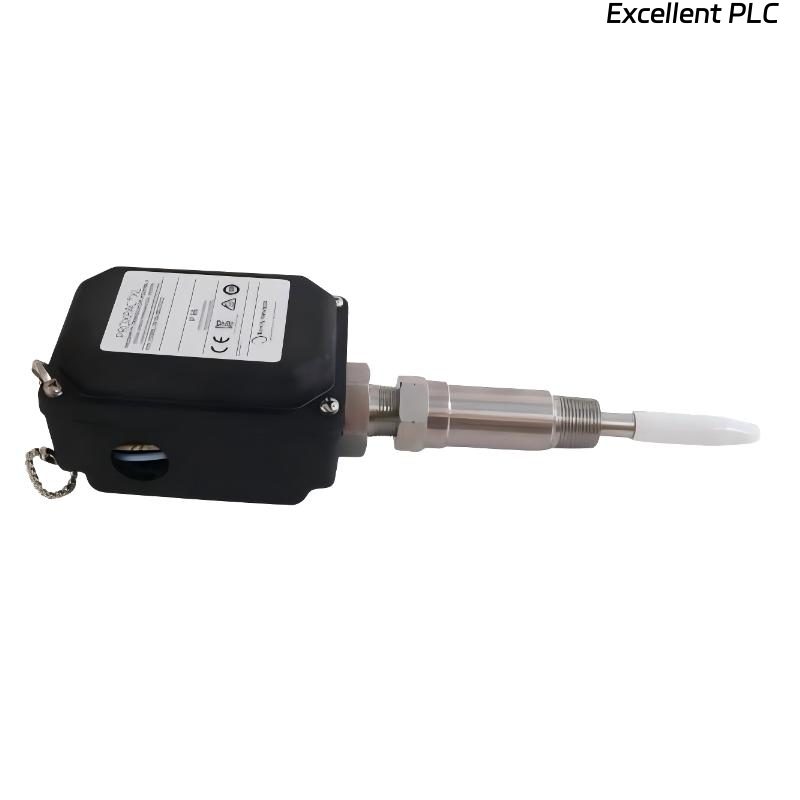

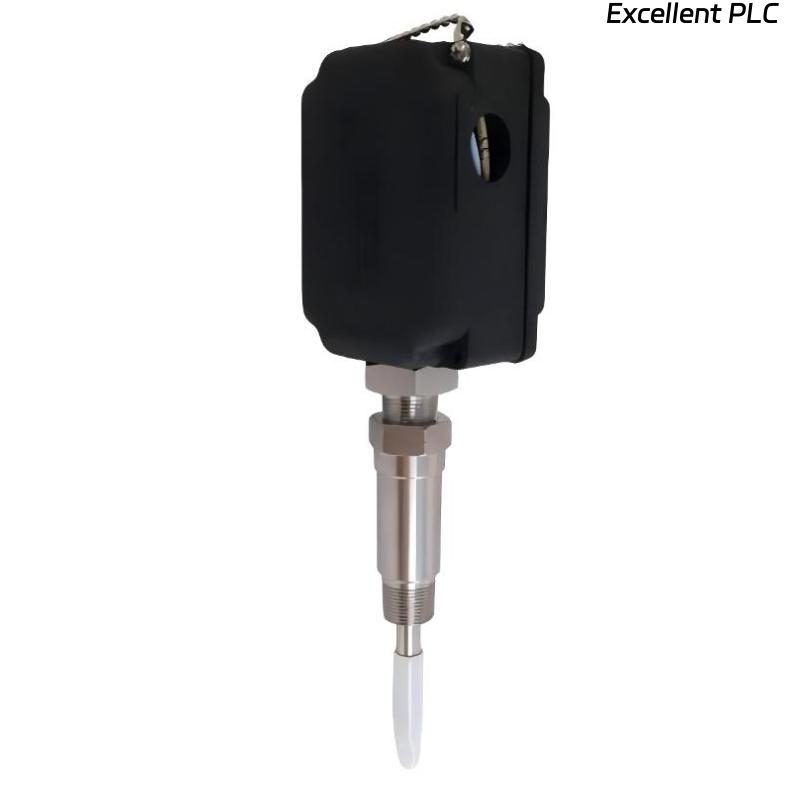

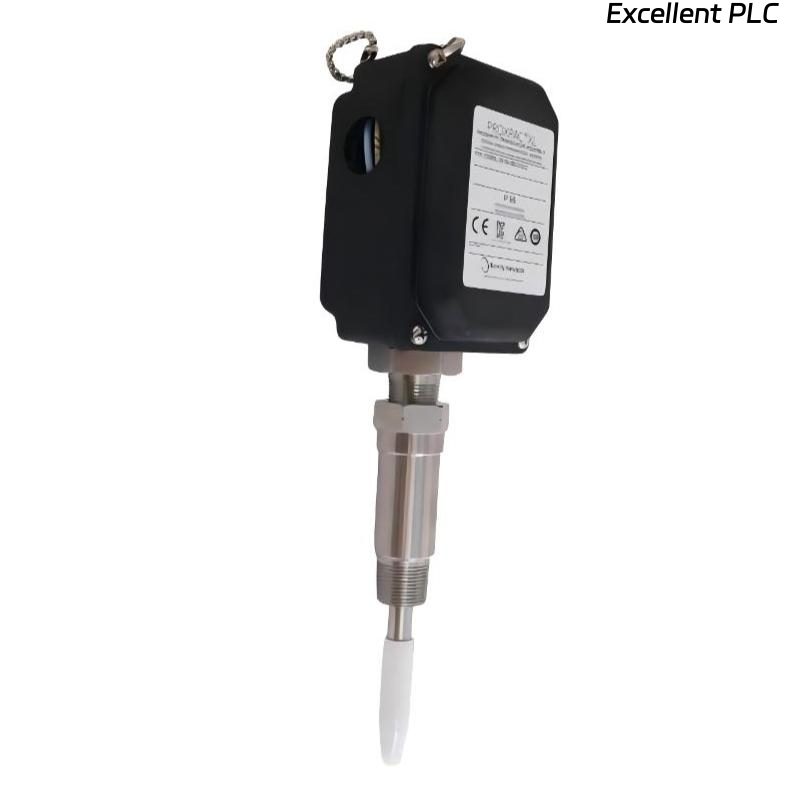

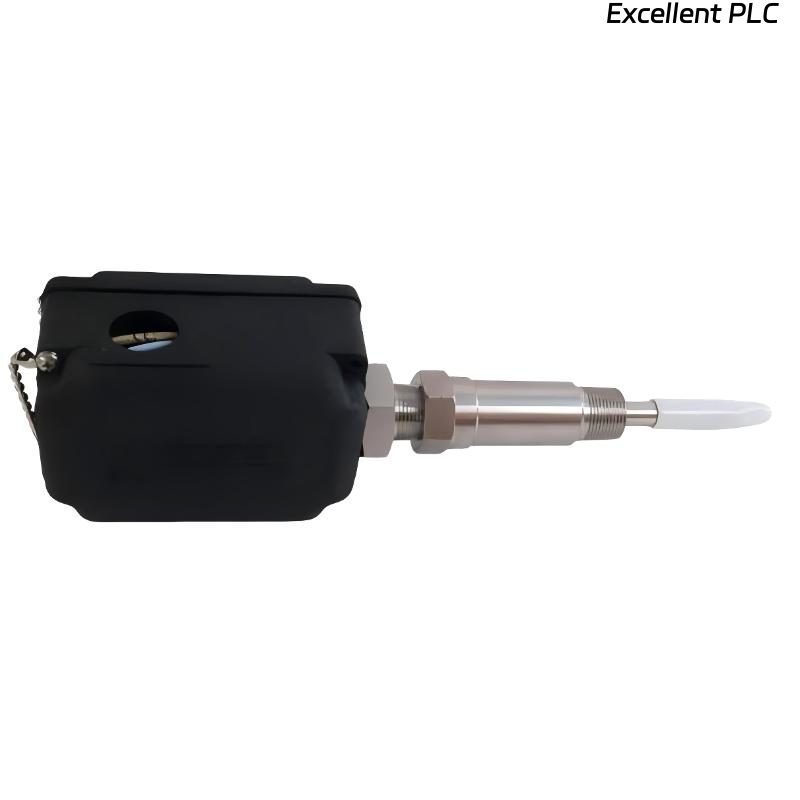

The Bently Nevada 330881-16-09-165-07-02 PROXPAC XL Proximity Transducer is a precision sensor designed for high-performance machinery monitoring. It provides highly accurate measurements of rotor position, shaft vibration, and displacement in rotating equipment, helping to detect misalignment, imbalance, and potential mechanical faults.
This transducer is part of the PROXPAC XL series, engineered for industrial environments where reliability, robustness, and precision are critical. Its advanced sensing technology ensures accurate data under harsh conditions, including high temperatures, vibration, and contamination. The PROXPAC XL is widely used in turbines, compressors, generators, and other critical machinery in power plants and heavy industrial applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 330881-16-09-165-07-02 |
| Product Type | PROXPAC XL Proximity Transducer |
| Manufacturer | Bently Nevada |
| Function | Measures rotor position, displacement, and vibration |
| Series | PROXPAC XL |
| Sensing Technology | Eddy-current proximity sensing |
| Output Signal | AC or DC depending on configuration |
| Mounting Type | Flange or stud-mounted sensor |
| Operating Environment | Industrial, high-vibration machinery |
| Electrical Role | Converts physical displacement into electronic signal |
| Applications | Turbines, compressors, generators, rotating machinery |
| Dimensions | 91.4 × 144.8 mm |
| Weight | 1.44 kg |
Applications
• Turbine Monitoring:
Measures shaft vibration and displacement, enabling early fault detection.
• Compressors and Generators:
Ensures operational stability by monitoring rotor alignment and clearance.
• Industrial Machinery:
Supports condition monitoring in heavy-duty equipment with rotating components.
• Power Plants:
Facilitates precise monitoring for high-speed machinery, preventing costly downtime.
• Vibration Analysis Systems:
Integrates with PROXPAC XL systems for real-time vibration and displacement monitoring.
Advantages
• High-Precision Measurement:
Provides accurate monitoring of rotor position and vibration.
• Robust Industrial Design:
Durable under extreme vibration, temperature, and industrial conditions.
• Reliable Data Transmission:
Ensures accurate signals for integration with monitoring systems.
• Flexible Mounting Options:
Supports flange and stud configurations for diverse machinery applications.
• Early Fault Detection:
Enables predictive maintenance and minimizes machinery failure risk.
• Compatible with PROXPAC XL Systems:
Seamlessly integrates with existing Bently Nevada monitoring infrastructure.
