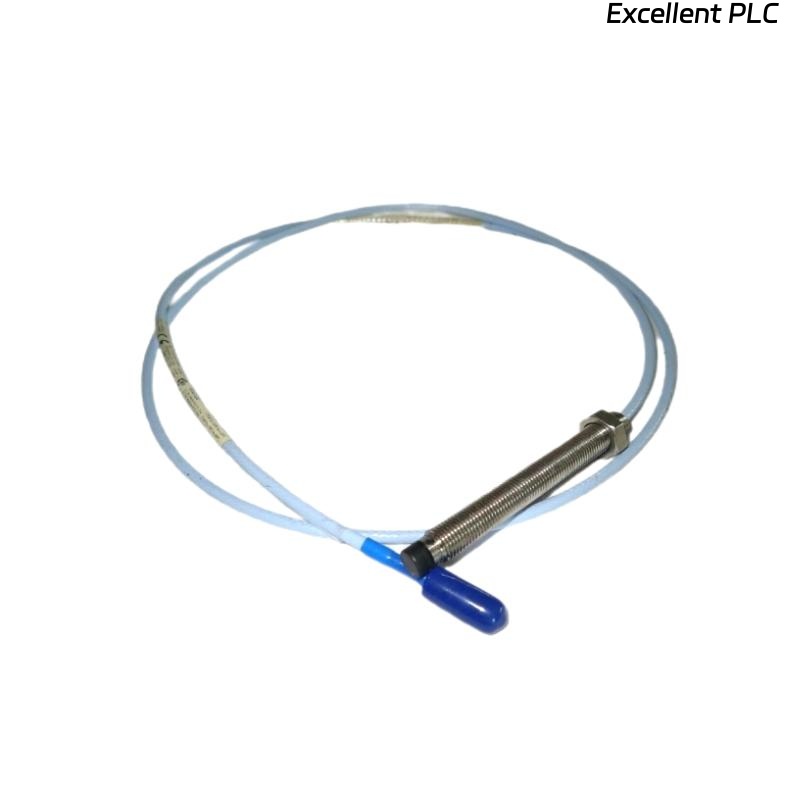

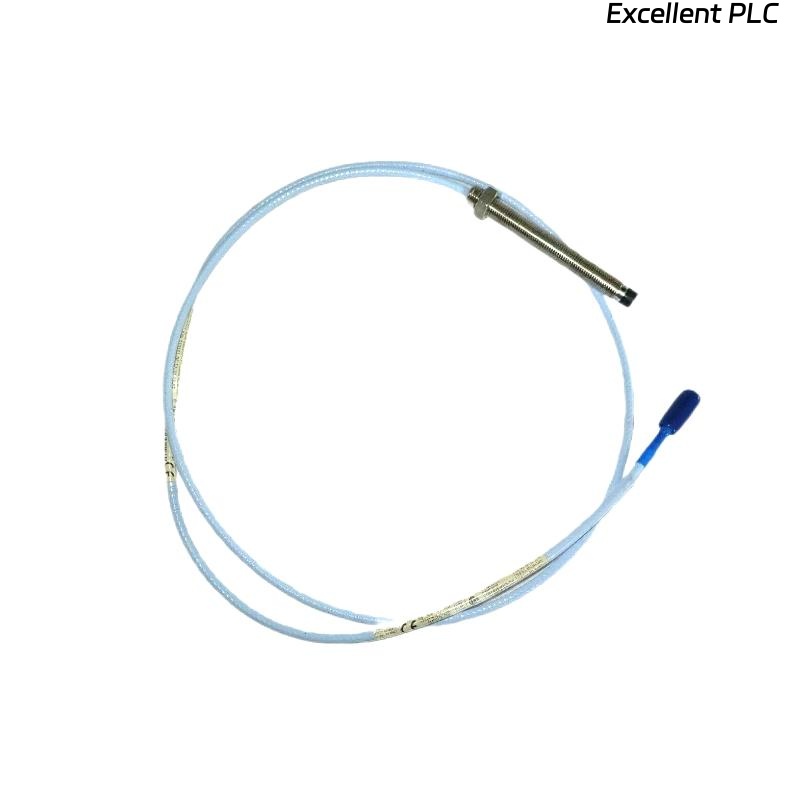

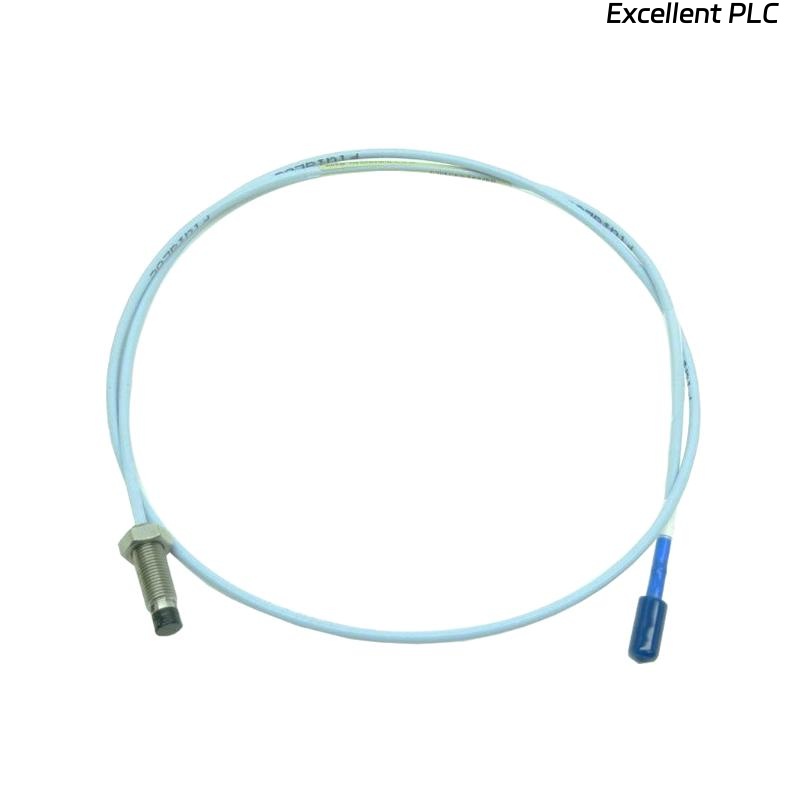

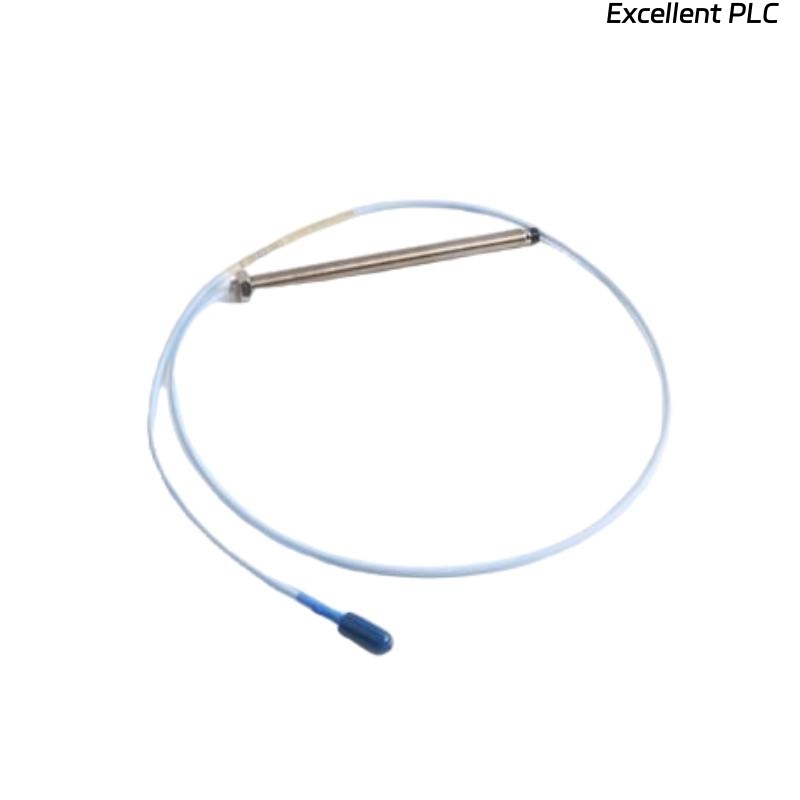

Bently Nevada 330909-00-60-10-10-02-05 3300 NSv Proximity Probe

Product Introduction

The Bently Nevada 330909-00-60-10-10-02-05 3300 NSv Proximity Probe is a precision eddy-current sensor designed for accurate shaft vibration and position measurement in industrial rotating machinery. As a member of the 3300 NSv (Narrow Side-view) series, it is engineered to deliver stable performance in confined spaces and harsh operating conditions. Its rugged stainless-steel housing, advanced electromagnetic shielding, and wide operating temperature range make it ideal for critical monitoring of turbines, compressors, pumps, and other mission-critical equipment.

Product Specifications

Applications

• Gas and Steam Turbines – Continuous monitoring of shaft displacement and vibration for early fault detection.

• Compressors and Pumps – Accurate radial vibration data to protect bearings and prevent unscheduled shutdowns.

• Motors and Generators – Real-time shaft position analysis for predictive maintenance.

• Fans and Gearboxes – Detection of imbalance, misalignment, or looseness in rotating assemblies.

• Petrochemical Equipment – Suitable for corrosive and high-temperature process environments.

• Space-Restricted Installations – Slim design ensures reliable performance in narrow mounting areas.

Advantages

• Compact 8 mm Probe Tip – Enables installation in tight or difficult-to-reach equipment locations.

• High Measurement Accuracy – Provides consistent and repeatable vibration and position readings.

• Extended Temperature Capability – Operates reliably from –35 °C to +177 °C.

• Rugged Stainless-Steel Construction – Withstands corrosive industrial atmospheres and mechanical stress.

• Excellent EMI/RFI Immunity – Maintains signal integrity in electrically noisy environments.

• Easy Integration – Fully compatible with Bently Nevada 3300 NSv Proximitor drivers and systems.

• Wide Frequency Response – Captures dynamic machine behavior up to 10 kHz.

• Low Maintenance – Requires minimal calibration after installation.

FAQ

1. What sensing technology does this probe use?
   It uses non-contact eddy-current technology to measure shaft vibration and static position with high precision.

2. What is the typical output sensitivity of this model?
   The probe provides a sensitivity of approximately 7.87 V/mm (200 mV/mil), ensuring accurate displacement data.

3. Which monitoring systems are compatible with this probe?
   It integrates seamlessly with Bently Nevada 3300 NSv Proximitor drivers and the broader 3300 monitoring platform.

4. What is the recommended mounting method?
   The probe can be installed using a 1/4–28 UNF threaded hole or a compatible mounting clamp to maintain proper probe-to-target gap.

5. What linear measurement range does it support?
   It maintains a linear range of ±1.0 mm around the nominal probe-to-target gap for precise measurements.

6. What is the maximum supported frequency response?
   The probe supports vibration monitoring up to 10 kHz, making it suitable for high-speed machinery.

7. Is recalibration required after installation?
   Only initial calibration with the Proximitor driver is needed; ongoing recalibration is minimal under normal operating conditions.

8. How well does it perform in environments with strong electromagnetic interference?
   It features robust EMI/RFI shielding to maintain accurate signal transmission in electrically noisy environments.

9. Does the probe measure both dynamic and static signals?
   Yes, it captures dynamic vibration data as well as static shaft position for comprehensive machine analysis.

10. What type of cable insulation is used?
    The probe is equipped with PTFE-shielded cable to provide excellent thermal and chemical resistance.
