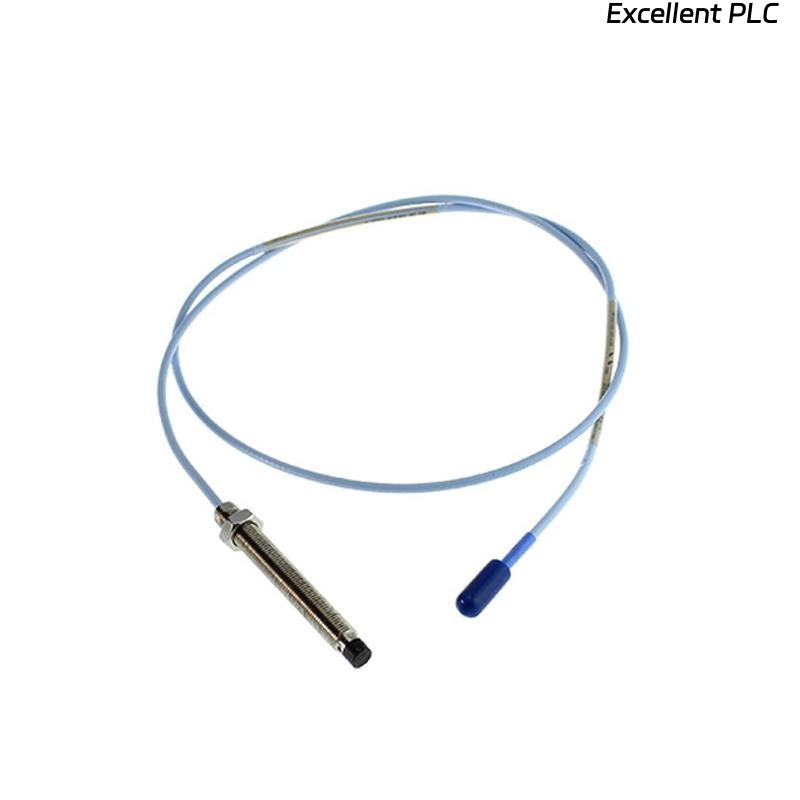

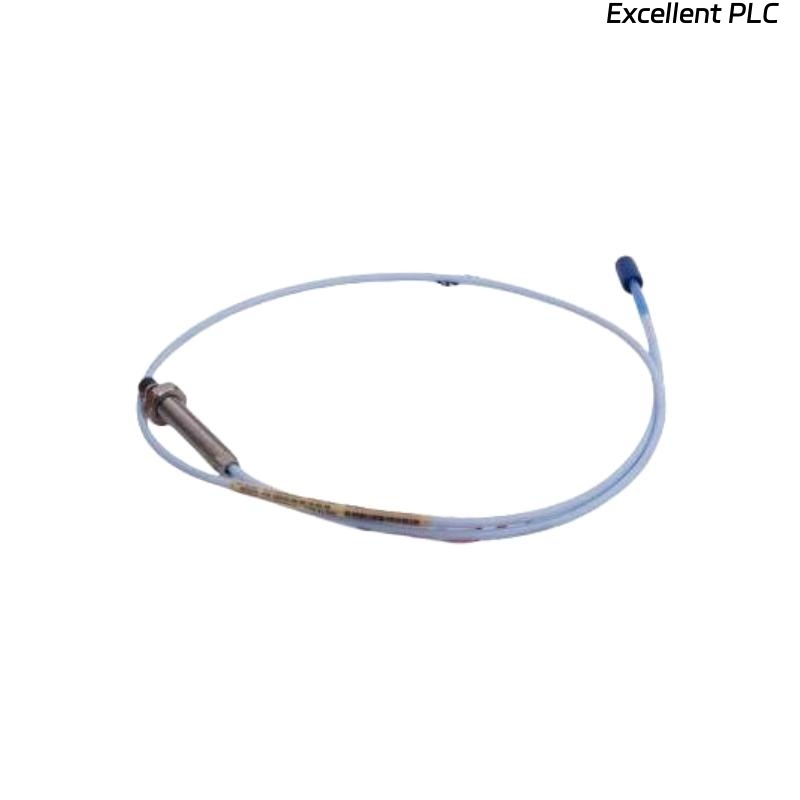

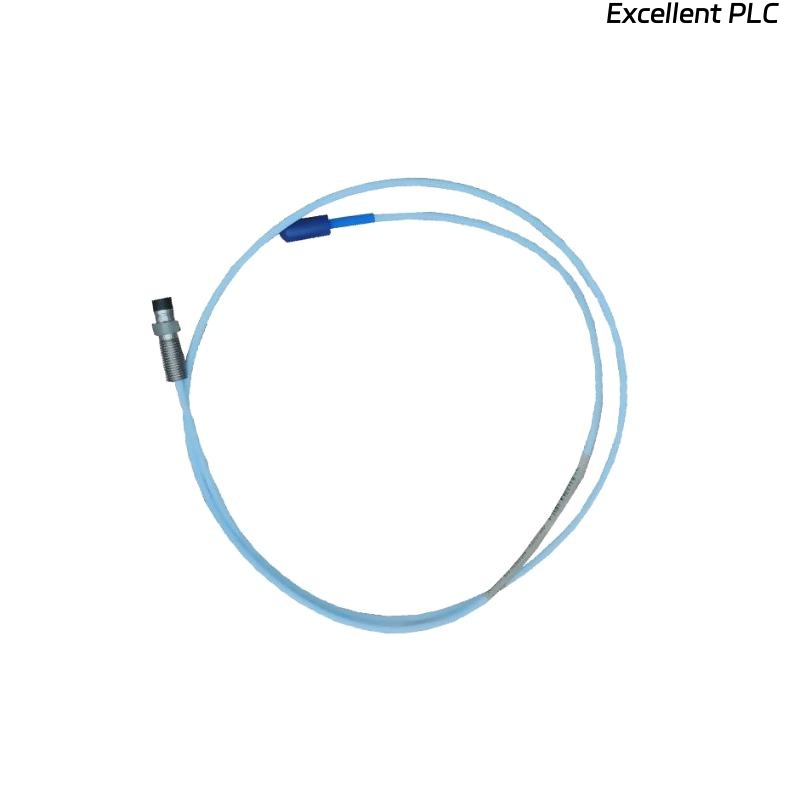

Bently Nevada 330909-00-60-50-02-05 3300 NSv Proximity Probe

Product Introduction

The Bently Nevada 330909-00-60-50-02-05 3300 NSv Proximity Probe is a high-precision eddy-current sensor designed for measuring shaft vibration and position in industrial rotating machinery. Part of the 3300 NSv series, this model is engineered for applications requiring extended cable lengths and reliable performance in challenging operating environments. Its robust stainless-steel construction, advanced electromagnetic shielding, and precision tip design ensure accurate and repeatable measurements for critical machinery.

---

Product Specifications

---

Applications

• Gas and Steam Turbines – Continuous monitoring of shaft vibration for predictive maintenance.

• Compressors and Pumps – Measurement of radial vibration to protect bearings and reduce downtime.

• Motors and Generators – Real-time shaft position monitoring for operational stability.

• Fans and Gearboxes – Detection of misalignment, imbalance, and mechanical looseness.

• Petrochemical Equipment – Suitable for high-temperature and corrosive environments.

• Long-Distance Installation – Extended cable design allows flexible routing in large machinery layouts.

---

Advantages

• Extended Cable Length (5 m) – Enables installation in large or complex machinery systems.

• High Measurement Accuracy – Provides precise and repeatable readings for dynamic and static conditions.

• Robust Stainless-Steel Housing – Resistant to corrosion and mechanical wear.

• Wide Operating Temperature – Performs reliably from –35 °C to +177 °C.

• EMI/RFI Resistant – Maintains signal integrity in electrically noisy industrial environments.

• Compact 8 mm Probe Tip – Fits into tight or restricted mounting spaces.

• Easy Integration – Compatible with Bently Nevada 3300 NSv Proximitor systems.

• Wide Frequency Response – Captures machine dynamics up to 10 kHz.

• Low Maintenance – Minimal calibration needed after initial setup.

---

FAQ

1. What technology does the 330909-00-60-50-02-05 probe use for measurements?
   It uses eddy-current technology to accurately measure shaft vibration and displacement without physical contact.

2. What is the typical sensitivity of this proximity probe?
   The probe provides a typical sensitivity of 7.87 V/mm (200 mV/mil), ensuring precise displacement measurements.

3. Which systems can this probe be connected to?
   It is fully compatible with Bently Nevada 3300 NSv Proximitor drivers and the broader 3300 monitoring platform.

4. How is the probe mounted in machinery?
   The probe is installed using a 1/4–28 UNF threaded hole or compatible clamp to maintain an accurate probe-to-target gap.

5. What is the linear range for measurements?
   The probe maintains a linear range of ±1.0 mm around the nominal probe-to-target distance.

6. What is the frequency response of this model?
   It supports dynamic measurement frequencies from 0 up to 10 kHz, suitable for high-speed machinery monitoring.

7. Does the probe require recalibration after installation?
   Only initial calibration is necessary with the Proximitor driver; ongoing recalibration is minimal under normal operating conditions.

8. How well does it handle electromagnetic interference?
   It is equipped with robust EMI/RFI shielding to ensure accurate signal transmission even in noisy environments.

9. Can this probe measure both static and dynamic shaft signals?
   Yes, it provides data on both static shaft position and dynamic vibration for comprehensive machinery monitoring.

10. What type of cable insulation is used for this extended-length probe?
    The 5-meter cable is PTFE-shielded, providing excellent chemical and thermal resistance while maintaining signal integrity.

---
