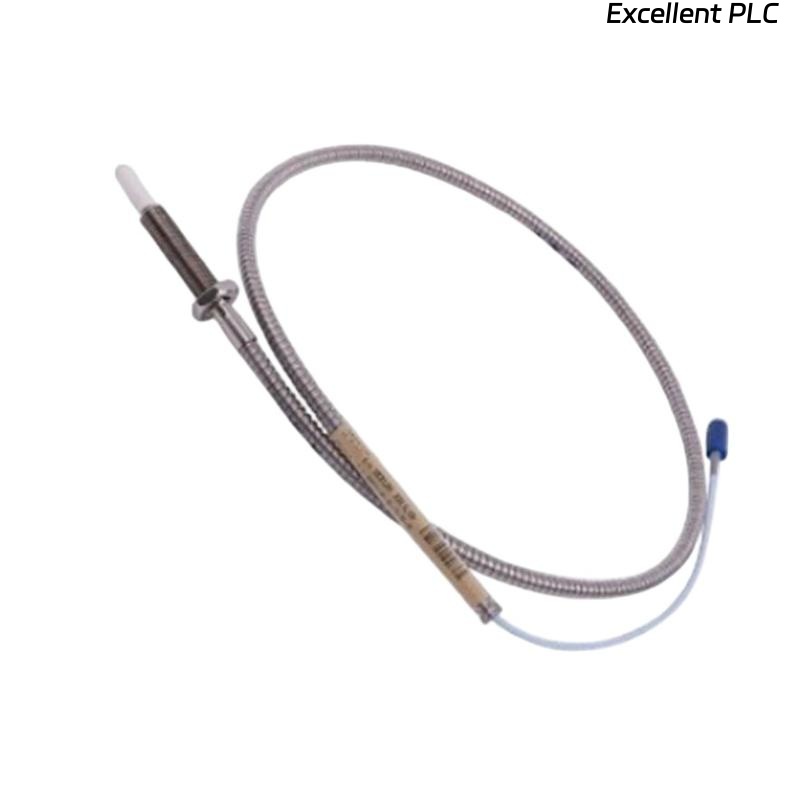

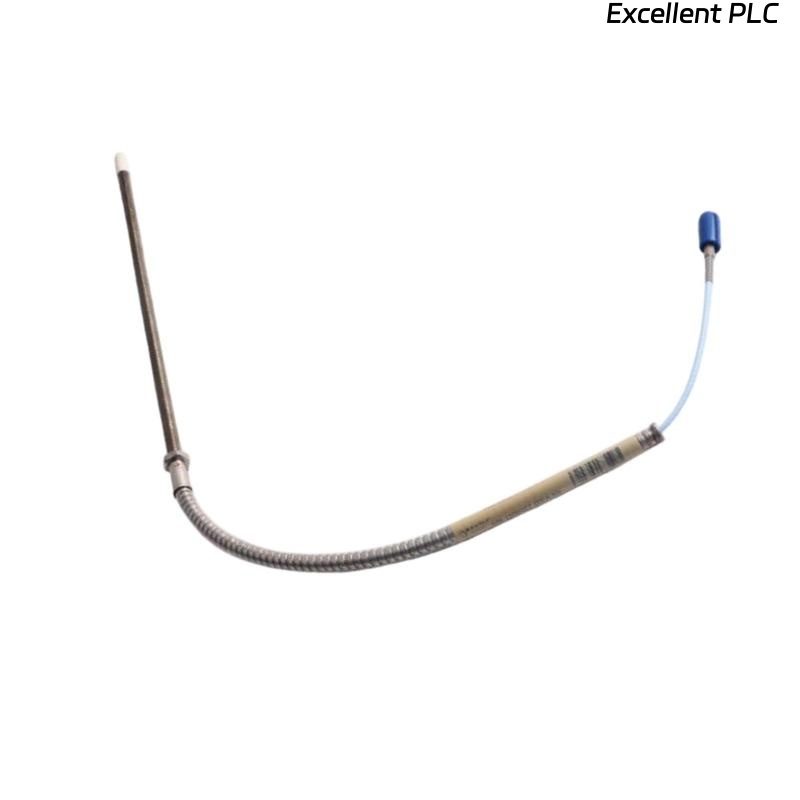

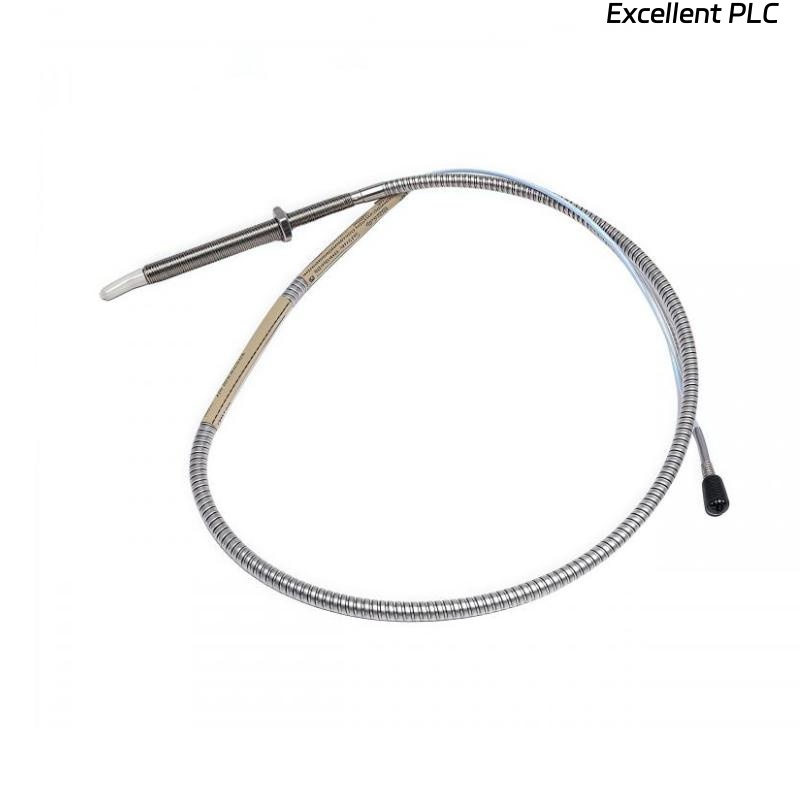

Bently Nevada 330910-03-16-10-02-00 3300 NSv Proximity Probe
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The Bently Nevada 330910-03-16-10-02-00 3300 NSv Proximity Probe is a high-precision, compact probe designed for monitoring vibration and shaft position in small or confined machinery applications. Engineered as part of the 3300 NSv (Narrow Side-view) system, it delivers exceptional accuracy and reliability where traditional 8 mm probes cannot be used.
Key Features
-
Compact 5 mm design ideal for tight-space installations
-
Provides precise vibration and position measurements
-
Seamlessly integrates with 3300 NSv Proximitor systems
-
Rugged stainless-steel construction for industrial use
-
Resistant to oil, dust, and contaminants
-
Factory-calibrated for linear performance and high accuracy
-
Long-term reliability and minimal maintenance requirements
-
Excellent temperature and frequency stability
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Part Number | 330910-03-16-10-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| System Compatibility | 3300 NSv Proximitor Sensor System |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.15 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Linearity | ±1% over full range |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Material | Stainless steel |
| Mounting Method | Threaded sleeve or bracket installation |
| Applications | Shaft vibration, axial position, and displacement monitoring |
Industry Applications
-
Small gas and steam turbines
-
Compressors and blowers
-
Electric motors and generators
-
Pumps, gearboxes, and spindles
-
Industrial fans and rotating machinery
-
Oil, gas, and energy production systems
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the 330910-03-16-10-02-00 probe?
It measures shaft vibration and position in compact rotating machinery.
Q2: Which system is it compatible with?
It is compatible with the Bently Nevada 3300 NSv Proximitor Sensor System.
Q3: What is the probe size?
The probe has a 5 mm diameter and approximately 50 mm length.
Q4: What is the typical measurement range?
It provides a linear range of 0–1.0 mm (0–40 mils).
Q5: What is its sensitivity?
It has a sensitivity of 7.87 V/mm (200 mV/mil).
Q6: Can it be used in harsh industrial environments?
Yes, it is built from stainless steel and resists oil, dust, and vibration.
Q7: What is the operating temperature range?
It operates between –35 °C and +177 °C.
Q8: How is the probe installed?
It can be installed using a threaded sleeve or mounting bracket for precise alignment.
