Bently Nevada 330930-065-00-CN 3300 XL Standard Extension Cable
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview

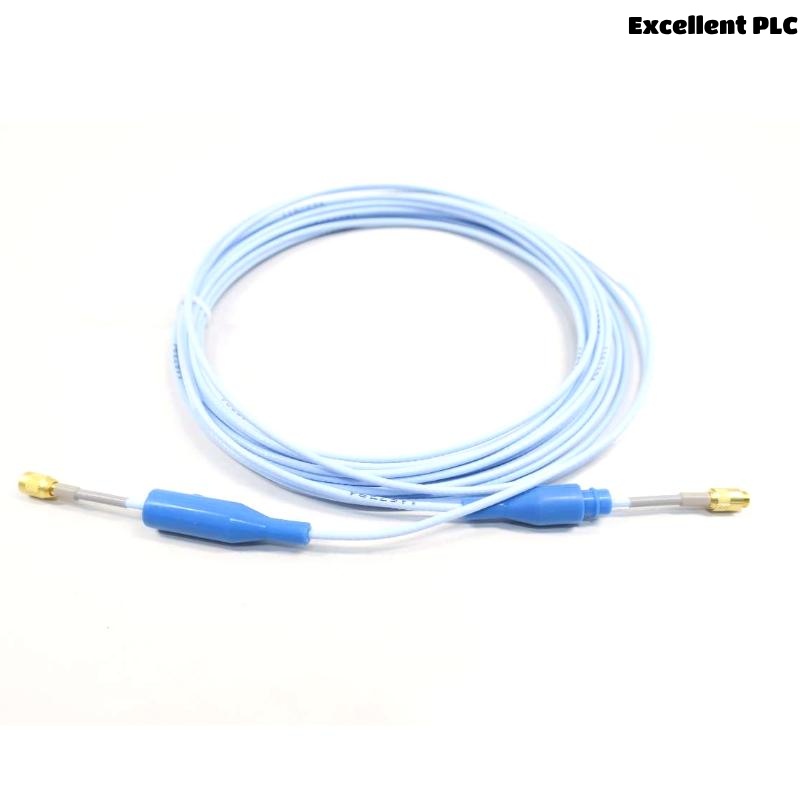

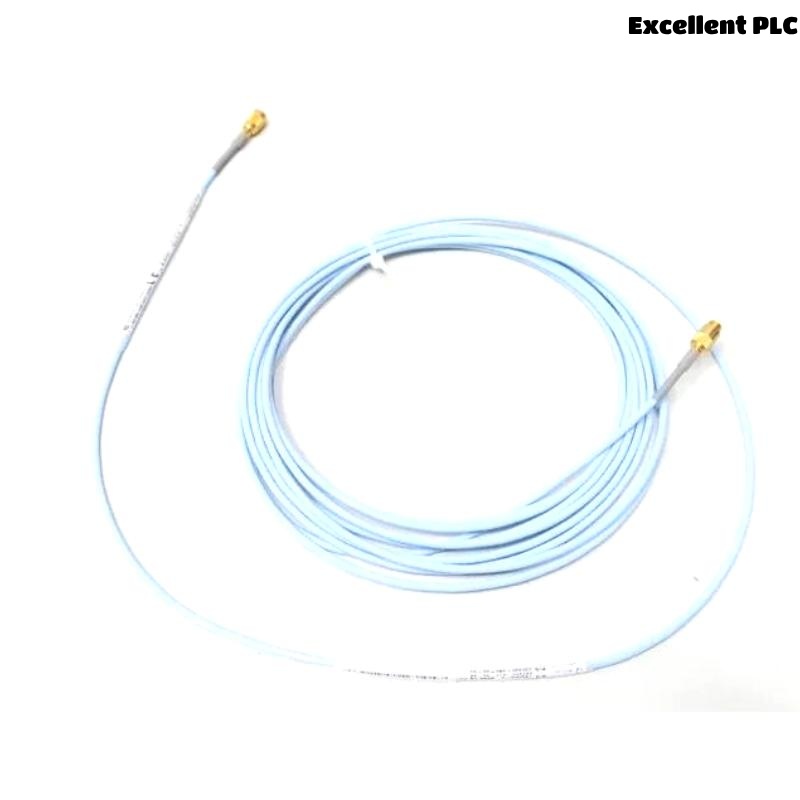

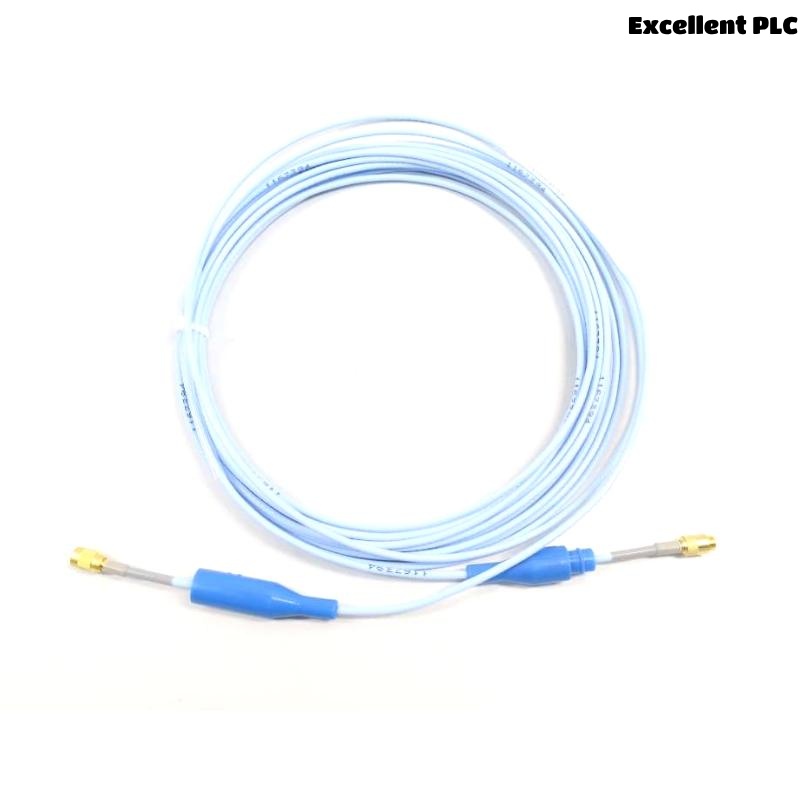

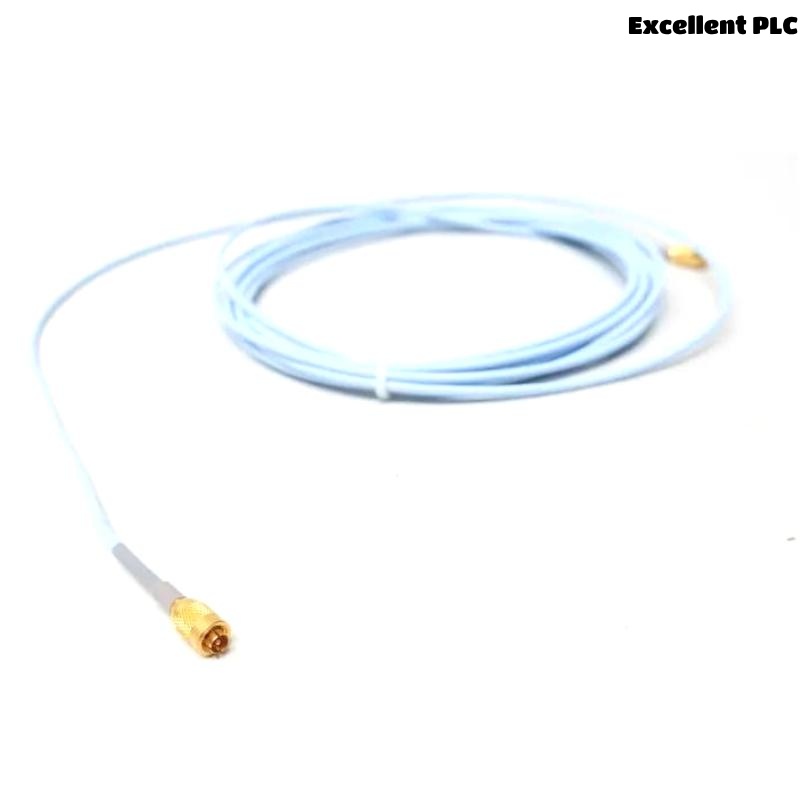

The Bently Nevada 330930-065-00-CN is a high-performance extension cable designed for use with the 3300 XL NSv Proximity Transducer System. This 6.5-meter cable extends the connection between the proximity probe and the Proximitor Sensor, ensuring accurate signal transmission in critical machinery condition monitoring applications.
Key Applications
-
Centrifugal air compressors
-
Process gas compressors
-
Refrigeration compressors
-
Radial and axial vibration measurement
-
Thrust position measurement
-
Phase reference (Keyphasor) detection
-
Small shaft or tight installation zones
Product Advantages
-
ClickLoc connectors prevent loosening and ensure robust signal integrity
-
Flexible stainless steel armor (optional) provides mechanical protection
-
Fluoroethylene propylene (FEP) insulation offers chemical resistance
-
Compatible with older 3300 RAM systems
-
Enhanced reliability in high-vibration and harsh environments
Technical Specifications
| Parameter | Description |
|---|---|
| Product Code | 330930-065-00-CN |
| Cable Type | 75 Ω coaxial, FEP insulated |
| Cable Length | 6.5 meters |
| Cable Weight | 0.293 kg |
| Temperature Range | -52°C to +177°C (operating/storage) |
| Bend Radius | 25.4 mm (1.0 inch) minimum |
| Cable Capacitance | 69.9 pF/m (typical) |
| Center Conductor Resistance | 0.220 Ω/m |
| Shield Resistance | 0.066 Ω/m |
| Tensile Strength | 220 N (50 lb) |
| Connector Type | Miniature coaxial ClickLoc |
| Connector Material | Gold-plated brass |
| Optional Armor | AISI 302 SST with/without FEP outer jacket |
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the 330930-065-00-CN extension cable?
A1: It extends the connection between the probe and the Proximitor Sensor in the 3300 XL NSv system.
Q2: Is this cable compatible with older Bently Nevada systems?
A2: Yes, it is compatible with 3300 RAM systems.
Q3: What is the total length of this specific cable model?
A3: 6.5 meters (21.3 feet).
Q4: Can this cable be used in high-temperature environments?
A4: Yes, it operates between -52°C and +177°C.
Q5: Does it come with stainless steel armor?
A5: Yes, depending on the connector option code; version -01 includes SST armor.
Q6: How much does the 6.5 m cable weigh?
A6: Approximately 0.293 kg.
Q7: What type of insulation is used on the cable?
A7: Fluoroethylene propylene (FEP).
Q8: Is this cable suitable for hazardous areas?
A8: Yes, when used with certified Proximitor and probe components.
Q9: What is the minimum bend radius of this cable?
A9: 25.4 mm (1.0 inch).
Q10: What kind of connectors does it use?
A10: ClickLoc gold-plated brass connectors for secure, corrosion-resistant connections.
Related Models (Same Series or Functional Use)
| Model Number | Description | Length | Weight |
|---|---|---|---|
| 330930-040-00-CN | Extension Cable, 4.0 m, unarmored | 4.0 m | 0.18 kg |
| 330930-060-01-CN | Extension Cable, 6.0 m, with SST armor | 6.0 m | 0.27 kg |
| 330930-045-04-CN | Extension Cable, 4.5 m, armored + FEP | 4.5 m | 0.21 kg |
| 330930-065-05-CN | Extension Cable, 6.5 m, armor no FEP | 6.5 m | 0.29 kg |
| 330930-065-06-CN | FluidLoc Cable, 6.5 m, no armor | 6.5 m | 0.30 kg |
| 330930-065-10-CN | FluidLoc Cable, 6.5 m, armor + FEP | 6.5 m | 0.31 kg |
Popular Bently Nevada Models
| Model Number | Description | Application Area | Weight |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration monitoring | 0.35 kg |
| 3500/22M-01-01 | Transient Data Interface Module | System interfacing | 0.42 kg |
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | Radial vibration | 0.18 kg |
| 330105-02-12-10-02-00 | 5 mm Proximity Probe | Small shaft measurement | 0.17 kg |
| 330980-70-05 | NSv Proximitor Sensor, 7 m, panel mount | Compressor applications | 0.26 kg |
| 3500/15-05-02-00 | Power Supply Module | System power input | 0.48 kg |
