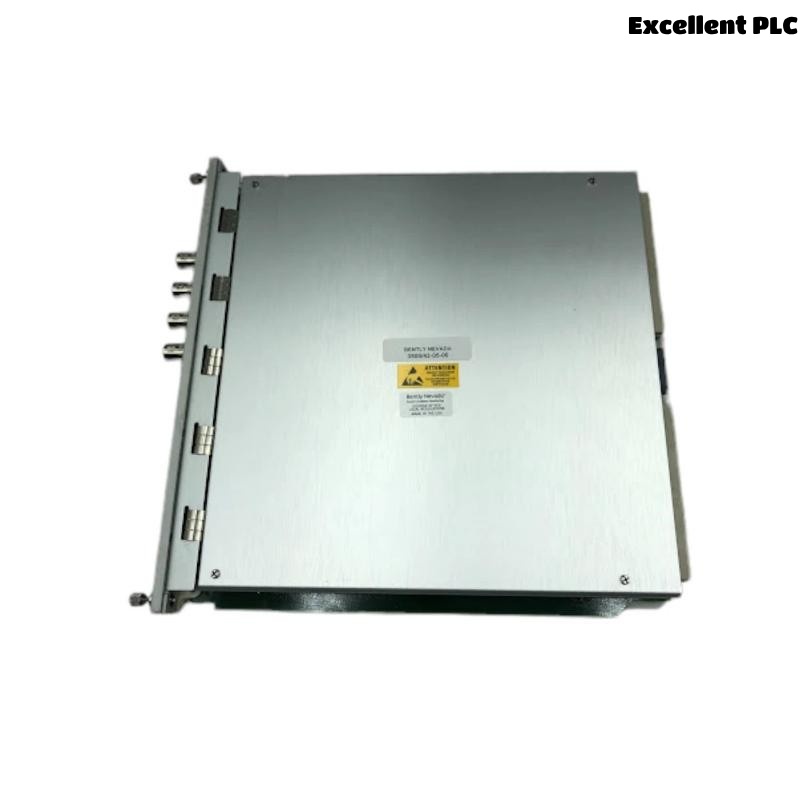

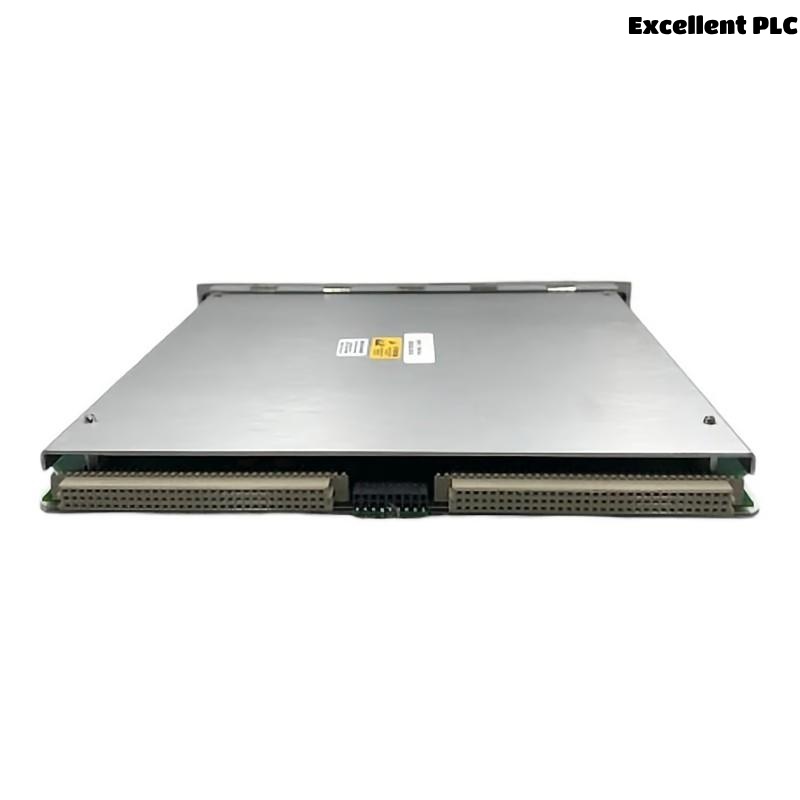

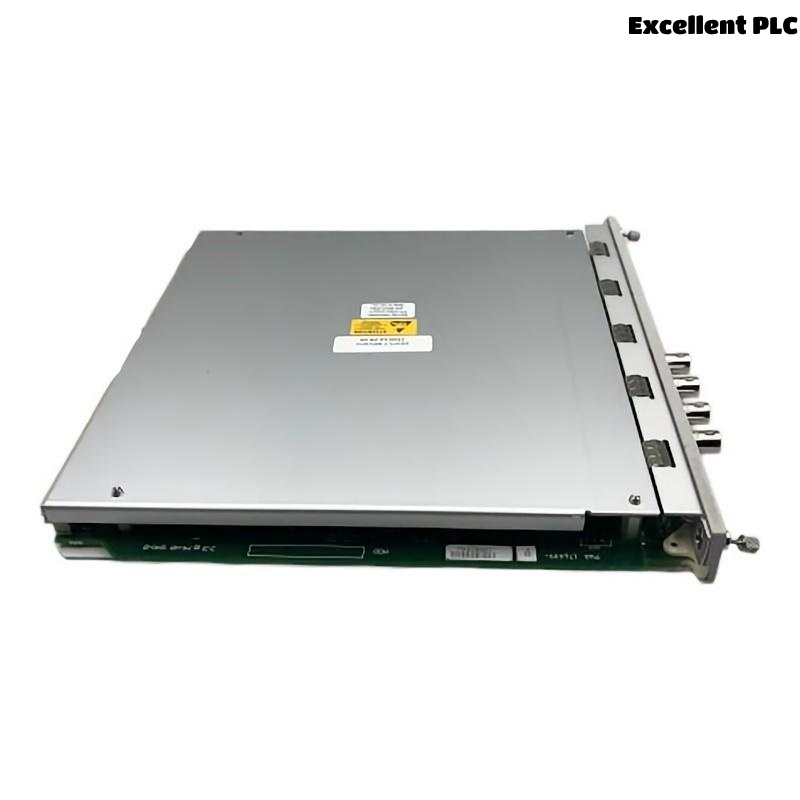

The Bently Nevada 3500/42-04-00 Proximitor Seismic Monitor is a critical component within the Bently Nevada 3500 Series machinery protection platform. Designed to provide reliable and accurate monitoring of seismic and vibration signals, this module plays a key role in safeguarding industrial machinery and infrastructure from potentially damaging vibration events and seismic activity.
Built on proven Proximitor technology, the 3500/42-04-00 processes signals from proximity probes and seismic sensors, converting raw inputs into precise, actionable data for control and protection systems. Its integration in machinery monitoring setups helps engineers detect early signs of equipment distress or seismic hazards, preventing costly downtime and ensuring operational safety.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 3500/42-04-00 |
| Product Type | Proximitor Seismic Monitor Module |
| Manufacturer | Bently Nevada |
| Function | Signal conditioning and monitoring of seismic/vibration sensors |
| Input Signal Type | Proximitor sensors and seismic probes |
| Output Signal | Analog and digital outputs for system integration |
| Power Supply | 24 V DC nominal |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (HxWxD) | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
| Mounting | 19-inch rack or panel mount |
| Certifications | UL, CE, CSA |
Product Applications
The 3500/42-04-00 Proximitor Seismic Monitor is widely employed in industrial environments where continuous vibration and seismic monitoring is essential for equipment and structural safety:
-
Power generation facilities: Monitoring turbines, generators, and auxiliary machinery for vibration and seismic activity.
-
Oil and gas industry: Protecting compressors, pumps, and pipeline equipment from vibration-related damage.
-
Petrochemical plants: Ensuring early detection of mechanical faults and seismic disturbances.
-
Mining operations: Monitoring large rotating equipment and structural integrity in demanding environments.
-
Manufacturing industries: Safeguarding machinery to prevent costly breakdowns.
-
Critical infrastructure: Tracking seismic events affecting bridges, buildings, and other structures.
The device’s high reliability and accuracy support improved maintenance planning and operational safety.
Product Advantages
-
Accurate and Reliable: Employs advanced Proximitor technology to capture and process vibration and seismic signals with high precision.
-
Durable and Robust: Designed to withstand industrial environments with a wide temperature range and resistance to electromagnetic interference.
-
Modular and Flexible: Fits seamlessly into the Bently Nevada 3500 Series system, offering easy installation and upgrade paths.
-
Comprehensive Output Options: Provides both analog and digital outputs, compatible with various control systems.
-
Enhances Asset Protection: Early detection of abnormal vibration and seismic events helps reduce unexpected equipment failures.
-
Certified and Safe: Complies with international safety and quality standards, supporting safe industrial operation.
-
Ease of Maintenance: The plug-in design allows for straightforward replacement and system maintenance without extended downtime.
-
Versatile Usage: Compatible with multiple sensor types and adaptable to a broad range of industrial monitoring needs.
Frequently Asked Questions (FAQ)
-
What sensors are compatible with the 3500/42-04-00?
It works with Bently Nevada Proximitor sensors and seismic probes designed for the 3500 Series. -
Is this module standalone or part of a system?
It is a module designed for integration within the Bently Nevada 3500 Series rack system. -
What types of output signals does the monitor provide?
It offers both analog and digital outputs for connection to the overall monitoring system. -
Can the module be used in hazardous environments?
It requires installation in appropriate enclosures; consult the manufacturer for hazardous location certifications. -
What is the recommended maintenance schedule?
Periodic inspections and calibrations as per Bently Nevada’s maintenance guidelines ensure optimal performance. -
Does the monitor detect both vibration and seismic activity?
Yes, it processes signals from sensors capable of detecting vibration and seismic events. -
What is the operating temperature range?
From -20°C to +70°C, suitable for most industrial environments. -
How does this model differ from other seismic monitors in the 3500 series?
The 3500/42-04-00 offers specific signal processing optimized for certain sensor inputs and output configurations. -
What is the module’s weight and dimensions?
0.91 kg and measures 241.3 x 24.4 x 241.8 mm. -
Can this monitor support multiple sensor inputs?
Typically, it supports one sensor input per module; multiple sensors require additional modules.
