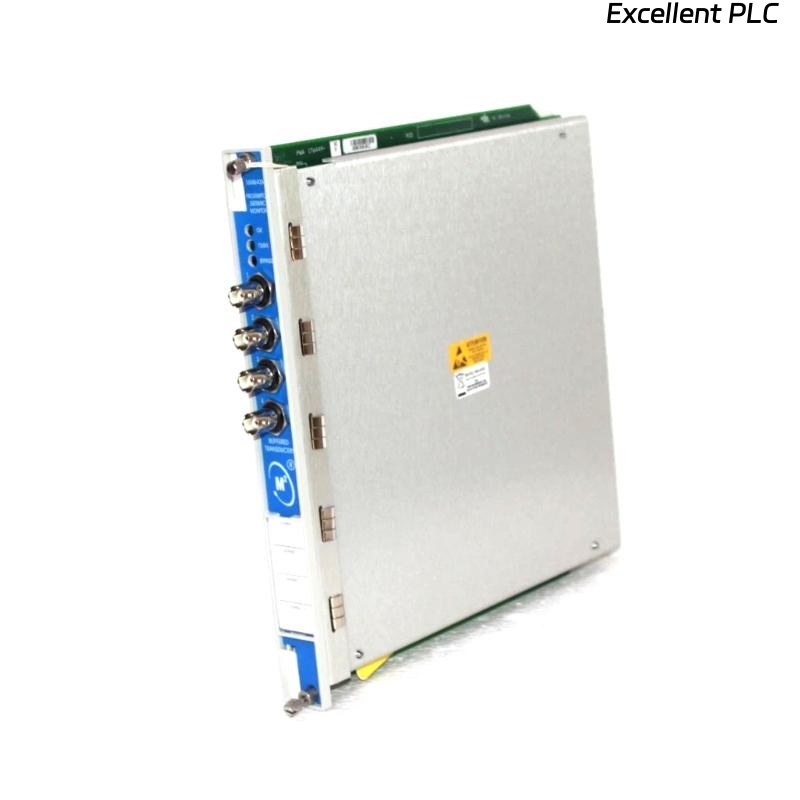

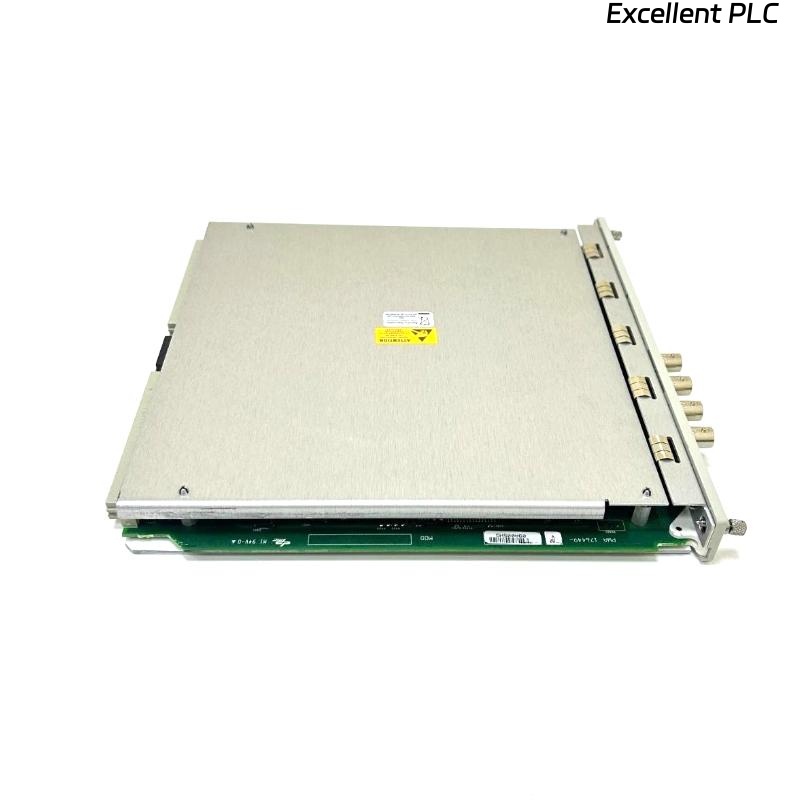

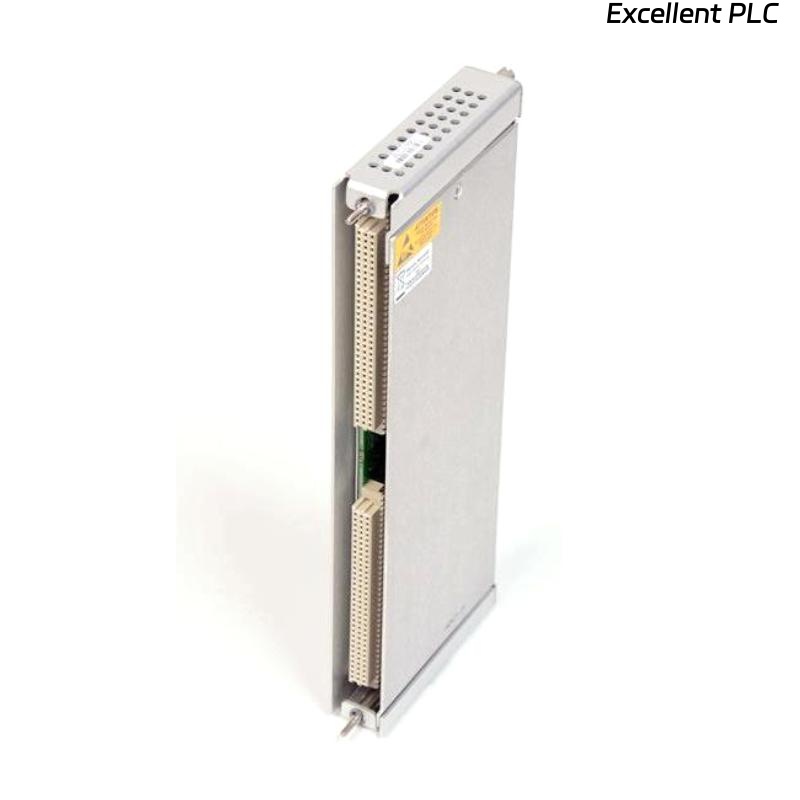

Bently Nevada 3500/42M 176449-02+140471-01 Proximitor Seismic Monitor
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Description

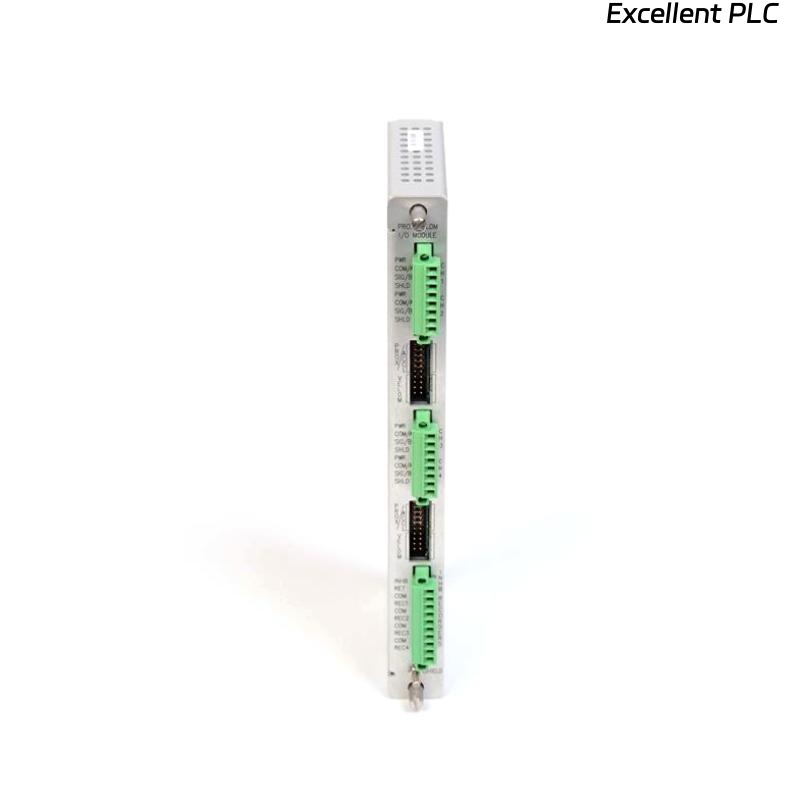

The Bently Nevada 3500/42M Proximitor Seismic Monitor is a four-channel condition monitoring module engineered for continuous machinery protection. It accepts signals from proximity and seismic transducers to measure radial vibration, thrust position, differential expansion, acceleration, and other critical parameters. The model 176449-02 Monitor is typically paired with the 140471-01 I/O Module for Prox/Velom inputs with internal termination.
Applications
-
Turbomachinery protection and diagnostics
-
Online condition monitoring of rotating equipment
-
Vibration and position measurements for shafts and bearings
-
Integration into Bently Nevada 3500 Series rack-based systems
-
Industrial environments requiring high-reliability machine protection
Advantages
-
Supports simultaneous monitoring of multiple vibration and position parameters
-
Flexible configuration through 3500 Rack Configuration Software
-
Designed for hazardous environments (ATEX, IECEx, CSA compliant)
-
Advanced filtering: Notch, vector, Smax, and band-pass
-
Short-circuit protected buffered outputs per channel
-
Precise frequency response suitable for high-speed rotating assets
Technical Specifications
| Parameter | Specification |
|---|---|
| Channels | 4 (individually configurable) |
| Input Types | Proximity probes, Velomitor®, accelerometers, seismic transducers |
| Sensitivity | Up to 7.87 mV/μm (200 mV/mil) for proximity, 100 mV/g for acceleration |
| Signal Conditioning | User-programmable filters; 1X/2X vector, Not 1X, Smax |
| Alarm Levels | Alert & Danger (programmable, 0–100% FS) |
| Power Consumption | 7.7 W (typical) |
| Output Types | 4–20 mA recorder, buffered output (per channel), Shaft Absolute outputs |
| Output Impedance | 550 Ω (Buffered), 300 Ω (Shaft Absolute) |
| Communication | TX/RX indicators; interfaces within 3500 rack system |
| Operating Temperature | -30°C to +65°C (without barriers) |
| Storage Temperature | -40°C to +85°C |
| Humidity | 95% non-condensing |
| Compliance | EMC, FCC, RoHS, ATEX, IECEx, DNV GL, ABS |
| Dimensions | 241.3 x 24.4 x 241.8 mm |
| Weight | 0.91 kg |
FAQ
1. What is the primary function of the 3500/42M Proximitor Seismic Monitor?
It provides continuous monitoring and protection of rotating machinery by measuring and analyzing vibration and position parameters from proximity and seismic sensors.
2. What types of transducers are supported?
The monitor supports proximity probes, Velomitor® velocity sensors, accelerometers, and seismic probes.
3. Can I configure different functions on different channel pairs?
Yes, channels are configured in pairs and can perform different measurement types independently (e.g., vibration on one pair, thrust on the other).
4. What output options are available for the monitor?
Each channel includes 4–20 mA recorder outputs and buffered transducer outputs. Shaft Absolute outputs are available on dedicated modules.
5. What alarm functions are available?
Each active static value can have alert setpoints; any two can have danger setpoints. Alarm delays are also configurable.
6. Is the 3500/42M suitable for hazardous environments?
Yes, it meets ATEX, IECEx, CSA, and cNRTLus requirements for Zone 2/Division 2 areas.
7. What are typical applications for this monitor?
It is commonly used for turbine generators, compressors, pumps, and other high-value rotating machinery requiring advanced condition monitoring.
8. How accurate are the vibration measurements?
Accuracy is typically within ±0.33% of full-scale, up to ±1% maximum for most functions.
9. What software is required for configuration?
3500/01, 02, or 03 software versions (depending on firmware) are used with the 3500/42M monitor for setup and diagnostics.
10. Can this module be used in marine or offshore installations?
Yes, it complies with ABS and DNV GL standards for marine and offshore applications.
Related Models in the Same Series
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 3500/42M-01-00 | Standard 4-Channel Proximitor Seismic Monitor | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 128229-01 | I/O Module, Internal Terminations (Prox/Accel) | 241.3 x 24.4 x 99.1 | 0.20 kg |
| 135489-01 | I/O with Barriers (4x Prox/Accel) | 241.3 x 24.4 x 163.1 | 0.46 kg |
| 140471-01 | I/O Module, Internal Terminations (Prox/Velom) | 241.3 x 24.4 x 99.1 | 0.20 kg |
| 128240-01 | I/O Module, External Terminations (Prox/Accel) | 241.3 x 24.4 x 99.1 | 0.20 kg |
| 135489-02 | I/O with Barriers (2x Prox/Accel + 2x Velomitor) | 241.3 x 24.4 x 163.1 | 0.46 kg |
Popular Bently Nevada Models
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 3500/22M | Transient Data Interface (TDI) Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/15 | Power Supply Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/20 | Rack Interface Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/25 | Keyphasor Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/32M | 4-Channel Relay Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
| 3500/93 | Display Module | 241.3 x 24.4 x 241.8 | 0.91 kg |
