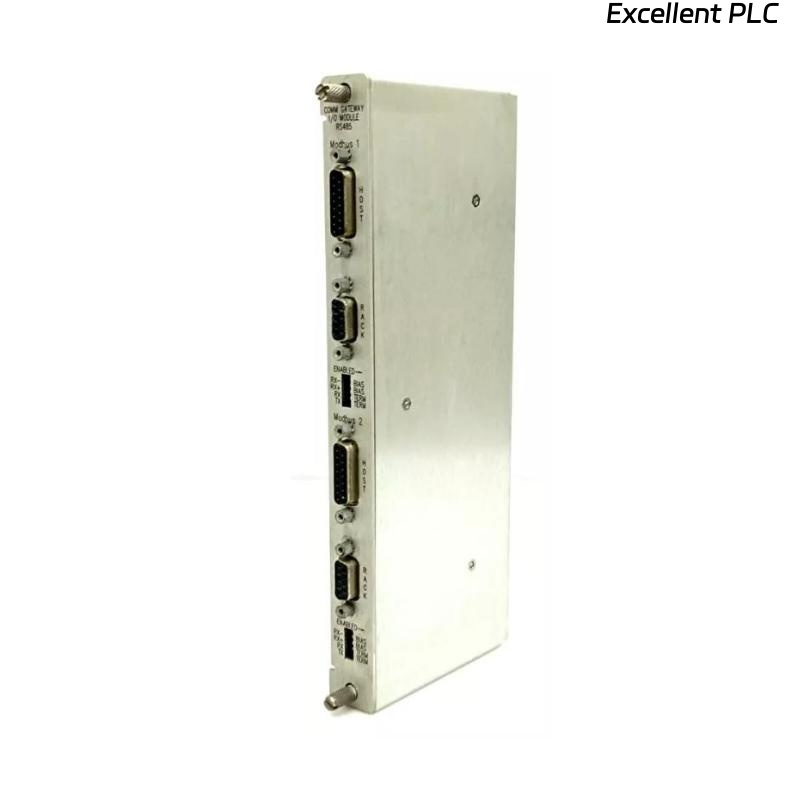

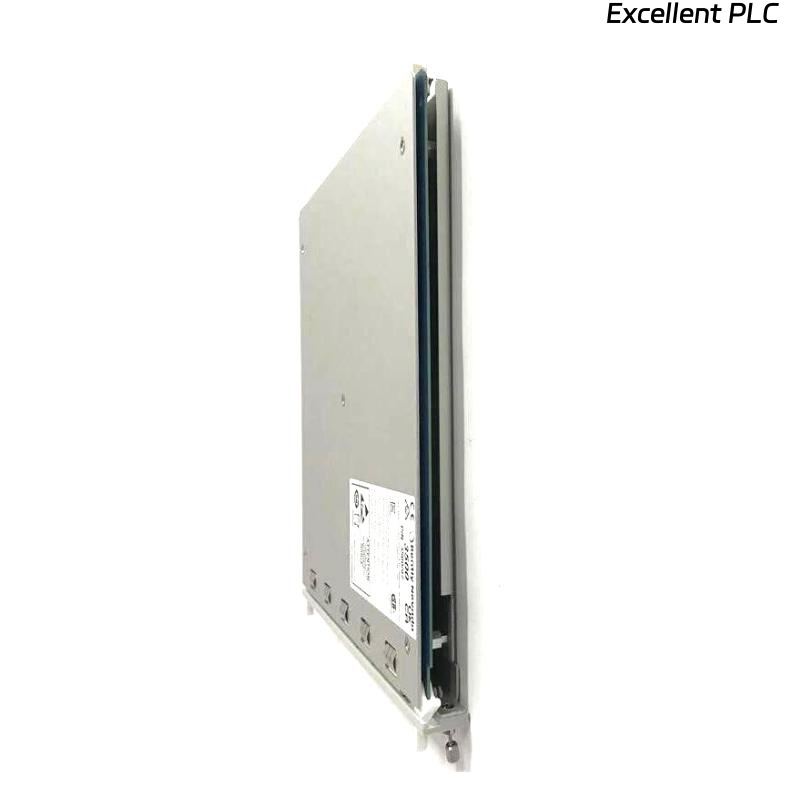

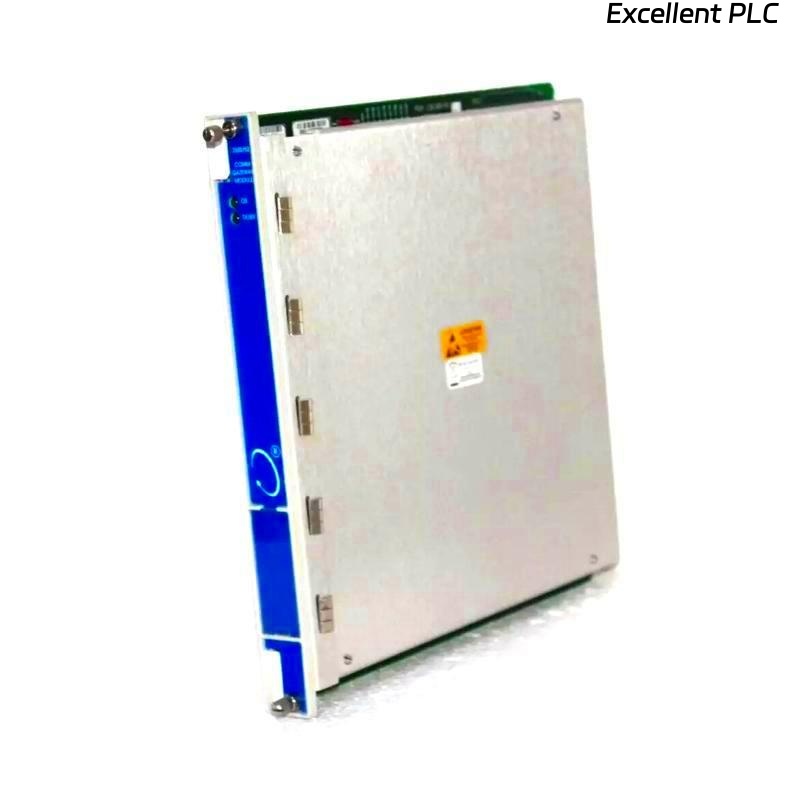

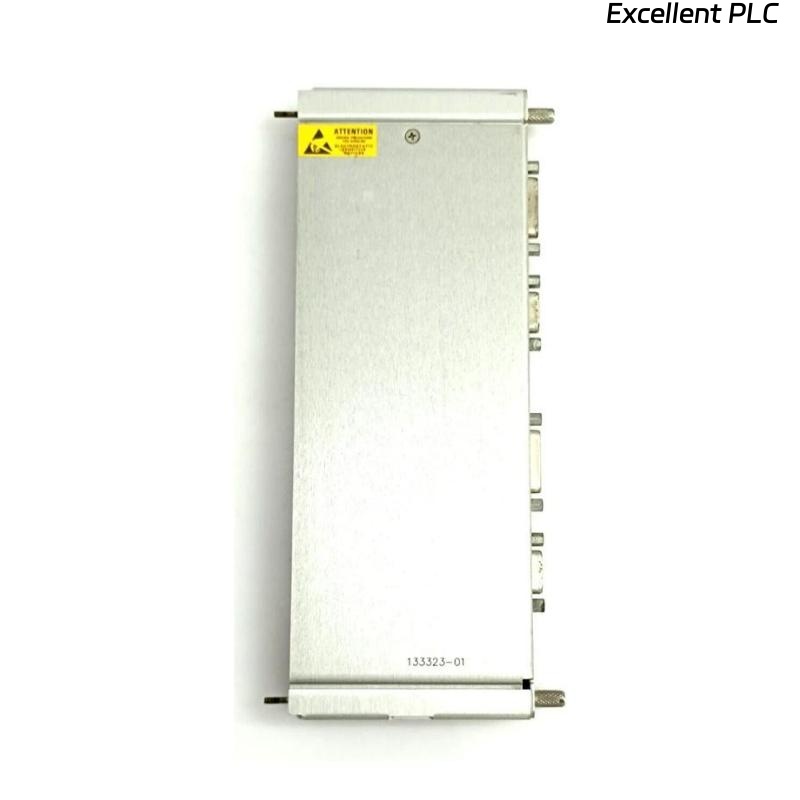

Bently Nevada 3500/92 136180-01+133323-01 Communication Gateway Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Bently Nevada 3500/92 Communication Gateway Module Overview
The Bently Nevada 3500/92 Communication Gateway Module provides reliable integration between 3500 Series monitoring systems and plant-wide control networks. It enables seamless data exchange, allowing real-time condition monitoring and diagnostics. This module ensures high system reliability, optimized machinery protection, and enhanced operational visibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 136180-01 + 133323-01 |
| Function | Communication Gateway Module |
| System Compatibility | 3500 Series Machinery Protection |
| Interface | Ethernet / Serial Communication |
| Power Supply | 24 VDC |
| Dimensions | 241 x 24.4 x 242 mm |
| Weight | 0.82 kg |
| Operating Temperature | 0°C to 60°C |
| Mounting Type | Rack-mounted |
| Certification | CE, UL |
Applications
-
Plant-wide machinery monitoring integration
-
Real-time condition monitoring and diagnostics
-
Data aggregation from multiple 3500 Series modules
-
Integration with SCADA or DCS systems
-
Critical machinery protection in turbines, compressors, and generators
Advantages
-
High reliability in industrial environments
-
Simplified integration with plant control systems
-
Supports multiple communication protocols
-
Compact design suitable for standard 3500 Series racks
-
Reduces installation complexity and maintenance overhead
-
Enhances machinery protection and operational efficiency
FAQ
1. What is the main purpose of the 3500/92 Gateway Module?
It integrates 3500 Series monitoring data with plant-wide control systems, allowing real-time monitoring and diagnostics.
2. Which communication protocols are supported?
The module supports Ethernet and serial communication protocols compatible with standard control networks.
3. Can it be used with older 3500 Series modules?
Yes, it is backward-compatible with most 3500 Series monitoring modules.
4. What is the operating temperature range?
0°C to 60°C.
5. How is the module powered?
It requires a 24 VDC power supply.
6. What are the physical dimensions and weight?
241 x 24.4 x 242 mm, weighing 0.82 kg.
7. Is the module rack-mounted?
Yes, it is designed for standard 3500 Series rack mounting.
8. Does it require software configuration?
Yes, configuration is done through the 3500 Series system software.
9. What certifications does it have?
CE and UL certified.
10. Can it integrate with SCADA systems?
Yes, it can transmit data to SCADA or DCS systems for centralized monitoring.
Related and Alternative Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 3500/90 | 3500 Series Monitor Module | 241 x 24.4 x 242 | 0.8 |
| 3500/94 | Analog Input Module | 241 x 24.4 x 242 | 0.82 |
| 3500/95 | Relay Output Module | 241 x 24.4 x 242 | 0.85 |
| 3500/97 | Digital Input Module | 241 x 24.4 x 242 | 0.8 |
| 3500/98 | Proximitor Interface Module | 241 x 24.4 x 242 | 0.82 |
| 3500/99 | Redundant Communication Module | 241 x 24.4 x 242 | 0.83 |
Popular Bently Nevada Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 3300 XL Proximity Probe | Standard proximity probe | 95 x 28 x 28 | 0.12 |
| 3300 XL 8 mm Probe | High-precision 8 mm probe | 95 x 28 x 28 | 0.13 |
| 3500/55 Vibration Monitor | Vibration monitoring module | 241 x 24.4 x 242 | 0.81 |
| 3500/60 Speed/Phase Module | Speed and phase signal monitoring | 241 x 24.4 x 242 | 0.82 |
| 3500/44 Tachometer Module | Tachometer signal input | 241 x 24.4 x 242 | 0.82 |
| 3500/92 Gateway Module | Communication integration module | 241 x 24.4 x 242 | 0.82 |
