Product Introduction

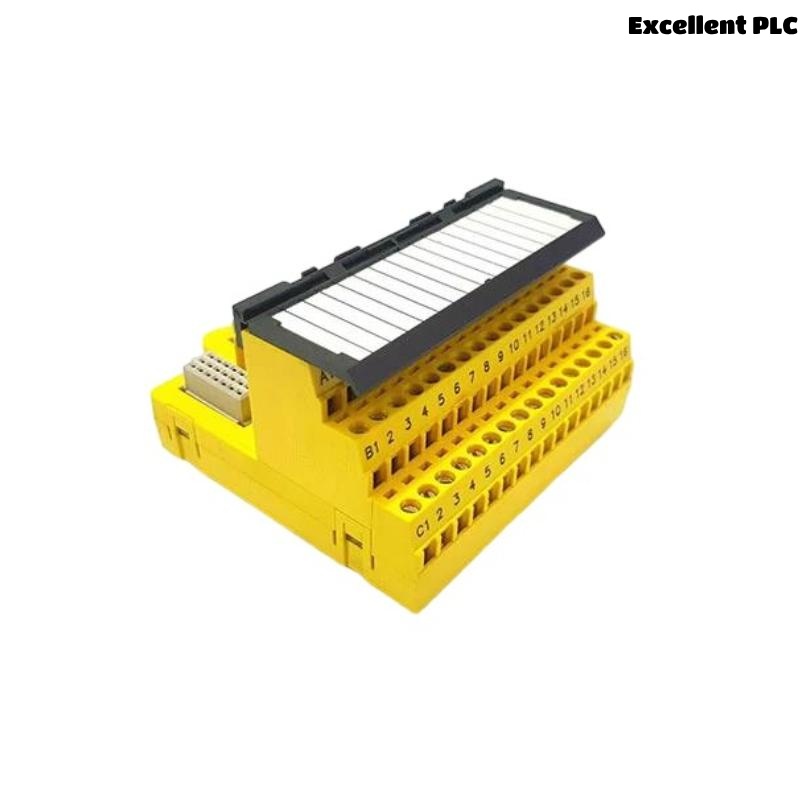

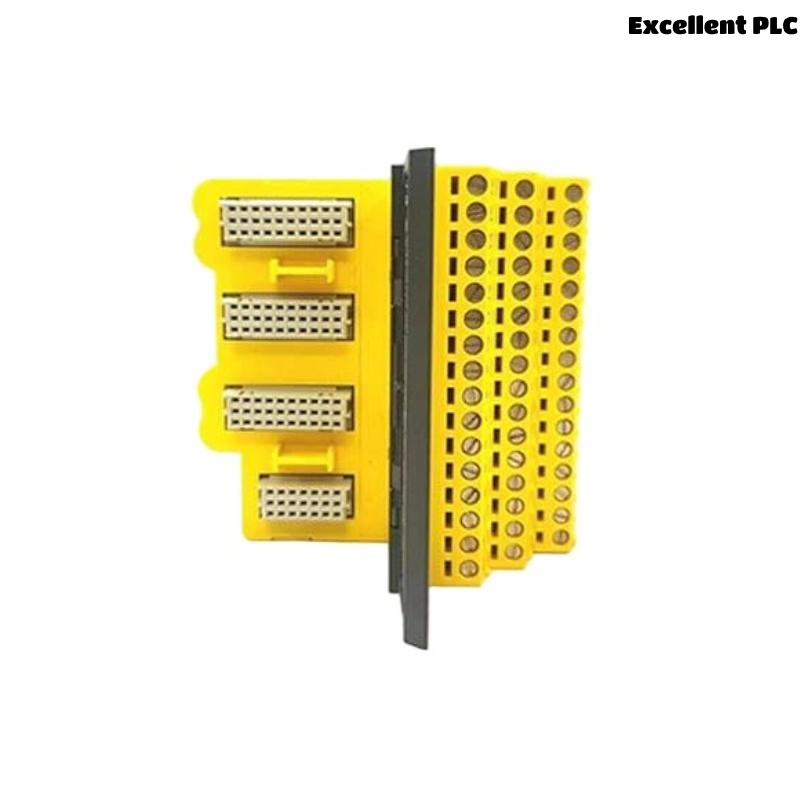

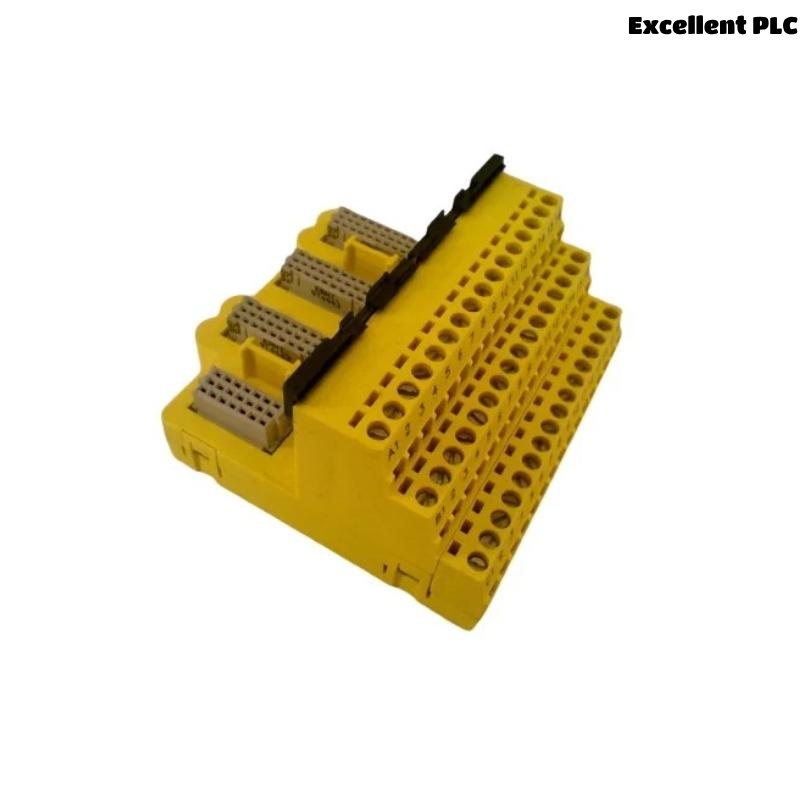

The Emerson KJ2201X1-HA1 Terminal Blocks are engineered to provide reliable and secure electrical connections within industrial automation and control systems. Designed for seamless integration with Emerson’s Intelligent Logic Solver (ILS) series, these terminal blocks ensure efficient wiring, signal transmission, and power distribution. Constructed with high-quality materials, the KJ2201X1-HA1 offers durability and excellent electrical performance under demanding conditions. Its modular design facilitates quick installation and maintenance, reducing downtime and enhancing system reliability.
These terminal blocks are suitable for diverse industrial applications including process control, safety instrumented systems, and complex automation networks where secure and organized wiring is critical.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | KJ2201X1-HA1 |
| Type | Terminal Blocks |
| Compatibility | Emerson Intelligent Logic Solver (ILS) Modules |
| Number of Terminals | Varies depending on configuration |
| Terminal Type | Screw Terminal |
| Wire Size Range | 12 to 24 AWG |
| Voltage Rating | Up to 250 V AC/DC |
| Current Rating | Up to 10 A |
| Insulation Material | High-grade Polyamide or Equivalent |
| Operating Temperature | -20°C to +70°C |
| Dimensions | 120 x 45 x 30 mm |
| Weight | 0.168 kg |
| Mounting Type | DIN Rail Mount |
| Certifications | CE, UL Recognized |
| Environmental Protection | IP20 (standard terminal block protection) |
Product Applications
-
Industrial automation control panels
-
Process control systems
-
Safety instrumented systems (SIS)
-
Power distribution and monitoring units
-
Control logic modules integration
-
Machine building and factory automation
-
Renewable energy systems wiring
-
Oil and gas industry control cabinets
-
Water treatment plant control systems
-
HVAC control panel wiring
Product Advantages
-
High Reliability: Ensures secure and stable electrical connections to prevent failures.
-
Modular Design: Simplifies wiring and maintenance, reducing downtime.
-
Wide Compatibility: Compatible with various Emerson ILS modules and standard DIN rail systems.
-
Durability: Manufactured with robust insulation materials capable of withstanding harsh industrial environments.
-
Safety Compliance: Meets international certifications such as UL and CE for electrical safety.
-
Ease of Installation: Screw terminals accommodate various wire sizes with clear labeling.
-
Compact Dimensions: Space-efficient design helps optimize control cabinet layouts.
-
Corrosion Resistance: Terminal components resist corrosion, enhancing long-term performance.
-
Thermal Stability: Operates reliably in a broad temperature range.
-
Cost-Effective: Provides a reliable connection solution without excessive cost.
Frequently Asked Questions (FAQ)
-
What types of wires are compatible with the KJ2201X1-HA1 terminal blocks?
The terminal blocks support wire sizes ranging from 12 to 24 AWG, suitable for most industrial wiring needs. -
Can these terminal blocks be used with other manufacturers’ modules?
They are designed primarily for Emerson Intelligent Logic Solver modules but may be compatible with standard DIN rail-mounted systems. -
What is the maximum current rating for each terminal?
Each terminal supports up to 10 amperes of current. -
How do I mount the KJ2201X1-HA1 terminal blocks?
They are mounted on standard DIN rails for easy installation and secure mounting. -
Are the terminal blocks resistant to industrial environmental factors?
Yes, they are made of high-grade insulating materials and have IP20 protection, suitable for typical industrial environments. -
Can the terminal blocks be used in safety instrumented systems (SIS)?
Yes, they meet safety and quality standards for use in SIS applications. -
What certifications do these terminal blocks hold?
They are UL recognized and CE certified to meet international electrical safety standards. -
How do I maintain the terminal blocks?
Routine inspection of terminals for tightness and signs of corrosion is recommended; cleaning can be done with dry cloths. -
What is the operating temperature range?
They operate reliably between -20°C and +70°C. -
Are spare parts or replacements available for damaged terminals?
Yes, Emerson provides replacement parts and support for the KJ2201X1-HA1 terminal blocks.
Related Models
| Model Number | Description |
|---|---|
| KJ2201X1-BA1 | Emerson Terminal Block for ILS Series |
| KJ2201X1-CA1 | Terminal Block with Enhanced Safety Features |
| KJ2201X1-DA1 | High-Density Terminal Block for ILS |
| KJ2201X1-EA1 | Extended Length Terminal Block |
| KJ2201X1-FA1 | Terminal Block with Integrated LED Indicators |
| KJ2201X1-GA1 | Grounding Terminal Block |
Popular Emerson Models
| Model Number | Description |
|---|---|
| KJ2002X1-CA1 | Emerson Controller Module |
| KJ1700X1-BA1 | Media Converter Module |
| KJ2101X1-CA1 | Input/Output Interface |
| KJ2005X1-SQ1 | Power Control Module |
| KJ2201X1-BA1+HA1 | Intelligent Logic Solver Assembly |
| KJ2201X1-HA1 | Terminal Blocks (Current Model) |
