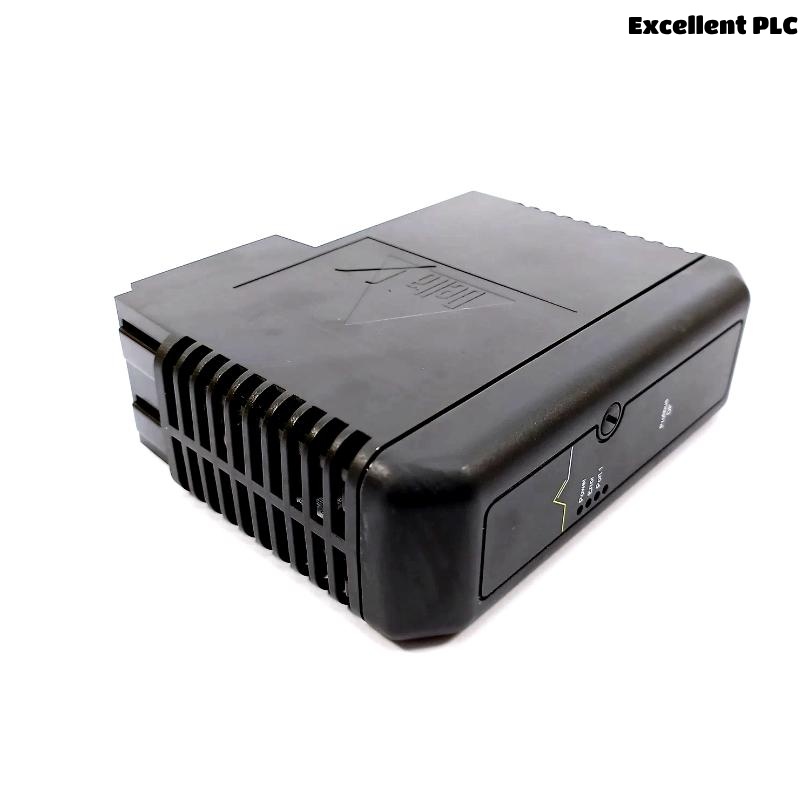

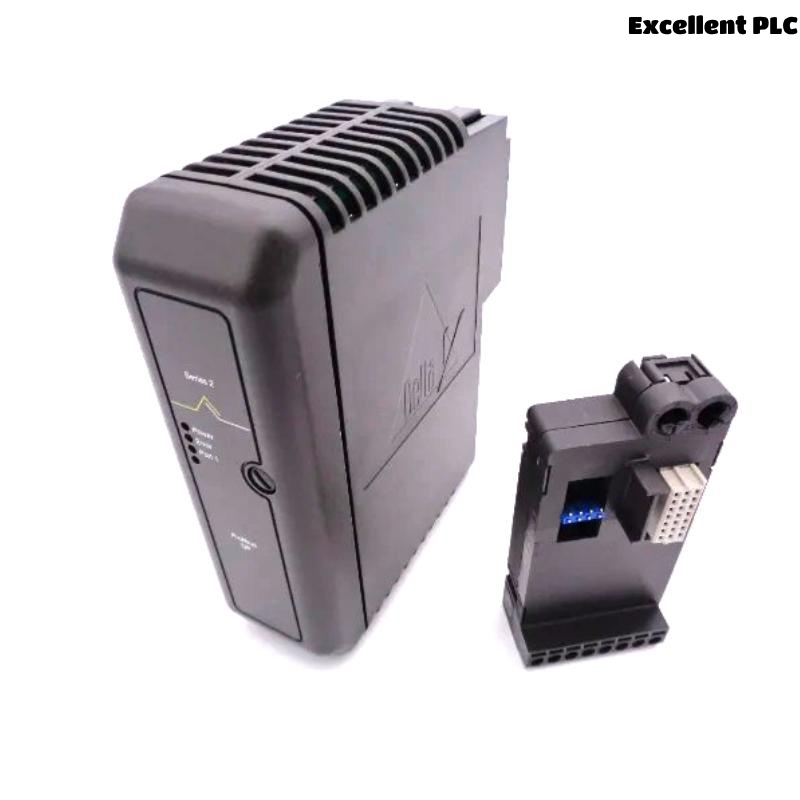

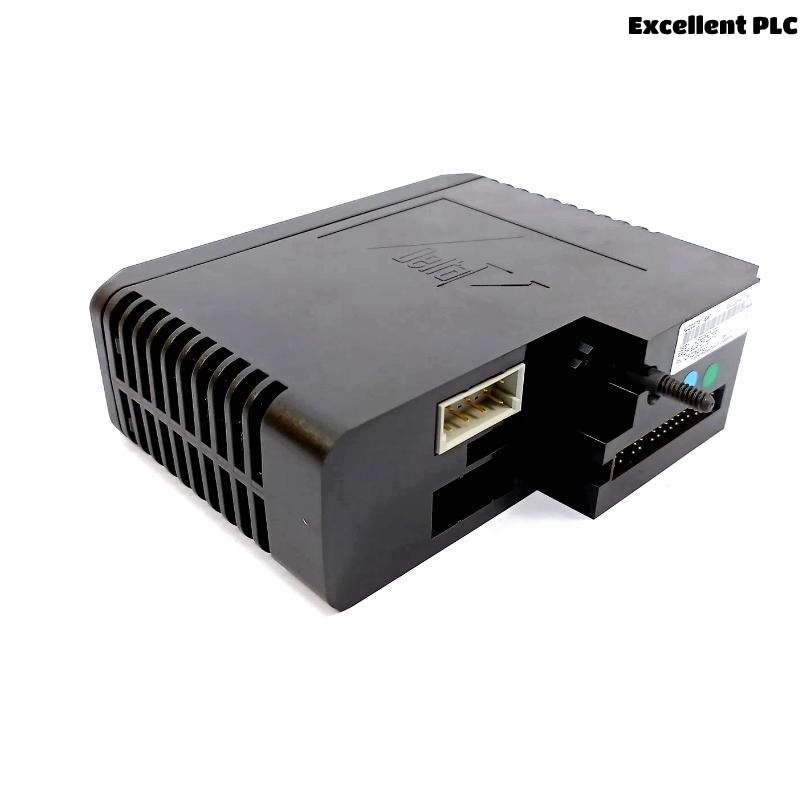

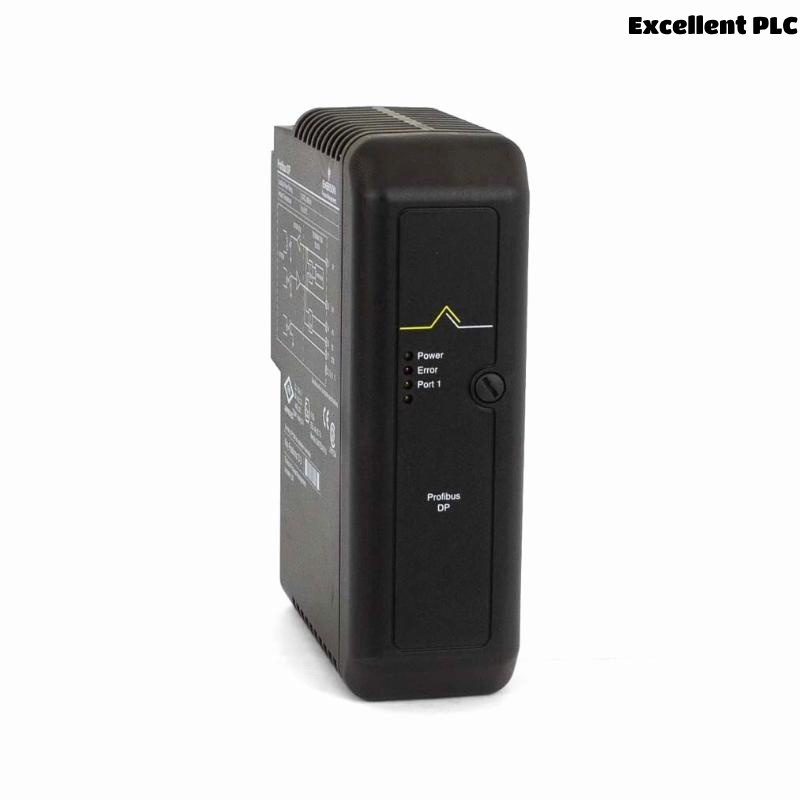

Emerson VE4014 DeltaV Series 2 Profibus DP Card
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Emerson VE4014 is a high-performance DeltaV Series 2 Profibus DP interface card, designed for seamless integration with Profibus DP field devices within the DeltaV M-series control system. It provides robust fieldbus connectivity while maintaining full DeltaV system compatibility, ideal for decentralized process automation.
Product Features
-
Supports communication with Profibus DP V1 slave devices
-
Integrates seamlessly with DeltaV M-series controllers
-
Redundant configuration supported for high availability
-
Simple installation with plug-and-play functionality
-
Online addition/removal without process disruption
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | VE4014 |
| Communication Protocol | Profibus DP (V0/V1) |
| Supported Devices | Profibus DP slaves |
| Redundancy Support | Yes (redundant pair supported) |
| Installation | DIN rail mountable |
| Dimensions (H x W x D) | 107 x 41 x 105 mm |
| Weight | 0.24 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95%, non-condensing |
| Protection Rating | IP20 |
| Vibration | 0.5 g (16–150 Hz) / 1 mm (5–16 Hz) |
| Shock | 10 g (11 ms half-sine) |
Application Fields
-
Distributed process control in chemical plants
-
Batch and continuous manufacturing processes
-
Oil & gas automation systems
-
Pharmaceutical production facilities
-
Power generation instrumentation
-
Water and wastewater treatment systems
Product Advantages
-
Flexible Integration: Compatible with a wide range of Profibus DP field devices.
-
Modular Expansion: Add or remove modules without shutting down the system.
-
Redundancy Support: Ensures process continuity and fault tolerance.
-
Space Saving: Compact design enables installation in field junction boxes.
-
Reduced Cabling: Fieldbus technology minimizes wiring needs and costs.
Frequently Asked Questions (FAQ)
Q1: What is the main function of the VE4014?
A1: It acts as a Profibus DP interface, enabling DeltaV systems to communicate with Profibus DP slave devices.
Q2: Does VE4014 support redundancy?
A2: Yes, it supports 1:1 redundancy using a redundant pair of interface cards.
Q3: Is VE4014 compatible with both Series 2 and legacy DeltaV systems?
A3: It is specifically optimized for DeltaV M-series (Series 2) hardware.
Q4: Can the VE4014 be hot-swapped?
A4: Yes, it supports online insertion and removal without interrupting the system.
Q5: What types of devices can connect to the VE4014?
A5: Any Profibus DP V0/V1 compliant slave devices such as drives, I/O modules, and transmitters.
Q6: What software version is required to use VE4014?
A6: DeltaV v10.3.1 or later is recommended.
Q7: Is configuration done through DeltaV Explorer?
A7: Yes, DeltaV Explorer is used for commissioning and configuration.
Q8: Does it require external termination or fusing?
A8: The module is designed to work with terminal blocks which may include fusing as needed.
Q9: What happens if the active VE4014 fails in a redundant setup?
A9: The system automatically switches to the standby card without operator intervention.
Q10: Can VE4014 be used in hazardous environments?
A10: Yes, it is certified for use in Class I Division 2 and ATEX Zone 2 environments.
Related Series or Compatible DeltaV Models
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| VE4010 | DeltaV Profibus DP Interface Card | 107 x 41 x 105 | 0.24 kg |
| VE4012 | DeltaV Series 2 FF H1 Interface | 107 x 41 x 105 | 0.24 kg |
| VE4013 | DeltaV Series 2 DeviceNet Interface | 107 x 41 x 105 | 0.24 kg |
| VE4002S2T1B1 | DO Module 8-Channel 115/230V AC Isolated | 107 x 41 x 105 | 0.24 kg |
| VE4002S1T2B1 | DO Module 8-Channel 24V DC High-Side | 107 x 41 x 105 | 0.24 kg |
| VE4001S2T2B4 | DI Module 32-Channel Dry Contact | 107 x 41 x 105 | 0.24 kg |
Popular Emerson Models
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| KJ4001X1-BA2 | DeltaV Analog Input Card 8CH HART | 107 x 41 x 105 | 0.24 kg |
| KJ4001X1-CA1 | DeltaV Analog Output Card 8CH HART | 107 x 41 x 105 | 0.24 kg |
| KJ3204X1-BA1 | DeltaV 16 CH DI Card | 107 x 41 x 105 | 0.24 kg |
| KJ3002X1-BB1 | DeltaV Power Controller | 107 x 41 x 105 | 0.24 kg |
| KJ4010X1-BG1 | DeltaV Redundant Controller | 107 x 41 x 105 | 0.24 kg |
| VE4003S2B9 | 16-CH AI 2-Wire Terminal Block for Series 2 | 107 x 41 x 105 | 0.24 kg |
