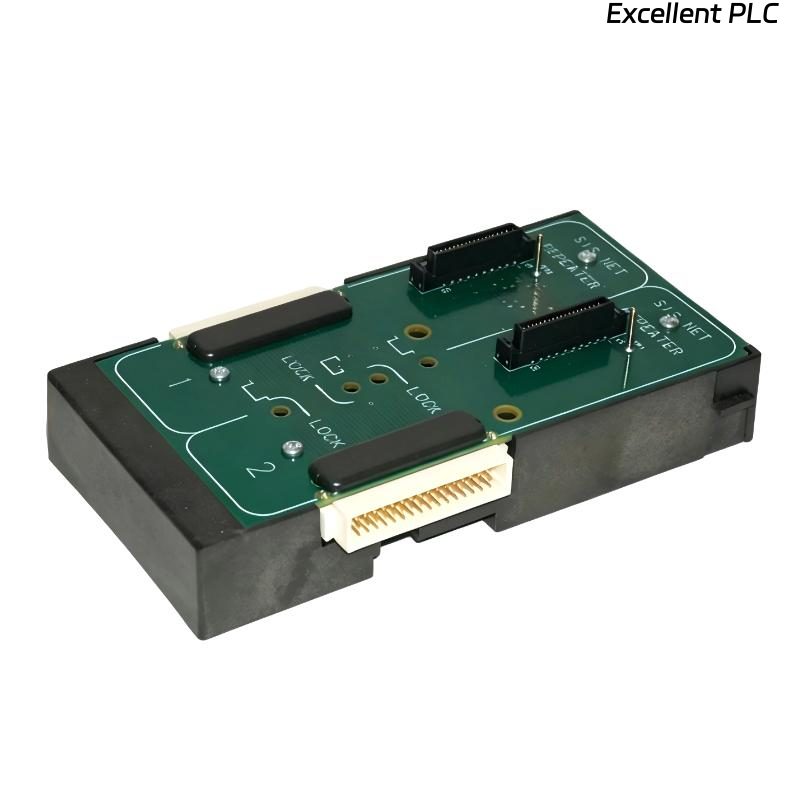

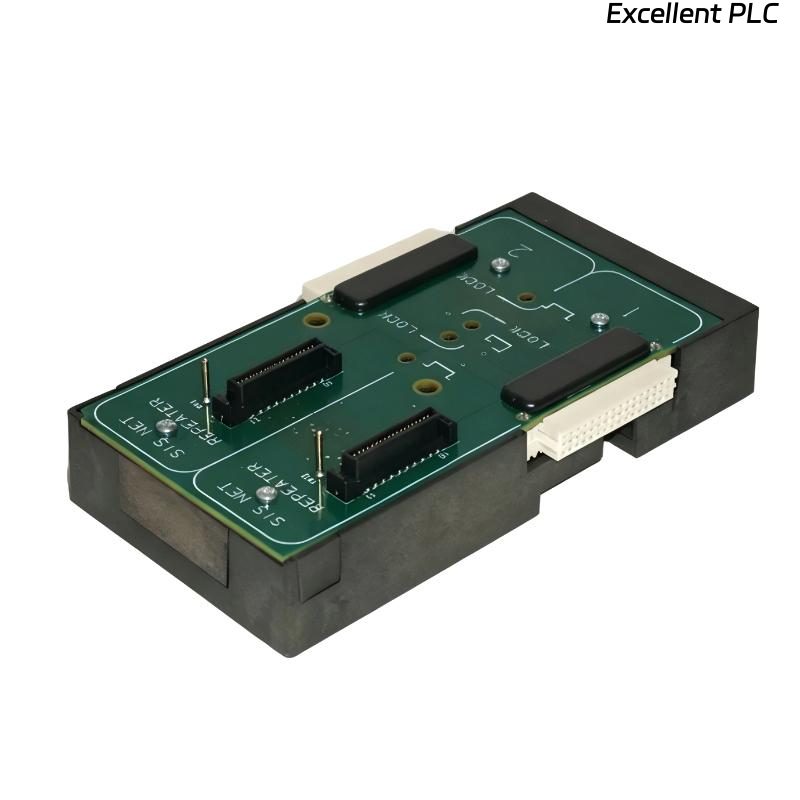

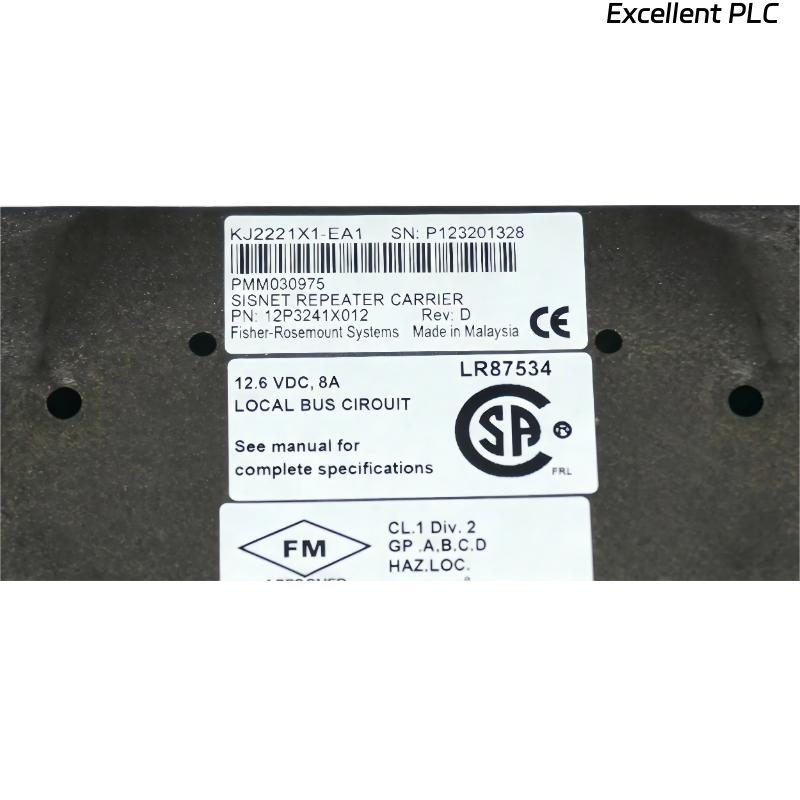

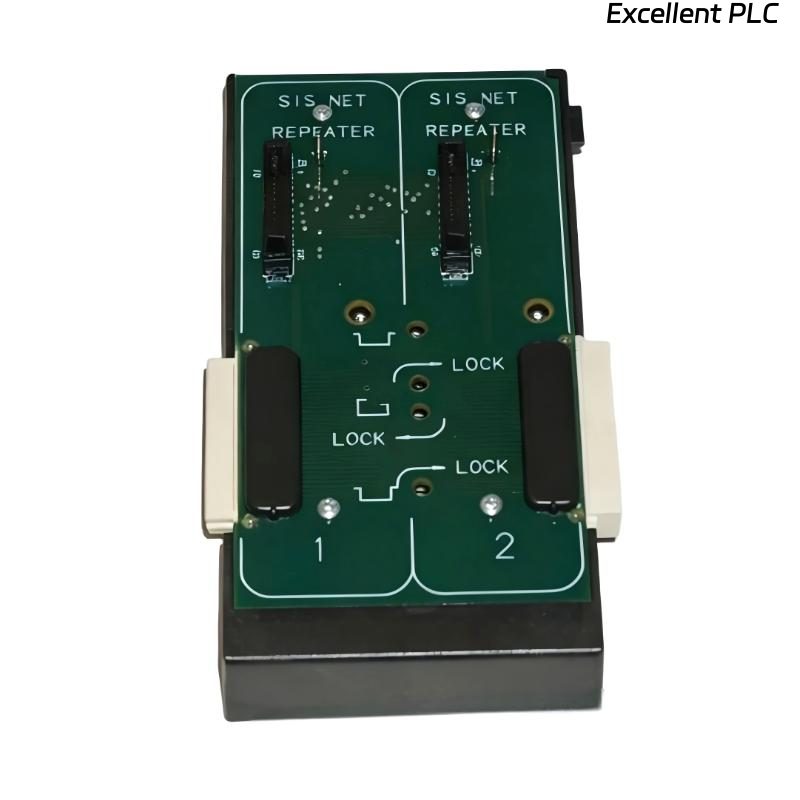

Emerson KJ2221X1-EA1 Repeater Carrier

Product Introduction

The Emerson KJ2221X1-EA1 Repeater Carrier is a communication interface module designed to support signal extension and connectivity within distributed control systems (DCS). It acts as a carrier platform for repeater modules, enabling reliable signal transmission across extended distances in industrial automation networks.

This unit is typically used in Emerson control architectures to ensure stable communication between field devices and control systems. It features both a 3×16 female connector and a 3×16 male connector, allowing seamless integration into system backplanes or communication assemblies.

Designed for harsh industrial environments, the KJ2221X1-EA1 operates reliably across a wide temperature range and high humidity conditions, making it suitable for demanding applications such as oil & gas, power generation, and process industries.

---

Product Specifications

---

Applications

• Distributed control systems (DCS) – supports communication signal extension

• Industrial networking systems – enables reliable data transmission across longer distances

• Power generation plants – ensures stable communication between control units

• Oil and gas facilities – operates reliably in harsh environmental conditions

• Process automation systems – integrates communication modules within control architectures

---

Advantages

• Reliable signal extension capability improves communication stability

• Dual connector design (male/female) simplifies integration into system architecture

• Wide temperature tolerance (-40°C to +70°C) ensures operation in extreme environments

• High humidity resistance supports use in challenging industrial conditions

• Compact and robust design allows easy installation in control panels

• Optimized for Emerson systems ensures compatibility and reliable performance

FAQ

1. What is the main function of the KJ2221X1-EA1 repeater carrier?
   It provides a platform for repeater modules to extend communication signals in control systems.
2. What connectors are included on this module?
   It includes one 3×16 female connector and one 3×16 male connector.
3. Where is this module typically used?
   It is used in distributed control systems and industrial communication networks.
4. What is the operating temperature range?
   It operates from -40°C to +70°C.
5. Can it be used in high-humidity environments?
   Yes, it supports 5% to 95% non-condensing humidity.
6. Is it suitable for harsh industrial environments?
   Yes, it is designed for rugged industrial applications.
7. Does it perform signal conversion?
   No, it mainly supports signal extension through repeater modules.
8. What industries commonly use this device?
   It is widely used in oil & gas, power generation, and process industries.
9. How is it installed?
   It is installed within control panels or system racks as part of the communication infrastructure.
10. Why use a repeater carrier in a control system?
    Because it helps maintain signal integrity over long distances and improves communication reliability.
