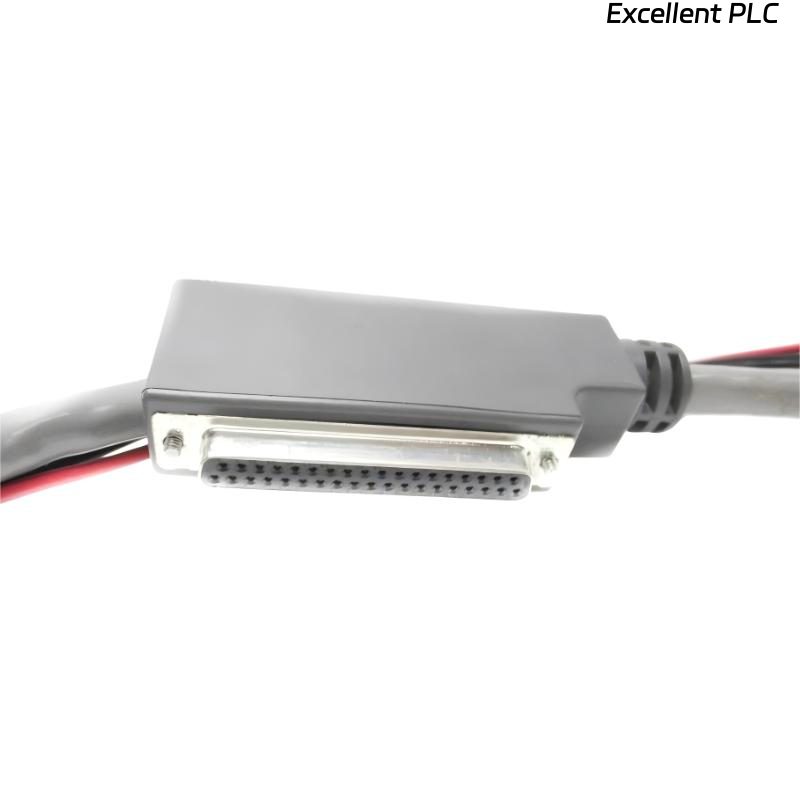

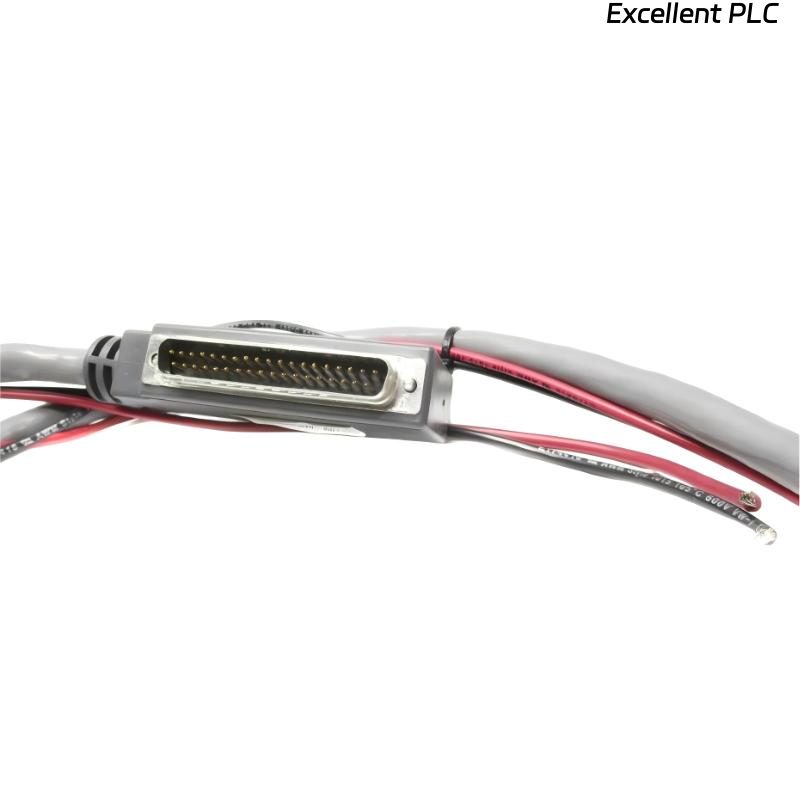

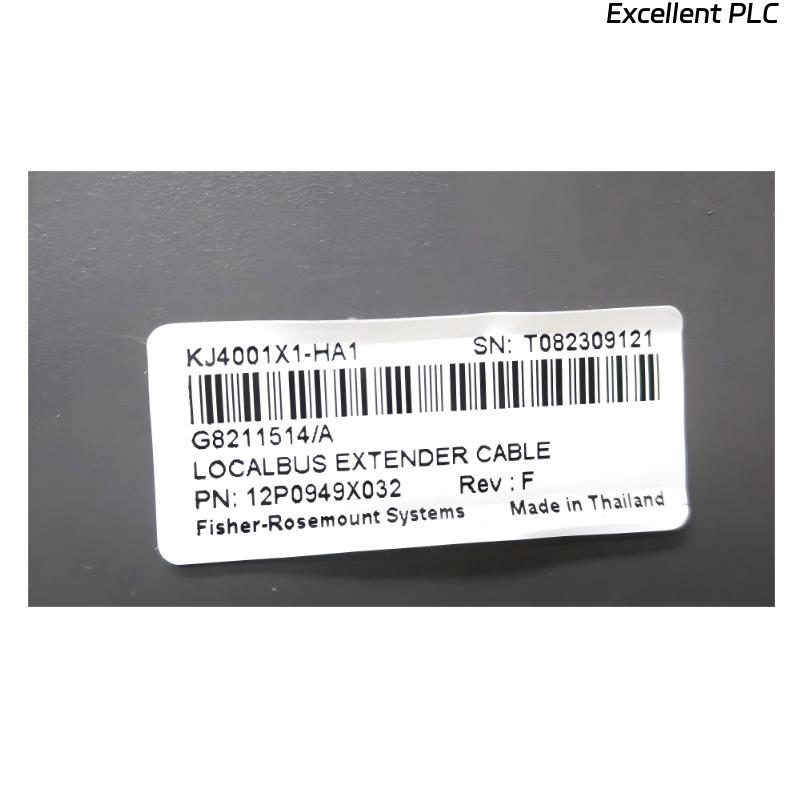

Emerson KJ4001X1-HA1 Horizontal LocalBus Cable Extender

Product Introduction

The Emerson KJ4001X1-HA1 Horizontal LocalBus Cable Extender is a communication extension accessory designed for distributed control systems (DCS). It enables horizontal expansion of the LocalBus connection between carriers and modules, allowing greater flexibility in cabinet layout and system architecture.

This extender is particularly useful in large control panels where modules need to be arranged across wider spaces while maintaining stable and continuous LocalBus communication. It ensures reliable signal transmission and consistent system performance even in complex installations.

With its robust design and industrial-grade specifications, the KJ4001X1-HA1 supports long-term operation in demanding environments, making it an essential component for scalable automation systems.

---

Product Specifications

---

Applications

• Distributed control systems (DCS) – extends LocalBus connections across wider panel layouts

• Industrial automation cabinets – enables flexible horizontal module arrangement

• Process control systems – supports stable communication between distributed components

• Power generation systems – maintains reliable control network connections

• Oil and gas facilities – ensures robust communication in large-scale installations

---

Advantages

• Horizontal bus extension capability improves cabinet layout flexibility

• Stable communication performance ensures reliable LocalBus signal transmission

• High current capacity (8 A) supports connected system components

• Good vibration resistance enhances reliability in industrial environments

• Industrial protection (IP20) suitable for control cabinet applications

• Seamless integration with Emerson systems simplifies deployment

FAQ

1. What is the main function of the KJ4001X1-HA1 extender cable?
   It extends the LocalBus horizontally between carriers and modules, allowing flexible system layout while maintaining stable communication.
2. Why is a horizontal extender needed in control systems?
   Because it allows modules to be installed across wider cabinet spaces without interrupting the LocalBus connection.
3. What is the operating voltage of this cable?
   It operates at 12 VDC and supports up to 8 A current capacity.
4. What is the operating temperature range?
   It is designed to operate between 40°C and 70°C in industrial environments.
5. Is it suitable for vibration-prone environments?
   Yes, it supports vibration resistance up to 1 mm peak-to-peak within 5–16 Hz.
6. Where is this cable typically installed?
   It is installed inside industrial control cabinets as part of a DCS system.
7. Does it affect communication stability?
   No, it is designed to maintain stable and reliable LocalBus communication.
8. Can cable length be customized?
   Yes, it is available in optional lengths to meet different installation requirements.
9. What industries use this product?
   It is commonly used in oil & gas, power generation, chemical processing, and manufacturing industries.
10. Why choose this Emerson extender cable?
    Because it provides reliable, flexible LocalBus expansion with strong industrial performance and compatibility.
