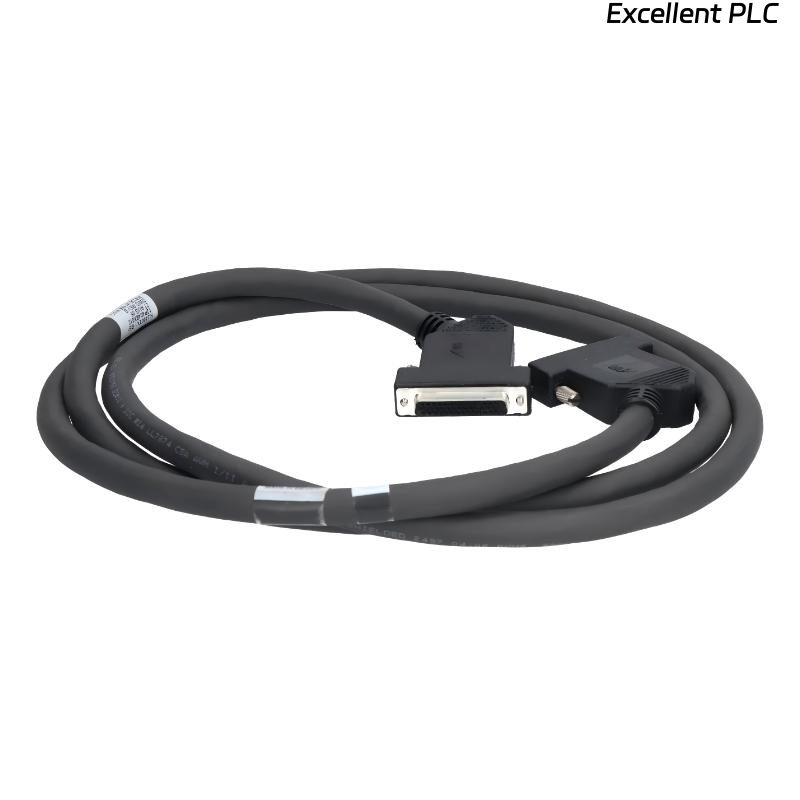

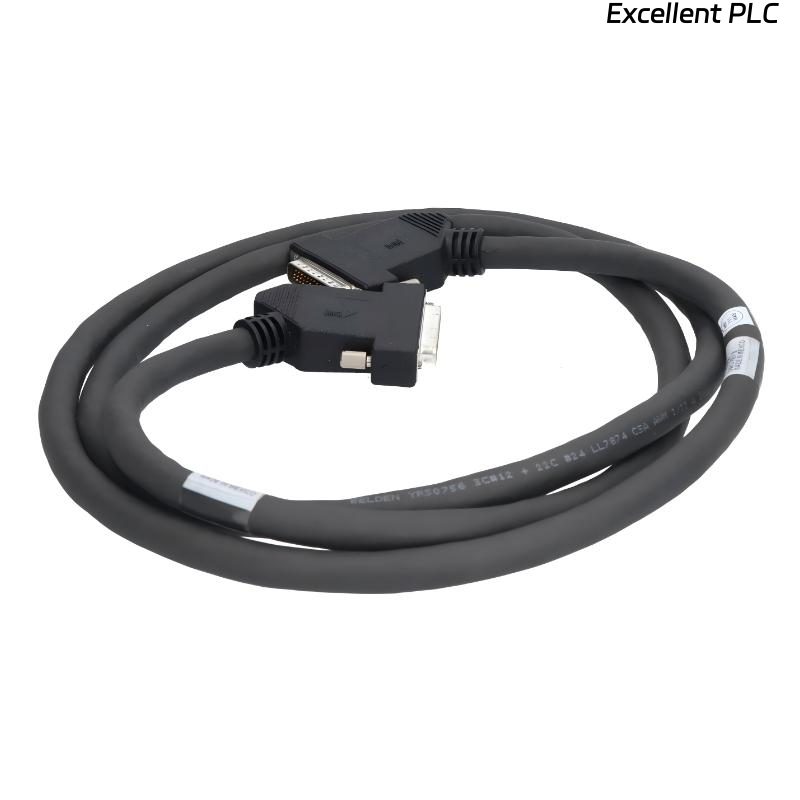

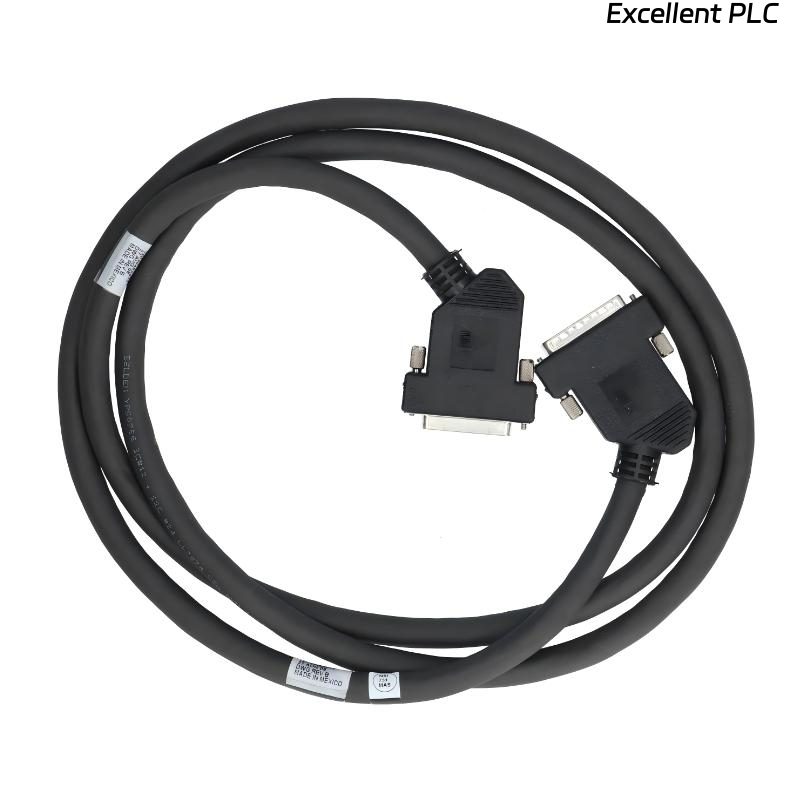

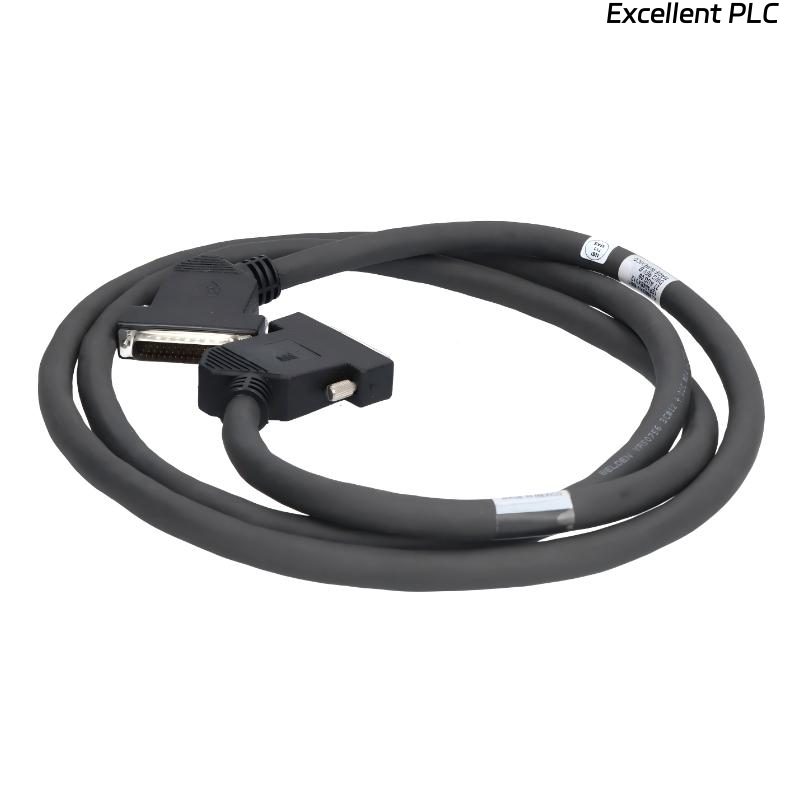

Emerson KJ4002X1-BE1 Top Extender Cable Assembly

Product Introduction

The Emerson KJ4002X1-BE1 Top Extender Cable Assembly is a LocalBus extension component designed for distributed control systems (DCS). It is used to extend the LocalBus connection from the top side of carriers, enabling flexible cabinet layouts and scalable system expansion.

This cable assembly ensures stable communication and power transmission across connected modules, even when system components are physically separated. It is especially useful in large control cabinets where vertical or extended spacing between carriers is required.

Engineered for industrial environments, the KJ4002X1-BE1 provides reliable performance and seamless integration within Emerson automation systems, supporting long-term operation in demanding applications.

---

Product Specifications

---

Applications

• Distributed control systems (DCS) – extends LocalBus connections from the top of carriers

• Industrial automation cabinets – supports flexible vertical system layouts

• Process control systems – maintains stable communication between distributed modules

• Power generation plants – enables organized and scalable control system expansion

• Oil and gas facilities – ensures reliable system interconnection in large installations

---

Advantages

• Top-side extension capability improves flexibility in vertical cabinet layouts

• High power capacity (12.6 VDC / 15 A) supports reliable system operation

• Stable LocalBus communication ensures consistent data transmission

• Optional cable length adapts to different installation requirements

• Industrial-grade protection (IP20) suitable for control cabinet environments

• Seamless compatibility with Emerson systems simplifies integration

FAQ

1. What is the main function of the KJ4002X1-BE1 cable assembly?
   It extends the LocalBus connection from the top of carriers, allowing modules to be connected across greater distances while maintaining stable communication and power distribution.
2. Why is a top extender cable needed in DCS systems?
   It allows flexible vertical expansion of system components, especially in large cabinets where spacing between carriers is required.
3. What is the power capacity of this cable?
   It supports LocalBus circuit power at 12.6 VDC with a current capacity of up to 15 A.
4. Can the cable length be customized?
   Yes, it is available in optional lengths to meet different installation needs.
5. Is it suitable for industrial environments?
   Yes, it is designed for industrial applications and supports high humidity conditions.
6. What is the IP20 rating?
   It indicates protection against solid objects, suitable for installation inside control cabinets.
7. Where is this cable typically installed?
   It is installed within control panels as part of a distributed control system architecture.
8. Does it affect communication stability?
   No, it is engineered to maintain stable and reliable LocalBus communication.
9. What industries commonly use this product?
   It is widely used in oil & gas, power generation, chemical processing, and manufacturing industries.
10. Why choose this Emerson extender cable?
    Because it provides reliable power and communication extension with flexible installation options and strong compatibility with Emerson systems.
