Product Introduction

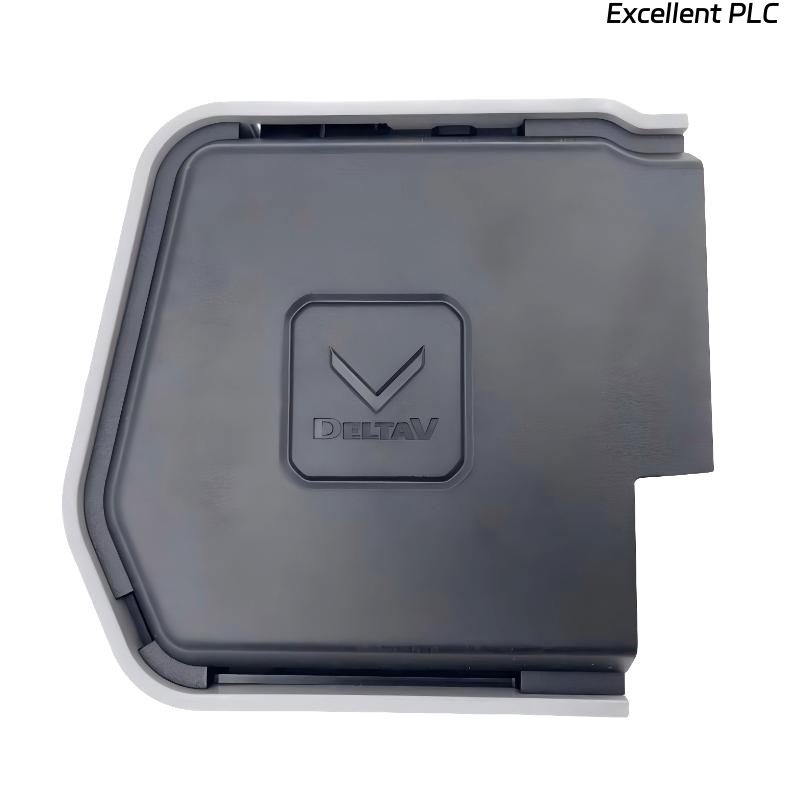

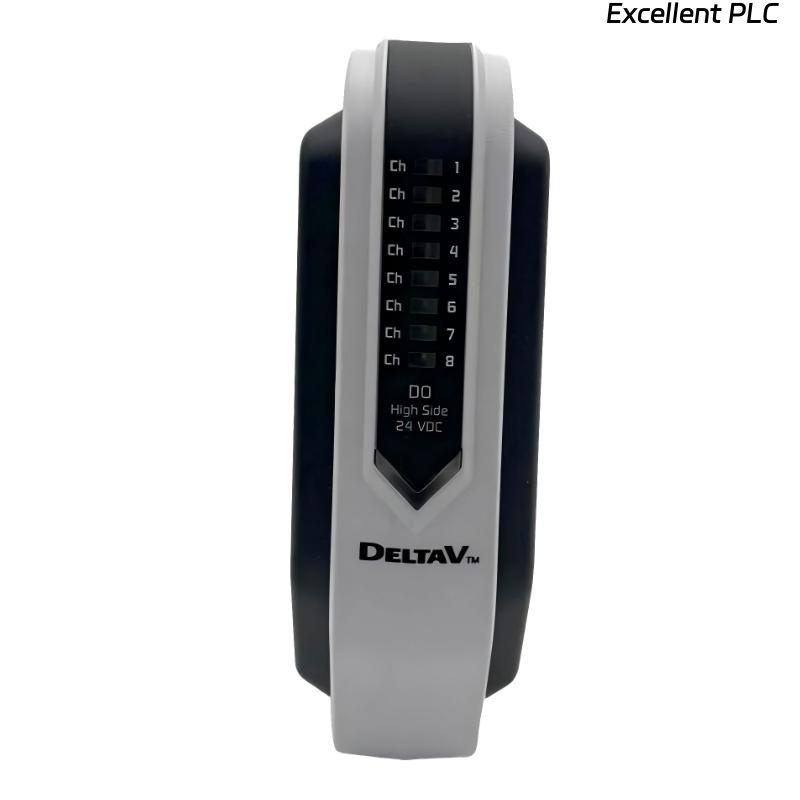

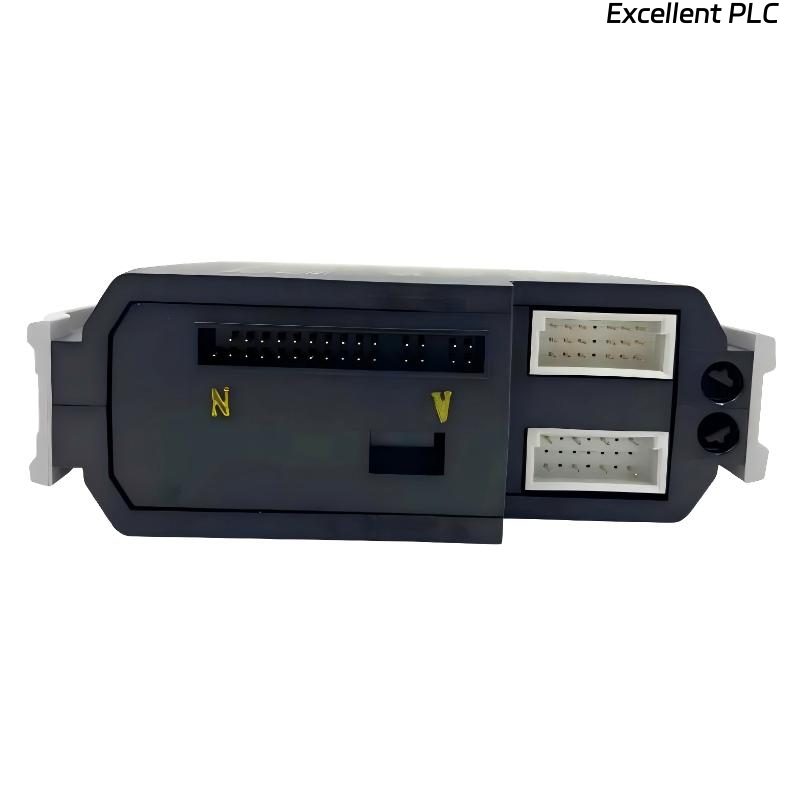

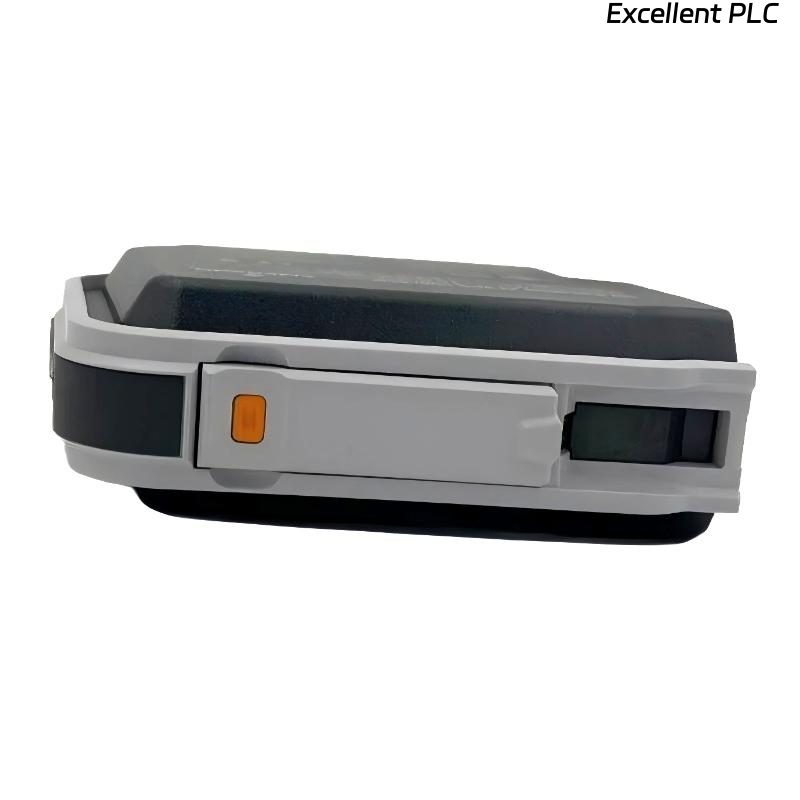

The Emerson SE4002S1T2B2 Discrete Output Card is an industrial output module designed for executing digital control commands in automation systems. It is used in distributed control architectures where reliable switching of field devices is required for process operation and equipment control.
This module provides 8 independent output channels and supports 24V DC high-side switching. It is suitable for driving external devices such as relays, solenoids, indicators, and actuators based on control system commands.
Each channel is electrically isolated, allowing independent operation and reducing interaction between output paths. This improves stability and ensures consistent signal execution in industrial environments where multiple outputs operate simultaneously.
The module features a fused 8-channel terminal block, which provides structured wiring and additional channel-level protection. This design enhances installation organization and supports easier maintenance in control cabinet applications.
The SE4002S1T2B2 is widely used in industrial sectors such as power generation, oil and gas, chemical processing, water treatment, and manufacturing systems where reliable digital output control is required.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | SE4002S1T2B2 |
| Product Type | Discrete Output Card |
| Manufacturer | Emerson |
| Output Channels | 8 Channels |
| Output Voltage | 24V DC |
| Output Type | High Side |
| Isolation | Channel-to-System Isolation |
| Protection Type | Fused Output Channels |
| Terminal Type | 8-Channel Terminal Block |
| Signal Processing | Digital Output Control |
| Installation Method | Rack / Panel Mounted |
| Application Environment | Industrial Automation Systems |
| System Function | Output Signal Execution |
| System Compatibility | Emerson Control Systems |
| Diagnostics | Channel Status Indication |
| Operating Stability | Industrial Grade Operation |
| Dimensions | 131 x 41.8 x 130.8 mm |
| Weight | 0.4 kg |
Applications
● Industrial Automation Systems
Used for sending control commands to field devices for operation execution.
● Power Generation Systems
Applied in auxiliary equipment switching and control operations.
● Oil and Gas Industry
Used for actuating valves, relays, and process control devices.
● Chemical Processing Plants
Supports equipment control and process actuation.
● Water Treatment Systems
Used for pump control and system switching operations.
● Manufacturing Systems
Controls machines and production line equipment.
Advantages
● High-Side Switching Design
Provides stable output control for industrial loads.
● Fused Channel Structure
Adds channel-level protection and improves wiring organization.
● Independent Channel Operation
Each channel functions separately for stable performance.
● Electrical Isolation
Reduces interaction between output signals.
● Robust Mechanical Design
Suitable for industrial cabinet installation.
● Stable Output Execution
Ensures consistent response to control commands.
