Product Introduction

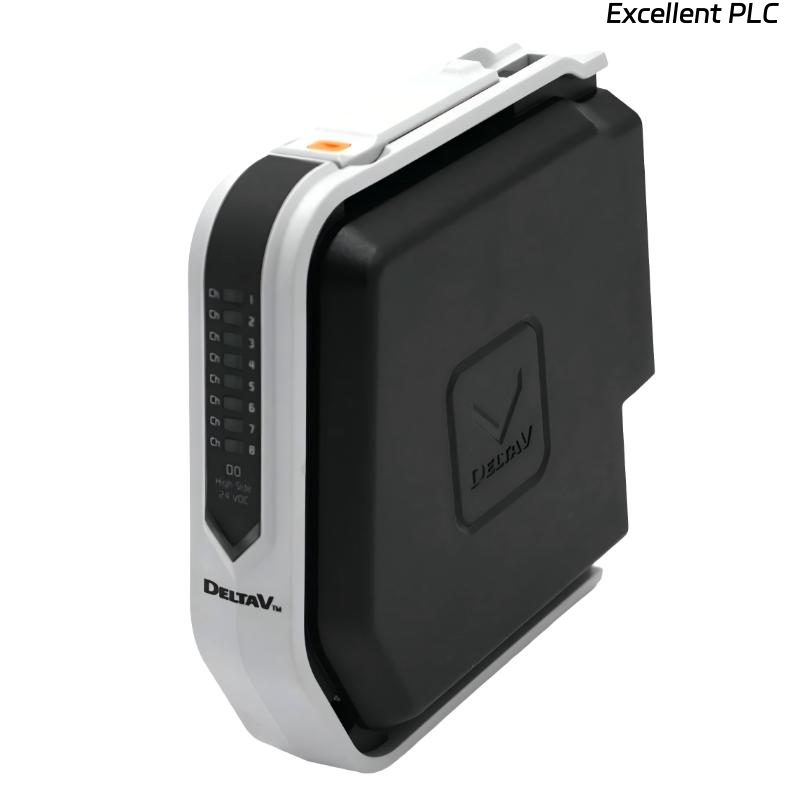

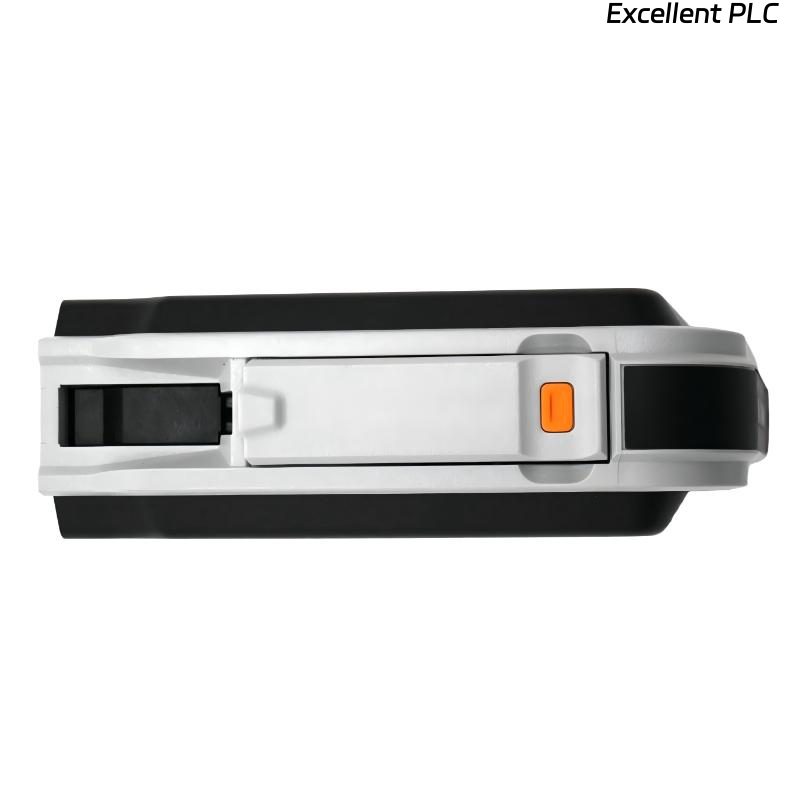

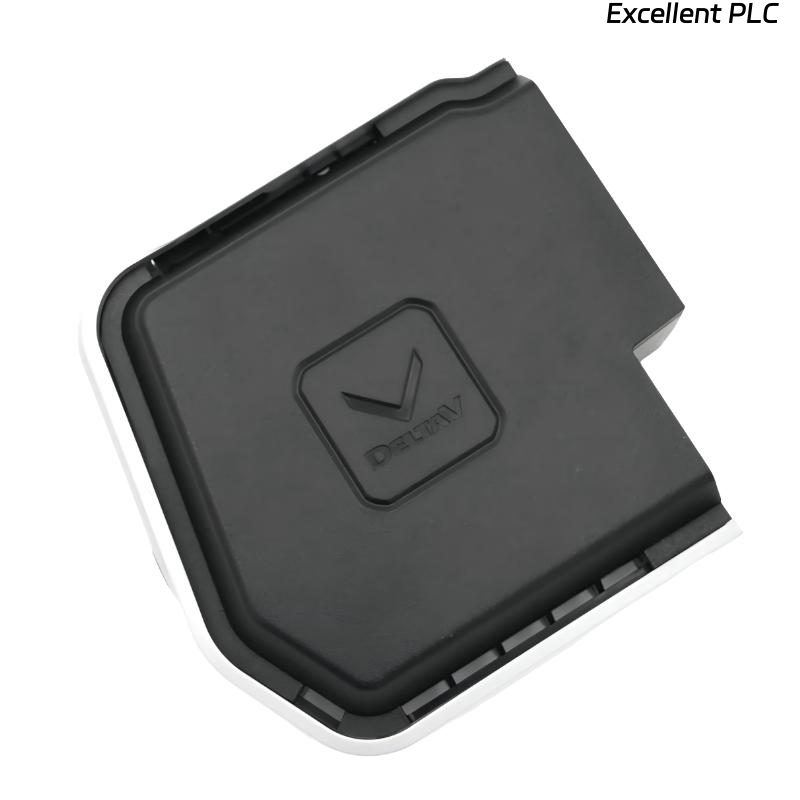

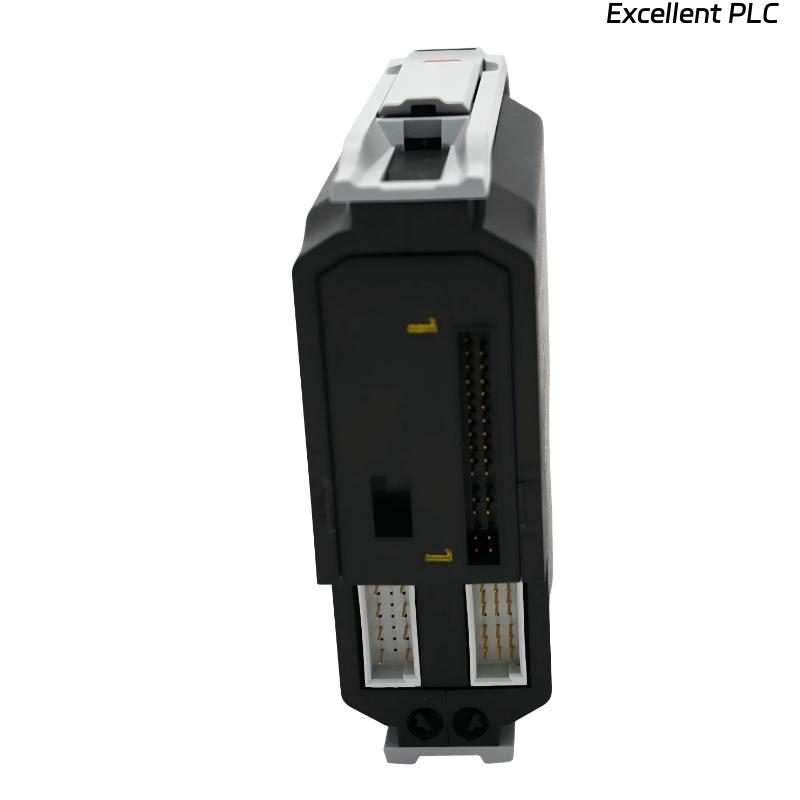

The Emerson SE4002S2T2B1 Discrete Output Card is an industrial automation module designed for controlling AC-powered field devices through digital output signals. It is commonly used in distributed control systems where reliable switching performance and stable process execution are required.
This module provides 8 independent output channels and supports 120V/230V AC high-side switching. It is suitable for operating industrial devices such as relays, contactors, alarms, and other AC-controlled equipment used in process automation environments.
Each output channel operates independently, allowing multiple switching operations to occur simultaneously without affecting signal stability. This helps maintain reliable control performance in industrial systems with continuous operational demands.
The module uses an 8-channel terminal block that provides organized and structured field wiring connections. This design simplifies installation, improves maintenance efficiency, and supports clean cabinet integration.
The SE4002S2T2B1 is widely used in industries such as power generation, oil and gas, chemical processing, water treatment, and manufacturing automation systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | SE4002S2T2B1 |
| Product Type | Discrete Output Card |
| Manufacturer | Emerson |
| Output Channels | 8 Channels |
| Output Voltage | 120V / 230V AC |
| Output Type | High Side |
| Isolation | Channel-to-System Isolation |
| Terminal Type | 8-Channel Terminal Block |
| Signal Processing | Digital Output Control |
| Installation Method | Rack / Panel Mounted |
| Application Environment | Industrial Automation Systems |
| System Function | Output Signal Execution |
| System Compatibility | Emerson Control Systems |
| Diagnostics | Channel Status Indication |
| Operating Stability | Industrial Grade Operation |
| Dimensions | 131 x 41.8 x 130.8 mm |
| Weight | 0.4 kg |
Applications
● Industrial Automation Systems
Used for switching control of AC-powered field devices.
● Power Generation Systems
Applied in auxiliary equipment control and operational switching tasks.
● Oil and Gas Industry
Used for controlling valves, relays, and process equipment.
● Chemical Processing Plants
Supports process equipment operation through AC output control.
● Water Treatment Systems
Used for pump operation and system switching functions.
● Manufacturing Systems
Controls machinery and production line equipment.
Advantages
● High-Side AC Output Design
Provides stable switching performance for industrial AC loads.
● Independent Channel Operation
Each channel functions separately for reliable signal execution.
● Electrical Isolation Structure
Reduces interaction between output channels.
● Compact Mechanical Design
Suitable for industrial cabinet installations with limited space.
● Stable Output Performance
Ensures consistent switching during continuous operation.
● Simple Wiring Interface
8-channel terminal block improves connection organization.
