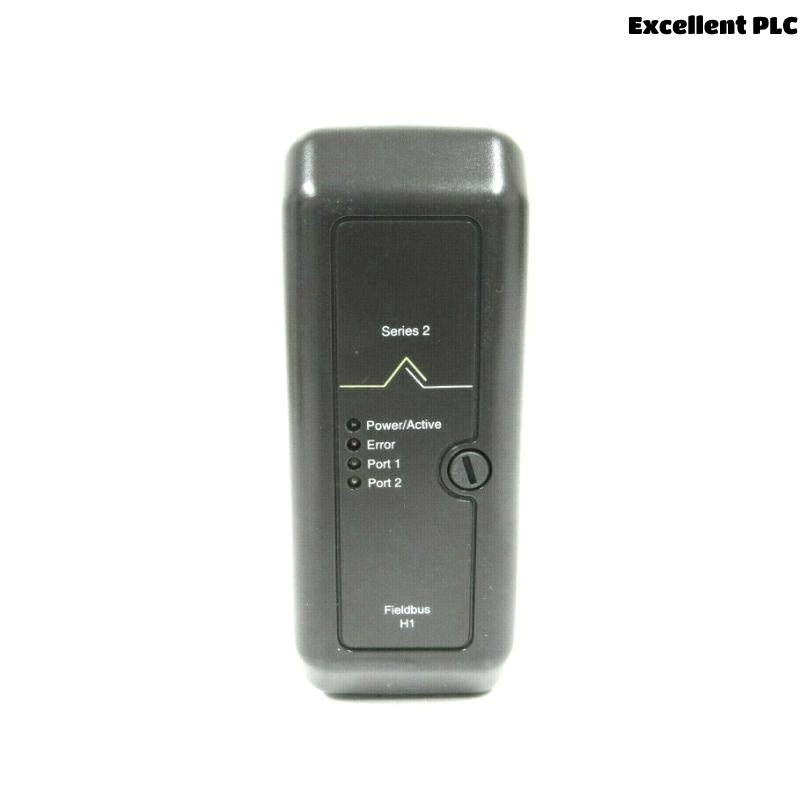

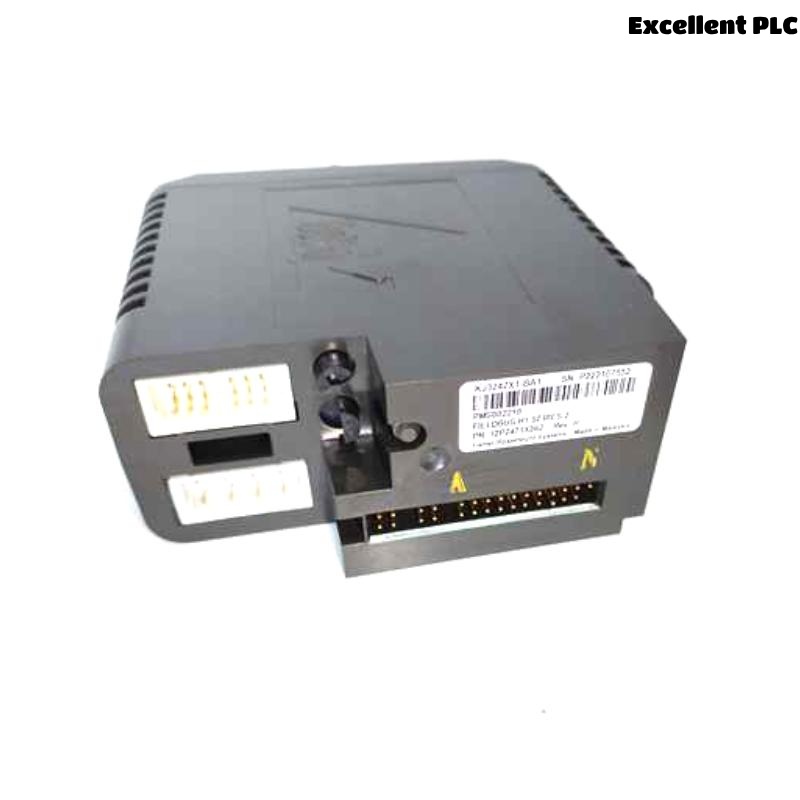

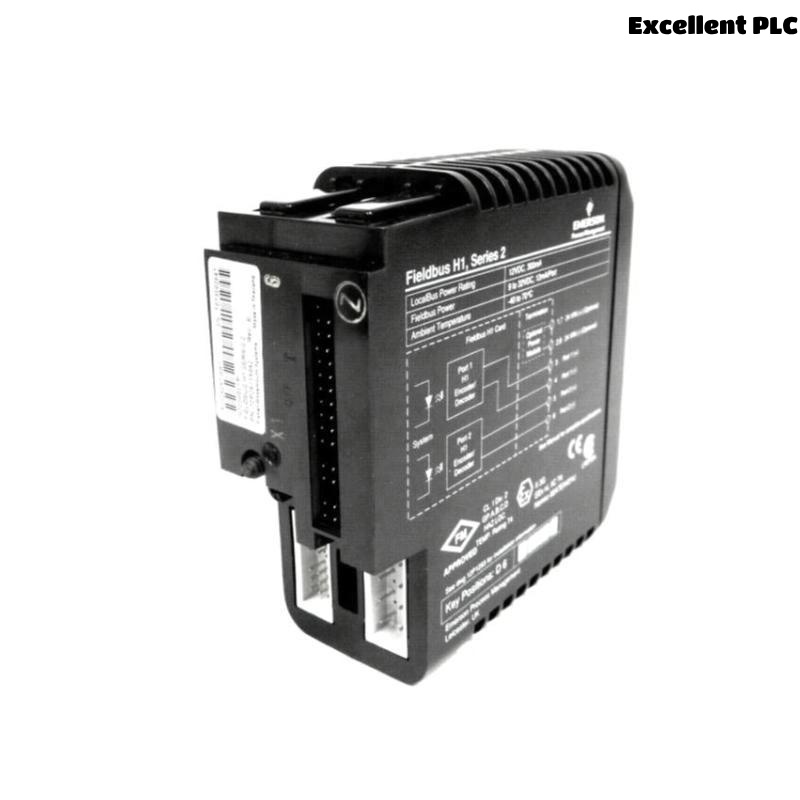

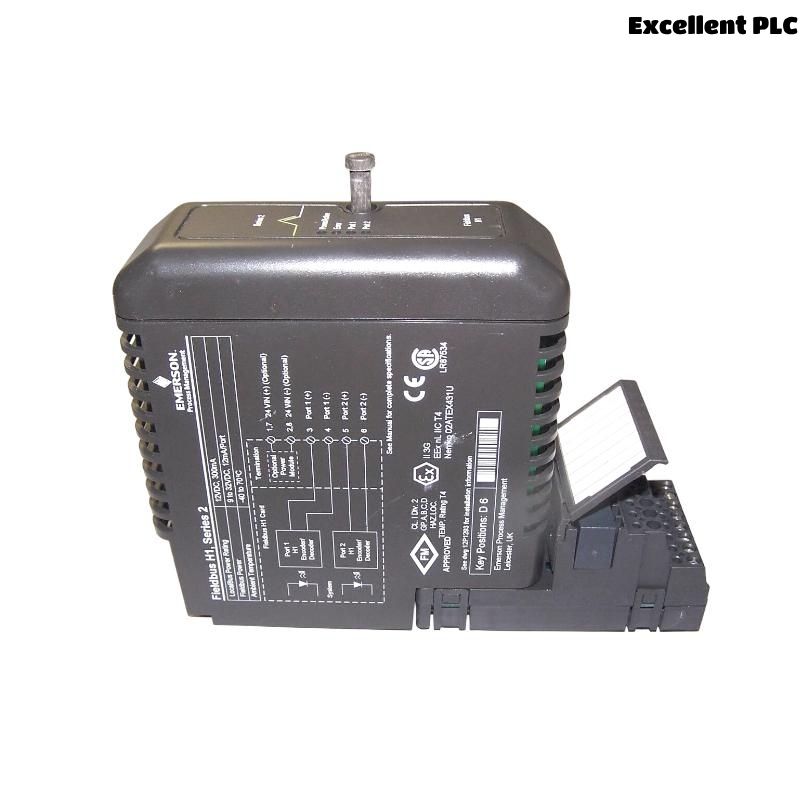

Emerson VE4017P0 KJ3242X1-BA2 Series 2 Fieldbus H1 Card
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Emerson VE4017P0 KJ3242X1-BA2 is a Series 2 Fieldbus H1 Card designed for integration within the DeltaV™ system. It supports high-speed digital communication with field instruments using the FOUNDATION Fieldbus H1 protocol. The module is engineered for installation in hazardous areas and meets international safety standards, including ATEX and IECEx certifications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | VE4017P0 KJ3242X1-BA2 |
| Series | Series 2 |
| Fieldbus Protocol | FOUNDATION Fieldbus H1 |
| Local Bus Power | 12 VDC at 300 mA |
| Fieldbus Power | 9–32 VDC at 12 mA per port |
| Operating Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 10g, 11 msec (half sine wave) |
| Vibration | 1mm P-P (2–13.2 Hz), 0.7g (13.2–150 Hz) |
| Contaminant Resistance | ISA-S71.04 Class G3 |
| Dimensions (H x W x D) | 107 x 41 x 105 mm |
| Weight | 0.3 kg |
Applications
-
Integration of FOUNDATION Fieldbus H1 field devices
-
Hazardous industrial environments (Zone 2/Class I Div 2)
-
Process automation systems using DeltaV™ architecture
-
Oil & gas, chemical, and power generation facilities
-
Distributed control system expansions
Product Advantages
-
Certified for hazardous zones (ATEX, IECEx, FM)
-
Compact size, ideal for space-constrained systems
-
Supports robust digital fieldbus communications
-
Vibration and shock-resistant design
-
Maintenance-free, no calibration required
-
High environmental resistance (Class G3 contaminants)
FAQ
Q1: What is the main function of the KJ3242X1-BA2 Fieldbus H1 Card?
A1: It enables communication between the DeltaV system and field devices using the FOUNDATION Fieldbus H1 protocol.
Q2: Can this module be used in hazardous environments?
A2: Yes, it is certified for use in Zone 2/Class I Division 2 hazardous areas.
Q3: What is the required fieldbus power input?
A3: It operates with 9–32 VDC at 12 mA per port.
Q4: Is hot-swapping allowed for this module?
A4: No, power must be removed before inserting or removing the module.
Q5: What temperature range can it withstand?
A5: It supports a wide range from -40°C to +70°C.
Q6: Does it require periodic calibration?
A6: No, the unit is maintenance-free and does not require calibration.
Q7: How does it ensure correct installation?
A7: It uses a rotary keying system to match terminal blocks with the I/O card.
Q8: Can it resist harsh industrial contaminants?
A8: Yes, it is rated for ISA-S71.04 Class G3 airborne contaminants.
Q9: What are its vibration specifications?
A9: It can handle 1mm peak-to-peak from 2–13.2 Hz and 0.7g from 13.2–150 Hz.
Q10: Is it compatible with all DeltaV systems?
A10: It is designed for DeltaV M-Series systems with compatible terminal blocks.
