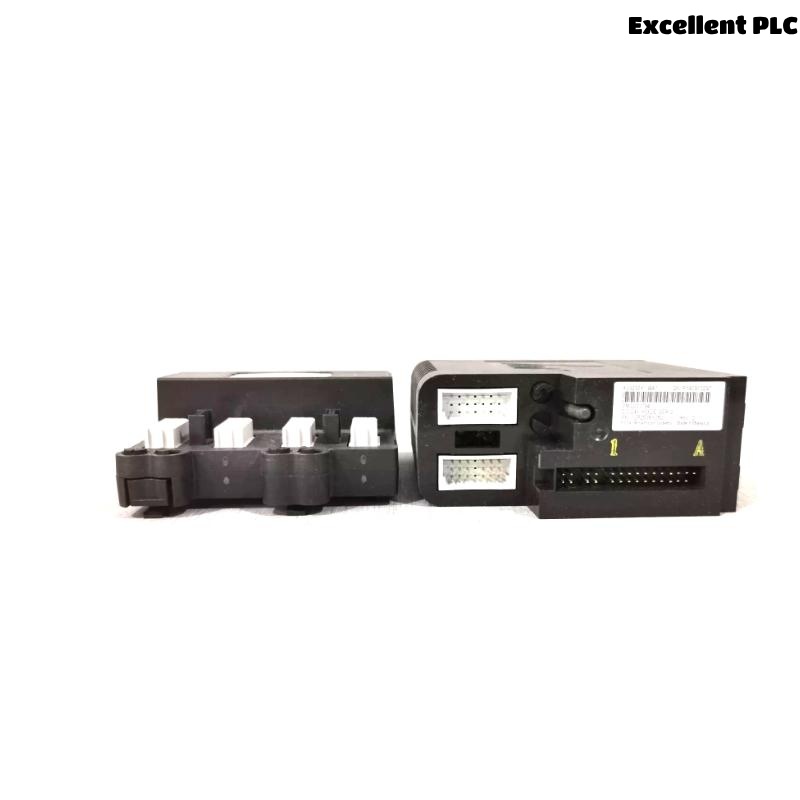

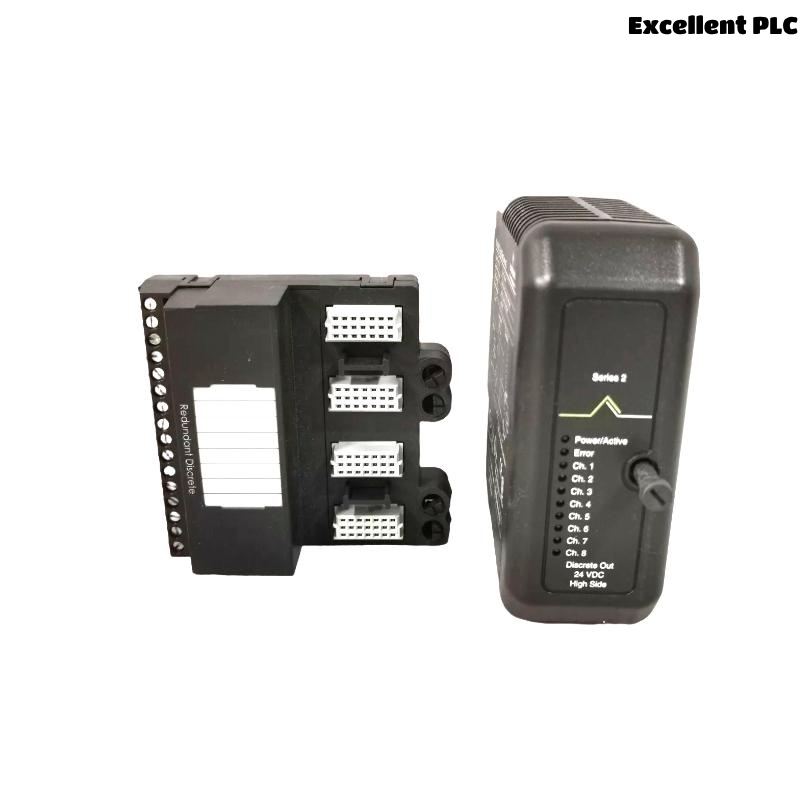

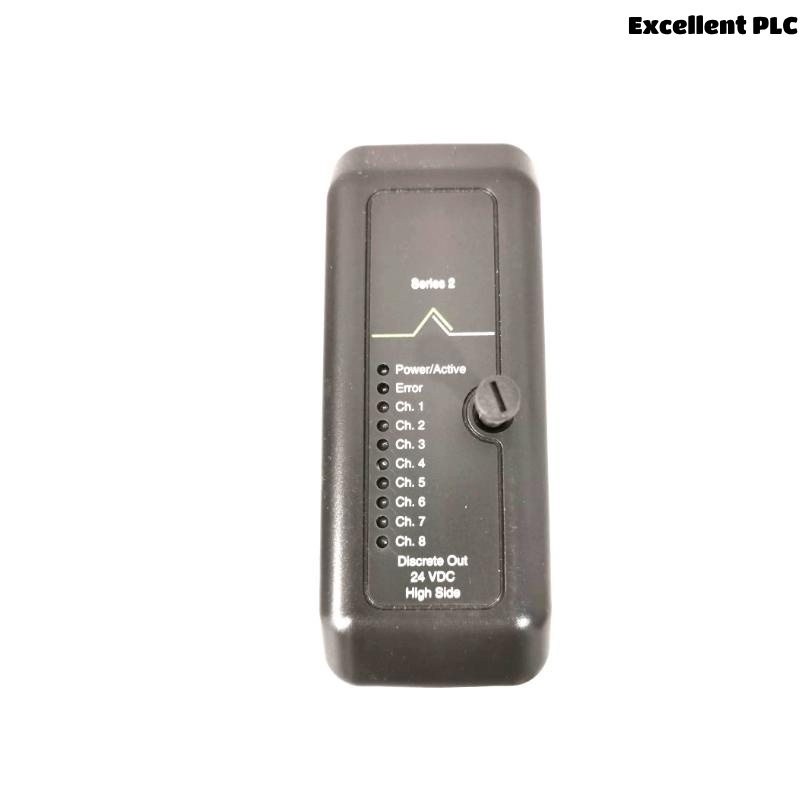

Emerson VE4031S2T2B1 KJ3201X1-EA1 M-series Red Discrete Terminal Block
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Description
The Emerson VE4031S2T2B1 KJ3201X1-EA1 is a red discrete terminal block from the M-series, designed to provide secure and reliable connection points for discrete output signals in DeltaV control systems. It ensures high signal integrity and supports modular replacement and wiring flexibility.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | VE4031S2T2B1 KJ3201X1-EA1 |
| Series | M-series |
| Type | Red Discrete Terminal Block |
| Compatible System | DeltaV |
| Terminal Color | Red |
| Mounting | DIN Rail |
| Operating Voltage | Up to 30 VDC |
| Current Rating | 2 A per channel |
| Number of Channels | 16 |
| Material | Flame-retardant plastic |
| Dimensions (mm) | 107 x 41 x 105 |
| Weight | 0.3 kg |
| Operating Temperature | -40°C to +70°C |
| Certification | CE, CSA, UL |
Applications
-
Industrial automation
-
Distributed control systems (DCS)
-
Discrete output signal termination
-
Process control and monitoring
-
Power plant instrumentation
-
Oil and gas safety systems
Product Advantages
-
Designed specifically for DeltaV M-series systems
-
High durability and long lifecycle
-
Easy field wiring and maintenance
-
Compact size for space-saving installations
-
Secure DIN rail mounting
-
Color-coded for visual identification
Frequently Asked Questions (FAQ)
Q1: What system is the VE4031S2T2B1 terminal block compatible with?
A1: It is designed for DeltaV M-series distributed control systems.
Q2: How many channels does this terminal block support?
A2: It supports 16 discrete output channels.
Q3: What is the rated voltage and current per channel?
A3: It supports up to 30 VDC and 2 A per channel.
Q4: Can it be mounted on a standard DIN rail?
A4: Yes, it is designed for DIN rail mounting.
Q5: What is the primary color of the terminal block?
A5: It is red, indicating discrete output type in the M-series.
Q6: Is the terminal block field-replaceable?
A6: Yes, it supports modular replacement for quick maintenance.
Q7: What certifications does this product hold?
A7: It is CE, CSA, and UL certified.
Q8: What is the size and weight of this terminal block?
A8: Dimensions are 107 x 41 x 105 mm, and it weighs 0.3 kg.
Q9: What material is used in its construction?
A9: It is made of flame-retardant industrial plastic.
Q10: Can it be used in harsh industrial environments?
A10: Yes, it supports a wide operating temperature range from -40°C to +70°C.
Related or Same-Series Models
| Model Number | Description | Channels | Dimensions (mm) | Weight |
|---|---|---|---|---|
| VE4030S1T2B1 | M-series Black Discrete Terminal | 16 | 107 x 41 x 105 | 0.3 kg |
| VE4002S2T1B1 | M-series Digital Output Module | 16 | 107 x 41 x 105 | 0.3 kg |
| VE4001S1T2B1 | M-series Digital Input Module | 16 | 107 x 41 x 105 | 0.3 kg |
| VE4013S2T2B1 | M-series Relay Terminal Block | 16 | 107 x 41 x 105 | 0.3 kg |
| VE4024S2T2B1 | M-series Analog Terminal Block | 8 | 107 x 41 x 105 | 0.3 kg |
| VE4050S2T1B1 | M-series Isolated Input Terminal | 16 | 107 x 41 x 105 | 0.3 kg |
Popular Emerson Models
| Model Number | Description | Function | Dimensions (mm) | Weight |
|---|---|---|---|---|
| KJ3001X1-BB1 | DeltaV Controller | Control Processor | 210 x 60 x 130 | 1.2 kg |
| KJ3221X1-BA1 | Analog Input Module | 8 AI Channels | 107 x 41 x 105 | 0.3 kg |
| KJ3209X1-BA1 | Discrete Output Module | 16 DO Channels | 107 x 41 x 105 | 0.3 kg |
| KJ3002X1-BG1 | Power Supply Module | Redundant Power | 195 x 70 x 130 | 1.4 kg |
| KJ4001X1-BA2 | Fieldbus Interface Module | H1 FF | 107 x 41 x 105 | 0.3 kg |
| KJ4010X1-BF1 | Pulse Input Module | Pulse Input | 107 x 41 x 105 | 0.3 kg |
