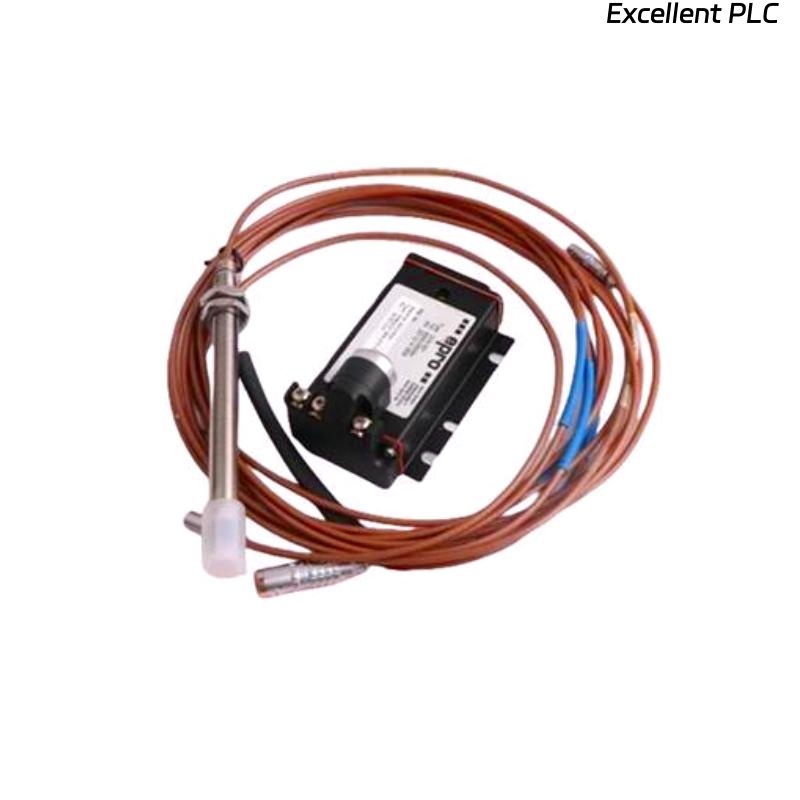

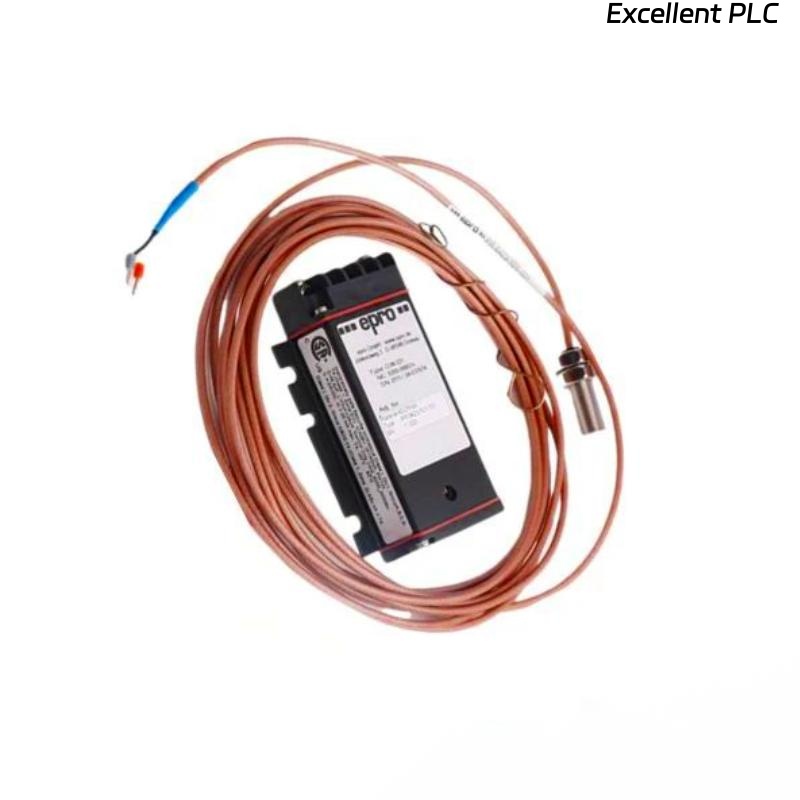

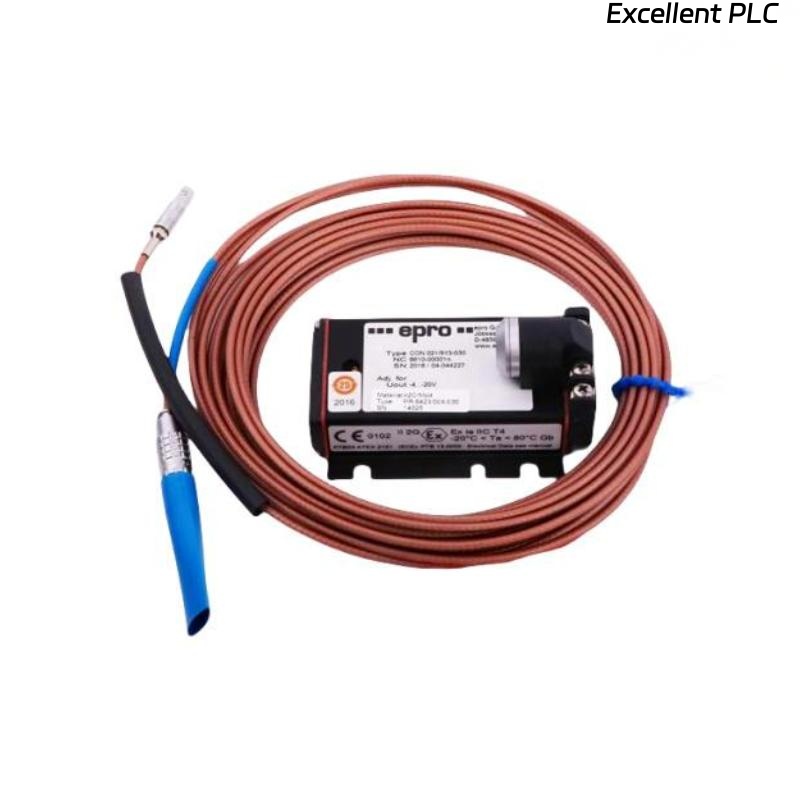

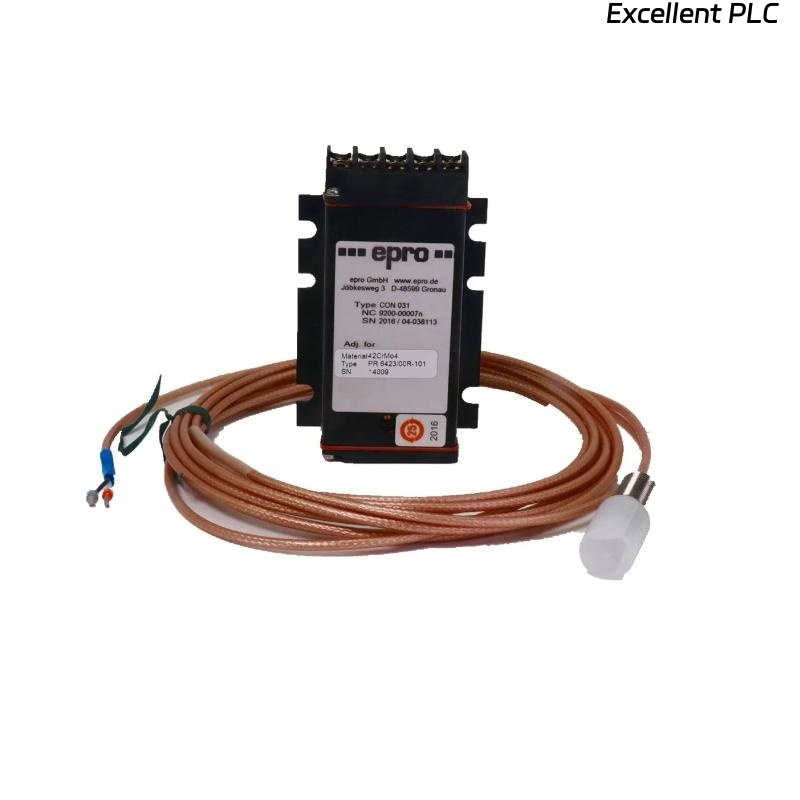

Epro PR6424/009-021 16mm Eddy-Current Sensor
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Epro PR6424/009-021 is a high-precision 16mm eddy-current sensor designed for industrial condition monitoring and vibration measurement. This sensor operates on the principle of eddy-current detection, providing highly accurate displacement and vibration measurements in demanding environments. It is suitable for integration with monitoring systems in turbines, generators, pumps, and other rotating machinery.
Product Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Eddy-Current |
| Sensor Head Diameter | 16 mm |
| Measurement Range | 0–2 mm (standard) |
| Output Signal | Voltage / Current (depending on configuration) |
| Frequency Response | 0–10 kHz |
| Operating Temperature | -40°C to +120°C |
| Supply Voltage | 12–30 VDC |
| Cable Length | 2 m (standard, customizable) |
| Weight | 0.2 kg |
| Connector Type | M12 / LEMO (depending on configuration) |
| Material | Stainless steel / non-magnetic housing |
| Accuracy | ±1 µm (typical) |
Product Applications
-
Vibration monitoring of turbines, generators, and compressors
-
Shaft displacement measurement in rotating machinery
-
Condition monitoring systems in power plants
-
Early fault detection in industrial equipment
-
Integration with data acquisition systems for predictive maintenance
-
Laboratory research for precision machinery analysis
Product Advantages
-
High Accuracy: Provides precise displacement and vibration readings.
-
Robust Design: Stainless steel housing resists harsh industrial conditions.
-
Compact Size: 8 mm diameter sensor allows for easy installation in tight spaces.
-
Wide Temperature Range: Operates reliably in environments from -40°C to +120°C.
-
Versatile Output: Compatible with various signal processing systems.
-
Easy Integration: Standard connector options and mounting configurations simplify setup.
FAQ
Q1: What is the typical measurement range for this sensor?
A1: The standard measurement range is 0–2 mm, but customized ranges can be provided.
Q2: What type of output does this sensor provide?
A2: It provides a voltage or current output depending on the configuration and interface.
Q3: What is the frequency response of the PR6424/009-021?
A3: The sensor typically operates from 0 up to 10 kHz.
Q4: Can this sensor be used in high-temperature environments?
A4: Yes, it operates reliably from -40°C to +120°C.
Q5: What is the recommended supply voltage for operation?
A5: The sensor requires a DC supply voltage between 12 and 30 V.
Q6: How is the sensor mounted on machinery?
A6: The sensor can be mounted using standard brackets or custom clamps compatible with its 8 mm diameter.
Q7: Is the sensor suitable for high-speed rotating machinery?
A7: Yes, its fast frequency response and robust construction make it suitable for high-speed applications.
Q8: What type of material is the sensor housing made from?
A8: The housing is made from stainless steel, non-magnetic, providing durability and EMI resistance.
Q9: Can the cable length be customized?
A9: Yes, cable lengths can be specified according to installation requirements.
Q10: What is the typical accuracy of the sensor?
A10: The sensor offers ±1 µm accuracy under standard operating conditions.
Recommended Related or Same-Series Models
| Model Number | Sensor Head Diameter | Measurement Range | Weight |
|---|---|---|---|
| PR6424/009-022 | 8 mm | 0–2 mm | 0.1 kg |
| PR6424/009-023 | 8 mm | 0–3 mm | 0.1 kg |
| PR6424/009-024 | 8 mm | 0–1.5 mm | 0.1 kg |
| PR6424/009-025 | 8 mm | 0–2.5 mm | 0.1 kg |
| PR6424/009-026 | 8 mm | 0–2 mm | 0.1 kg |
| PR6424/009-027 | 8 mm | 0–3 mm | 0.1 kg |
Popular Epro Models
| Model Number | Sensor Head Diameter | Measurement Range | Weight |
|---|---|---|---|
| PR6424/005-010 | 5 mm | 0–1 mm | 0.08 kg |
| PR6424/006-011 | 6 mm | 0–1.5 mm | 0.09 kg |
| PR6424/007-012 | 7 mm | 0–2 mm | 0.1 kg |
| PR6424/008-013 | 8 mm | 0–2 mm | 0.1 kg |
| PR6424/010-014 | 10 mm | 0–3 mm | 0.12 kg |
| PR6424/012-015 | 12 mm | 0–4 mm | 0.15 kg |
