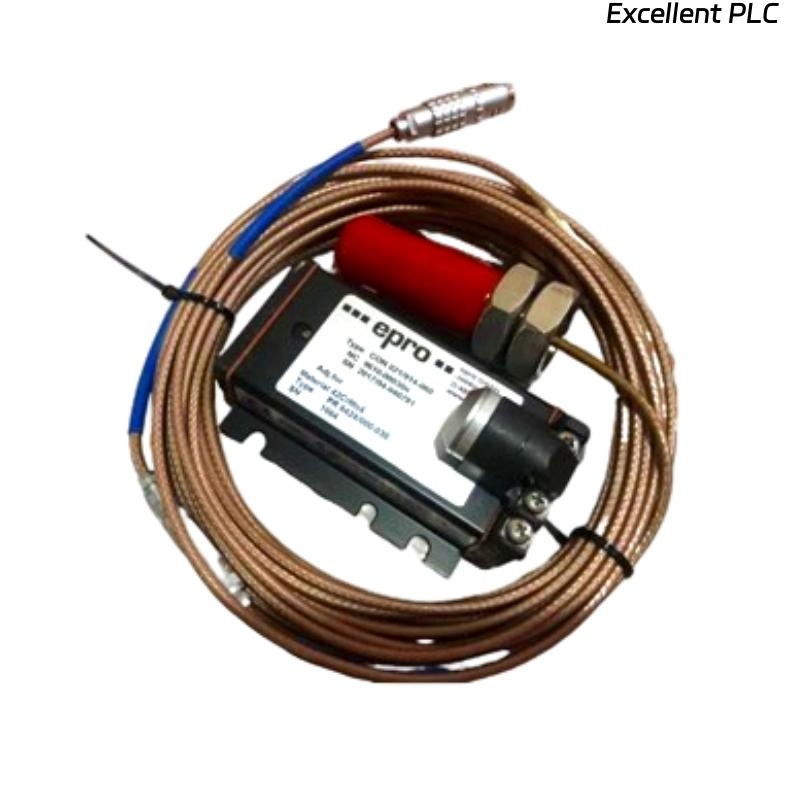

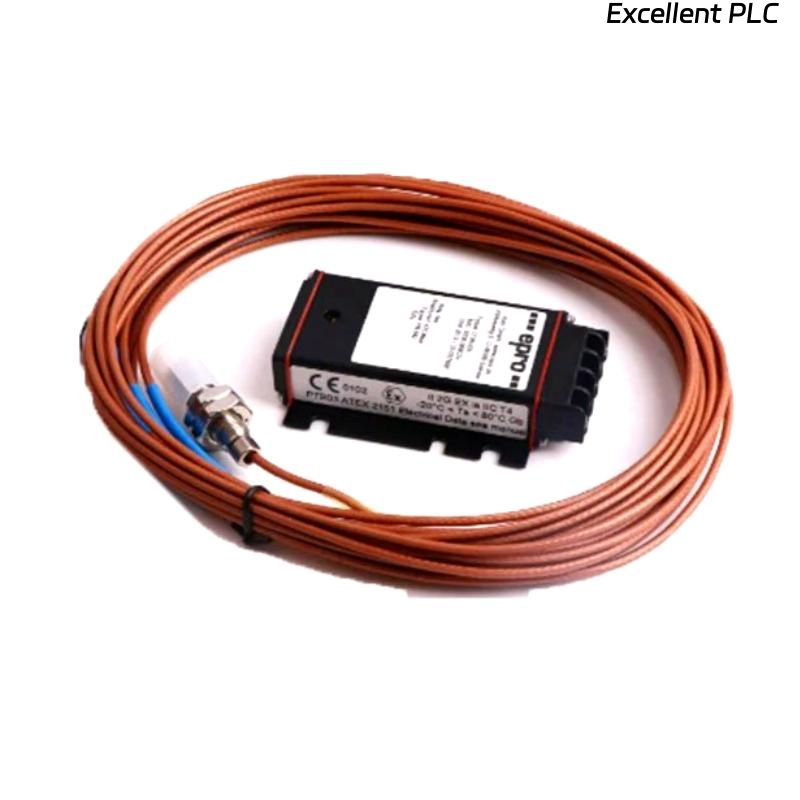

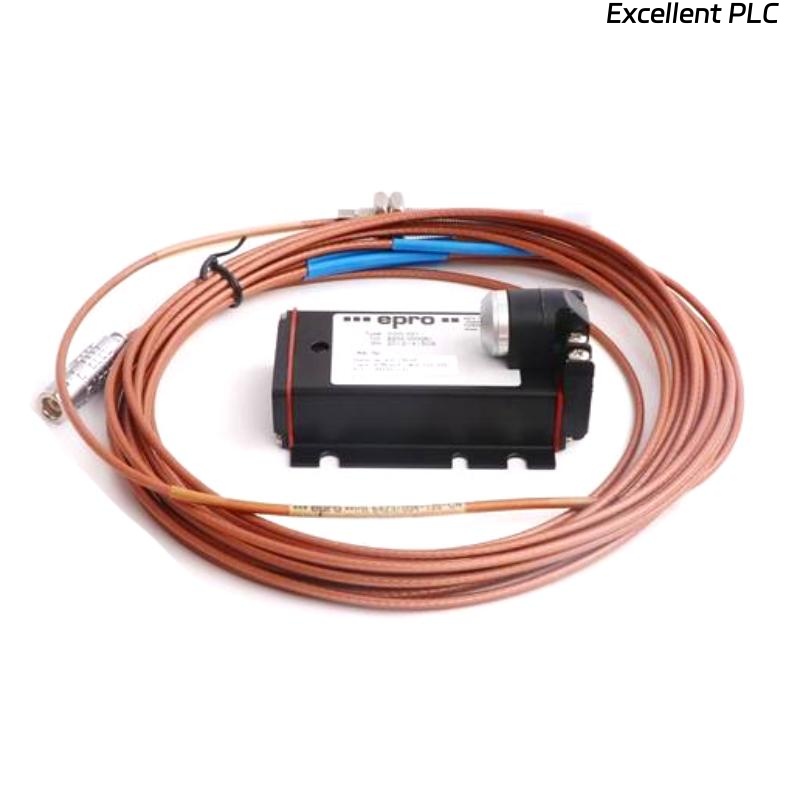

Epro PR6424/015-101 16 mm Eddy-Current Sensor
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Introduction
The Epro PR6424/015-101 is a high-performance eddy-current sensor designed for precise vibration and displacement measurements in rotating machinery. With a 16 mm sensor head diameter, it offers reliable performance in harsh industrial environments such as turbines, compressors, and generators. This model is part of the PR6424 series, well-known for its compatibility with advanced monitoring systems and high accuracy in detecting shaft movements and vibrations.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | PR6424/015-101 |
| Sensor Type | Eddy-Current Displacement Sensor |
| Sensor Head Diameter | 16 mm |
| Measuring Range | Up to 2 mm (depending on probe and system) |
| Sensitivity | 8 mV/µm typical |
| Frequency Range | DC to 10 kHz |
| Operating Temperature | -35 °C to +180 °C |
| Storage Temperature | -40 °C to +200 °C |
| Weight | 0.2 kg |
| Cable Length | Standard 5 m (other lengths optional) |
| Housing Material | Stainless Steel |
| Connection Type | Coaxial Connector |
Product Applications
-
Steam and gas turbines vibration monitoring
-
Compressors shaft displacement measurement
-
Generators and motors bearing vibration analysis
-
Pumps and rotating equipment monitoring in oil & gas industry
-
Predictive maintenance programs for critical assets
Product Advantages
-
High Measurement Accuracy: Ensures precise detection of shaft vibration and displacement.
-
Robust Construction: Stainless steel housing provides durability in extreme environments.
-
Wide Temperature Range: Capable of operating in both very low and high-temperature industrial settings.
-
System Compatibility: Fully compatible with Epro MMS (Machine Monitoring Systems) and other monitoring devices.
-
Reduced Downtime: Early detection of potential faults enables predictive maintenance, minimizing unexpected shutdowns.
-
Proven Reliability: Built on a trusted platform used globally in critical rotating machinery monitoring.
FAQ
Q1: What is the output signal characteristic of the PR6424/015-101 sensor?
A1: The sensor provides a linear voltage output proportional to displacement, typically around 8 mV/µm.
Q2: Can the sensor operate in high-vibration environments?
A2: Yes, it is designed to withstand high vibration levels common in turbines and compressors without loss of accuracy.
Q3: What type of monitoring systems is this sensor compatible with?
A3: It is fully compatible with Epro MMS systems, as well as many third-party monitoring and protection systems.
Q4: How does the sensor handle electromagnetic interference (EMI)?
A4: The coaxial cable and robust shielding significantly reduce the effect of EMI, ensuring accurate readings.
Q5: What is the frequency response range of the PR6424/015-101?
A5: The sensor covers DC up to 10 kHz, suitable for a wide range of machinery monitoring applications.
Q6: Can the sensor be used for both static and dynamic measurements?
A6: Yes, it measures both static displacement and dynamic vibration of shafts.
Q7: How is calibration performed for this model?
A7: Calibration is typically performed using a calibration fixture and reference signals provided by the system manufacturer.
Q8: What type of materials can the sensor detect accurately?
A8: It is optimized for conductive materials, particularly steel shafts and rotor surfaces.
Q9: Does cable length affect measurement accuracy?
A9: Yes, cable length is factory-matched to the sensor system to ensure linearity and accuracy. Using non-standard cable lengths without recalibration can affect performance.
Q10: Is the sensor suitable for long-term continuous monitoring?
A10: Yes, it is designed for continuous monitoring in industrial environments, supporting predictive maintenance strategies.
Related Models in the Same Series
| Model Number | Sensor Head Diameter | Measuring Range | Weight |
|---|---|---|---|
| PR6424/015-100 | 16 mm | Up to 2 mm | 0.2 kg |
| PR6424/016-000 | 16 mm | Up to 2 mm | 0.2 kg |
| PR6424/016-121 | 16 mm | Up to 2 mm | 0.2 kg |
| PR6424/017-000 | 16 mm | Up to 2 mm | 0.2 kg |
| PR6424/017-021 | 16 mm | Up to 2 mm | 0.2 kg |
| PR6424/018-010 | 16 mm | Up to 2 mm | 0.2 kg |
Popular Models from the Same Brand
| Model Number | Type | Key Feature |
|---|---|---|
| PR6423/010-000 | Eddy-Current Sensor | 8 mm probe head for compact use |
| PR6423/012-000 | Eddy-Current Sensor | 12 mm probe head size |
| PR6426/010-000 | Eddy-Current Sensor | 25 mm probe for large shaft gap |
| PR9268/203-000 | Signal Converter Module | Converts sensor signals to standard outputs |
| MMS6110 | Machine Monitoring System Module | Data acquisition and protection |
| MMS6120 | Monitoring System Rack | Multi-channel monitoring rack |
| PR6425/010-000 | Eddy-Current Sensor | 20 mm probe for extended range |
| PR6422/010-000 | Eddy-Current Sensor | Compact version for restricted spaces |
FAQ
Q1: What is the output signal characteristic of the PR6424/015-101 sensor?
A1: The sensor provides a linear voltage output proportional to displacement, typically around 8 mV/µm.
Q2: Can the sensor operate in high-vibration environments?
A2: Yes, it is designed to withstand high vibration levels common in turbines and compressors without loss of accuracy.
Q3: What type of monitoring systems is this sensor compatible with?
A3: It is fully compatible with Epro MMS systems, as well as many third-party monitoring and protection systems.
Q4: How does the sensor handle electromagnetic interference (EMI)?
A4: The coaxial cable and robust shielding significantly reduce the effect of EMI, ensuring accurate readings.
Q5: What is the frequency response range of the PR6424/015-101?
A5: The sensor covers DC up to 10 kHz, suitable for a wide range of machinery monitoring applications.
Q6: Can the sensor be used for both static and dynamic measurements?
A6: Yes, it measures both static displacement and dynamic vibration of shafts.
Q7: How is calibration performed for this model?
A7: Calibration is typically performed using a calibration fixture and reference signals provided by the system manufacturer.
Q8: What type of materials can the sensor detect accurately?
A8: It is optimized for conductive materials, particularly steel shafts and rotor surfaces.
Q9: Does cable length affect measurement accuracy?
A9: Yes, cable length is factory-matched to the sensor system to ensure linearity and accuracy. Using non-standard cable lengths without recalibration can affect performance.
Q10: Is the sensor suitable for long-term continuous monitoring?
A10: Yes, it is designed for continuous monitoring in industrial environments, supporting predictive maintenance strategies.
Related Models in the Same Series
| Model Number | Sensor Head Diameter | Measuring Range | Weight |
|---|---|---|---|
| PR6424/015-100 | 16 mm | Up to 2 mm | 0.2 kg |
| PR6424/016-000 | 16 mm | Up to 2 mm | 0.2 kg |
| PR6424/016-121 | 16 mm | Up to 2 mm | 0.2 kg |
| PR6424/017-000 | 16 mm | Up to 2 mm | 0.2 kg |
| PR6424/017-021 | 16 mm | Up to 2 mm | 0.2 kg |
| PR6424/018-010 | 16 mm | Up to 2 mm | 0.2 kg |
Popular Models from the Same Brand
| Model Number | Type | Key Feature |
|---|---|---|
| PR6423/010-000 | Eddy-Current Sensor | 8 mm probe head for compact use |
| PR6423/012-000 | Eddy-Current Sensor | 12 mm probe head size |
| PR6426/010-000 | Eddy-Current Sensor | 25 mm probe for large shaft gap |
| PR9268/203-000 | Signal Converter Module | Converts sensor signals to standard outputs |
| MMS6110 | Machine Monitoring System Module | Data acquisition and protection |
| MMS6120 | Monitoring System Rack | Multi-channel monitoring rack |
| PR6425/010-000 | Eddy-Current Sensor | 20 mm probe for extended range |
| PR6422/010-000 | Eddy-Current Sensor | Compact version for restricted spaces |
