Product Overview

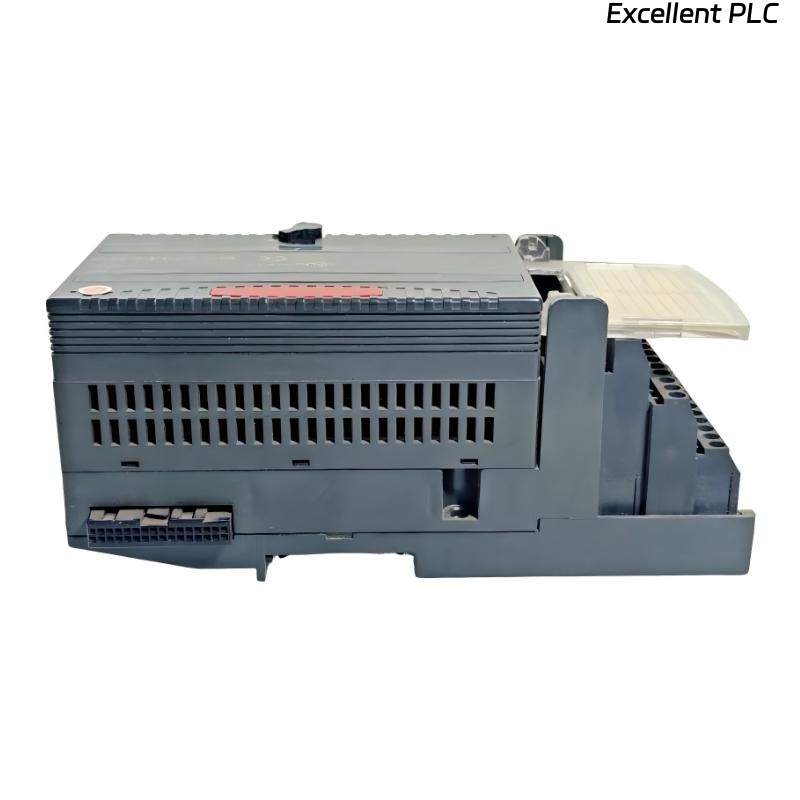

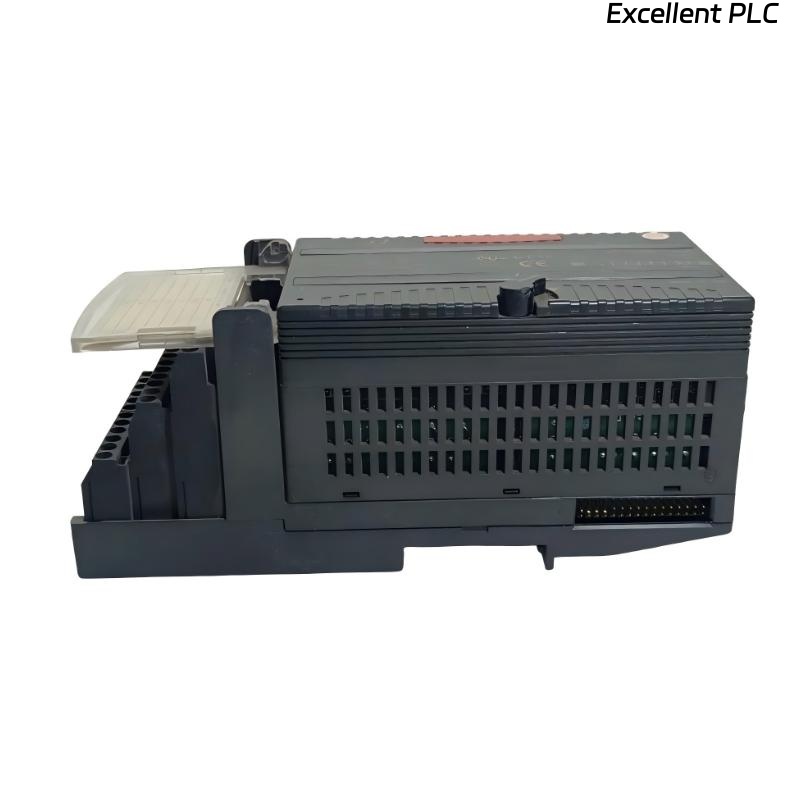

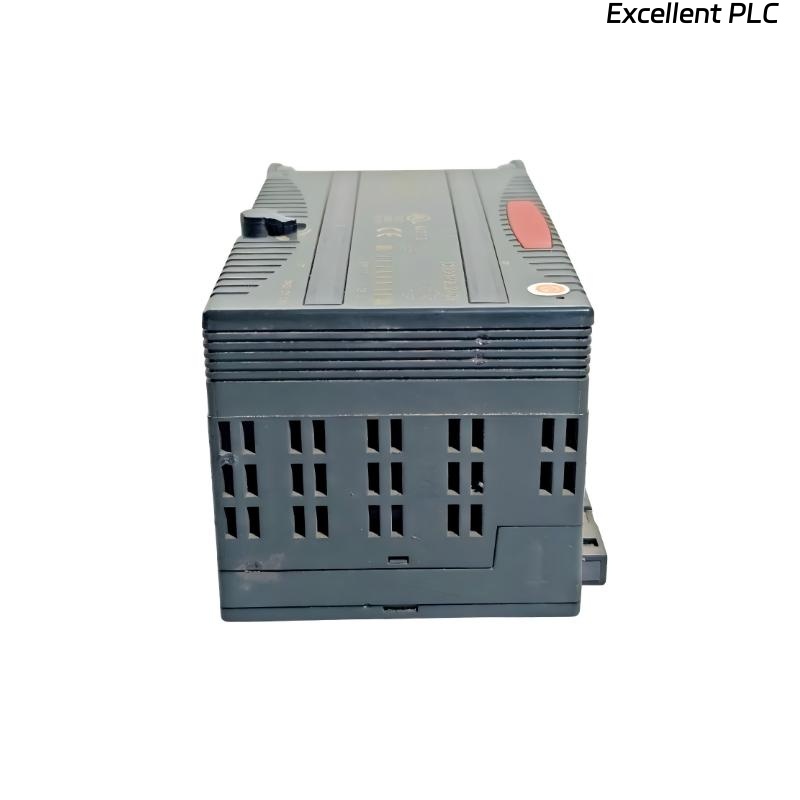

The GE Fanuc IC200MDL240 VersaMax Discrete Input Module is a 16-point DC input module designed for use with GE VersaMax PLC systems. It provides reliable and high-speed digital input processing for a wide range of automation and control applications.This module is ideal for monitoring discrete signals such as switches, sensors, and limit contacts. Its compact design, diagnostic LEDs, and robust electrical isolation make it well-suited for industrial environments where durability and performance are essential.
Key Features
-
16-point DC discrete input module for VersaMax PLC systems
-
Operates with 24 VDC logic-level inputs
-
High input density saves panel space
-
Built-in LED indicators for channel status monitoring
-
Optically isolated channels for noise immunity
-
Compatible with sink and source input devices
-
Easy installation using DIN rail or panel mount
Technical Specifications
Specification | Details |
---|---|
Model | IC200MDL240 |
Type | Discrete Input Module |
Supported System | GE Fanuc VersaMax PLC |
Number of Input Points | 16 |
Input Voltage Range | 0 to 30 VDC (nominal 24 VDC) |
Logic “1” Voltage Threshold | 11 VDC minimum |
Logic “0” Voltage Threshold | 5 VDC maximum |
Input Current | 7 mA typical per point at 24 VDC |
Isolation | 1500 V between field and logic circuits |
Input Type | DC, sinking/sourcing (depending on wiring) |
Power Requirements | 5 VDC from backplane, 80 mA typical |
Indicators | 16 individual input status LEDs |
Mounting | DIN rail or panel mount |
Operating Temperature | 0 °C to +60 °C |
Storage Temperature | –40 °C to +85 °C |
Dimensions | 110 x 66.8 x 50 mm |
Weight | 0.28 kg |
Frequently Asked Questions (FAQ)
1. What is the function of the IC200MDL240 module?
It is used to receive and process 24 VDC discrete input signals from field devices such as sensors and switches.
2. How many input points does the module provide?
It provides 16 DC discrete input channels.
3. What voltage range does it support?
It supports an input range from 0 to 30 VDC, with a nominal voltage of 24 VDC.
4. Is it compatible with both sourcing and sinking devices?
Yes, it can be configured for either sourcing or sinking inputs depending on wiring.
5. How are input statuses displayed?
Each input channel has an individual LED indicator showing ON/OFF status.
6. What type of isolation does it have?
It provides 1500 V isolation between field and logic circuits for noise protection.
7. How is the module powered?
It is powered through the VersaMax backplane at 5 VDC, consuming approximately 80 mA.
8. What are the module’s dimensions?
The dimensions are 110 x 66.8 x 50 mm .
