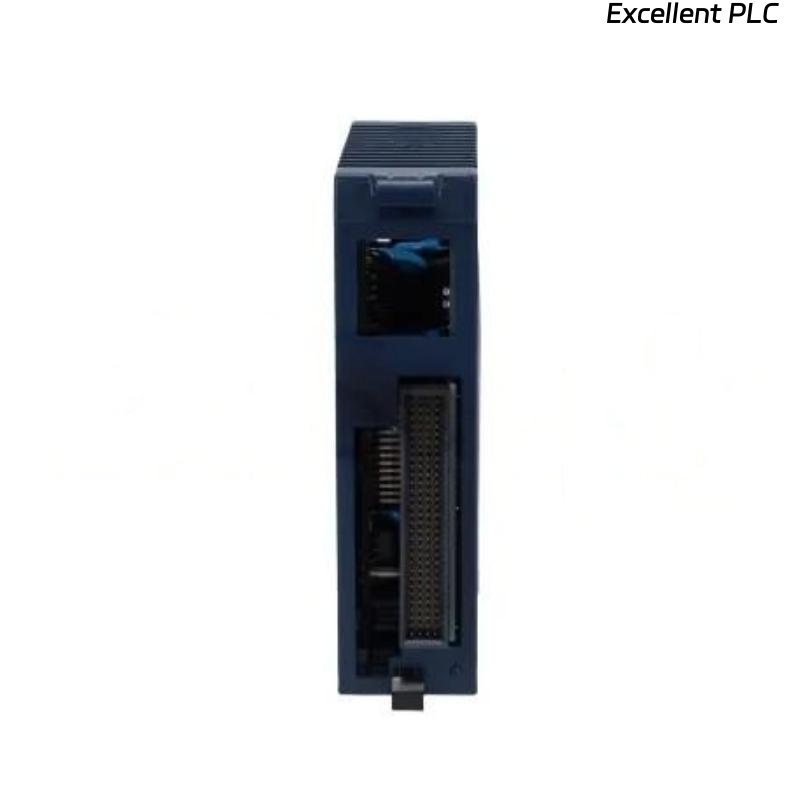

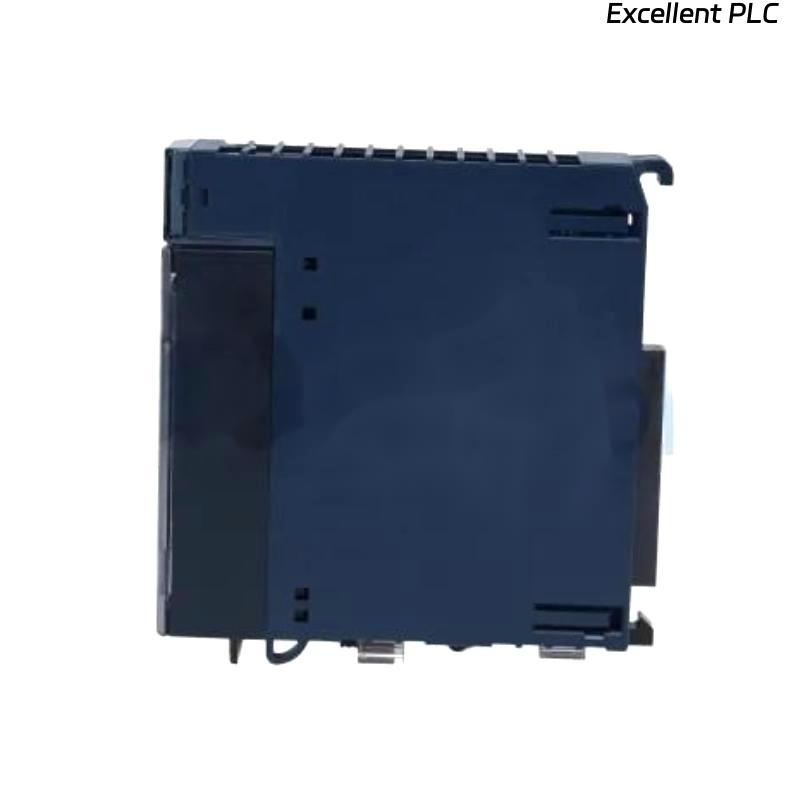

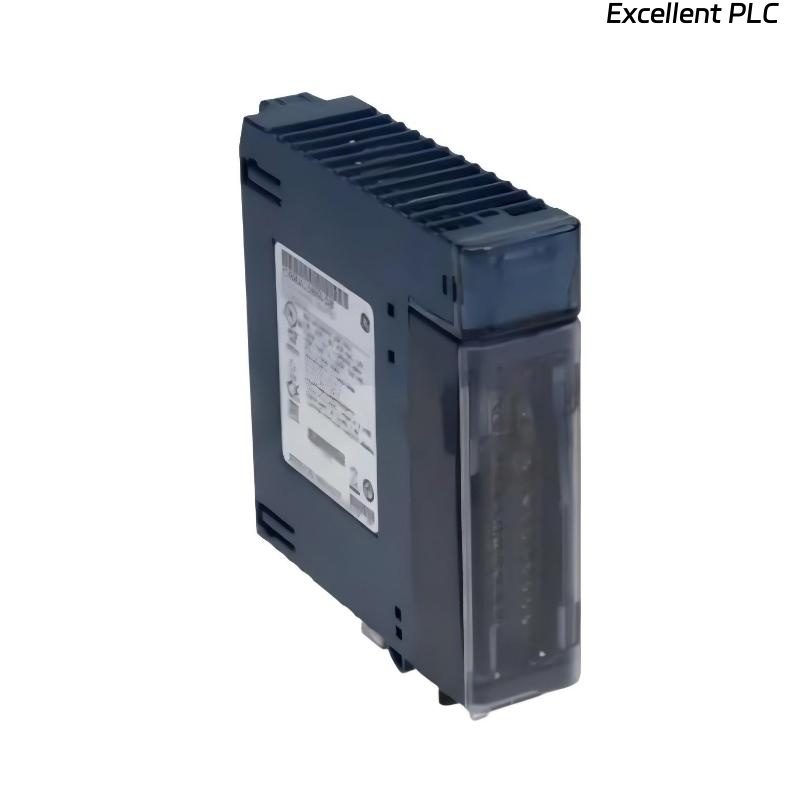

GE Fanuc IC695ALG508 RX3i Analog Input Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview
The GE Fanuc IC695ALG508 RX3i Analog Input Module is a high-performance input module designed for accurate analog signal measurement in the RX3i PACSystems series. It provides 8 differential input channels for current or voltage signals, delivering high accuracy, fast conversion speed, and excellent reliability.
Key Features
-
8 differential analog input channels
-
Supports current and voltage signal inputs
-
High accuracy and fast conversion rate
-
16-bit resolution for precise data acquisition
-
Hot-swappable design for easy maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Product Model | IC695ALG508 |
| Product Type | RX3i Analog Input Module |
| Number of Channels | 8 differential channels |
| Input Type | Current or Voltage |
| Input Signal Range (Voltage) | ±10 V DC |
| Input Signal Range (Current) | 0–20 mA or 4–20 mA |
| Resolution | 16 bits |
| Input Impedance (Voltage) | >1 MΩ |
| Input Impedance (Current) | 250 Ω |
| Accuracy | ±0.1% of full scale |
| Conversion Speed | 2 ms per channel |
| Backplane Current Consumption | 100 mA @ 5 V DC, 80 mA @ 3.3 V DC |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 34 x 140 x 145 mm |
| Weight | 0.41 kg |
| Applications | Analog signal acquisition for process and industrial control systems |
Industry Applications
-
Industrial automation and machine control
-
Power generation and energy systems
-
Oil and gas processing
-
Water and wastewater treatment plants
-
Manufacturing and assembly lines
-
Environmental monitoring and instrumentation systems
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the IC695ALG508 module?
It captures analog signals from field sensors and converts them into digital data for the RX3i controller.
Q2: How many channels does the module support?
It supports 8 differential input channels.
Q3: What signal types can it measure?
The module can measure both voltage (±10 V) and current (0–20 mA, 4–20 mA) inputs.
Q4: What is the resolution of this module?
It offers 16-bit resolution for precise analog-to-digital conversion.
Q5: Does it provide electrical isolation?
Yes, it includes channel-to-ground isolation to reduce noise and interference.
Q6: What is the conversion speed per channel?
Approximately 2 milliseconds per channel.
Q7: Is the module hot-swappable?
Yes, it supports hot-swap capability for easy replacement without shutting down the system.
Q8: What is the module’s power consumption?
It consumes 100 mA @ 5 V DC and 80 mA @ 3.3 V DC.
Related GE Fanuc RX3i Modules
| Model | Description |
|---|---|
| IC695ALG112 | 16-Channel RX3i Analog Input Module |
| IC695ALG600 | 16-Channel Analog Output Module |
| IC695PSD040 | RX3i Power Supply Module |
| IC695CHS007 | 7-Slot RX3i Rack |
| IC695CPU315 | RX3i CPU Processor Module |
| IC695MDL940 | 16-Point Digital Output Module |
Popular GE Fanuc Control Modules
| Model | Description |
|---|---|
| IC693ALG220 | 4-Channel Analog Input Module |
| IC694MDL754 | 32-Point Discrete Input Module |
| IC695PWR330 | RX3i Power Supply Module |
| IC695CMX128 | Communication Expansion Module |
| IC695CPU320 | RX3i High-Performance CPU |
| IC695PSD140 | RX3i 40 W Power Supply Module |
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the IC695ALG508 module?
It captures analog signals from field sensors and converts them into digital data for the RX3i controller.
Q2: How many channels does the module support?
It supports 8 differential input channels.
Q3: What signal types can it measure?
The module can measure both voltage (±10 V) and current (0–20 mA, 4–20 mA) inputs.
Q4: What is the resolution of this module?
It offers 16-bit resolution for precise analog-to-digital conversion.
Q5: Does it provide electrical isolation?
Yes, it includes channel-to-ground isolation to reduce noise and interference.
Q6: What is the conversion speed per channel?
Approximately 2 milliseconds per channel.
Q7: Is the module hot-swappable?
Yes, it supports hot-swap capability for easy replacement without shutting down the system.
Q8: What is the module’s power consumption?
It consumes 100 mA @ 5 V DC and 80 mA @ 3.3 V DC.
