Product Overview

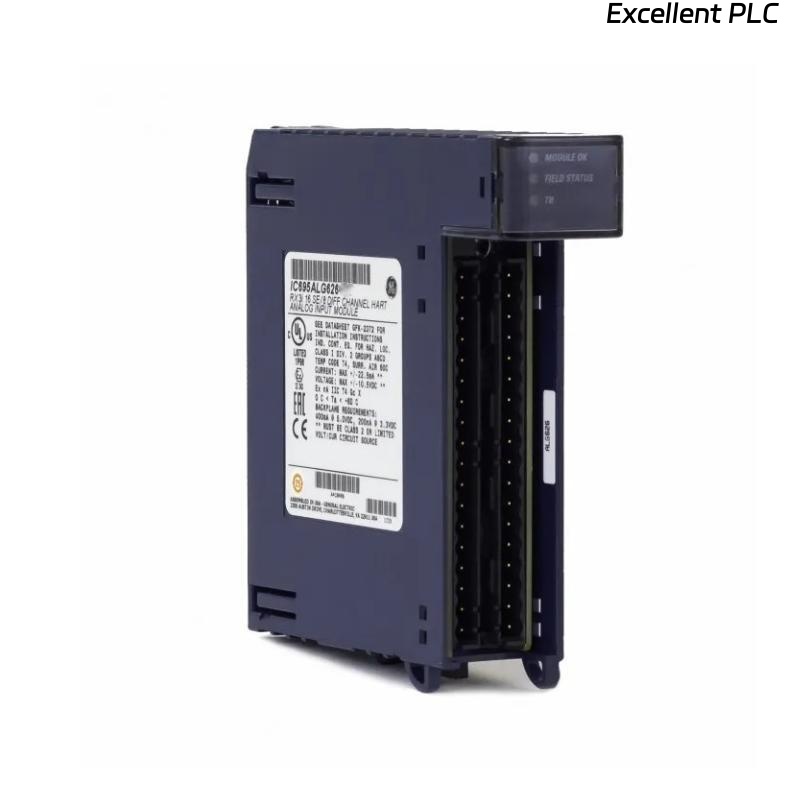

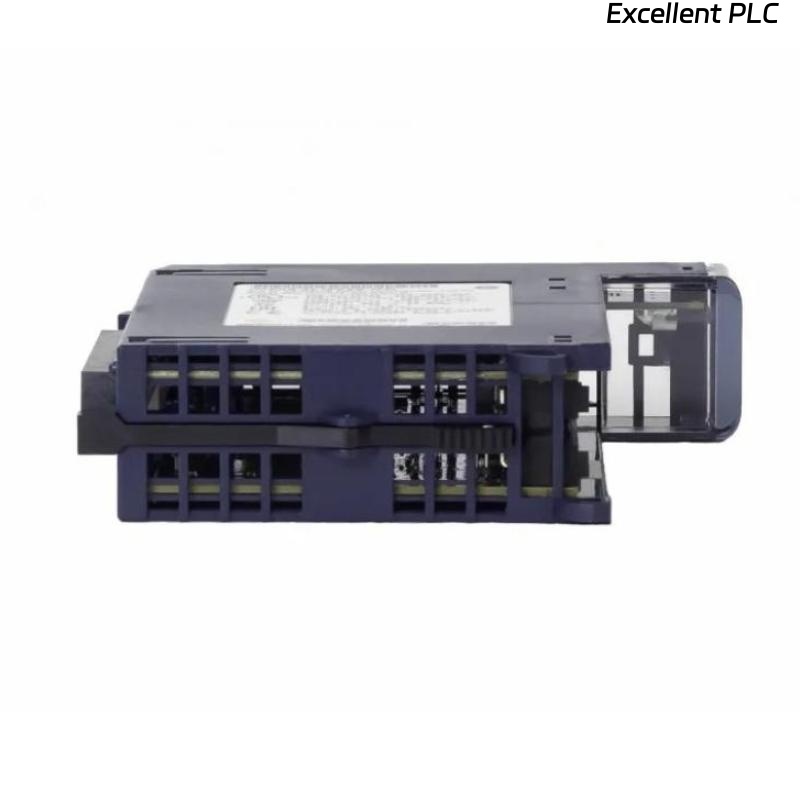

The GE Fanuc IC695ALG626 RX3i Analog Input Module is a high-resolution, 16-channel analog input module designed for precise and reliable data acquisition in RX3i PACSystems. It supports both current and voltage input types, making it ideal for a wide range of industrial process and automation applications.
Key Features
-
16 configurable analog input channels (voltage or current)
-
High 16-bit resolution for precise signal measurement
-
Configurable signal ranges for flexibility in process applications
-
Built-in diagnostics and status monitoring
-
Hot-swappable design for minimal downtime
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Product Model | IC695ALG626 |
| Product Type | RX3i Analog Input Module |
| Number of Channels | 16 single-ended or 8 differential |
| Input Type | Current or Voltage |
| Input Signal Range (Voltage) | ±10 V DC |
| Input Signal Range (Current) | 0–20 mA or 4–20 mA |
| Resolution | 16 bits |
| Input Impedance (Voltage) | >1 MΩ |
| Input Impedance (Current) | 250 Ω |
| Accuracy | ±0.1% of full scale |
| Update Rate | 4 ms per channel |
| Isolation | Channel-to-ground isolation |
| Backplane Current Consumption | 120 mA @ 5 V DC, 100 mA @ 3.3 V DC |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Dimensions | 34 x 140 x 145 mm |
| Weight | 0.227 kg |
| Applications | Process monitoring, signal acquisition, and control systems |
Industry Applications
-
Industrial process automation
-
Power generation and distribution control
-
Oil, gas, and petrochemical plants
-
Manufacturing and machine control systems
-
Water and wastewater treatment facilities
-
Environmental monitoring and instrumentation
Frequently Asked Questions (FAQ)
Q1: What is the function of the IC695ALG626 module?
It acquires analog input signals (current or voltage) and converts them into digital data for processing in RX3i control systems.
Q2: How many input channels does it have?
It features 16 configurable analog input channels.
Q3: What types of input signals can it accept?
The module supports both voltage (±10 V) and current (0–20 mA or 4–20 mA) input signals.
Q4: What is the resolution of the IC695ALG626?
It provides 16-bit resolution, ensuring accurate and detailed signal measurement.
Q5: Is it compatible with RX3i systems?
Yes, it is designed specifically for the GE Fanuc RX3i PACSystems.
Q6: What is the typical accuracy of the module?
It offers ±0.1% of full scale accuracy.
Q7: Does it provide isolation?
Yes, it includes channel-to-ground isolation for noise immunity.
Q8: What is the module’s operating temperature range?
It operates between 0 °C and +60 °C.
