Product Overview

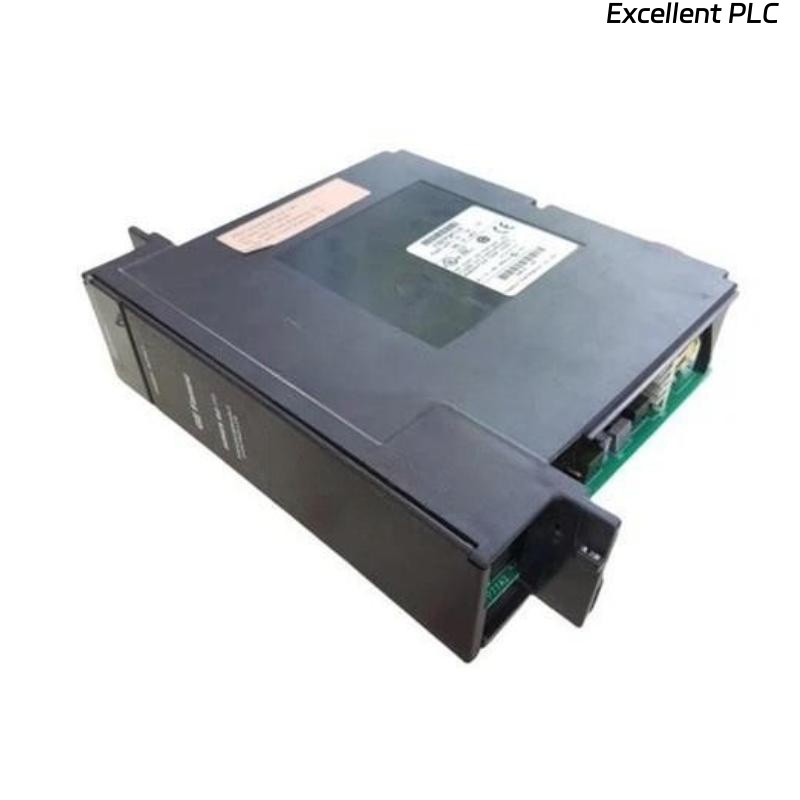

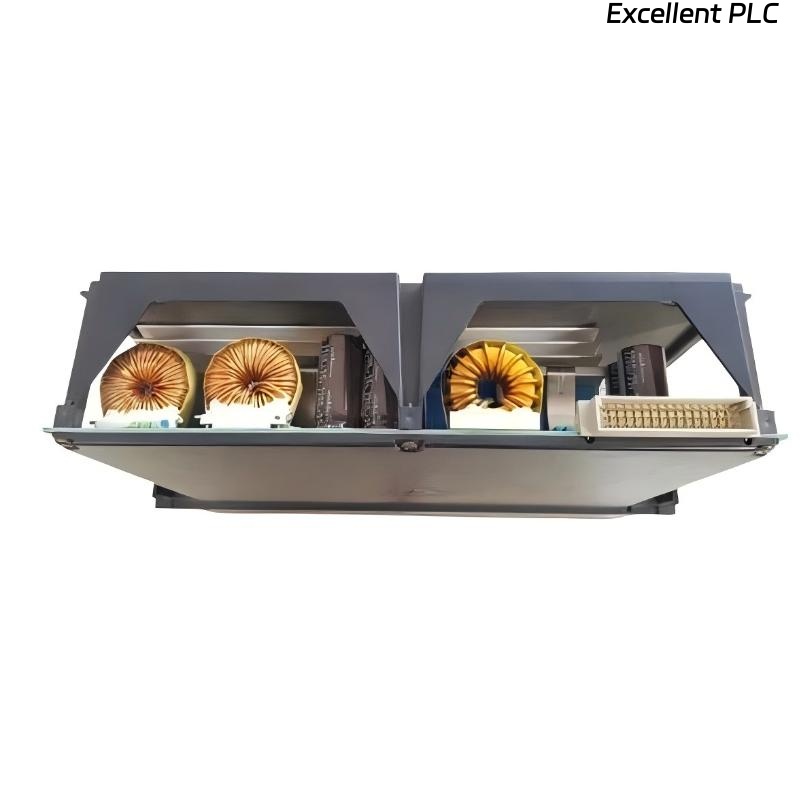

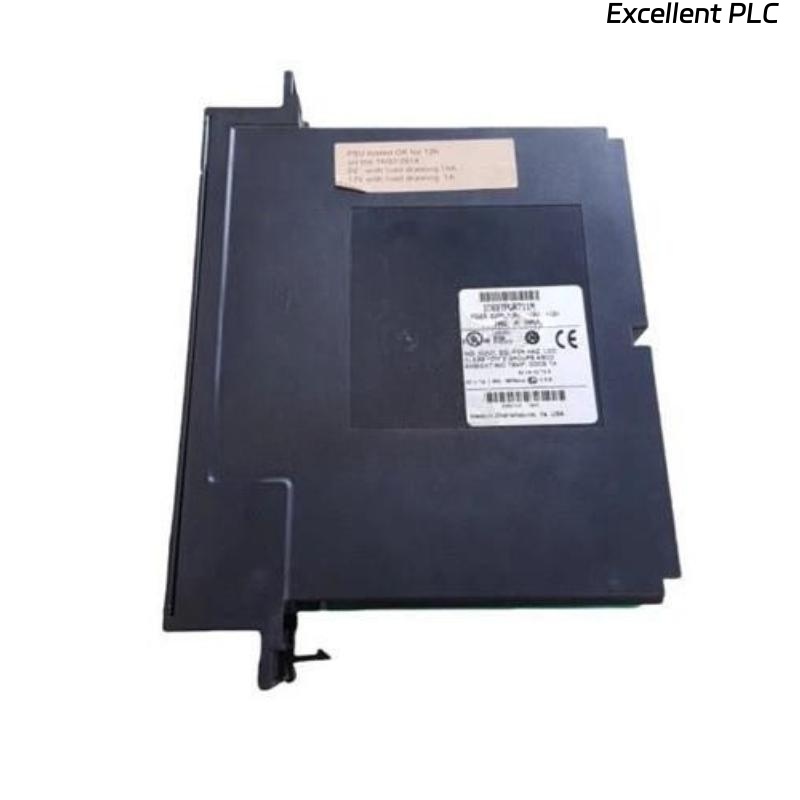

The GE Fanuc IC697PWR713 Power Module is a high-performance power supply designed for the IC697 series of PLC (Programmable Logic Controller) systems. This module provides reliable DC power to the PLC backplane and its associated modules, ensuring consistent operation in industrial automation environments. It is engineered to deliver high efficiency, low noise, and robust protection against overvoltage and overcurrent conditions. With advanced diagnostics and wide operational tolerances, the IC697PWR713 ensures system stability and reduces downtime.
Key Features
-
High-efficiency DC power conversion with minimal heat generation
-
Wide input voltage range to accommodate industrial power fluctuations
-
Comprehensive diagnostic indicators for real-time system monitoring
-
Overcurrent, overvoltage, and short-circuit protection to safeguard PLC modules
-
Hot-swappable design for ease of maintenance without shutting down the system
Technical Specifications
| Item | Specification |
|---|---|
| Input Voltage | 120/240 VAC ±10%, 50/60 Hz |
| Output Voltage | 5 VDC, 10 A |
| Output Power | 50 W (typical) |
| Efficiency | 88% (typical) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -25°C to 85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Isolation Voltage | 1500 VAC input to output |
| Response Time | <100 ms for full load change |
| Dimensions | 206.4 × 49.8 × 158.5 mm |
| Weight | 1.5 kg |
| Certification/Compliance | UL, CE, CSA |
| LED Indicators | Power OK, Fault |
| Mounting | DIN rail or chassis mount |
Frequently Asked Questions (FAQ)
1. What is the maximum input voltage tolerance of the IC697PWR713?
The module can tolerate ±10% of the rated 120/240 VAC input without affecting performance.
2. Can this module be hot-swapped while the PLC is operating?
Yes, the IC697PWR713 is designed for hot-swapping, allowing replacement without shutting down the system.
3. How is overcurrent protection implemented?
The module has integrated current-limiting circuitry to prevent damage to itself and connected PLC modules.
4. What is the typical efficiency under full load?
The typical efficiency is approximately 88%, minimizing heat generation and power loss.
5. Does the module provide diagnostic feedback?
Yes, LED indicators display Power OK and Fault conditions for quick visual diagnostics.
6. Can it operate in high-humidity environments?
Yes, it supports relative humidity from 5% to 95% non-condensing.
7. What is the expected response time to a full load change?
The response time is less than 100 ms for a full load transition.
8. Is the module compatible with other IC697 PLC modules?
Yes, it is compatible with all IC697 backplane modules, supporting a wide range of applications.
