GE HE700GEN200 Interface Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Introduction / Engineer’s Insight

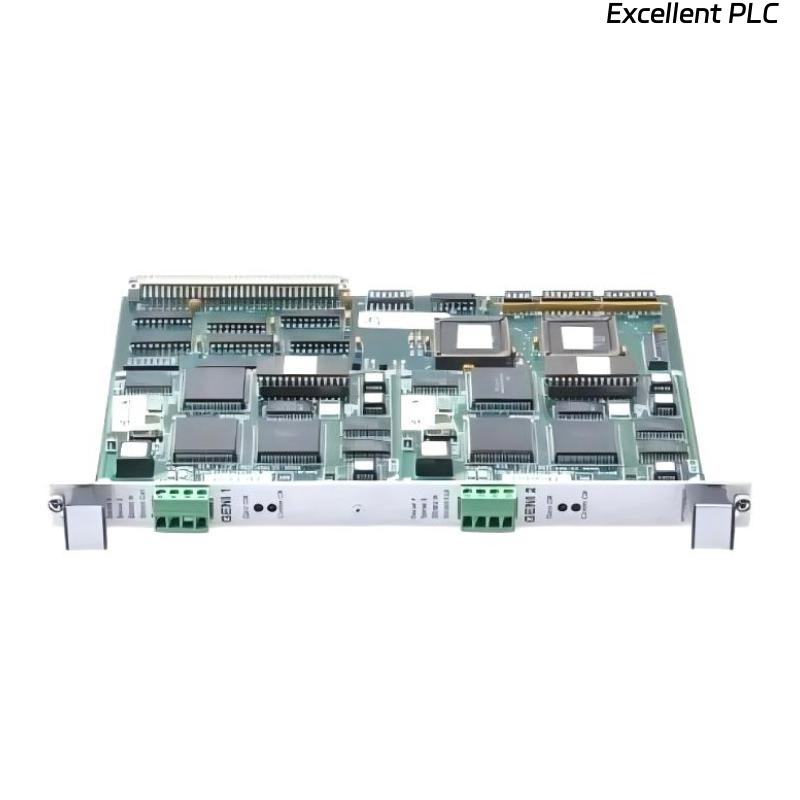

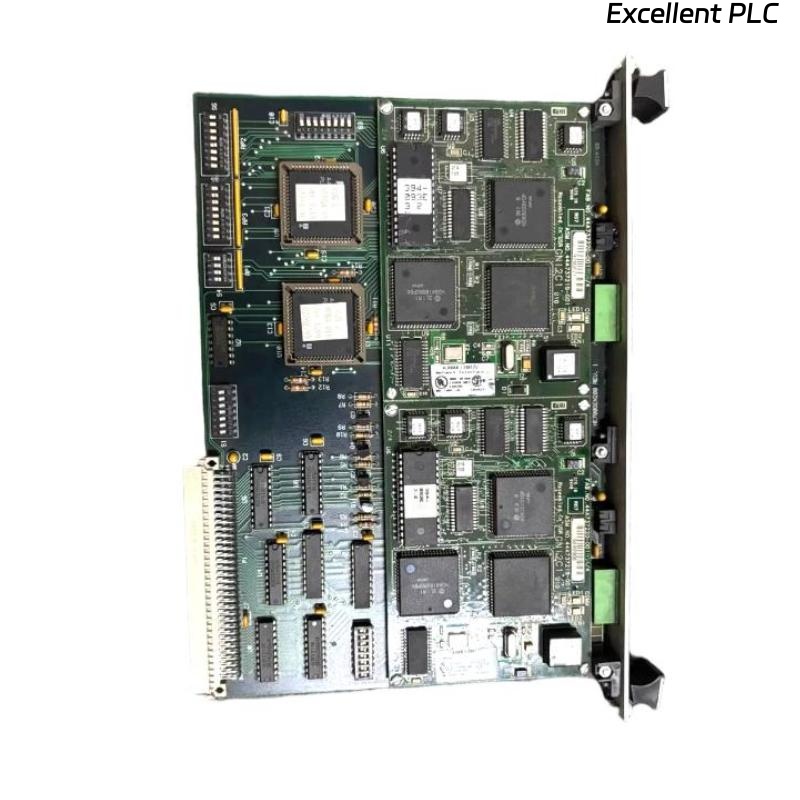

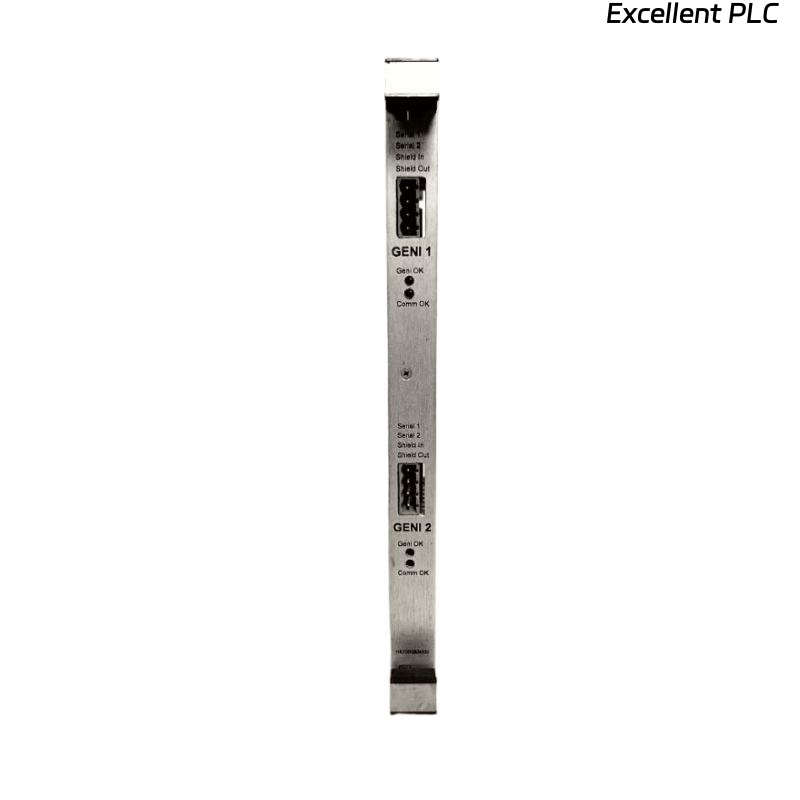

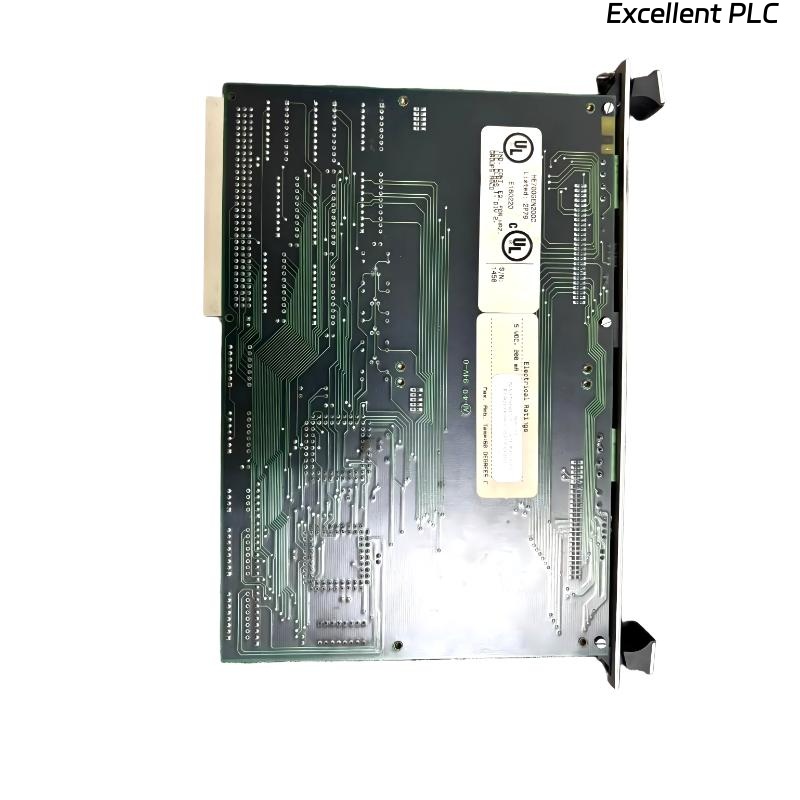

The HE700GEN200 is a dual-channel Genius bus interface module designed for GE Fanuc VME-based automation systems. It provides a bridge between a VME rack and Genius I/O devices, enabling distributed control and seamless I/O expansion. For engineers working on legacy or embedded systems, this module is valued for its configurability, reliable communication, and compatibility with GE’s Genius architecture.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | HE700GEN200 |
| Module Type | Dual-Channel Genius Interface Module |
| Platform Compatibility | GE Fanuc VME + Genius I/O |
| Bus / Protocol | Genius Bus |
| Power Supply | +5 V DC |
| Supply Current | ~200 mA |
| Configuration Method | DIP switches for addressing and mode |
| Connector Type | Screw-type terminal connector on front panel |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Isolation | Isolation between logic and field (via designed interface) |
| Typical Dimensions | ≈ 120 mm × 80 mm × 40 mm (module body) |
| Weight | ≈ 0.21 kg |
Applications / Use Cases
-
Interfacing VME-based PLC or controller systems with Genius I/O modules
-
Distributed control in industrial applications where remote I/O needs to be bridged to central automation logic
-
Legacy system maintenance and modernization where Genius I/O remains deployed
-
Automated machinery running on embedded or VME-based control that requires deterministic I/O communications
-
Process applications requiring robust backplane communication and signal expansion
Advantages / Key Features
-
Dual-Channel Capability: Supports two independent Genius bus channels to manage multiple I/O segments.
-
Stable Communication: DIP switch configuration allows flexible addressing and bus management.
-
Robust Build: Screw-type connectors and solid mechanical design ensure reliable installation in harsh environments.
-
Low Power Consumption: Requires only +5 V DC with modest current, minimizing power draw on the rack.
-
Modular Integration: Fits directly into GE Fanuc VME backplane, making it suitable for systems using VME racks and Genius I/O.
-
Legacy Support: Enables continued use of Genius I/O architecture without changing controllers.
Technical FAQs
-
What bus does this module support?
– Genius Bus, used for GE Fanuc distributed I/O. -
How many Genius channels does it support?
– Two independent Genius bus channels. -
What power supply does it need?
– +5 V DC. -
How is addressing configured?
– Through DIP switches on the module. -
What type of connector is used for field wiring?
– Screw-type terminal on the front panel. -
What is its operating temperature range?
– –20 °C to +60 °C. -
Can it work in a VME rack?
– Yes, designed for GE Fanuc VME backplanes. -
Is there any isolation between logic and I/O?
– Yes, designed to isolate logic circuits from field wiring. -
What is the module’s weight?
– About 0.21 kg. -
Is it still supported in modern control systems?
– It’s mainly used in legacy or embedded systems given its VME + Genius I/O design.
Recommended Related Models
| Model Number | Description |
|---|---|
| HE700GEN100 | Single-channel Genius interface module (same VME architecture) |
| IC693CPU331 | GE Fanuc Series 90-30 / 90-70 CPU module (for comparison) |
| IC693CHS391 | 5-slot I/O baseplate for GE Fanuc 90-30 systems |
| HE700GEN200C | Configurable version or variant of the Genius Interface Module |
Popular GE Fanuc / Horner Models
| Model Number | Description |
|---|---|
| HE700GEN200 | Dual-Channel Genius Interface (this model) |
| HE700GEN100 | Single-Channel Genius Interface |
| IC693MDL340 | 32-point digital output module (Series 90) |
| IC693MDL241 | 24-VDC input module (Series 90) |
| IC693PWR330 | Power supply module for Series 90 racks |
