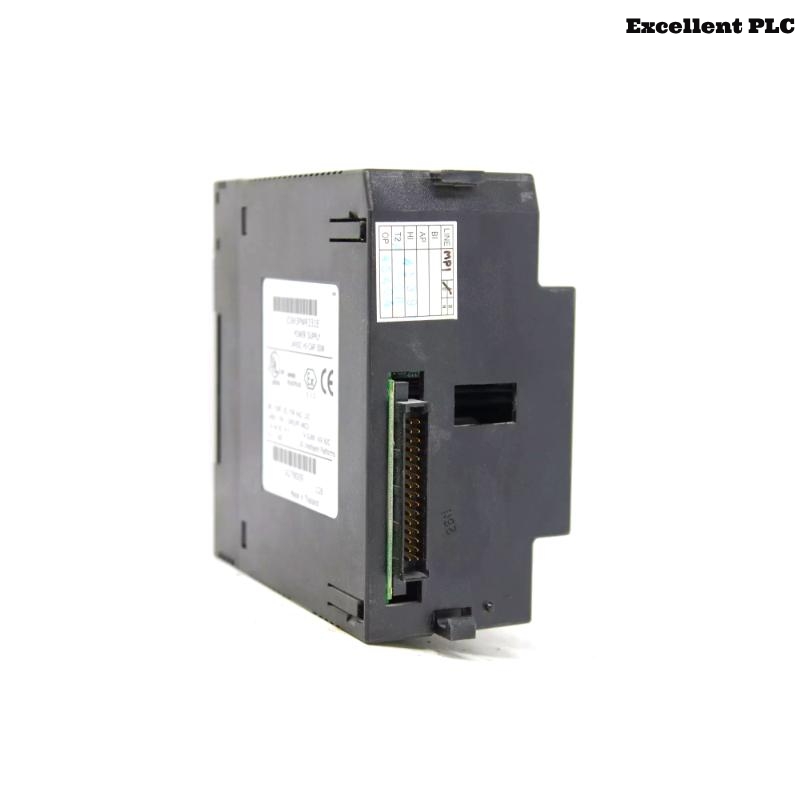

GE IC693PWR331E Power Supply Module

Introduction

The GE Fanuc IC693PWR331E is a High Capacity Power Supply Module designed for the Series 90-30 Programmable Logic Controller (PLC) systems. Operating on a 24 VDC nominal input, this module delivers a total power output of 30 watts, making it suitable for applications requiring higher current capacities. Its design ensures seamless integration into the Series 90-30 system, providing reliable and efficient power distribution to various modules.​

---

Specifications

Below is a table detailing the key specifications of the IC693PWR331E module:​

Specification	Details
Input Voltage Range	19.2 VDC to 28.8 VDC
Nominal Input Voltage	24 VDC
Output Voltage	+5 VDC, +24 VDC (Relay Power), +24 VDC (Isolated)
Output Current	+5 VDC: Up to 7 A<br>+24 VDC Relay Power: 0.5 A<br>+24 VDC Isolated: 0.5 A
Total Power Output	30 watts (all outputs combined)
Ride-Through Time	Minimum 10 ms
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Humidity	5% to 95% non-condensing
Dimensions	150 × 120 × 130 mm
Weight	0.54 kg



---

Applications

The IC693PWR331E is utilized in various industrial automation scenarios, including:​

• Manufacturing Plants: Powers PLC systems controlling assembly lines and robotic operations.​

• Process Control Systems: Supplies power to PLCs managing processes in industries like chemical, pharmaceutical, and food processing.​

• Energy Sector: Supports PLCs in monitoring and controlling power generation and distribution systems.​

• Water Treatment Facilities: Provides reliable power to PLCs overseeing water purification and distribution processes.​

• Building Automation: Powers PLCs that control HVAC, lighting, and security systems in large facilities.​

---

Advantages

The IC693PWR331E offers several benefits:​

• High Power Capacity: Delivers up to 30 watts, accommodating modules with higher power demands.​

• Flexible Input Range: Operates effectively within a 19.2 VDC to 28.8 VDC input range, providing versatility in various setups.​

• Multiple Outputs: Supplies +5 VDC and dual +24 VDC outputs, catering to diverse module requirements.​

• Compact Design: Fits seamlessly into the Series 90-30 PLC system without occupying excessive space.​

• Robust Protection: Incorporates overcurrent and overvoltage protection, enhancing system safety and reliability.​

---

Latest News Headlines

Here are some recent news headlines related to the GE Fanuc IC693PWR331E Power Supply Module:

1. “GE Fanuc’s IC693PWR331E Power Supply Module Now Available for Immediate Shipping”​

2. “Enhance Your Series 90-30 PLC with the High-Capacity IC693PWR331E Module”​

3. “IC693PWR331E: Delivering Reliable Power Solutions for Industrial Automation”​

4. “Maximize Efficiency in PLC Systems with GE Fanuc’s IC693PWR331E Power Supply”​

5. “GE Fanuc Introduces the IC693PWR331E: A Game-Changer in Power Supply Modules”​

---

Frequently Asked Questions (FAQs)

1. What distinguishes the IC693PWR331E from other power supply modules?

   The IC693PWR331E offers a higher power output of 30 watts and multiple voltage outputs, making it suitable for applications requiring more power than standard modules.

2. Can the IC693PWR331E be used with other PLC series outside of the 90-30?

   It is specifically designed for the Series 90-30 PLC systems and may not be compatible with other series.

3. What safety features are integrated into the IC693PWR331E?

   The module includes overcurrent and overvoltage protection to safeguard the system and connected devices.

4. Is the IC693PWR331E suitable for use in environments with fluctuating temperatures?

   Yes, it operates effectively within a temperature range of 0°C to 60°C.

5. How does the ride-through time benefit the system?

   A minimum ride-through time of 10 ms ensures the system remains operational during brief power interruptions.

6. Are there any specific mounting requirements for the IC693PWR331E?

   It is designed to snap into the Series 90-30 PLC rack without special mounting procedures.

7. What maintenance is required for the IC693PWR331E?

   Regular inspections for dust accumulation and ensuring secure connections are recommended to maintain optimal performance.

8. Can the IC693PWR331E handle power surges?

   While it has protective features, it’s advisable to use external surge protection devices for significant power surges.

9. How much does IC693PWR331E weigh?

   The module weight is 0.54 kg.

10. Does the module come with a warranty?

    We provide one year warranty.

---
