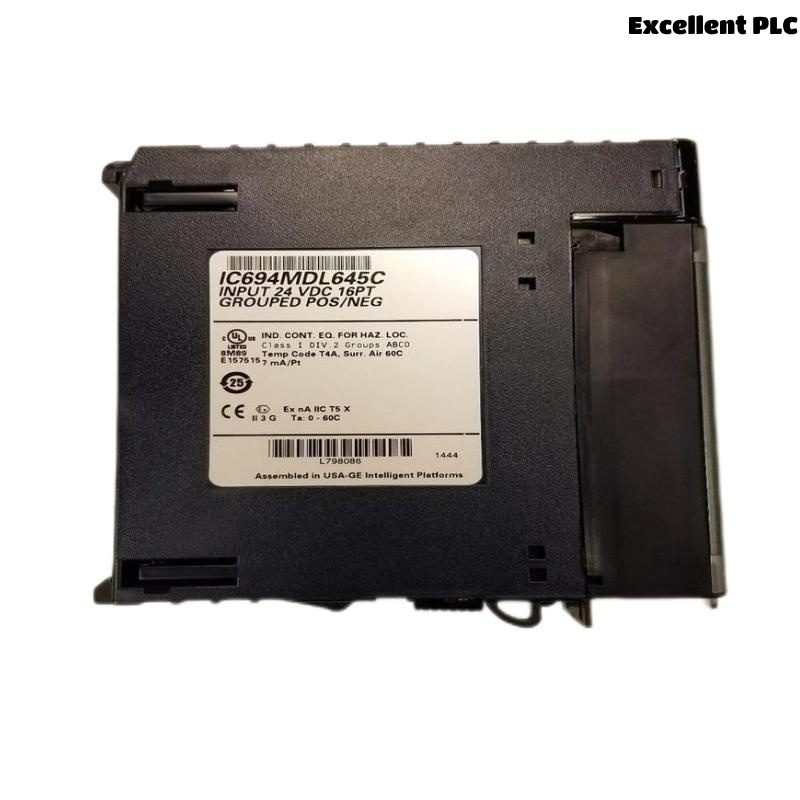

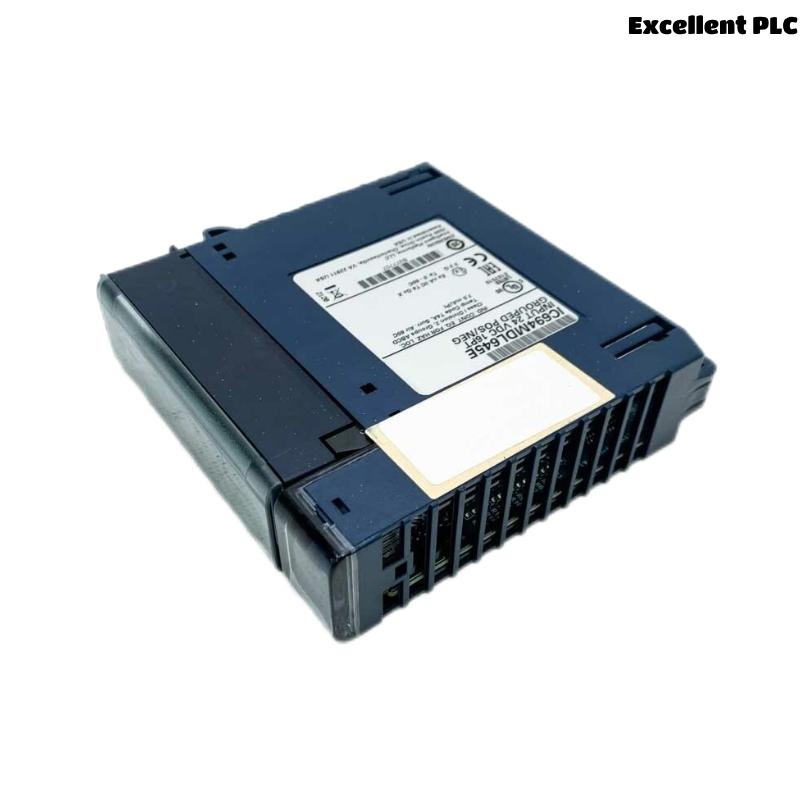

GE IC694MDL645E RX3i Input Module

Product Introduction

The GE IC694MDL645E is a high-performance digital input module from GE Fanuc’s RX3i series, designed for industrial automation and control systems. This module is part of the PACSystems family, offering reliable and fast input signal processing for a wide range of applications. It is commonly used in manufacturing, energy, and process control industries due to its robust design and compatibility with various control systems.

Product Parameters

Product Applications

The GE IC694MDL645E is widely used in industrial automation for:

• Machine Control: Monitoring sensors, switches, and relays in automated machinery.

• Process Automation: Handling input signals in chemical, oil & gas, and water treatment plants.

• Discrete Manufacturing: Detecting part presence, limit switches, and safety interlocks.

• Energy Management: Monitoring power distribution and equipment status in substations.

• Material Handling: Controlling conveyor systems and sorting mechanisms.

Product Advantages

1. High-Speed Response: Fast input processing (1 ms ON/OFF) ensures real-time control.

2. Wide Voltage Compatibility: Supports 24V DC inputs, common in industrial environments.

3. Robust Isolation: 1500V AC isolation protects against electrical noise and surges.

4. Compact Design: Space-saving form factor fits easily into control panels.

5. Easy Integration: Compatible with RX3i PACSystems for seamless system expansion.

6. Durability: Operates reliably in harsh industrial conditions (-20°C to 60°C).

Frequently Asked Questions (FAQ)

1. What is the input voltage range for the IC694MDL645E?

   • The module operates at 24V DC.

2. How many input channels does this module have?

   • It has 16 digital input channels.

3. Is the module compatible with other GE PLCs besides RX3i?

   • No, it is specifically designed for the RX3i PACSystems.

4. What is the response time of the inputs?

   • 1 ms (ON to OFF) and 3 ms (OFF to ON).

5. Does it support both sink and source input configurations?

   • Yes, it supports both sink and source inputs.

6. What certifications does this module have?

   • It is CE, UL, cUL, and RoHS compliant.

7. Can it withstand high-voltage surges?

   • Yes, it has 1500V AC isolation for protection.

8. What is the operating temperature range?

   • -20°C to 60°C.

9. How much does the module weigh?

   • 0.159kg.

10. Is this module suitable for outdoor use?

    • It is designed for industrial environments but should be installed in a protected enclosure.
