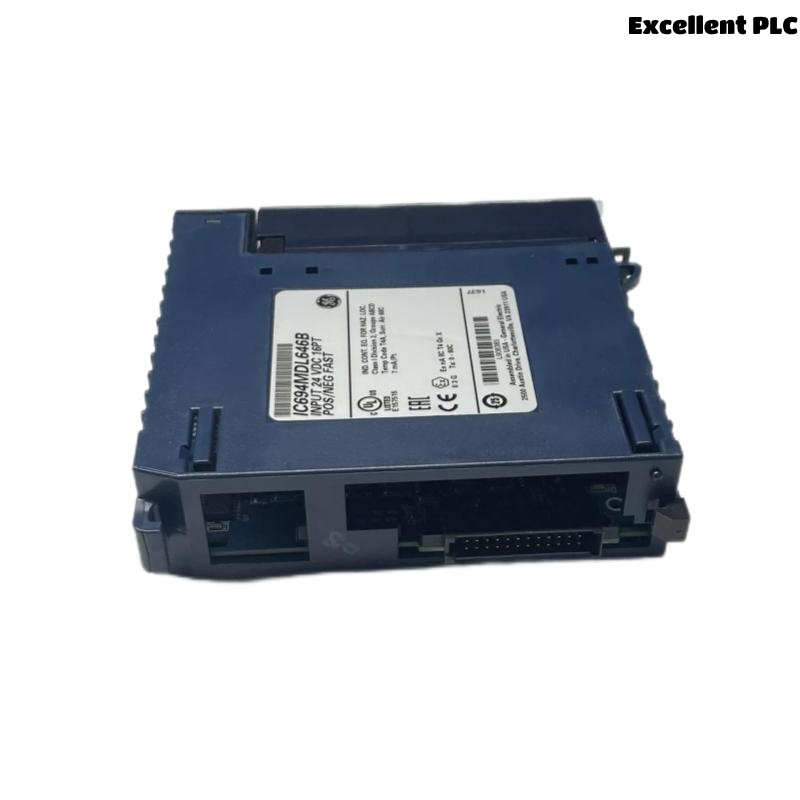

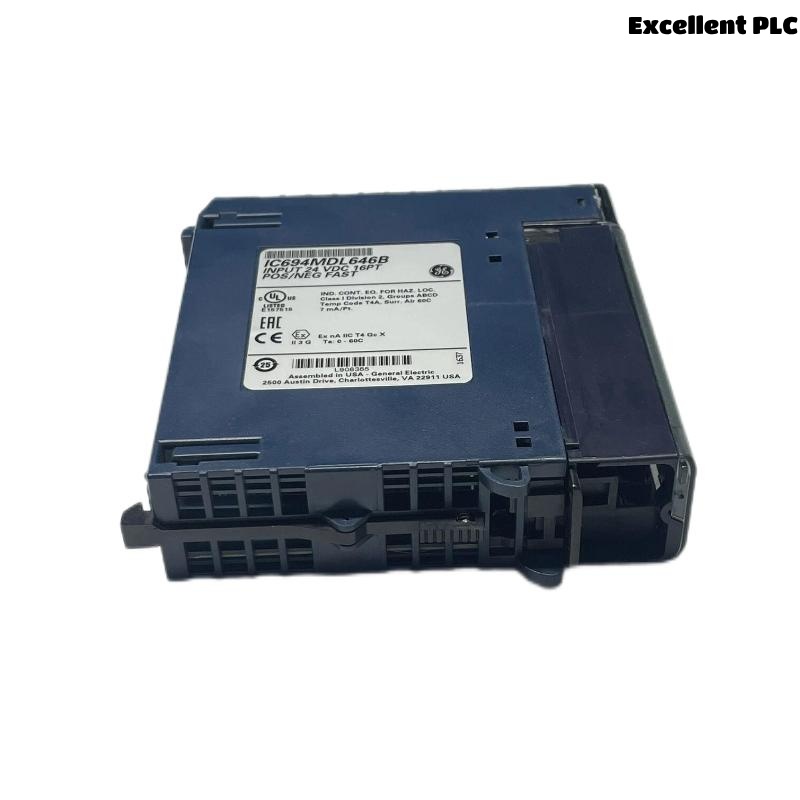

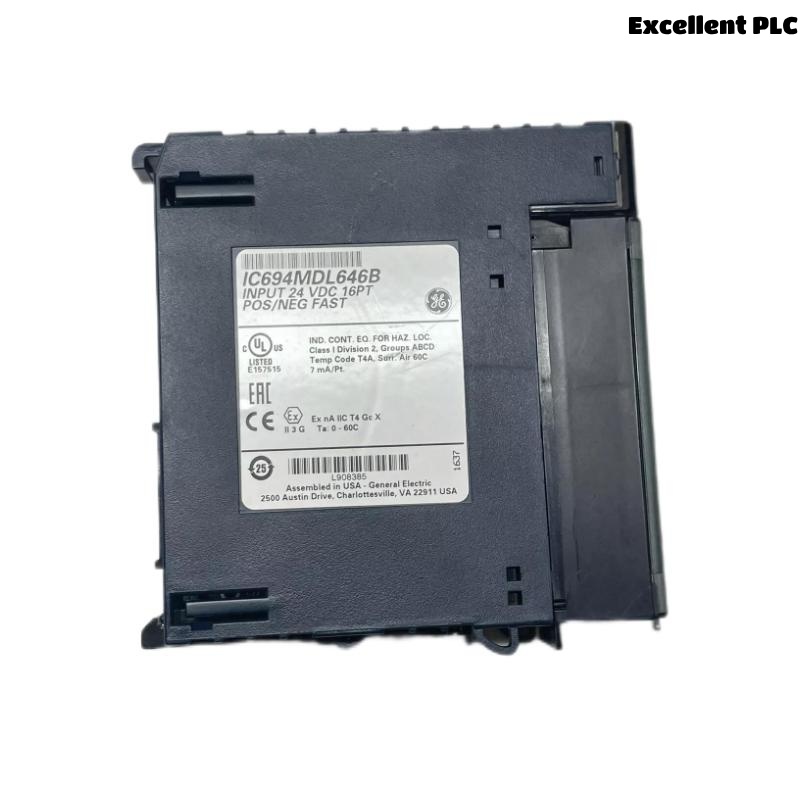

Product Overview: GE IC694MDL646B
The GE IC694MDL646B is a digital input module designed for use in the GE Fanuc series of programmable logic controllers (PLCs). This module provides high-speed input monitoring, designed to interface with external devices and sensors to provide real-time data to a central control system. It’s part of the Series 90-30 system and is ideal for use in various industrial automation applications.
This module is equipped with 16 digital input points, providing flexibility and precision in controlling industrial machinery and processes. With its advanced features and easy integration into the PLC system, it significantly enhances system performance and operational efficiency.
Product Features & Advantages
-
High-Speed Input Monitoring: The module supports fast, real-time input processing, making it ideal for high-speed applications.
-
Compact Design: Its compact form factor allows for easy installation and integration into the existing PLC system.
-
Reliable Performance: Built to withstand harsh industrial environments, the module offers stable and reliable performance over time.
-
Wide Compatibility: The IC694MDL646B is compatible with other components of the GE Fanuc Series 90-30 system, ensuring seamless communication within the automation environment.
-
Cost-Effective: It offers high-quality performance at a competitive price, making it a cost-effective solution for industrial applications.
Specifications
| Parameter | Details |
|---|---|
| Module Type | Digital Input Module |
| Part Number | IC694MDL646B |
| Input Points | 16 Digital Inputs |
| Input Voltage | 24V DC |
| Current Draw | 0.2A |
| Mounting Type | Rack Mounted |
| Weight | 0.258 kg |
| Dimensions | 34 x 145 x 140 mm |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Status Indicators | 16 LEDs (1 per input) |
| Compliance | UL, CE, RoHS |
Applications
The GE IC694MDL646B module is widely used in various industrial sectors where precise control and monitoring of digital signals are required. Some of its key applications include:
-
Automated Manufacturing: Used in factories and plants for controlling machinery and robots.
-
Process Control: Provides essential input to PLCs for managing industrial processes such as chemical processing, food production, and material handling.
-
Machine Monitoring: Helps monitor machine states and system performance in real-time.
-
Building Automation: Integrates into systems for controlling lighting, heating, ventilation, and air conditioning (HVAC) in commercial and industrial buildings.
Installation Instructions
-

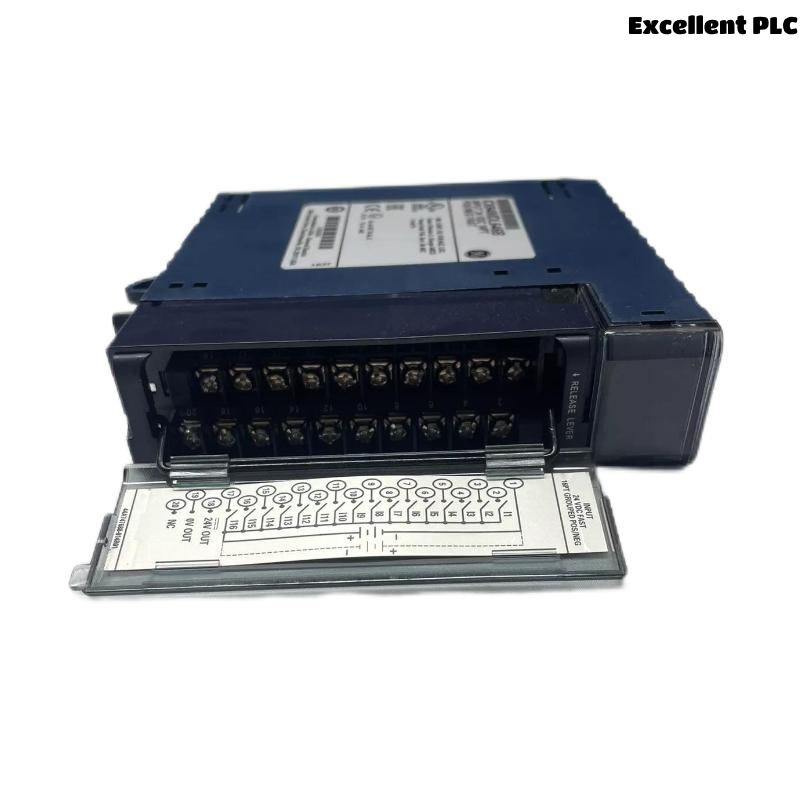

Mounting: Insert the IC694MDL646B module into the GE Fanuc Series 90-30 rack.
-
Wiring: Connect the input devices to the input terminals on the module. Ensure correct polarity for proper signal detection.
-
Configuration: Configure the module in the PLC software, ensuring it is correctly mapped to the intended addresses in the control system.
-
Testing: Once installed, power up the system and test each input point for correct operation by monitoring the status LEDs on the module.
Related Models and Recommendations
Here are six related models from the same series or compatible modules:
| Model | Description | Input Points | Voltage |
|---|---|---|---|
| IC694MDL645B | 16-Point DC Input Module | 16 | 24V DC |
| IC694MDL648B | 8-Point 120V AC Input Module | 8 | 120V AC |
| IC694MDL650B | 32-Point Digital Input Module | 32 | 24V DC |
| IC694MDL642B | 8-Point Digital Input Module | 8 | 24V DC |
| IC694MDL641B | 16-Point AC Input Module | 16 | 120V AC |
| IC694MDL647B | 32-Point DC Input Module | 32 | 24V DC |
Here are six popular models from GE Fanuc that are highly recommended for similar applications:
| Model | Description | Input Points | Voltage | Features |
|---|---|---|---|---|
| IC693MDL730 | 32-Point Digital Input Module | 32 | 24V DC | Compact design |
| IC693MDL731 | 32-Point Digital Input Module | 32 | 120V AC | High-speed inputs |
| IC693MDL640 | 16-Point Digital Input Module | 16 | 24V DC | Cost-effective |
| IC693MDL631 | 8-Point DC Input Module | 8 | 24V DC | Space-saving design |
| IC693MDL647 | 32-Point Digital Input Module | 32 | 24V DC | Flexible mounting |
| IC693MDL720 | 8-Point AC Input Module | 8 | 120V AC | Reliable performance |
Frequently Asked Questions (FAQs)
Q1: What is the input voltage for the GE IC694MDL646B module?
A1: The input voltage for the IC694MDL646B is 24V DC.
Q2: How many input points does the IC694MDL646B module support?
A2: The module supports 16 digital input points.
Q3: Can the IC694MDL646B module be used in high-speed applications?
A3: Yes, the module is designed for high-speed input monitoring, making it suitable for fast industrial processes.
Q4: What is the weight of the IC694MDL646B module?
A4: The module weighs 0.258 kg.
Q5: What is the operating temperature range for this module?
A5: The operating temperature range is 0°C to 60°C.
Q6: Is the IC694MDL646B compatible with other GE Fanuc Series 90-30 modules?
A6: Yes, this module is fully compatible with other GE Fanuc Series 90-30 components.
Q7: Can I use this module in a harsh industrial environment?
A7: Yes, the module is built to operate reliably in industrial settings, with a wide range of operating and storage temperatures.
Q8: How do I install the IC694MDL646B module?
A8: Installation involves mounting the module in the GE Fanuc Series 90-30 rack and connecting the input devices to the terminal blocks, followed by configuration in the PLC software.
Q9: Does the IC694MDL646B module support status indicators?
A9: Yes, the module features 16 LEDs for status indication—one LED for each input point.
Q10: What are the dimensions of the GE IC694MDL646B module?
A10: The dimensions are 34 x 145 x 140 mm.
