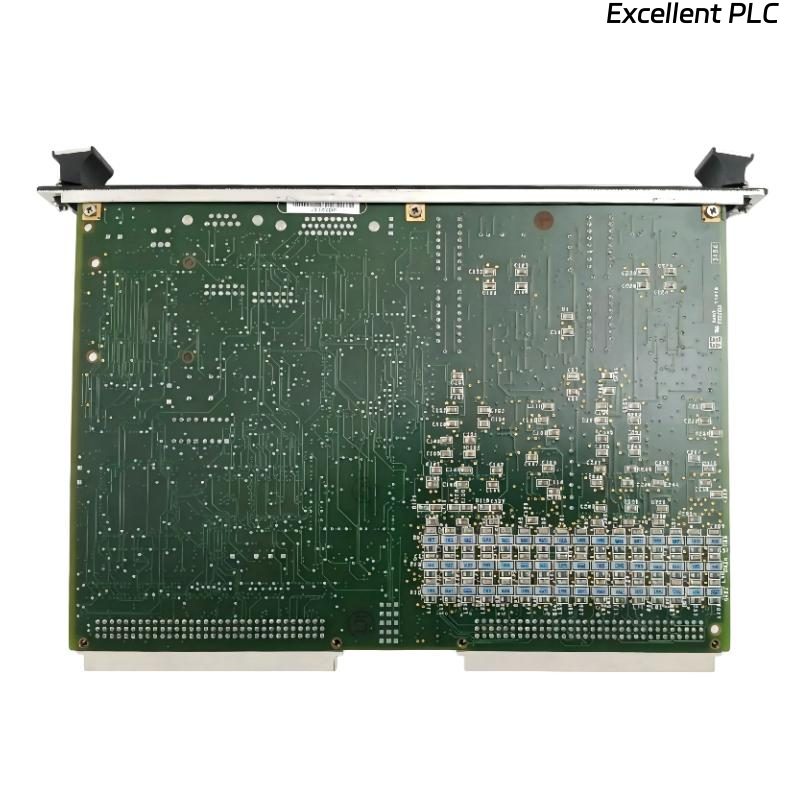

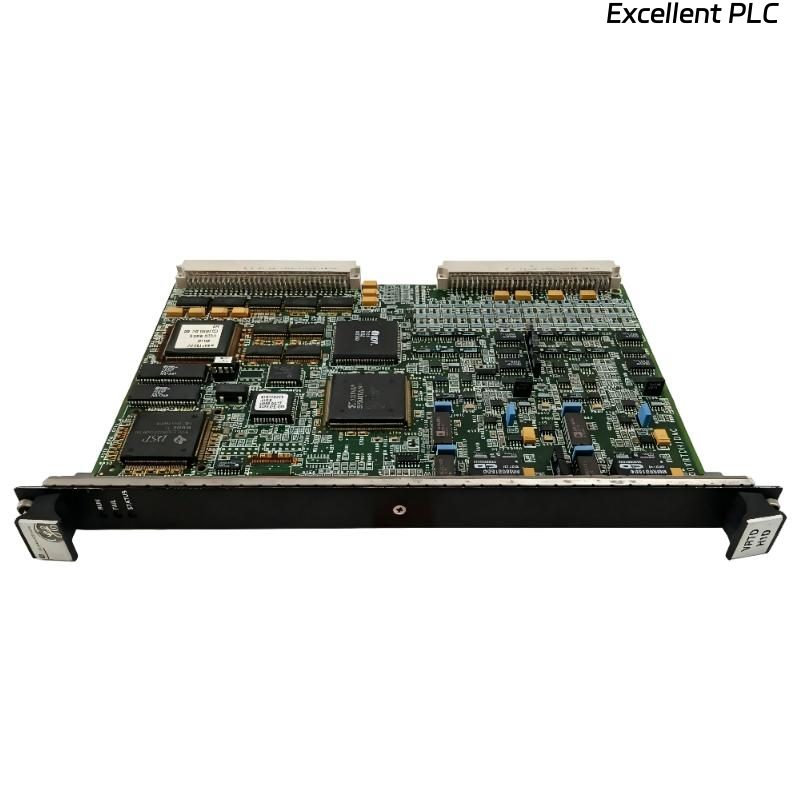

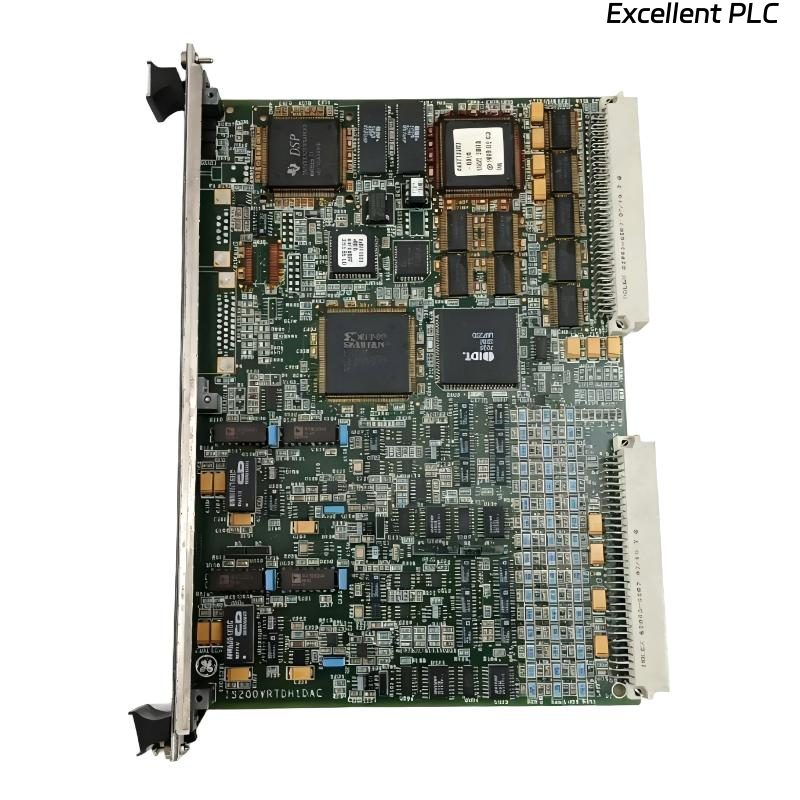

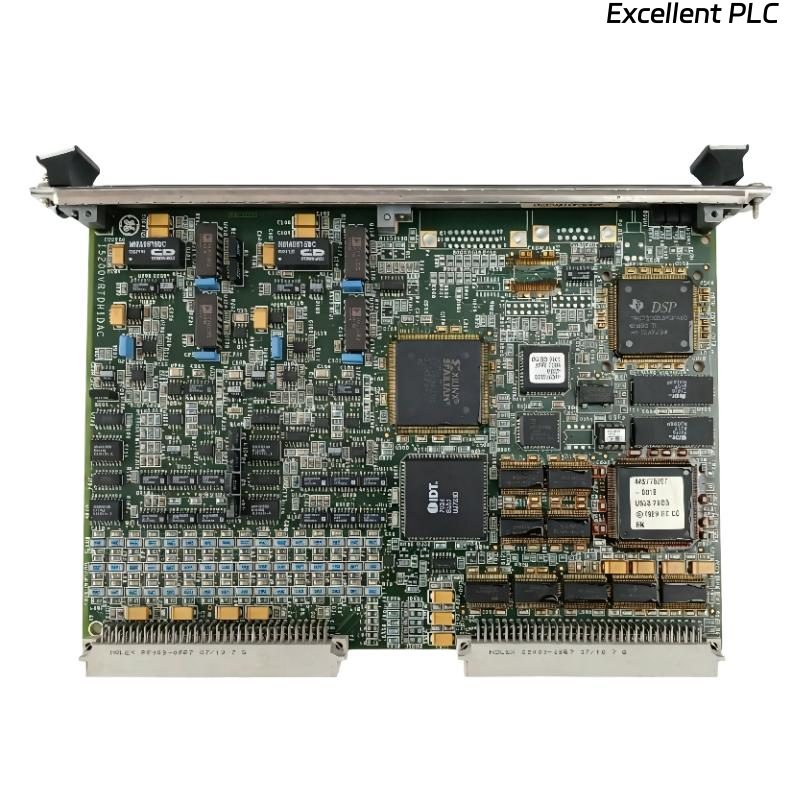

The GE IS200VRTDH1DAC RTD Input Board is a dedicated temperature measurement interface module designed for GE Mark VI control systems. It is used to acquire high-accuracy resistance temperature detector (RTD) signals from field sensors and convert them into processed data for turbine and industrial control applications.
This board plays a critical role in monitoring temperature-sensitive equipment such as turbines, generators, and auxiliary systems. It ensures stable and precise temperature readings, which are essential for protection logic, performance optimization, and system reliability. With its industrial-grade design and strong noise immunity, the IS200VRTDH1DAC delivers dependable operation in harsh environments commonly found in power generation facilities.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | IS200VRTDH1DAC |
| Product Type | RTD Input Board |
| System Compatibility | GE Mark VI Control System |
| Function | RTD temperature signal acquisition |
| Input Type | RTD sensors (Pt100 / Pt1000 compatible) |
| Channel Capacity | Multi-channel RTD input interface |
| Measurement Type | Temperature monitoring |
| Signal Processing | High-resolution analog-to-digital conversion |
| Accuracy | High-precision temperature measurement |
| Isolation | Industrial-grade channel isolation |
| Diagnostics | Built-in fault detection and monitoring |
| Mounting Type | VME rack-mounted |
| Operating Environment | Industrial turbine and process systems |
| Dimensions | 280 × 33 × 220 mm |
| Weight | 0.476 kg |
Applications
• Turbine Temperature Monitoring:
Ensures accurate RTD-based temperature measurement, protecting turbines from overheating and thermal stress.
• Power Generation Systems:
Used for monitoring generator windings, bearings, and cooling systems.
• Industrial Process Control:
Applies to chemical, oil & gas, and manufacturing systems requiring precise temperature data.
• Equipment Protection Systems:
Provides critical temperature input for shutdown and alarm logic.
• Condition Monitoring Systems:
Supports predictive maintenance by tracking thermal behavior of rotating machinery.
Advantages
• High Temperature Accuracy:
Delivers precise RTD signal conversion, ensuring reliable thermal monitoring.
• Strong Noise Immunity:
Designed to maintain stable operation in electrically noisy industrial environments.
• Reliable Industrial Design:
Built for continuous operation in critical turbine and power plant systems.
• Advanced Diagnostics:
Integrated monitoring functions allow quick fault detection and troubleshooting.
• Seamless Integration:
Fully compatible with GE Mark VI control system architecture.
• Efficient Signal Processing:
Provides fast and stable conversion of RTD inputs for real-time control applications.
