Product Introduction

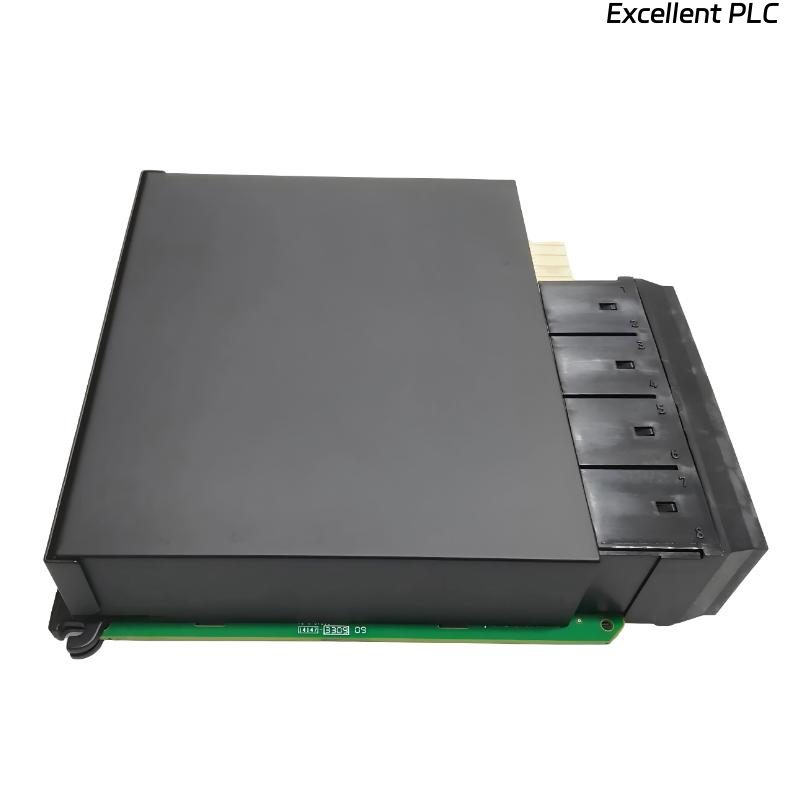

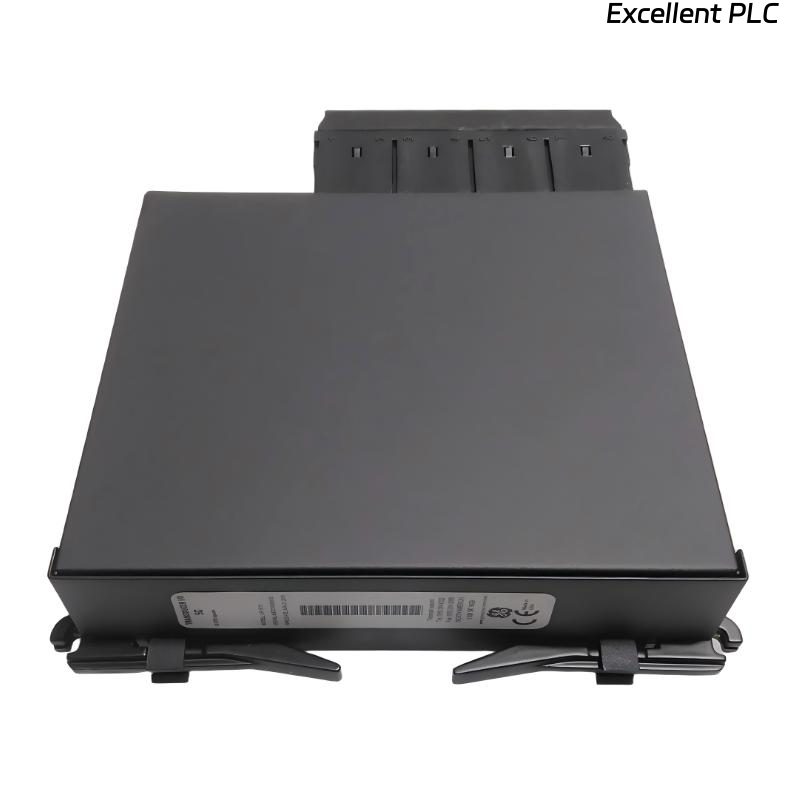

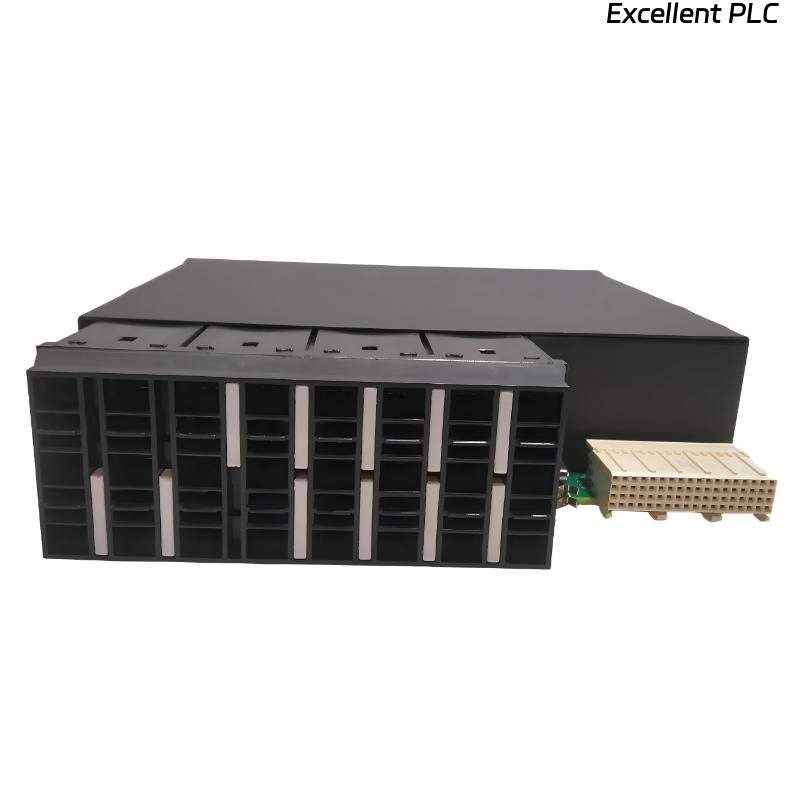

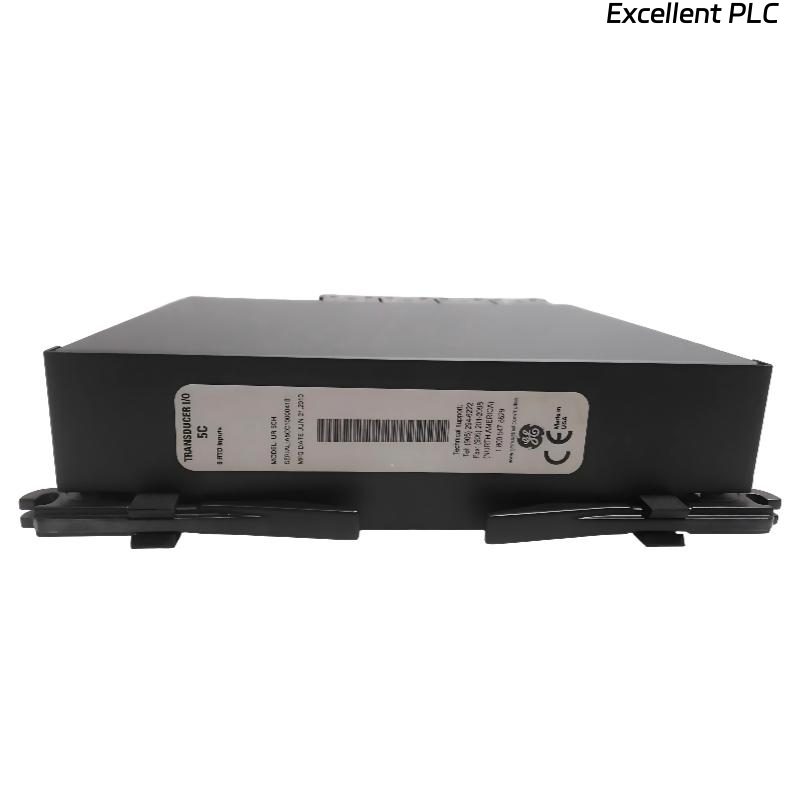

The GE UR 5CH Transducer I/O Module is a dedicated analog input module designed for GE UR Series Horizontal Unit control systems. It is specifically engineered to acquire temperature signals from RTD (Resistance Temperature Detector) sensors, enabling accurate thermal monitoring in critical industrial and power system applications.
With support for 8 RTD input channels, the UR 5CH plays a key role in monitoring equipment temperature such as generators, transformers, bearings, and motors. Its high-precision signal processing ensures stable and reliable temperature data, which is essential for protection, condition monitoring, and process optimization. The module is built for continuous operation in demanding environments, providing dependable performance and seamless integration within GE UR systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | UR 5CH |
| Product Type | Transducer I/O Module (RTD Input) |
| Series | GE UR Horizontal Unit Series |
| Function | Temperature signal acquisition (RTD inputs) |
| RTD Inputs | 8 channels |
| Sensor Type | Resistance Temperature Detector (RTD) |
| Measurement Type | Temperature monitoring |
| Input Signal Type | Analog (resistance-based) |
| Accuracy | High-precision temperature measurement |
| Isolation | Industrial-grade electrical isolation |
| Connection Type | Terminal-based connections |
| Mounting Type | Horizontal unit rack-mounted |
| Operating Environment | Industrial automation and power systems |
| Dimensions | 120 × 30 × 100 mm |
| Weight | 0.92 kg |
Applications
• Generator Temperature Monitoring:
Monitors winding and bearing temperatures, ensuring safe generator operation.
• Transformer Protection Systems:
Tracks temperature variations to prevent overheating and insulation damage.
• Motor and Equipment Monitoring:
Provides real-time thermal data for motors, pumps, and rotating equipment.
• Industrial Process Control:
Supports temperature measurement in manufacturing and processing systems.
• Condition Monitoring Systems:
Enables predictive maintenance through continuous temperature tracking.
Advantages
• High Channel Density:
Supports 8 RTD inputs, enabling multi-point temperature monitoring.
• Accurate Temperature Measurement:
Ensures reliable and stable thermal data for protection and control.
• Wide Application Flexibility:
Compatible with various RTD sensor types used in industrial systems.
• Robust Industrial Design:
Built for continuous operation in harsh environments.
• Strong Electrical Isolation:
Improves signal integrity and system safety.
• Seamless UR Integration:
Fully compatible with GE UR Horizontal Unit architecture.
