Product Introduction

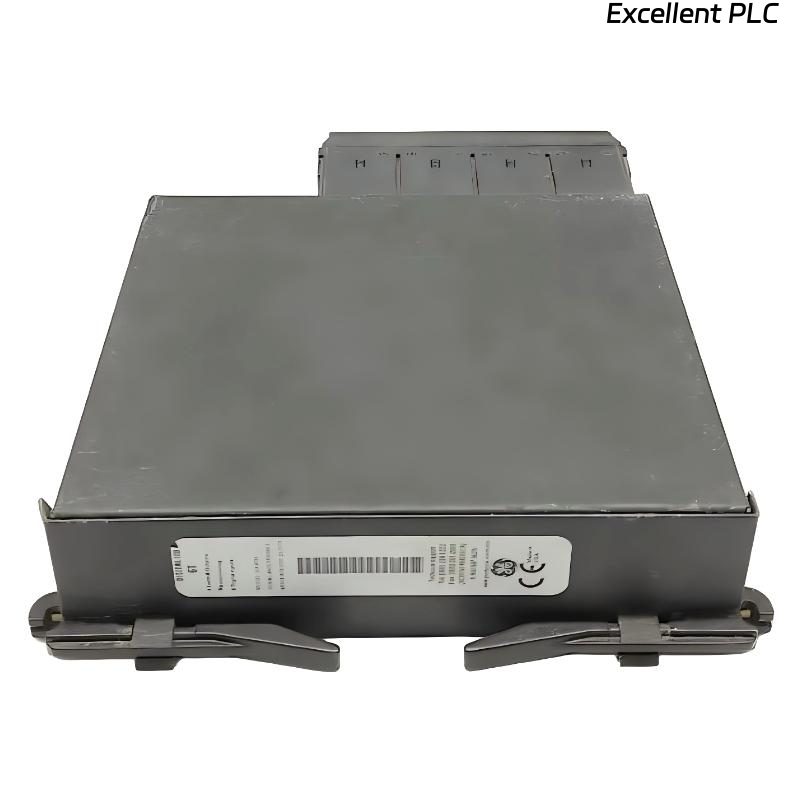

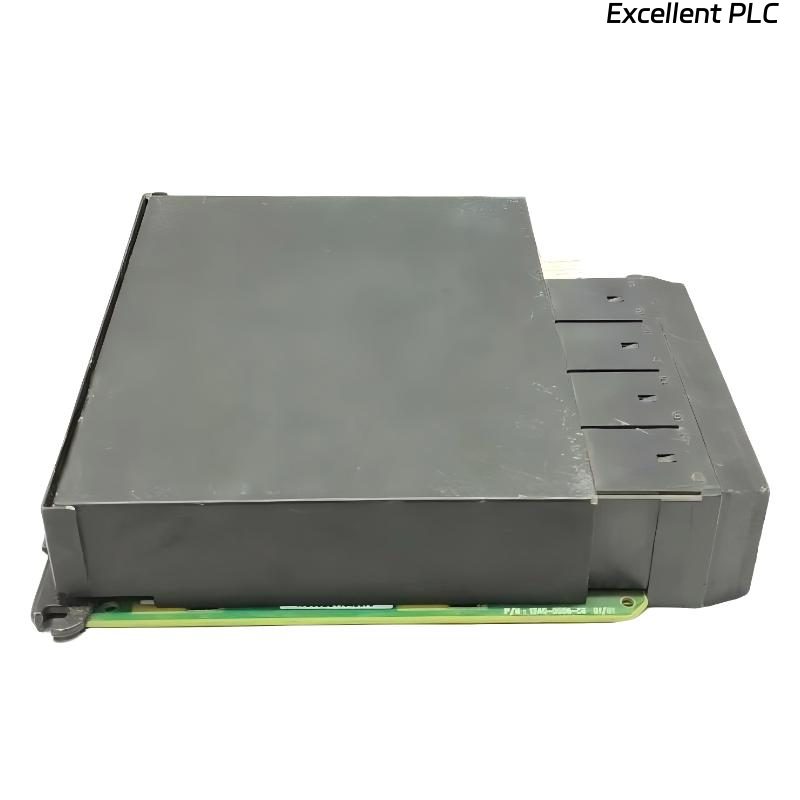

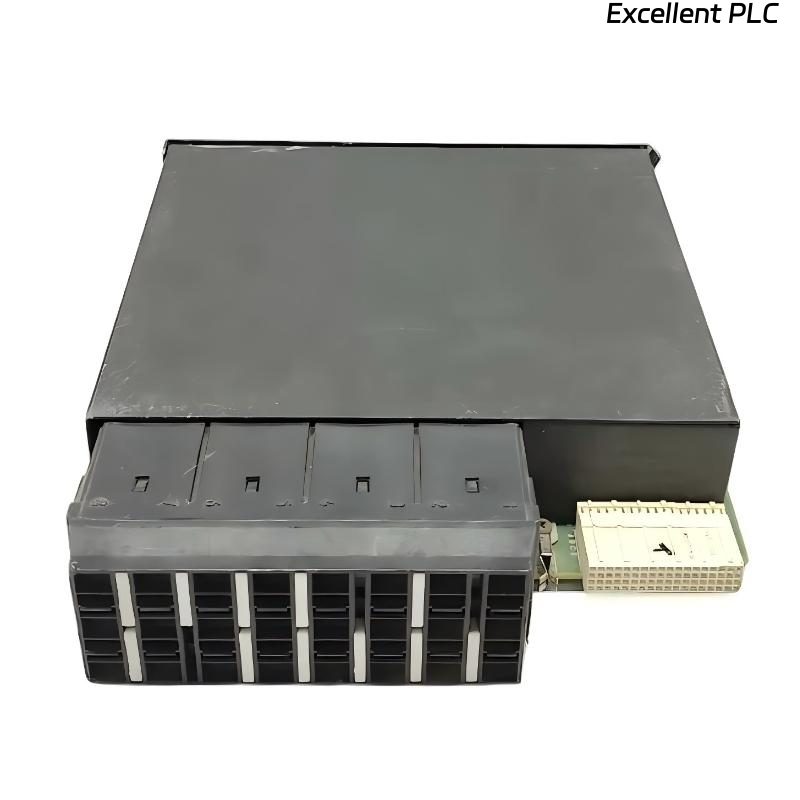

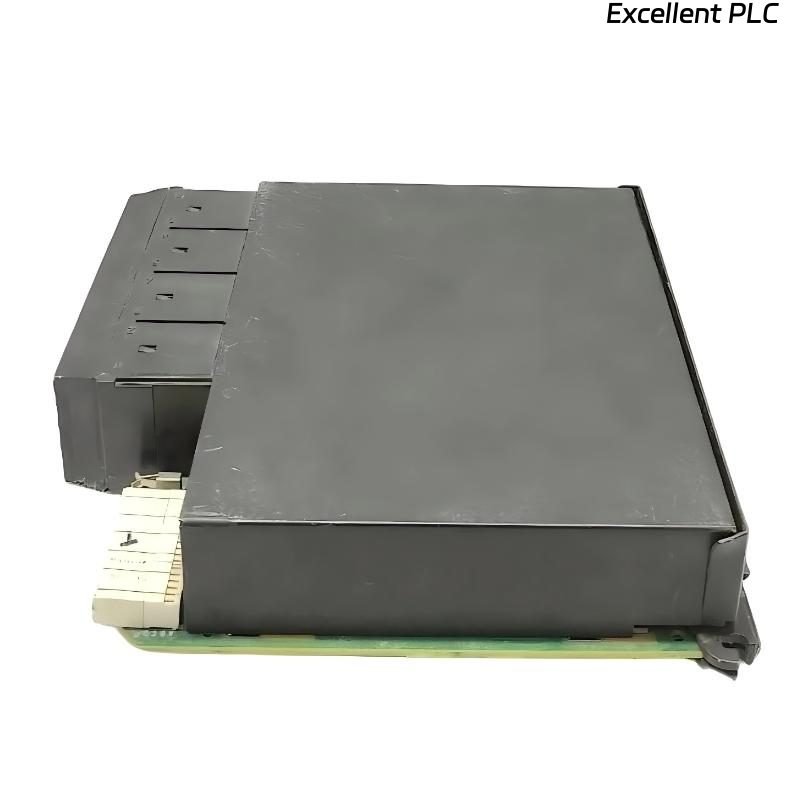

The GE UR 6TH Digital I/O Module is a compact and reliable interface module designed for GE Mark VI Horizontal Unit control systems. It provides both digital input and output capabilities, allowing the control system to monitor field device status and execute control commands through relay outputs. With 8 digital inputs and 4 Form A relay outputs, the UR 6TH is well-suited for a wide range of industrial control and protection applications.
Engineered for high reliability and fast response, this module ensures accurate signal acquisition and stable output switching in demanding environments. Its horizontal unit design allows easy integration into control racks, while maintaining efficient wiring and simplified maintenance. The UR 6TH is widely used in turbine control, process automation, and safety systems where dependable digital signal handling is essential.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | UR 6TH |
| Product Type | Digital Input/Output Module |
| System Compatibility | GE Mark VI Horizontal Unit Control System |
| Function | Digital signal acquisition and output control |
| Digital Inputs | 8 channels |
| Digital Outputs | 4 Form A relay outputs |
| Output Type | Relay-based switching (Form A) |
| Input Type | Discrete digital signals |
| Response Characteristics | Fast input detection and output switching |
| Connection Type | Terminal-based connections |
| Mounting Type | Horizontal unit rack-mounted |
| Operating Environment | Industrial automation and turbine systems |
| Dimensions | 120 × 30 × 100 mm |
| Weight | 0.89 kg |
Applications
• Turbine Control Systems:
Monitors digital status signals and controls actuators through relay outputs.
• Industrial Automation:
Interfaces with switches, sensors, and relays in automated production systems.
• Process Control Systems:
Provides reliable digital signal handling for control and monitoring tasks.
• Safety and Protection Systems:
Supports alarm, interlock, and shutdown functions through digital I/O.
• Equipment Monitoring:
Collects status signals for diagnostics and operational analysis.
Advantages
• Integrated Digital I/O:
Combines 8 inputs and 4 relay outputs in a single compact module.
• Reliable Relay Outputs:
Form A outputs provide dependable switching for industrial control applications.
• Fast Response Time:
Ensures accurate signal detection and quick output actuation.
• Compact Horizontal Design:
Optimized for space-saving installation in control racks.
• Robust Industrial Performance:
Designed for stable operation in harsh environments.
• Seamless Integration:
Fully compatible with GE Mark VI Horizontal Unit systems.
