Product Introduction

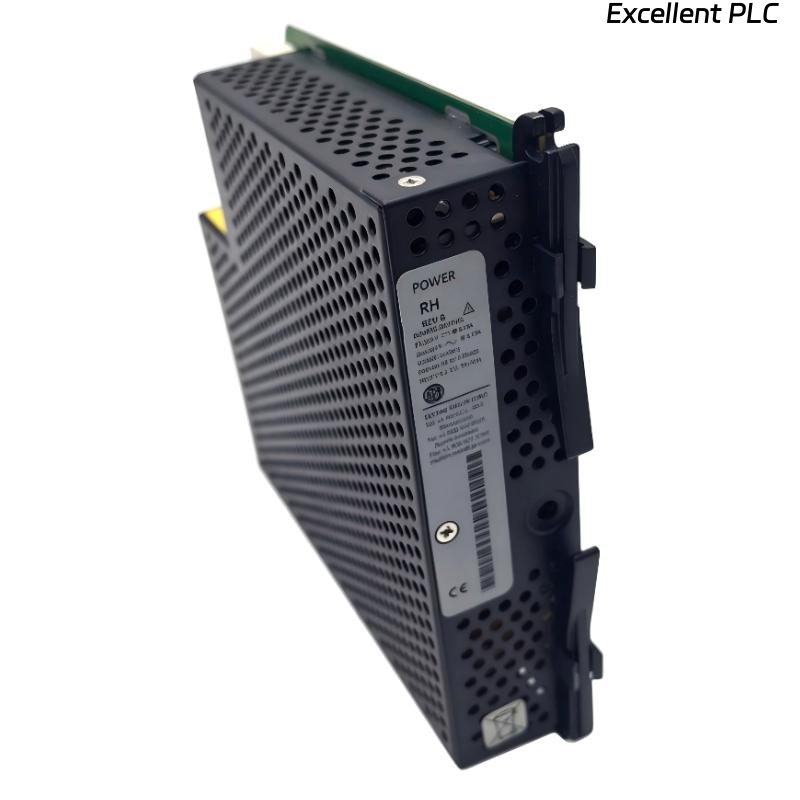

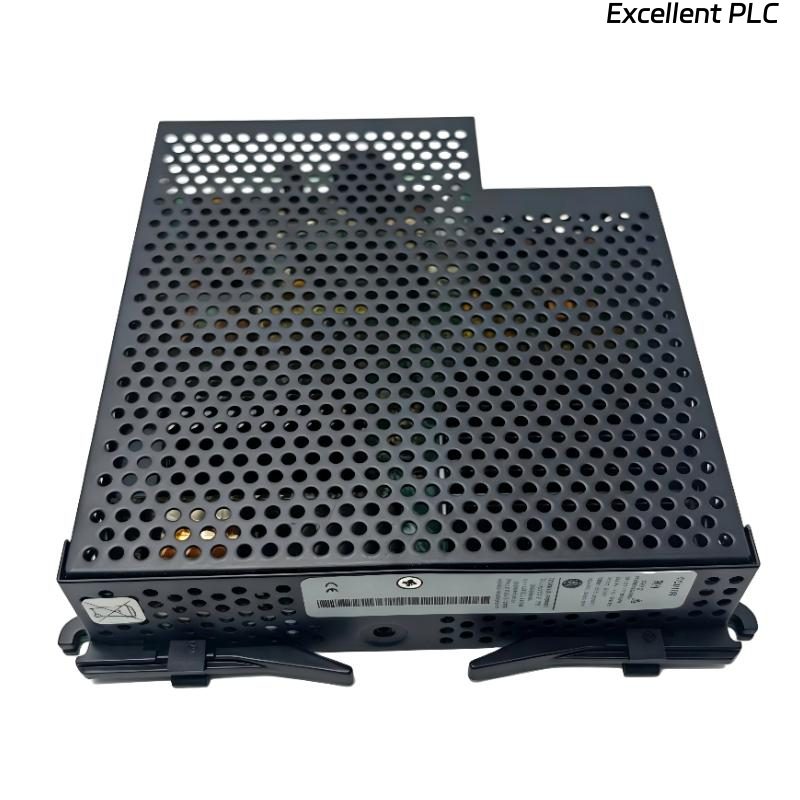

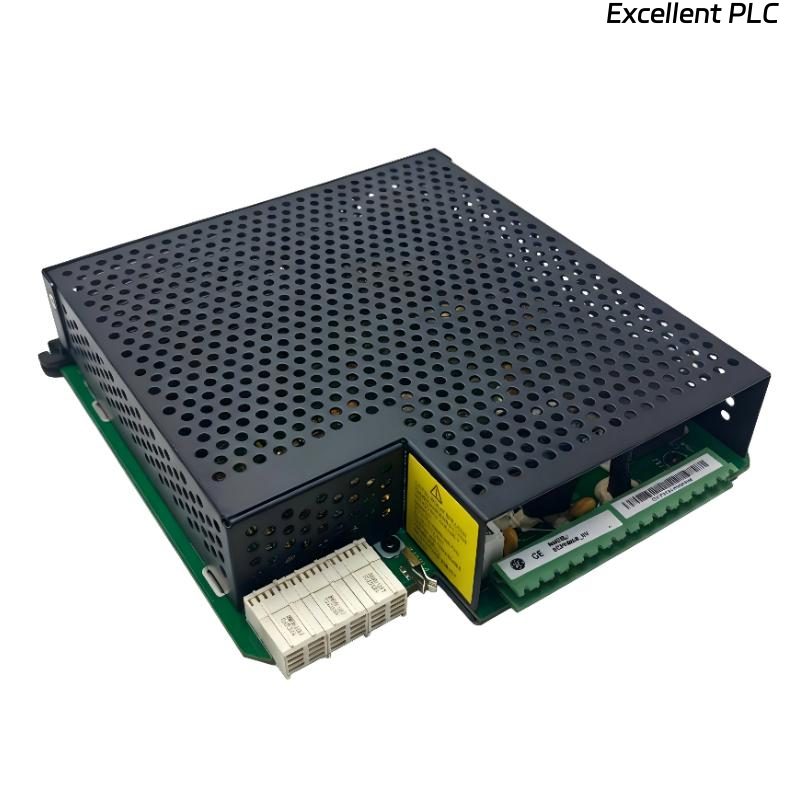

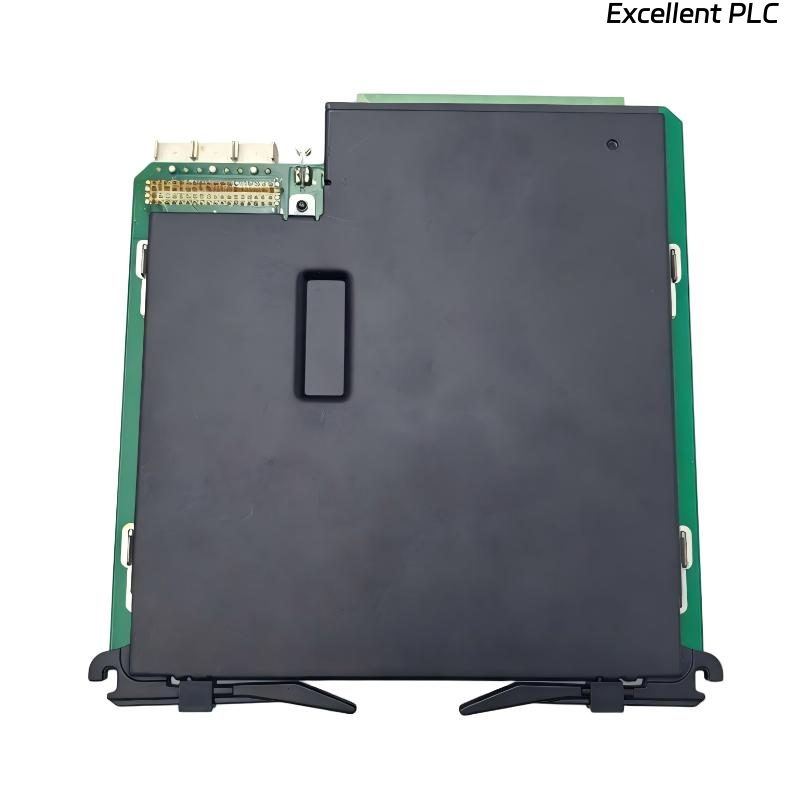

The GE UR RHH Power Supply Module is a high-performance power source designed for GE Mark VI Horizontal Unit control systems. It delivers stable and reliable DC power to control modules, ensuring uninterrupted operation of critical industrial and turbine control equipment. The module supports a wide input voltage range of 100–240 V AC and 125–250 V DC, providing flexibility for integration into diverse power environments.
Engineered for industrial reliability, the UR RHH module maintains consistent voltage and current levels to all connected modules, protecting the control system against voltage fluctuations, surges, and other electrical disturbances. Its compact and rugged design allows straightforward installation within horizontal unit racks while ensuring high availability and operational safety.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | UR RHH |
| Product Type | Power Supply Module |
| System Compatibility | GE Mark VI Horizontal Unit Control System |
| Function | Provides stable DC power to control modules |
| Input Voltage (AC) | 100–240 V AC |
| Input Voltage (DC) | 125–250 V DC |
| Output Voltage | Regulated DC voltage |
| Output Current | Designed for continuous industrial load |
| Mounting Type | Horizontal unit rack-mounted |
| Operating Environment | Industrial and turbine control systems |
| Protection Features | Overvoltage, overcurrent, and short-circuit protection |
| Dimensions | 120 × 30 × 100 mm |
| Weight | 0.7 kg |
Applications
• Turbine Control Systems:
Provides reliable power to CPU, I/O, and interface modules in horizontal unit racks.
• Industrial Automation:
Supplies stable DC power to process control modules, ensuring uninterrupted operation.
• Distributed Control Systems (DCS):
Maintains voltage stability for continuous system operation in critical applications.
• Power Conditioning:
Protects sensitive control electronics from input voltage fluctuations and disturbances.
• Emergency Backup Systems:
Supports redundancy by maintaining stable power in backup or parallel configurations.
Advantages
• Wide Input Voltage Range:
Supports 100–240 V AC and 125–250 V DC, allowing flexible integration in various power environments.
• High Reliability:
Ensures stable DC power delivery to critical control modules under demanding industrial conditions.
• Compact Design:
Optimized for horizontal unit rack installation, saving space while maintaining accessibility.
• Built-in Protections:
Includes overvoltage, overcurrent, and short-circuit protections for enhanced safety.
• Seamless System Integration:
Fully compatible with GE Mark VI Horizontal Unit modules.
• Enhanced Operational Safety:
Maintains uninterrupted module operation even in fluctuating power conditions.
