Honeywell 621-6300 IPC 621 Source Output Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings

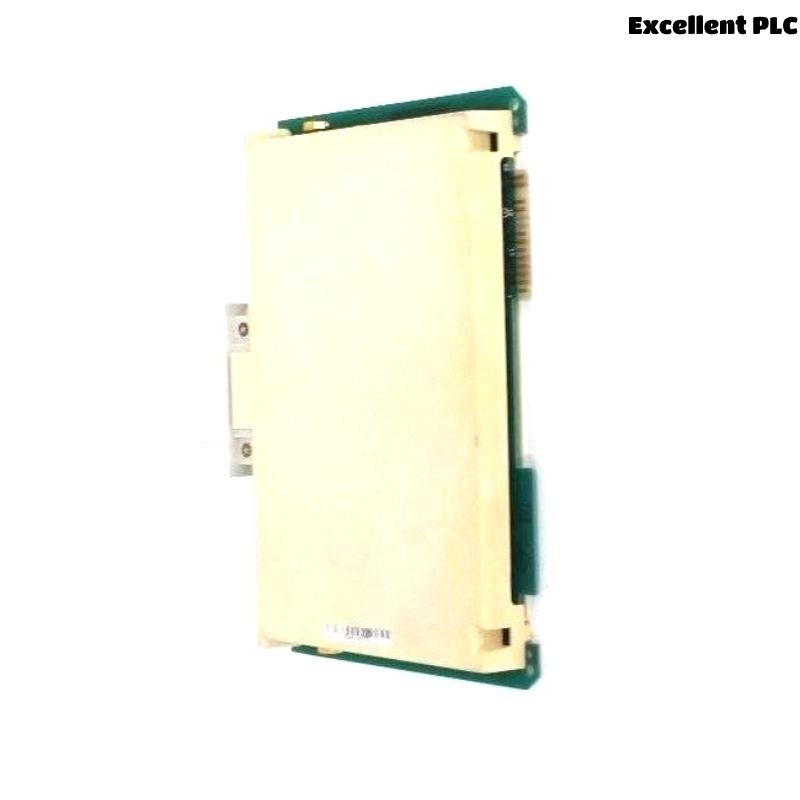

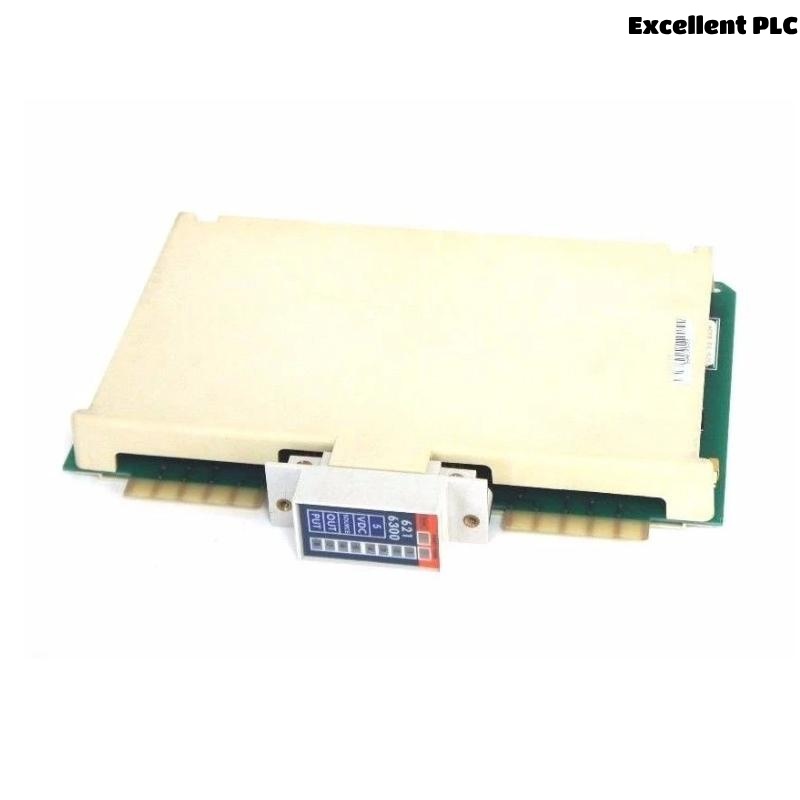

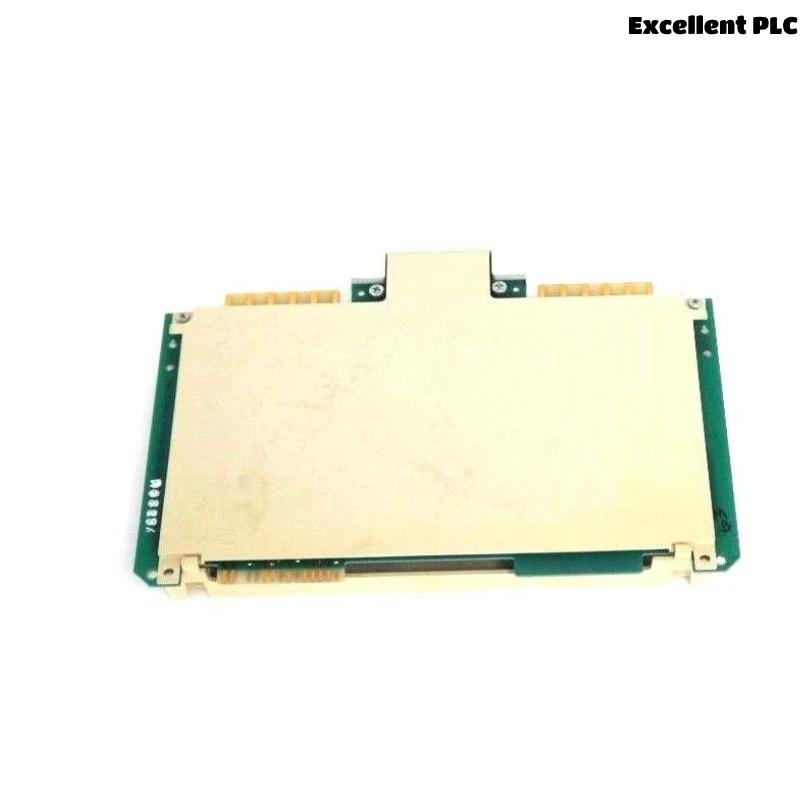

Honeywell 621-6300 IPC 621 Source Output Module
The Honeywell 621-6300 is a Source Output Module designed for industrial control systems. It is a part of the IPC 621 series and is used to provide high-reliability digital output signals to field devices in automation and process control environments.
Product Features
-
Provides reliable source-type digital output signals
-
Designed for industrial-grade signal transmission
-
Compatible with Honeywell IPC 621 control systems
-
DIN rail mountable with compact form factor
-

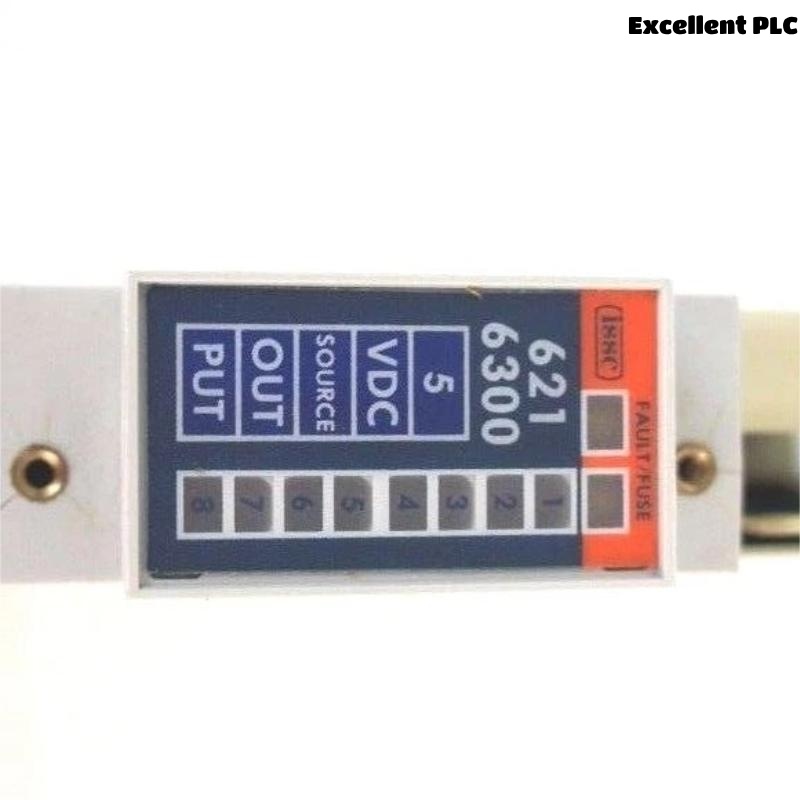

LED indicators for channel status and fault detection
Technical Specifications
| Parameter | Details |
|---|---|
| Module Type | Source Output Module |
| Series | IPC 621 |
| Number of Channels | 16 Channels |
| Output Type | Sourcing (Positive Logic) |
| Output Voltage | 24 VDC nominal |
| Output Current per Channel | Up to 0.5 A |
| Isolation | Channel-to-logic and channel-to-channel isolation |
| Mounting | DIN Rail |
| Indicators | Channel Status LEDs |
| Dimensions (W x H x D) | 118 x 47 x 94 mm |
| Weight | 0.49 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Certifications | CE, UL, CSA |
Application Areas
-
Distributed control systems (DCS)
-
Factory automation
-
Machine control systems
-
Power plant control
-
Oil and gas processing
-
Building management systems
Product Advantages
-
High signal integrity and robust sourcing capability
-
Designed for critical industrial applications
-
Enhanced reliability with fault monitoring
-
Compact and easy to install
-
Compatible with existing IPC 621 architecture
-
Long service life in harsh environments
Frequently Asked Questions (FAQ)
Q1: What is the output voltage of the 621-6300 module?
A1: It provides a nominal output voltage of 24 VDC.
Q2: How many channels are available on this module?
A2: The module offers 16 digital sourcing output channels.
Q3: Can it be used with third-party controllers?
A3: It is optimized for Honeywell IPC 621 systems but may work with others depending on compatibility.
Q4: Is the module hot-swappable?
A4: No, it should be powered down before removal or replacement.
Q5: What type of wiring is supported?
A5: Standard industrial 2-wire or 3-wire configurations are supported.
Q6: What is the maximum current output per channel?
A6: Each channel can source up to 0.5 A.
Q7: Does it support short circuit protection?
A7: Yes, it includes overcurrent and short circuit protection.
Q8: What is the physical size of the module?
A8: The module measures 118 x 47 x 94 mm.
Q9: What is the weight of the 621-6300?
A9: It weighs 0.49 kg.
Q10: Is the module suitable for high-vibration environments?
A10: Yes, it is designed for industrial use including high-vibration areas.
Related or Same Series Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 621-2100 | Analog Input Module | 118 x 47 x 94 | 0.50 |
| 621-2200 | Analog Output Module | 118 x 47 x 94 | 0.48 |
| 621-3100 | Digital Input Module | 118 x 47 x 94 | 0.47 |
| 621-3200 | Digital Output Module | 118 x 47 x 94 | 0.49 |
| 621-3300 | Isolated Output Module | 118 x 47 x 94 | 0.49 |
| 621-3400 | Relay Output Module | 118 x 47 x 94 | 0.52 |
Popular Honeywell Models
| Model | Description | Dimensions (mm) | Weight (kg) |
|---|---|---|---|
| 8C-PAOHA1 | Analog Output w/ HART Module | 100 x 40 x 120 | 0.42 |
| 8C-PDILA1 | Digital Input Module | 100 x 40 x 120 | 0.44 |
| 8C-PCNT01 | C300 Controller Module | 160 x 60 x 140 | 0.90 |
| FC-IO-0001 | I/O Expansion Module | 125 x 45 x 100 | 0.48 |
| 900SP1-0300 | HC900 Expansion Processor Module | 130 x 55 x 125 | 0.51 |
| 8C-TAIDA1 | Analog Input IOTA | 100 x 40 x 120 | 0.45 |
