Honeywell 900C70S-0460 Controller C70 CPU Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview

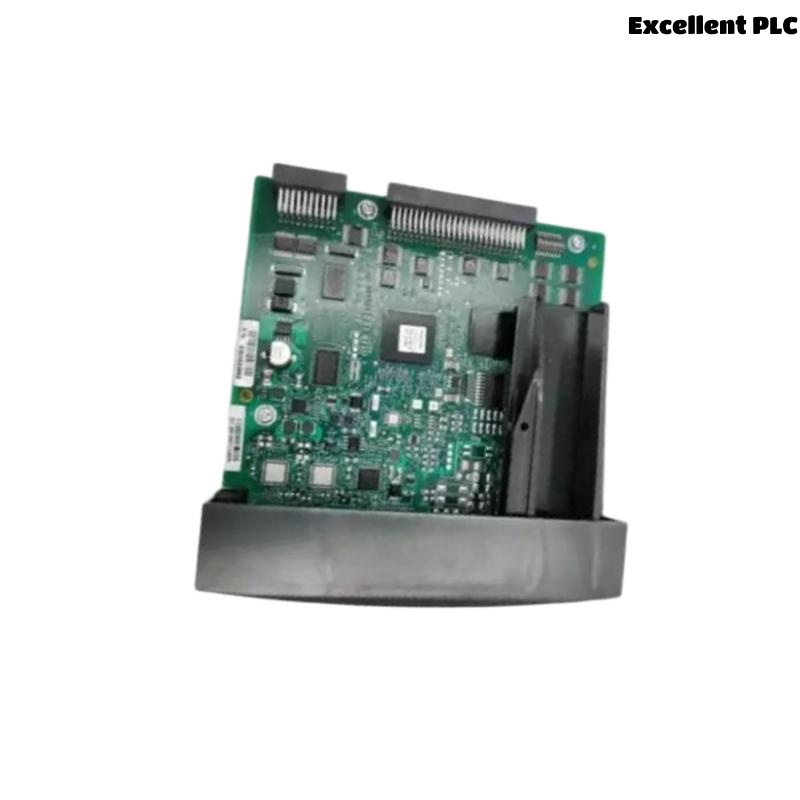

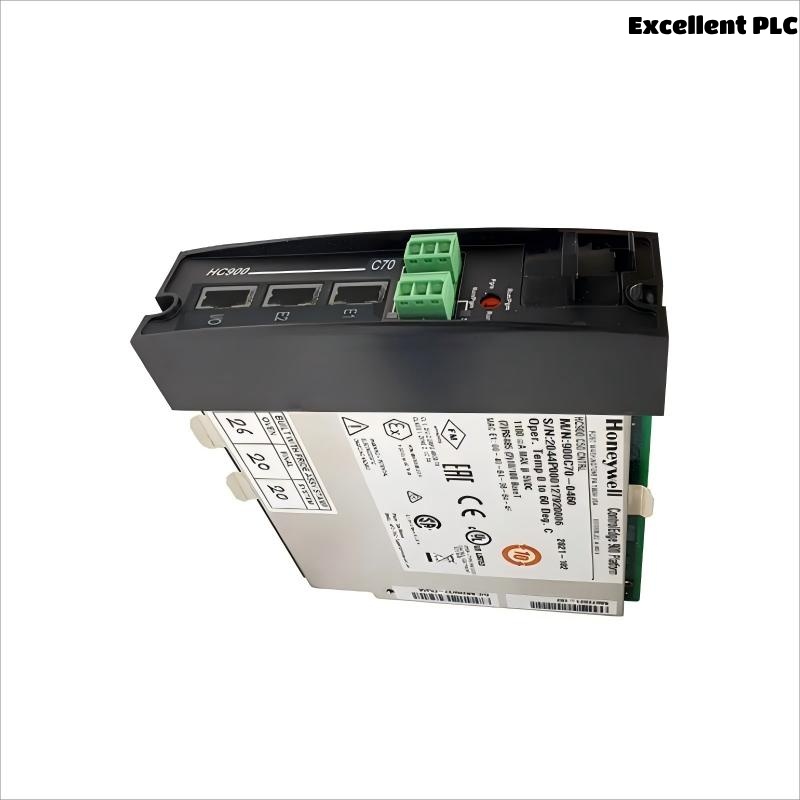

The Honeywell 900C70S-0460 is a safety-certified CPU module in the ControlEdge HC900 family. It is engineered for applications requiring SIL-rated safety and process control in a modular, DIN-rail mounted architecture. Suitable for complex safety loops and critical systems, it integrates both safety and logic control in one unit.
Applications
-
Burner Management Systems (BMS)
-
High-integrity process protection systems
-
Furnace and boiler controls
-
Thermal oxidizers
-
Combustion control systems
-
Incinerator and kilns
Key Advantages
-
Certified for SIL2/SIL3 safety applications
-
Supports redundant architecture
-
Integrated safety and process control in one platform
-
Compact form factor for space efficiency
-
Hot-swap I/O for minimal downtime
-
Compatible with a wide range of I/O and communication modules
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 900C70S-0460 |
| Product Type | Safety CPU Module |
| Platform | ControlEdge HC900 |
| Safety Certification | SIL2 / SIL3 (IEC 61508) |
| Execution Speed | Fast loop and logic scan times |
| Power Consumption | 7.1 W |
| Installation | DIN rail mounting |
| Dimensions (H × W × D) | 137 × 38.1 × 151.7 mm |
| Weight | 0.4 kg |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 10% to 90%, non-condensing |
| Module Status Indicator | Tri-color LED |
| Configuration | Process Control Designer (PCD) software |
FAQs
Q1: What is the primary function of the 900C70S-0460 module?
A1: It serves as a safety-rated CPU for the ControlEdge HC900 platform, integrating both safety and logic control.
Q2: Is this module suitable for SIL 3 applications?
A2: Yes, it is certified for use in SIL2 and SIL3 safety applications under IEC 61508.
Q3: Can this module be used with standard and safety I/O?
A3: Yes, it supports both standard and safety I/O modules on the same platform.
Q4: Is it possible to replace this module under power?
A4: Yes, it supports hot swapping to minimize process downtime.
Q5: What is the physical size of the 900C70S-0460?
A5: The module measures 137 × 38.1 × 151.7 mm.
Q6: Does it support redundant configurations?
A6: Yes, it supports redundancy for higher availability in critical systems.
Q7: How is the module configured?
A7: Configuration is done using Honeywell’s Process Control Designer (PCD) software.
Q8: What is the LED indicator used for?
A8: A tri-color LED provides module status (OK, Fault, Override).
Q9: What is the module’s power requirement?
A9: It consumes approximately 7.1 watts of power.
Q10: What industries typically use the 900C70S-0460?
A10: Common industries include oil & gas, power generation, chemicals, and heavy manufacturing.
Recommended Related Models
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 900C30S-0460 | ControlEdge HC900 Safety CPU C30 | 137 × 38.1 × 151.7 | 0.35 kg |
| 900C50S-0460 | ControlEdge HC900 Safety CPU C50 | 137 × 38.1 × 151.7 | 0.36 kg |
| 900C70-0460 | ControlEdge HC900 Standard CPU C70 | 137 × 38.1 × 151.7 | 0.4 kg |
| 900C75S-0460 | ControlEdge HC900 Safety CPU C75 | 137 × 38.1 × 151.7 | 0.4 kg |
| 900R08-0200 | 8-slot I/O Rack | 137 × 419.1 × 151.7 | 3.13 kg |
| 900S75S-0460 | ControlEdge HC900 Safety Scanner Module | 137 × 38.1 × 151.7 | 0.4 kg |
Popular Honeywell Models
| Model Number | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| 8C-PCNT01 | C300 Controller | 254 × 50.8 × 243.8 | 1.9 kg |
| 8C-PAOHA1 | Analog Output with HART | 134 × 30 × 145 | 0.3 kg |
| 8C-PAINA1 | Analog Input with HART | 134 × 30 × 145 | 0.3 kg |
| 8C-PDODA1 | Digital Output Module | 134 × 30 × 145 | 0.3 kg |
| 900P01-0301 | Power Supply Module, 120/240 VAC | 137 × 72.6 × 151.7 | 0.82 kg |
| 900R12-0200 | 12-slot I/O Rack | 137 × 571.5 × 151.7 | 4.07 kg |
