Honeywell 900P01-0501 ControlEdge HC900 Power Supply Module
- Product Details
- FAQs
- Related
- Contact Us
- Packing & Delivery
- Product Ratings
Product Overview

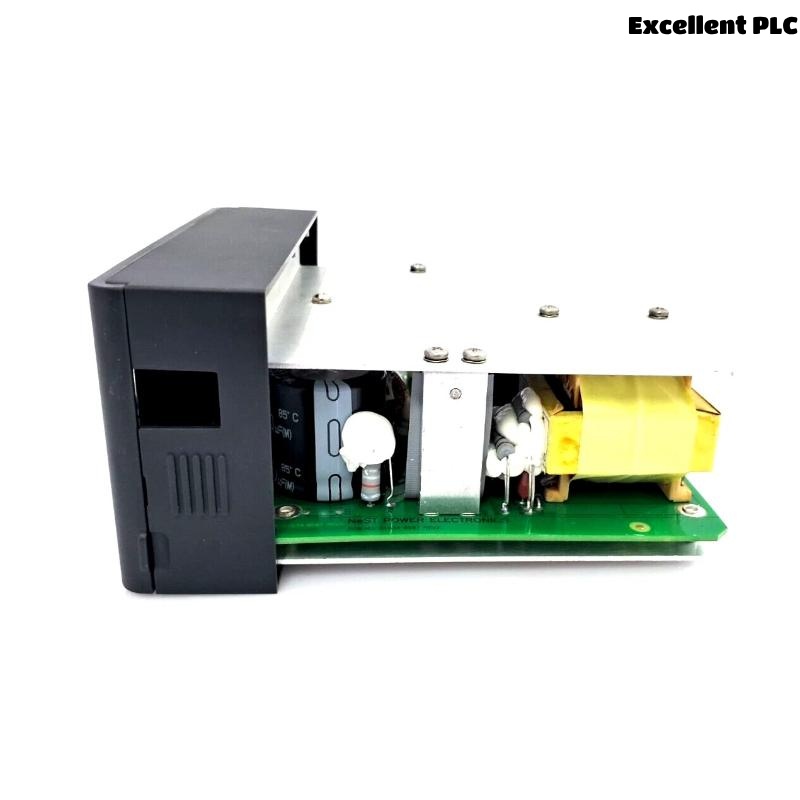

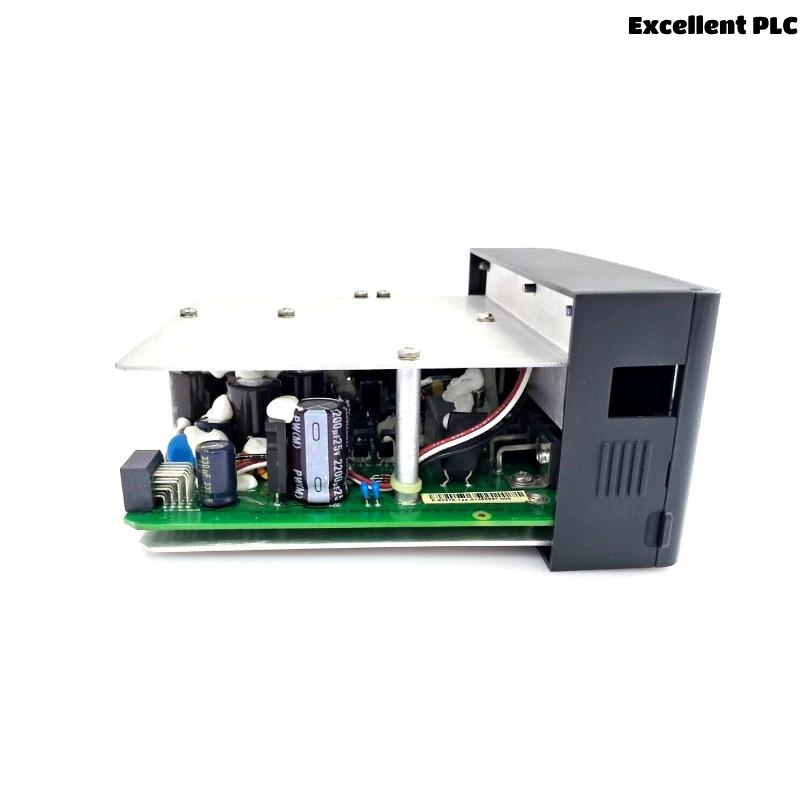

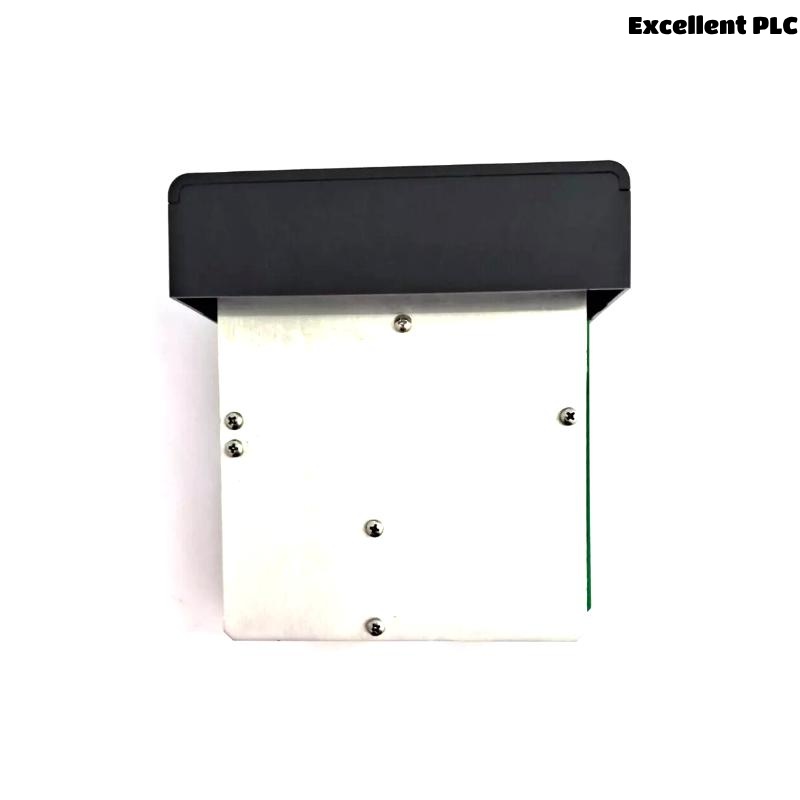

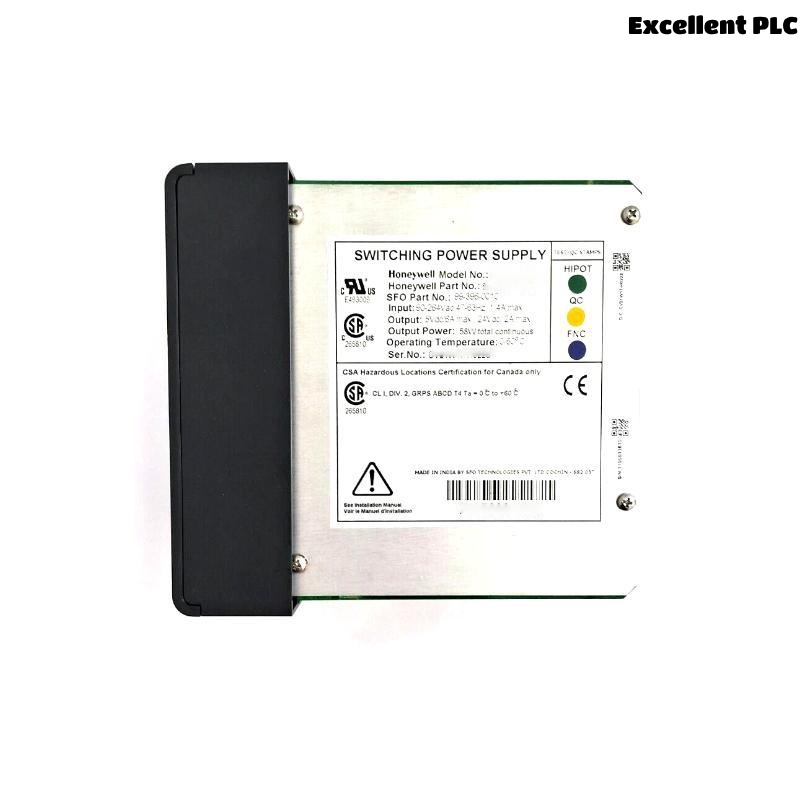

The Honeywell 900P01-0501 is a robust 120/240 VAC power supply module designed for the ControlEdge HC900 Programmable Logic Controller (PLC) system. It offers dependable and efficient power conversion, ensuring system stability for mission-critical industrial automation applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 900P01-0501 |
| Input Voltage | 120/240 VAC |
| Input Frequency | 47 to 63 Hz |
| Output Voltage | 24 VDC (regulated) |
| Output Power | 58 W |
| Dimensions (H x W x D) | 137 x 72.6 x 151.7 mm |
| Weight | 0.82 kg |
| Operating Temperature | -20°C to +55°C |
| Mounting | Rack-mounted in HC900 system |
| Compatibility | ControlEdge HC900 I/O rack |
Applications
-
Powering ControlEdge HC900 I/O modules
-
Use in Distributed Control Systems (DCS)
-
Process automation in oil & gas, chemical, and utilities
-
Reliable power source for PLC systems requiring AC input
Advantages
-
Wide Voltage Range: Operates on both 120 VAC and 240 VAC inputs
-
Compact Design: Saves panel space with efficient form factor
-
Stable Output: Regulated 24 VDC output ensures system integrity
-
System Integration: Seamless compatibility with HC900 rack
-
Industrial-Grade Reliability: Designed for rugged environments
FAQs
Q1: What input voltages does the 900P01-0501 accept?
A1: It accepts 120 VAC or 240 VAC, 47–63 Hz input.
Q2: What is the output voltage of this module?
A2: It provides a regulated 24 VDC output.
Q3: Is it compatible with other Honeywell PLC platforms?
A3: It is specifically designed for the HC900 series and may not be compatible with other platforms.
Q4: What is the power rating of this module?
A4: The module delivers 58 watts of power.
Q5: How is it mounted?
A5: It is rack-mounted in the ControlEdge HC900 chassis.
Q6: What is the size of this module?
A6: The dimensions are 137 mm x 72.6 mm x 151.7 mm.
Q7: What is the weight of the module?
A7: The unit weighs 0.82 kg.
Q8: Can it operate in extreme temperatures?
A8: Yes, it supports operation from -20°C to +55°C.
Q9: Is this module hot-swappable?
A9: No, the power supply should be replaced only when the system is powered down.
Q10: Does the module provide any diagnostic indication?
A10: Yes, it includes status LEDs for operational diagnostics.
Related ControlEdge HC900 or Compatible Models
| Model Number | Description | Input Voltage | Output | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 900P24-0501 | 24VDC Power Supply Module | 24 VDC | 24 VDC | 137 x 72.6 x 151.7 | 0.82 kg |
| 900CP1-0200 | Control Processor Module | – | – | 137 x 72.6 x 151.7 | 0.68 kg |
| 900SP1-0200 | Expansion Processor Module | – | – | 137 x 72.6 x 151.7 | 0.72 kg |
| 900ES1-0100 | Serial Communication Module | – | – | 137 x 72.6 x 151.7 | 0.75 kg |
| 900A01-0202 | Universal Analog Input Module (8-Channel) | – | – | 137 x 72.6 x 151.7 | 0.79 kg |
| 900B01-0301 | Analog Output Module (4-Channel, 0–20 mA) | – | – | 137 x 72.6 x 151.7 | 0.78 kg |
Popular Honeywell Models
| Model Number | Description | Input Voltage | Output | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| 8C-PAOHA1 | Analog Output HART Module – Single Ended | – | – | 137 x 72.6 x 151.7 | 0.79 kg |
| 8C-PCNT01 | C300 Controller Module | – | – | 137 x 72.6 x 151.7 | 0.85 kg |
| 8C-PDILA1 | Digital Input Module (24VDC) | 24 VDC | – | 137 x 72.6 x 151.7 | 0.76 kg |
| 8C-PDODA1 | Digital Output Module (24VDC) | – | 24 VDC | 137 x 72.6 x 151.7 | 0.77 kg |
| 8C-TAIDA1 | Analog Input IOTA | – | – | 137 x 72.6 x 151.7 | 0.79 kg |
| 900P01-0701 | Extended Temp 120/240VAC Power Supply | 120/240 VAC | 24 VDC | 137 x 72.6 x 151.7 | 0.83 kg |
